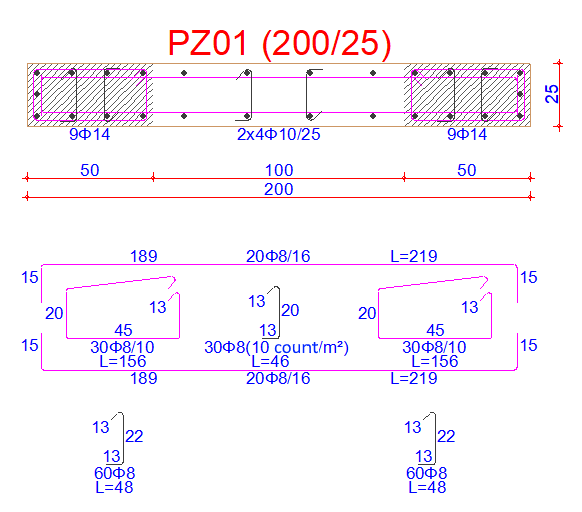

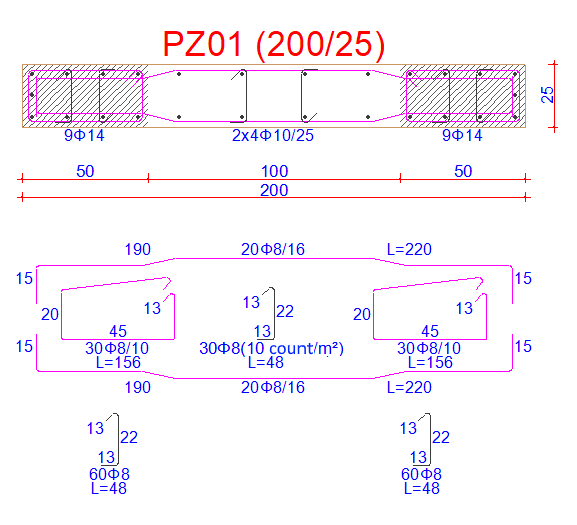

Drawing of Shearwall Horizontal Body Steel Inside/Outside with Bend

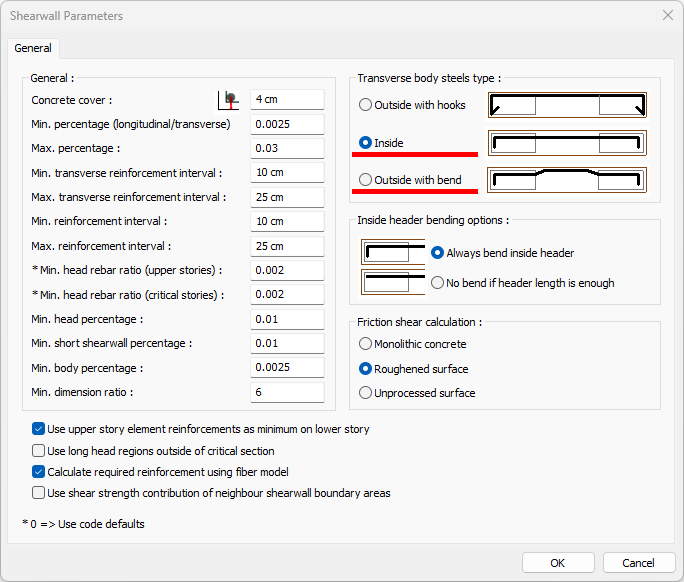

The option of drawing the shearwall horizontal reinforcement according to the vertical steels without hooks from inside or outside is available in the "Analysis and Design/Design Parameters/Shearwall Parameters"  dialog given in TBDY 2018  .

Usage steps:

• Click Analysis and Design/Design Parameters/Shearwall Parameters. Choose the option and close the dialog.

• Analyze the project..

• Shearwall details will be prepared according to your choice.
