Hatch Offset Distance

With the Offset distance feature, the hatch is moved out of defined borders or pulled in.

Location of the Offset Distance Feature

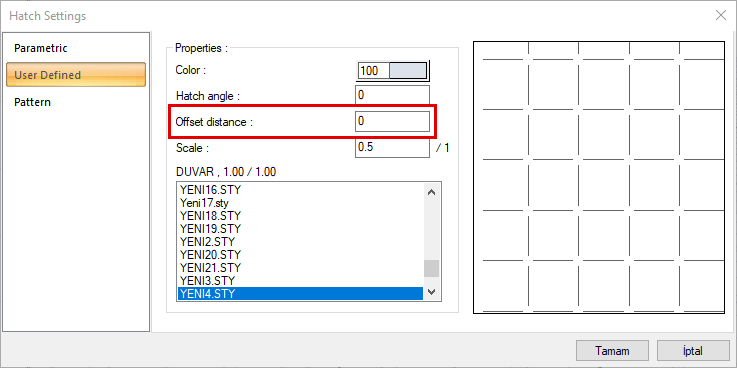

You can access it from the Parametric/User defined/Bitmap hatch settings dialog.

When the offset distance value is 0

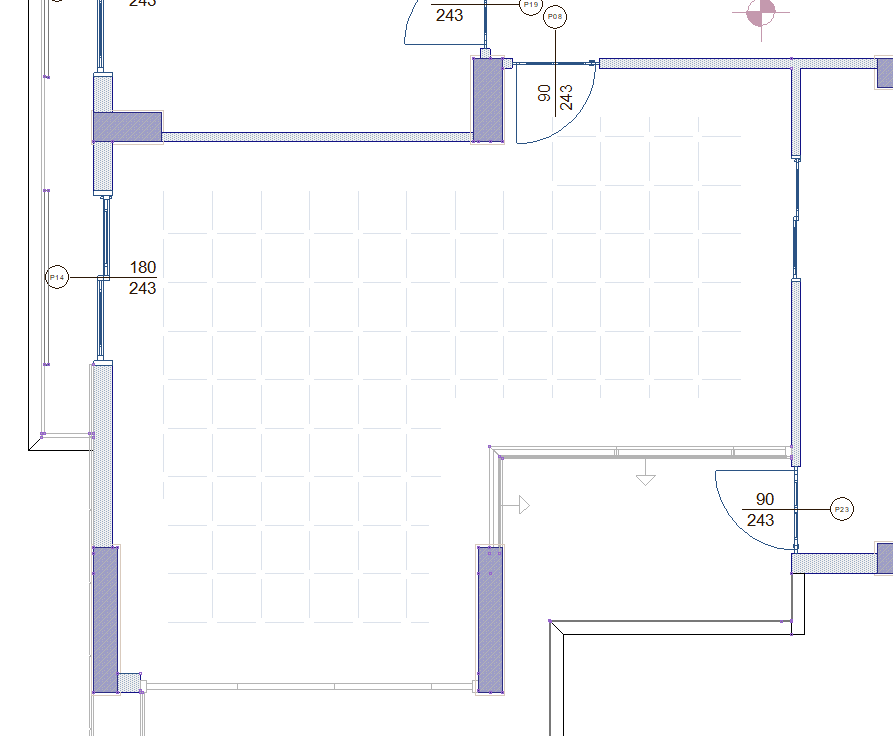

When the offset distance value is -50

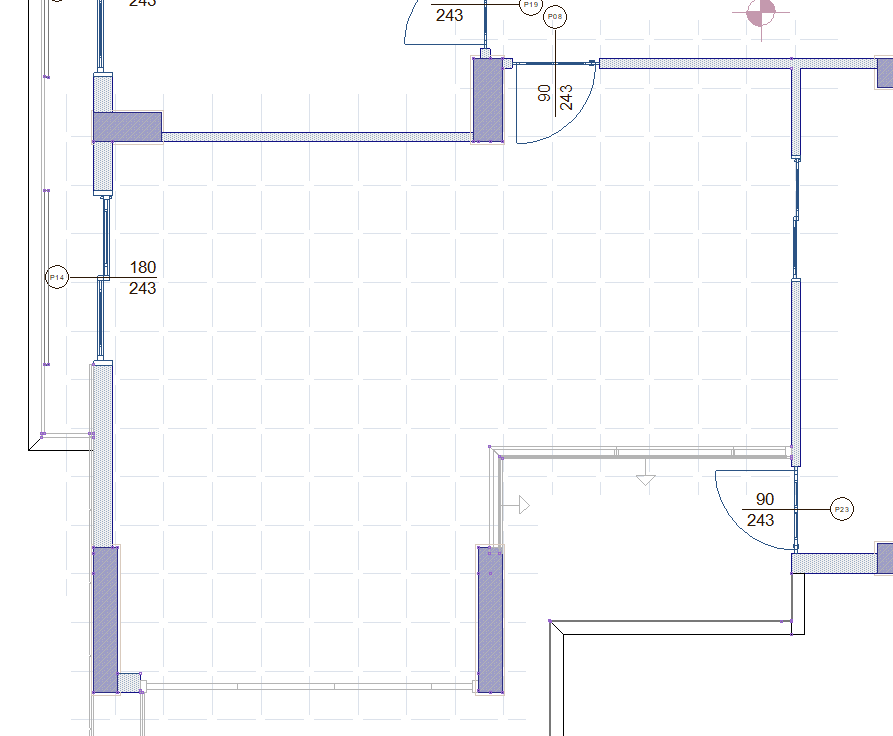

When the offset distance value is 50
