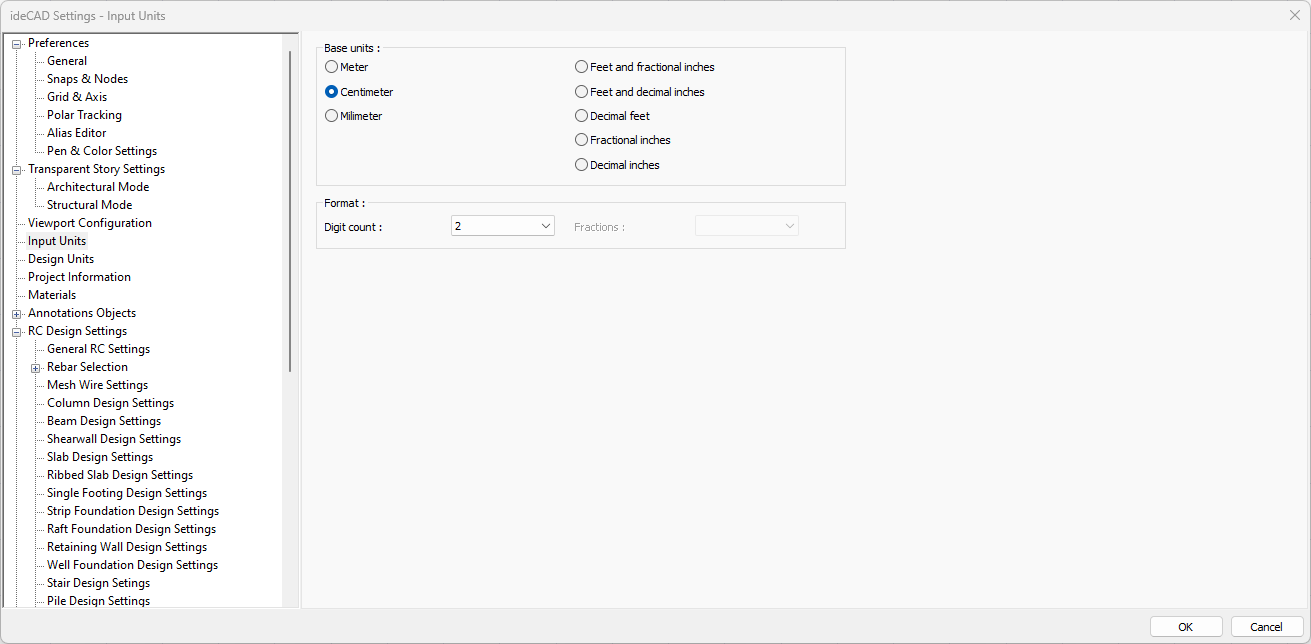

Input Units Tab

Which unit to use is determined in the Input Units tab. The unit selected in this tab is effective in all dialogs, coordinates and dimensions.

Specifications

Meter

If checked, all units are meters. The variables, coordinates, dimensions in the dialogs are defined in meters.

Centimeter

If checked, all units are centimeters. The variables, coordinates and dimensions in the dialogs are defined in centimeters.

Millimeter

If checked, all units are millimeters. The variables, coordinates and dimensions in the dialogs are defined in millimeters.

Feet and fractional inches

If checked, all units are feet and fractional inches. The variables, coordinates and dimensions in the dialogs are defined in this unit. The unit format is for example 15 '-10 3/4 ".

Feet and decimal inches

If checked, all units are feet and decimal places inches. The variables, coordinates and dimensions in the dialogs are defined in this unit. The unit format is eg 15 '- 10.7 ".

Decimal feet

If checked, all units become feet with decimal places. The variables, coordinates and dimensions in the dialogs are defined in this unit. The unit format is for example 15.89 '.

Fractional inches

If checked, all units are fractional inches. The variables, coordinates and dimensions in the dialogs are defined in this unit. Unit format is for example 1901/2 .

Decimal inches

If checked, all units are inches with decimal places. The variables, coordinates and dimensions in the dialogs are defined in this unit. The unit format is for example 190.7 ".

Digit count

It determines how many digits will be shown after the comma. The desired number is selected from the list. For example, if 2 is selected, units will be shown as two digits after the comma. If 0 is selected, units will not be shown after the comma.

Fractions

It determines the precision of the dimension to be made in fractional inch format. In the list, there are options with a sensitivity of 1/2, ¼, 1/8, 1/16, 1/32, 1/34. If "no fraction" is selected, units will appear without fractions.

Also, there is a "Units" tab in the settings of some objects, such as door / window and dimensioning settings. The setting made here is used for the object in question.
