Creates a new blank layout for the layout design. While creating the layout, the layout dimensions, borders, margins, etc. The settings related to the layout are made.

Location of the Create New Layout Command

In the Architectural Program

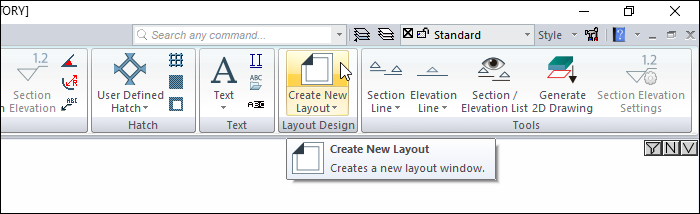

You can access it under the ribbon menu Drawings tab, Layout Design heading.

In the Structural Program

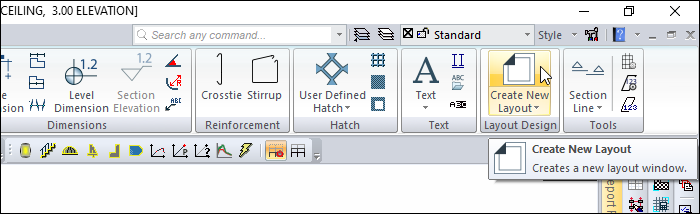

You can access it under the ribbon menu Drawings tab, Layout Design heading.

Usage Steps

  • Click the Create New Layout icon.

  • The Layout Settings dialog will open.

  • Make the necessary settings in this dialog.

  • Click the OK button.

  • A new sheet will be created.

New sheet
