Layout Block Settings

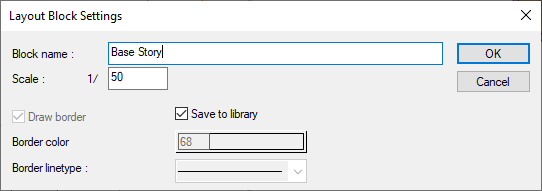

Block settings are included in the layout block settings dialog.  The Layout Block Settings opens at the end of the layout block creation process .

In addition, the layout block settings dialog can be accessed by double clicking with the left mouse button on the layout block placed on the layout.

Specifications

Block Name

The name of the block layout block.

Scale

The scale of the justified sheet block.

Draw border

Allows a line to be drawn around the justified layout block.

Save to library

Saves the blocked layout block to the archive.

Border color

The color of the line drawn around the layout block is set.

Border linetype

The line type of the line drawn around the layout block is set.
