Angled beams are not constantly scratching.

For drawing angled beams continuously;

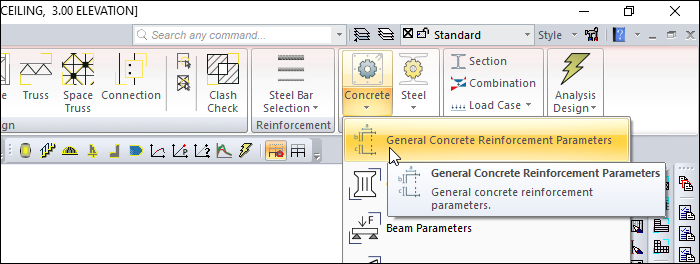

  • Click on the General Concrete Reinforcement Parameters row from the Concrete icon under the analysis and design tab Design Parameters title in the ribbon menu.

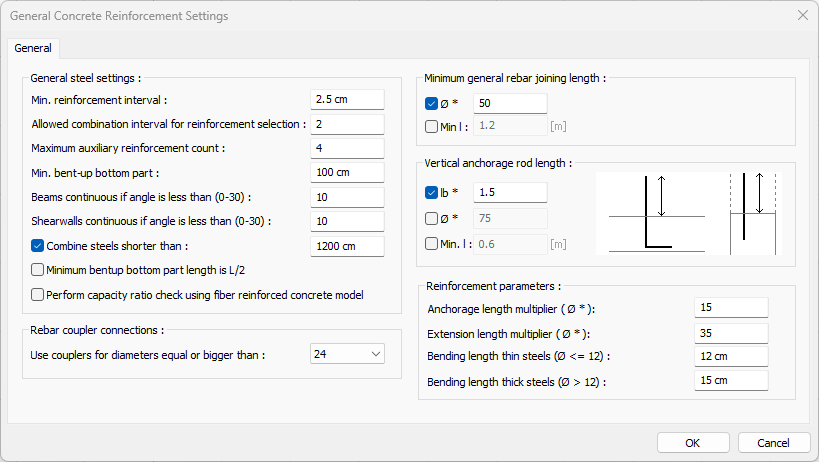

  • In the general reinforced concrete settings dialog, the angle value must be entered in the "Shearwalls continuous if angle is less than" line. (Maximum 30 degrees can be entered.)

  • When you click the OK button, your angled beams will be drawn continuously.

If the viewing direction of the beams is different, the direction of view should be made the same with the Set Entity Direction command.

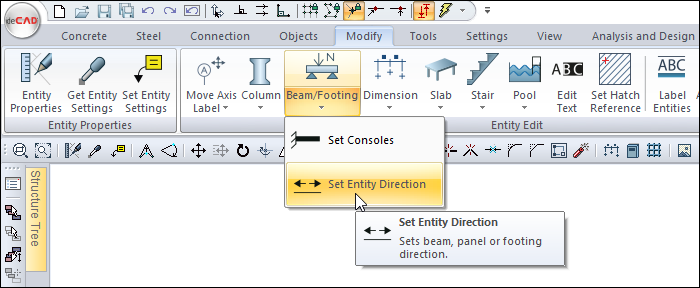

  • In the ribbon menu, click the modify tab Entity Edit header Set entity direction icon.

  • Select the beam you want to change its direction.

  • Quit the command by pressing the Esc key on the keyboard.
