Determination of Anchor Layout

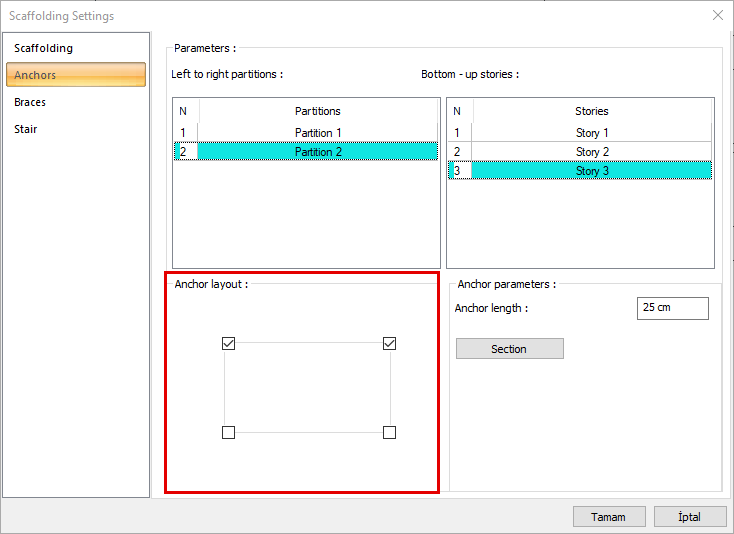

Anchor locations are determined on the scaffolding with Anchor Layout settings. The anchor layout setting is accessed from the anchors tab of the scaffolding settings dialog.
Location of Anchor Layout Settings

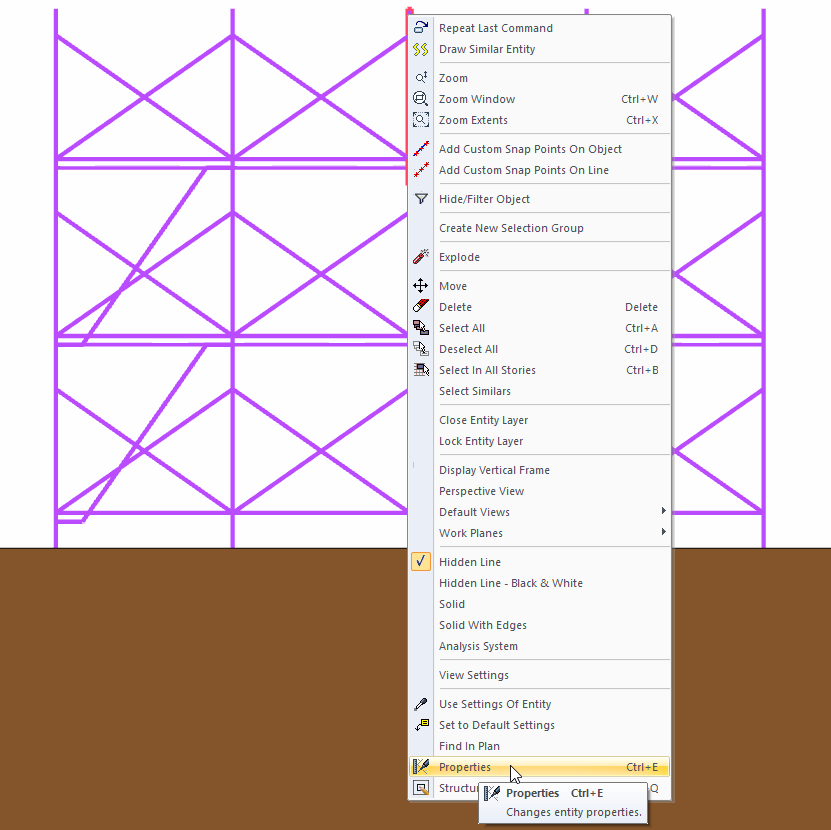

Select the scaffolding for which you want to change the anchor layout settings and click the right mouse button. Click Properties from the right-click menu that opens .
You can also access the scaffolding settings dialog by double-clicking on your scaffolding with the left mouse button.
Usage Steps
Enter the scaffolding settings dialog.
Enter the Anchors tab.
Select the partition in which the anchor layout will be arranged and the stories in which they are located.
On the anchor layout schematic, mark the corners where the anchors will be placed.
Click the OK button to close the dialog.
Your scaffolding will change according to the changes you make.
Anchor layout is considered in the analysis model.

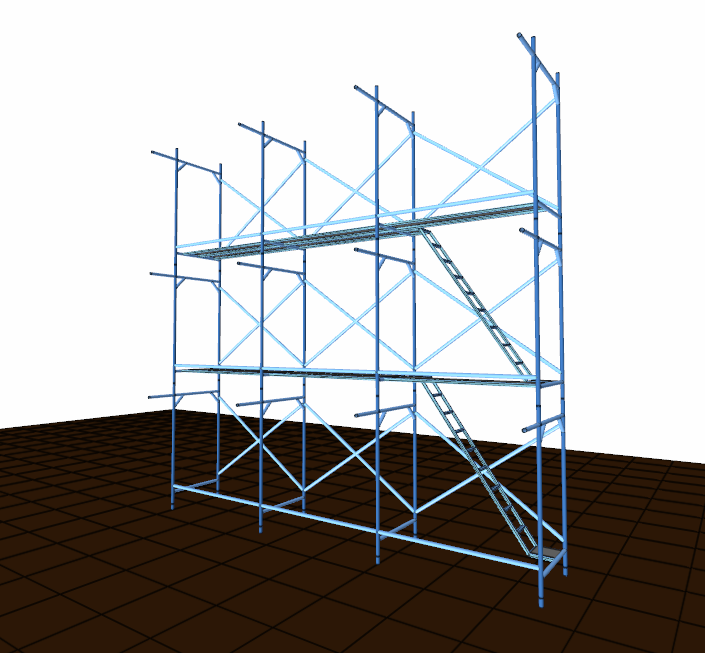

Scaffolding view before anchor layout arrangement |
 |
 |
Scaffolding view after anchor layout arrangement |
 |
 |
Partition and Story Selection
Anchor settings can be made separately for all partitions in the scaffolding. You can select stories from the bottom-up stories section. You can select the partitions in the selected stıories from the left to right partitions section. If you select by holding down the Ctrl key, you can make multiple selections.

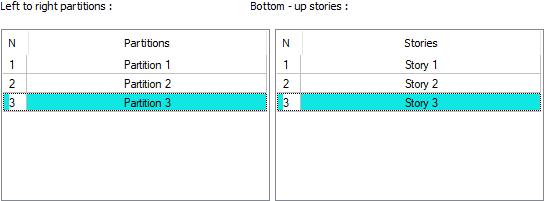

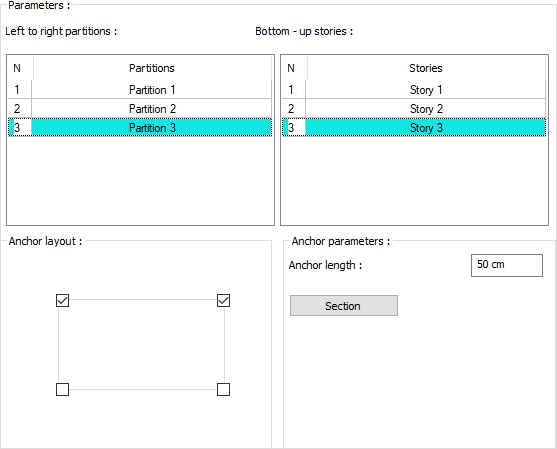

Single partition and story selection |
 |

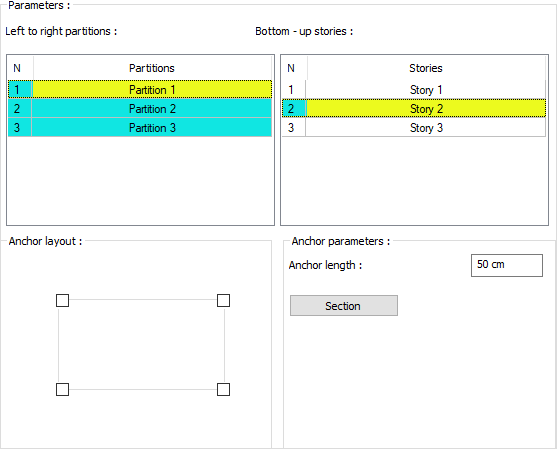

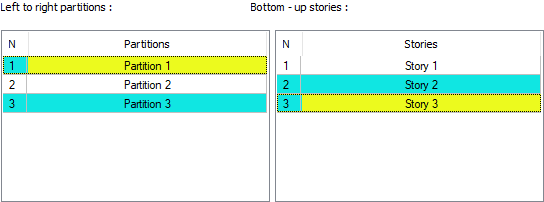

Multiple partition and story selection |
 |
