How can I define the elevator pit in raft foundation?

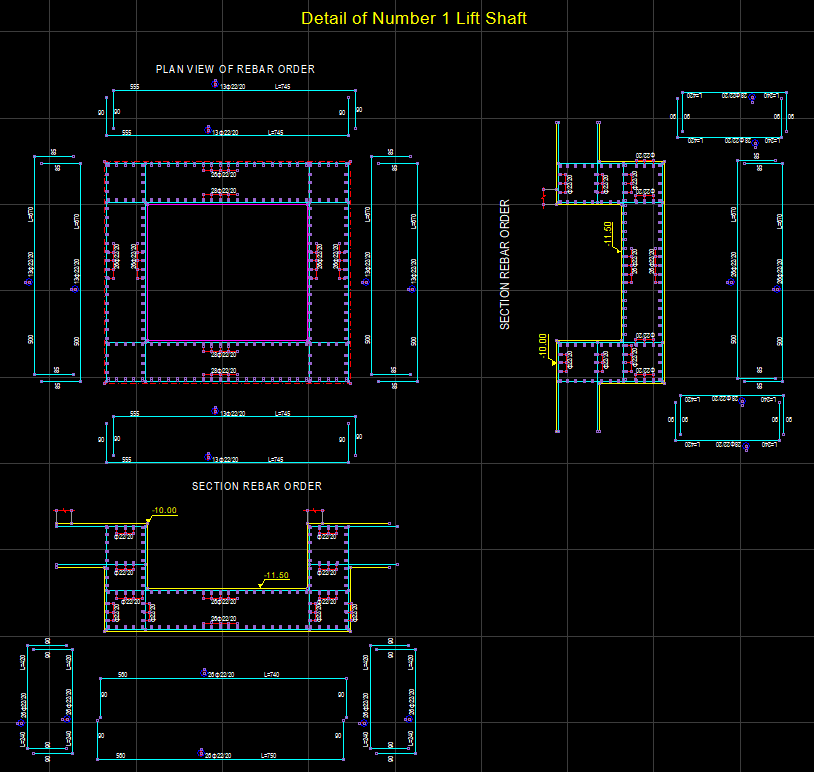

Lift shafts on the raft foundation should not be defined in the structural analysis model. The raft foundation can be analyzed without a pit and then the elevator pit details can be given separately in the foundation drawings. Detail of an elevator pit as in the picture; can be done using 2D possibilities in the program.

Sample ideCAD block file:

Lift Shaft.BLK
