Creating a Free Dimension
Free dimension is the type of dimension that can be used anywhere, dimension between given points. Changing the location of the measured points does not affect free dimensions. In this case, it is necessary to measure again.
Location of the Free Dimension Command
In the Architectural Program

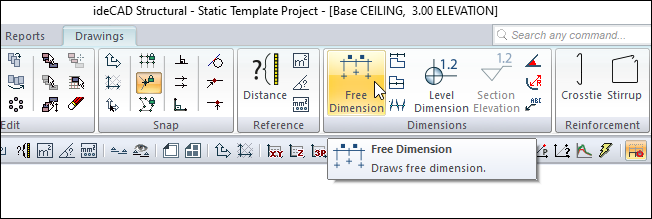

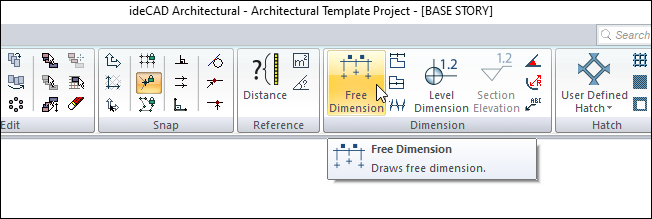

You can access it under the ribbon menu Drawings tab, Dimension heading.
In Structural Program
You can access it under the ribbon menu Drawings tab, Dimension heading.
Dimension Toolbar
Icons |
|---|
Outer dimension  Outer dimension command runs. |
Inner dimension  Inner dimension command runs. |
Free dimension  Free dimension command runs. |
Intersection dimension  Intersection dimension command runs. |
Label  Runs the label command. The dimension label is drawn. |
Level dimension  Draws level dimension in the plan window. |
Section elevation  It is used for section elevation in section and view windows. Only active in 2D drawing windows. |
Angle dimension  Dimensions the angle between two objects. |
Radius dimension  Dimensions entities drawn with a circle or arc and arc or circle axis in diameter or radius. |
Section dimension group  Creates a section dimension group. It is active in section and view windows. |
Section dimension  Creates a section dimension. It is active in section and view windows. |
Include beams  Include beams in dimension. |
Include slabs  Include slabs in section dimension. |
Include details  Include door/window elements in section dimension. |
Left side  Places the section dimension on the left. |
Right side  Places the section dimension on the right. |
Settings  When clicked, which dimension type is active (inner, outer, intersection etc.) opens the dimension settings dialog where the parameters related to that dimension are found. |
Usage Steps
To create a free dimension:
Click the Free Dimension icon in the ribbon menu .
Mark the points you want to measure by clicking with the left mouse button.
Click the right mouse button after marking the points.
Determine the dimension line by clicking two points in the drawing area with the left mouse button. The marked points will be dimensioned.
Usage step |
|---|

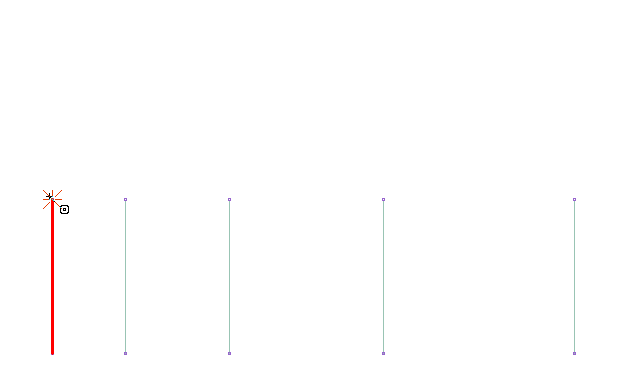

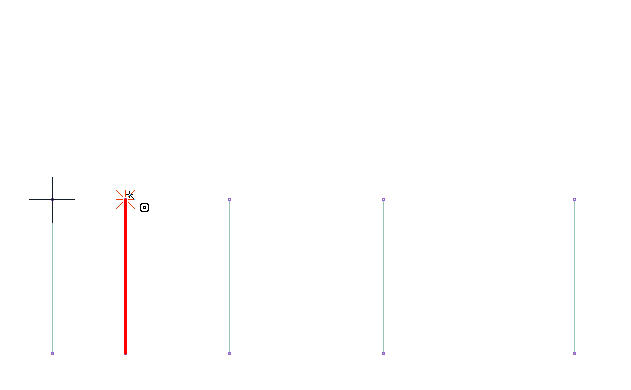

Selection of the first point to be dimensioned  |
Selection of the second point to be dimensioned  |

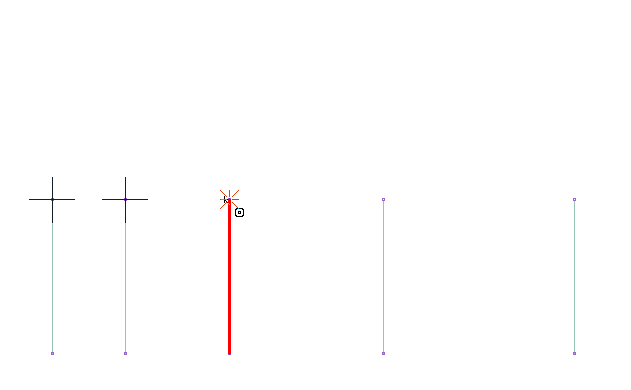

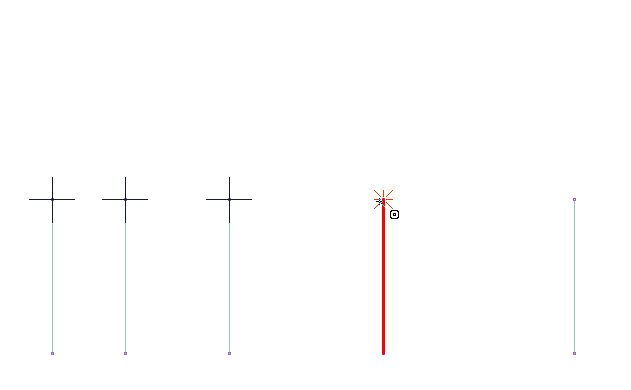

Selection of the third point to be dimensioned  |

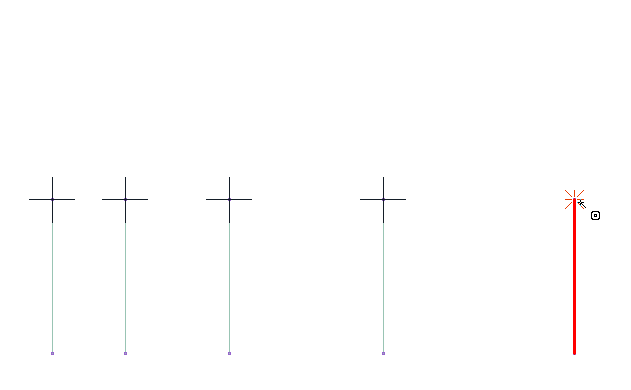

Selection of the fourth point to scale  |

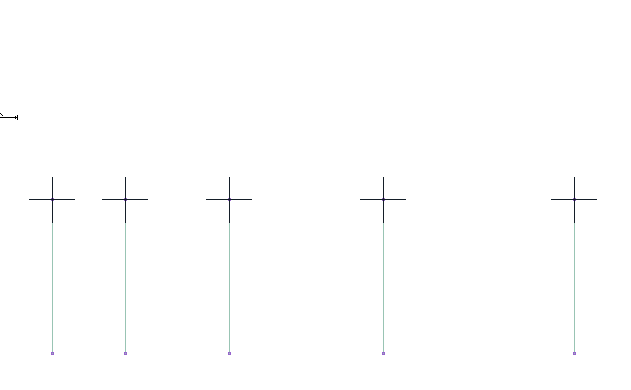

Selecting the fifth point to be dimensioned and clicking the right mouse button to end the selection process.  |

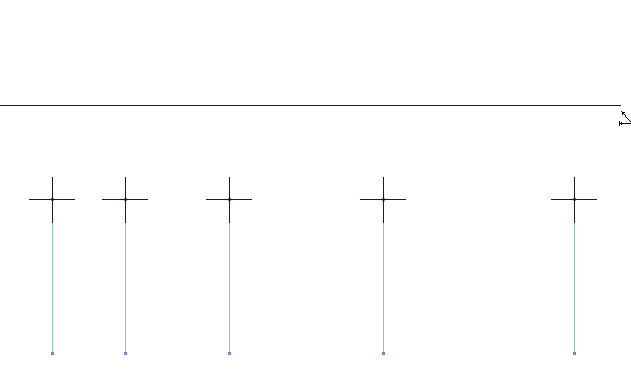

Giving the first point for the dimension line  |
Giving the second point for the dimension line  |

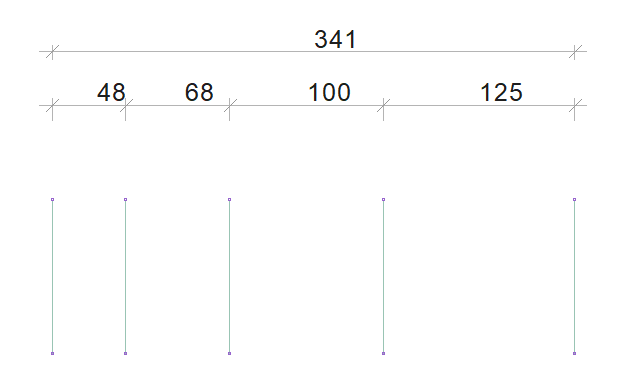

Formation of the free dimension  |
Location of the Free Dimension Settings Dialog
Free Dimension Command Settings

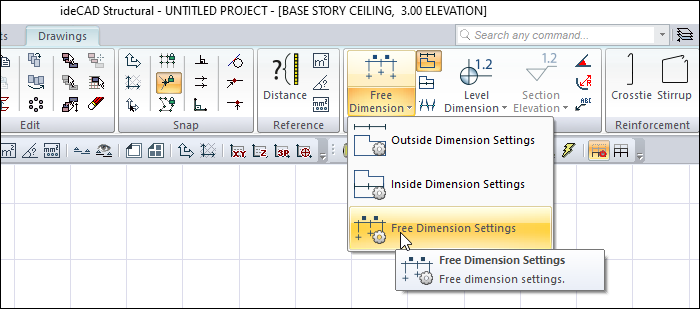

You can access it under Free Dimension in the Drawings tab of the Ribbon menu .
After running the Free Dimension command, you can also access it by clicking the Settings icon in the dimension auxiliary toolbar that appears on the screen.
Free Dimension Object Settings

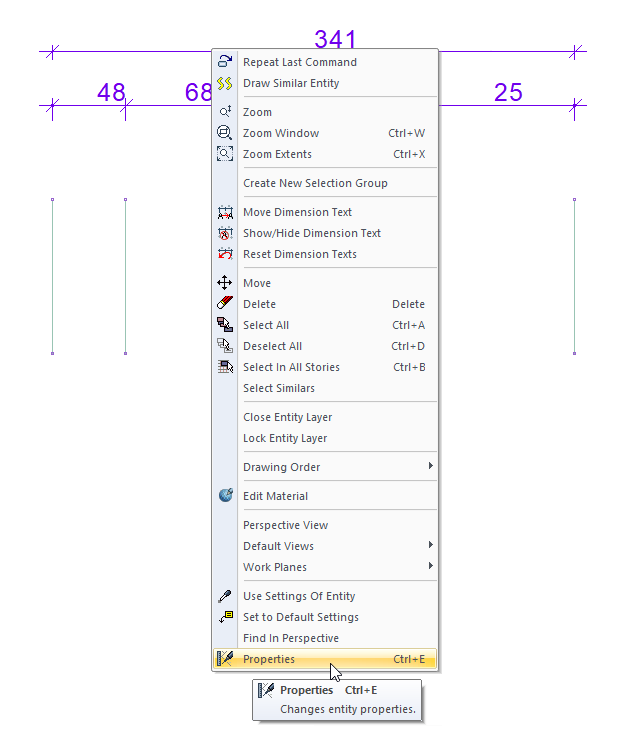

Select the free dimension you want to enter its settings and click the Properties row from the menu that opens by clicking the right button of the mouse.

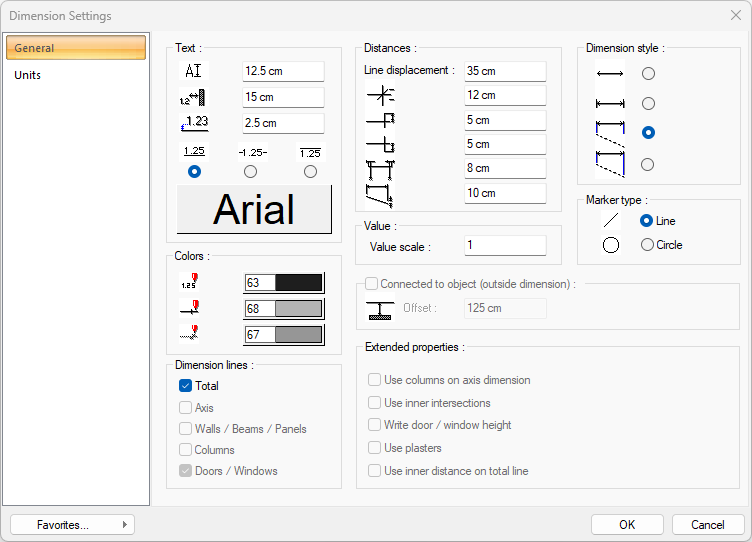

Dimension Settings - Dimension Settings Tab
Specifications |
|---|
Text Section |
 The font height of the dimensions is entered. |
 The distance of the dimension text from the objects is entered. |
 The distance of the dimension text to the dimension line is entered. |
 The position of the dimension text relative to the dimension line is selected. |
 When the button is clicked, the "Font Settings" dialog appears. Font of information text can be set here. |
Distances Section |
Line displacement  The distance from the dimension lines to each other is determined. |
 The size of the cross separators is entered in the dimension lines. |
 Upper marker size of the dimension line is entered. |
 The bottom marker size of the dimension line is entered. |
 How long the dimension line will continue after the left and right end reference points is entered. |
 The distance of the dimension line from the curved objects taken as reference by the bottom separator is entered. |
Dimension style  Display type of dimension lines is selected. |
Colors Section |
 Sets the color of the dimension text. When the color box is clicked, the appropriate color is selected from the window that opens. |
 Sets the color of the dimension lines. When the color box is clicked, the appropriate color is selected from the window that opens. |
 Sets the color of the measure separators. When the color box is clicked, the appropriate color is selected from the window that opens. |
Value scale  The actual length values written on the dimension line are multiplied with the value written here and the value found at the result of multiplication is used as the measurement value. For example, the dimension line values are 120, 200, 350. If 2 is written to the scale value, the lengths of 120, 200, 250 will be written as 240, 400, 700 in the dimensioning line. |
Marker type  One of the two markers types that can be used in dimension is selected. |
Dimension Lines Section |
Total  It gives the total length of all lines. |

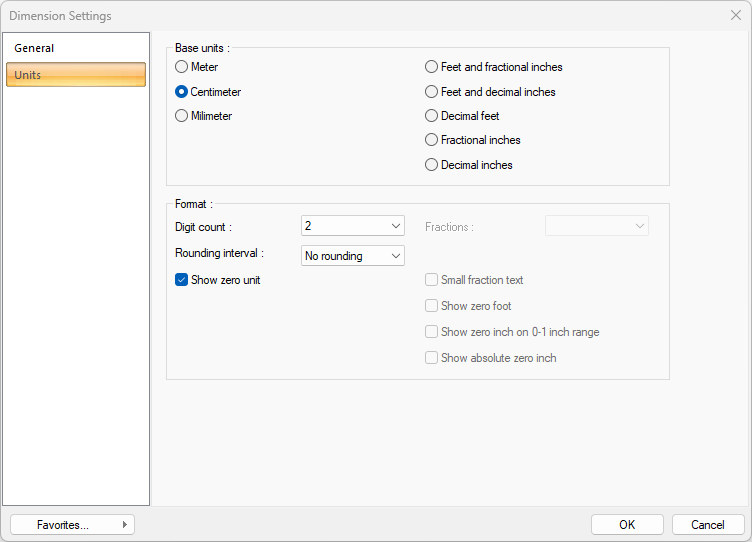

Dimension Settings - Units Tab
Specifications |
|---|

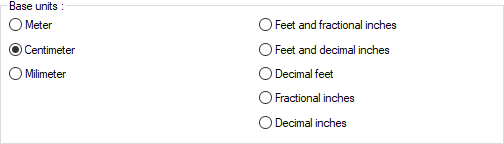

Basic units  One of the selections is activated by clicking the left mouse button on the job. Meter : If checked, the unit of information text will be meters. |
Digit count  It determines how many digits will be shown after the comma. The desired number is selected from the list. For example, if 2 is selected, units will be shown as two digits after the comma. If 0 is selected, units will not be shown after the comma. |
Fractions  It determines the precision of the dimension to be made in fractional inch format. In the list, there are options with a sensitivity of 1/2, ¼, 1/8, 1/16, 1/32, 1/34. If "no fraction" is selected, units will appear without fractions. |
Rounding interval  It determines the rounding range of the measurement to be made in meters, centimeters or millimeters. If No rounding is selected, the dimensioning is done at exact value. As the range gets larger, the dimensioning is rounded up to the selected range. |
Show zero unit  If it is not checked, it does not show the zero and point on the left in dimensioning. For example, it measures 0.20 as 20. If marked, the value 0.20 is scaled as 0.20. |
Small fraction text  When fractional inch format is selected, determines the fractional part to display in upper / lower case. If it is checked, the fraction is slightly above the integer and small, if not, the fraction is shown the same size next to the integer. |
Show zero foot  Determines whether 0 is displayed in the 0-foot gauge (less than 1 foot gauge). For example, if it is not checked, it will show a measure of 0 '- 15 "as -15". If marked, it shows as 0'-15 ". |
Show zero inch on 0-1 inch range  For example, a dimension inch with a value of 8'-0 1/6 "is in the range 0-1. If the option is not ticked, the value 8'-0 1/6" will be displayed as 8'-. In other words, inch values in the 0-1 range will not be displayed. |
Show absolute zero inch  Determines whether to show zero inches in the dimension value where inches is absolute zero. For example, a dimension of exactly 10 'will be displayed as 10'-0 "if this option is selected. If not checked, it will be displayed as 10" -. |
