Define Offset to Edge

Define Offset to Edge command shifts a previously defined sweep by the specified distance.

Location of Define Offset to Edge

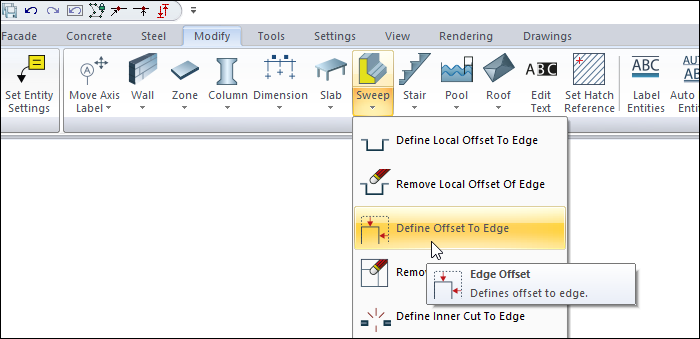

You can access it from the Ribbon menu Modify tab under Entity Edit title.

Usage Steps

  • Click the Define Offset to Edge icon.

  • Click the desired edge on the sweep you previously drew.

  • At this stage, enter the delay amount in the "Application Distance" box on the sweep operations toolbar.

  • When you click the left mouse button, the edge will be offset.

Usage step

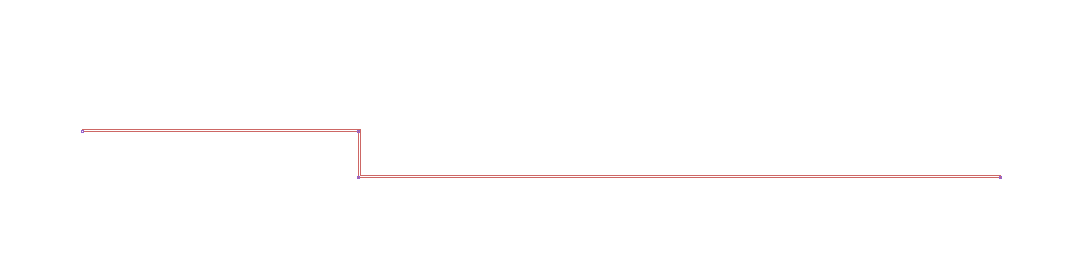

The initial version of the sweep

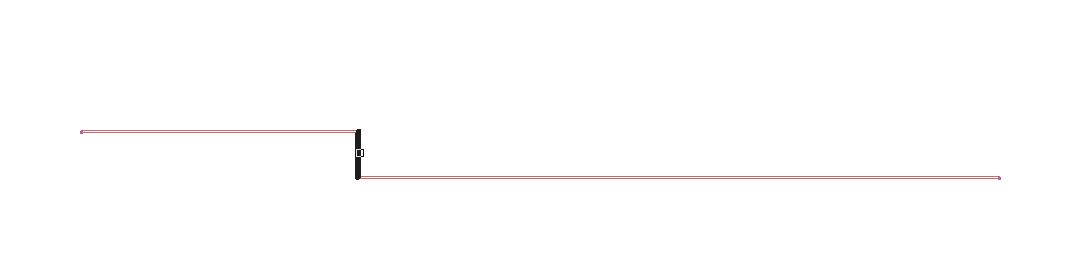

Selecting the edge to be offset

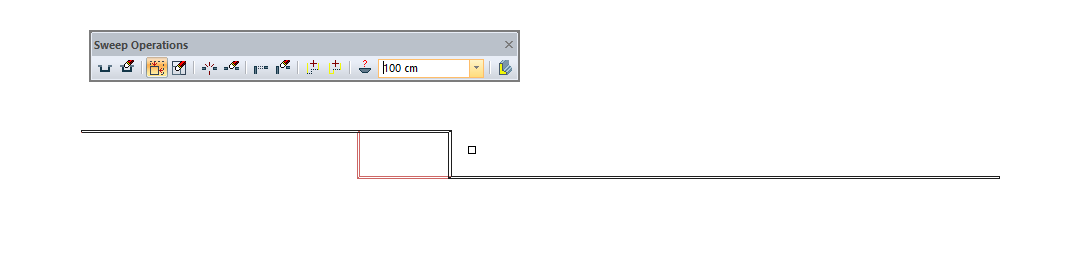

Creating a preview of the offset

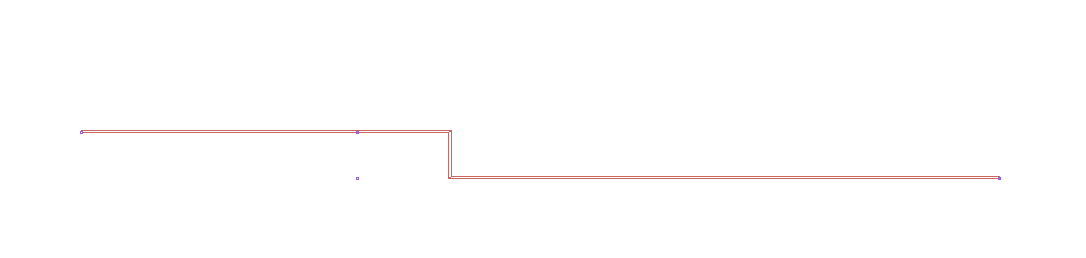

Final version of the sweep
