With the "Edit surface mapping" command, materials assigned to objects are edited. Changing texture scale, angling, translation, symmetry taking arrangements can be followed simultaneously from the perspective screen.

Usage Steps

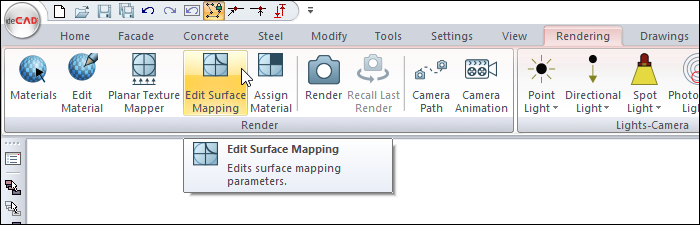

  • Click the edit surface mapping command and click the surface of the object whose material you want to edit.

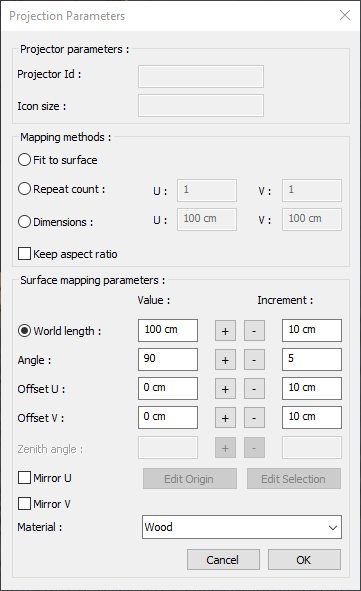

  • The projection parameters dialog will open. Enter 90 in the angle and click the OK button.

  • The material texture will be rotated 90°.

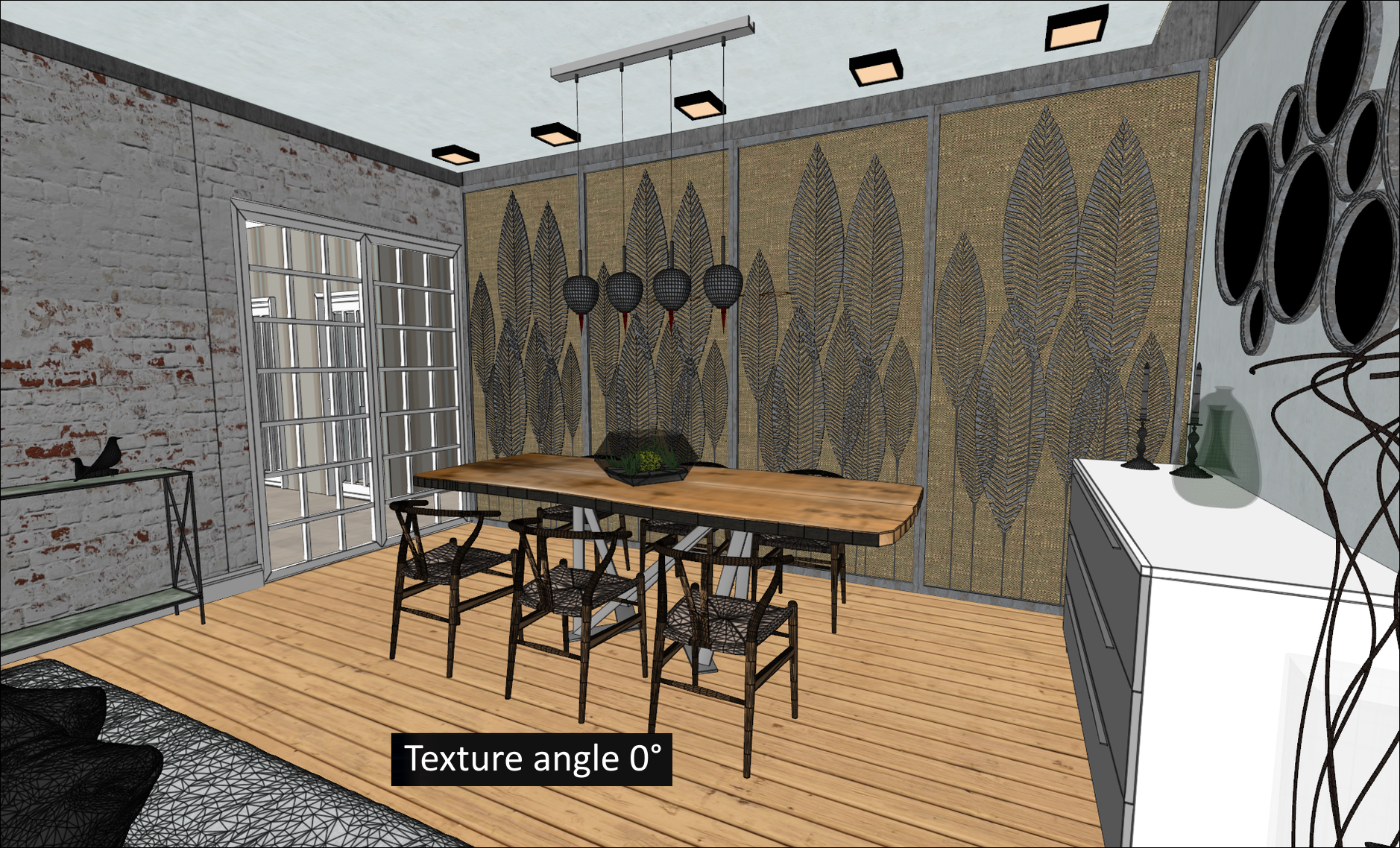

Before the edit surface mapping command:

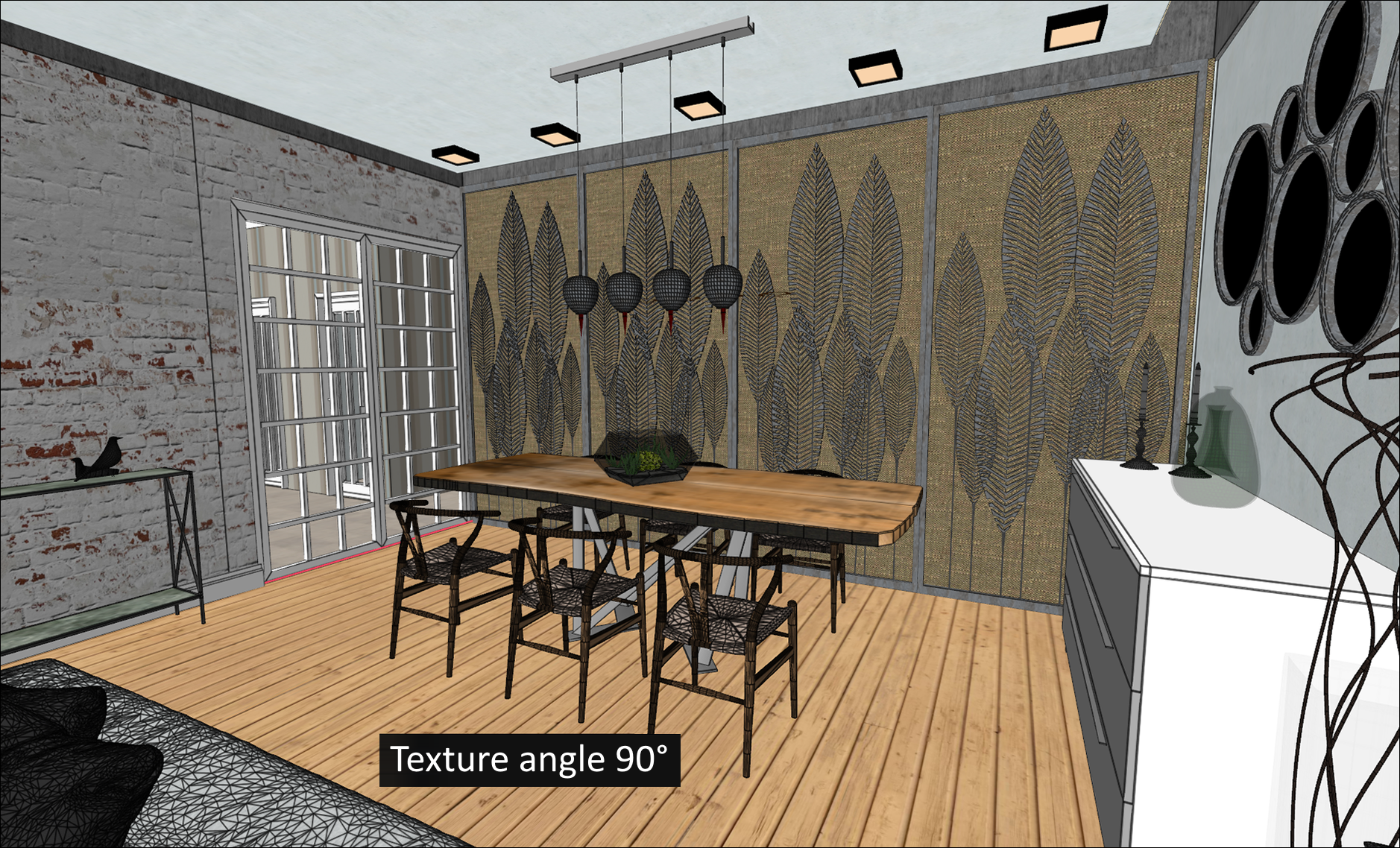

After the edit surface mapping command:
