Angle

Measures the angle between two selected objects. The angle unit is degrees.

Location of the Angle Command

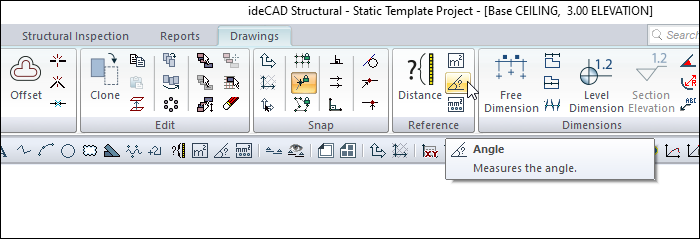

You can access it under the Ribbon menu Drawings tab Reference heading.

Usage Steps

• Click Angle icon in the ribbon menu.

• Select two objects respectively

• The angle value between the two selected objects and the obtuse angle value connecting it to 180 degrees will be calculated.

Usage step

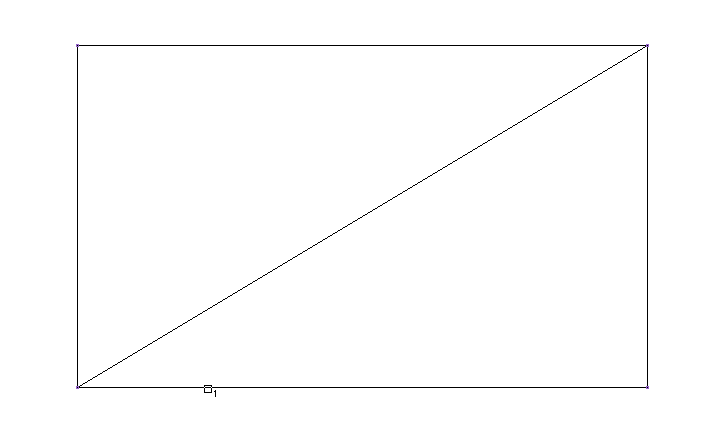

Selecting the first point when in the angle command

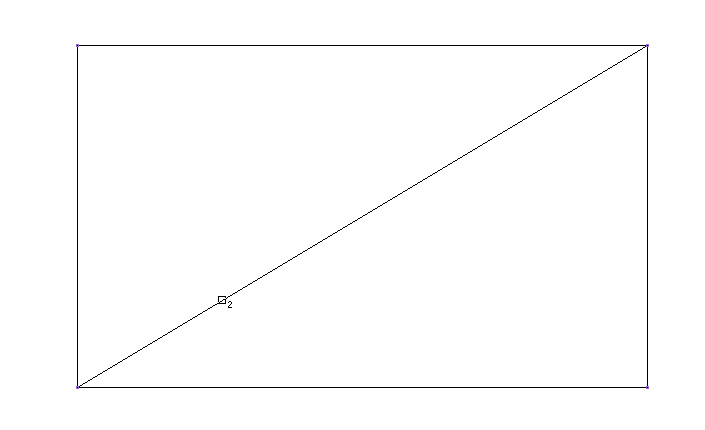

Selection of the second point
Angle measure

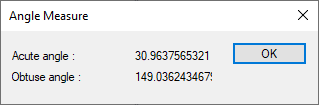

Angle Measure Dialog

Specifications
Acute angle Gives the acute angle information between two selected objects.
Obtuse angle Gives the obtuse angle information between two selected objects.
