Bolted Flange Plate Connection Report 1
Bolted Flange Plate Connection design is made automatically according to the Design, Calculation and Construction Principles of Steel Structures (ÇYTHYEDY) , AISC 360-16, AISC 358-16 and TBDY regulations and a connection report is created.

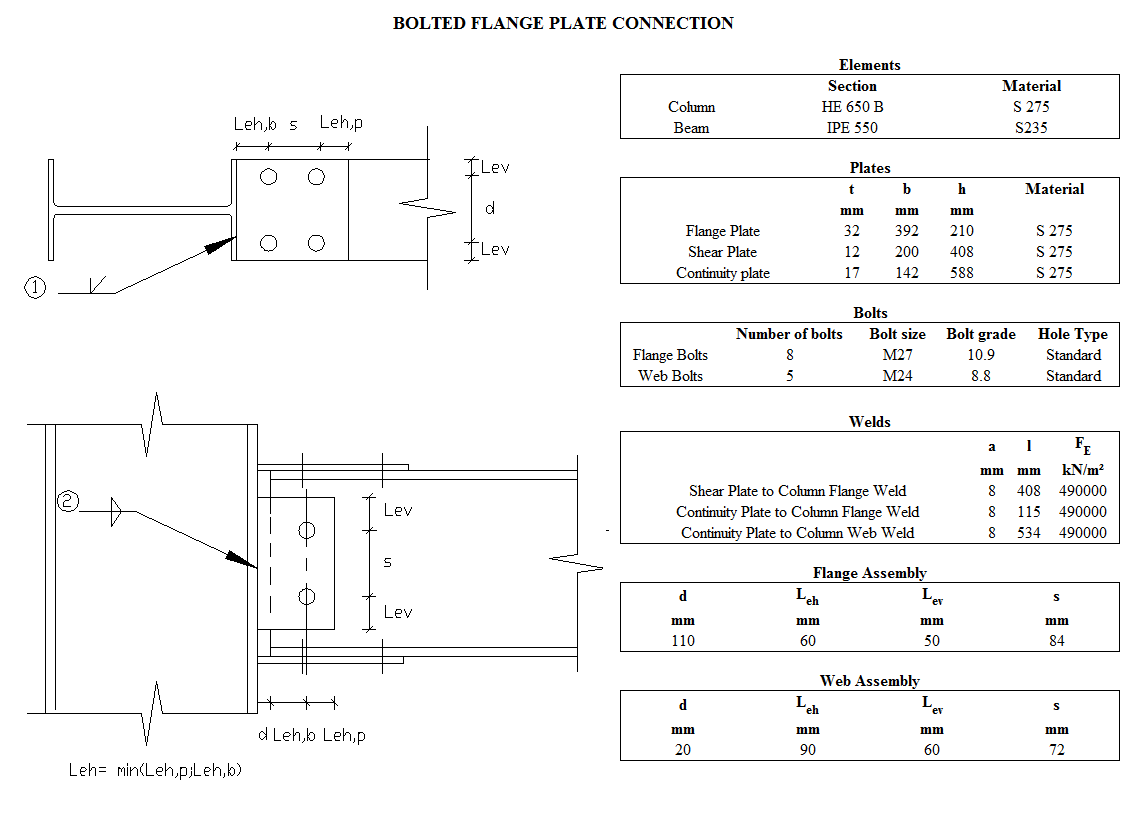

![](../__attachments/1101300799/bolt2.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

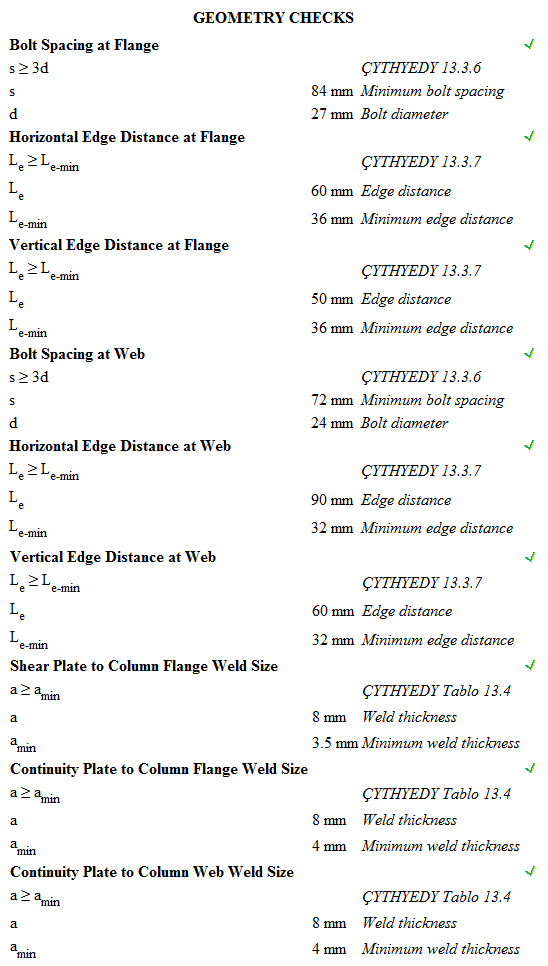

![](../__attachments/1101300799/bolt3.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

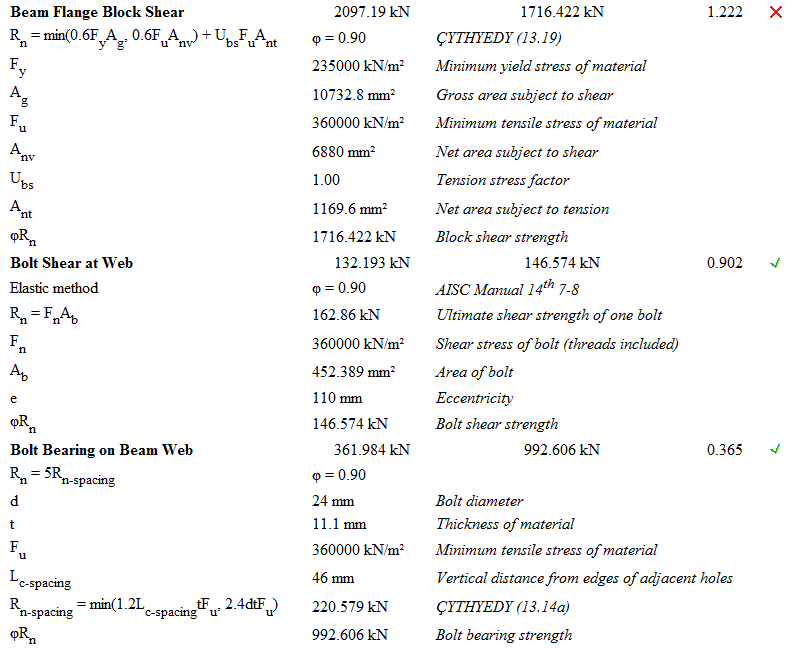

![](../__attachments/1101300799/bolt8.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

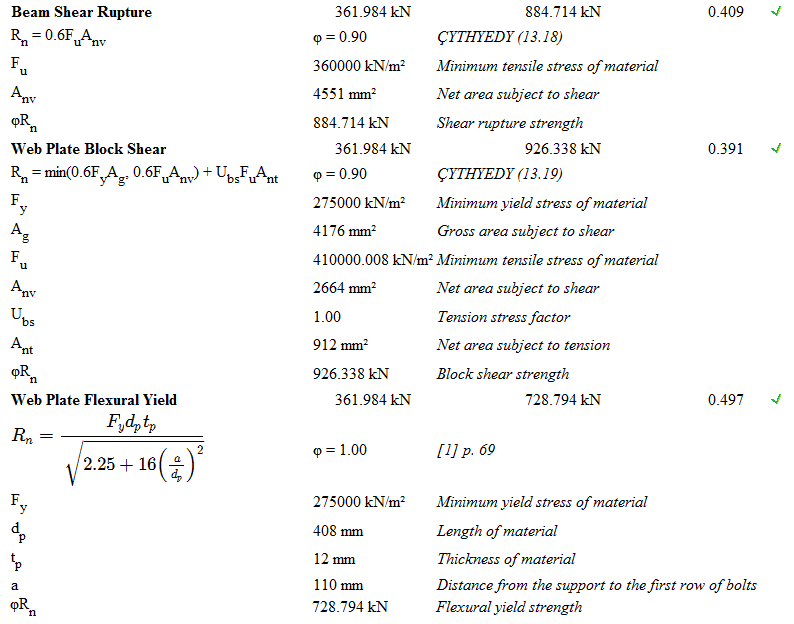

![](../__attachments/1101300799/bolt10.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

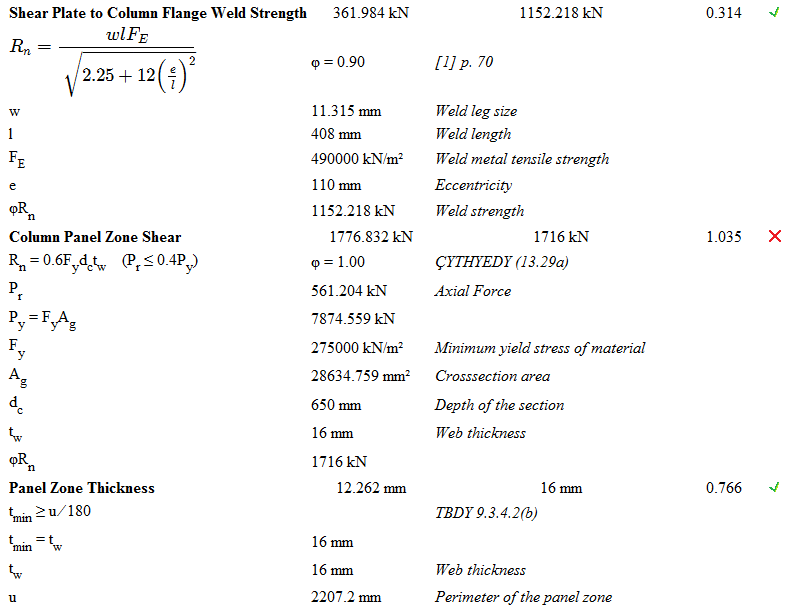

![](../__attachments/1101300799/bolt11.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
