Single footing area cannot be less than 1m².

The Complete Message:

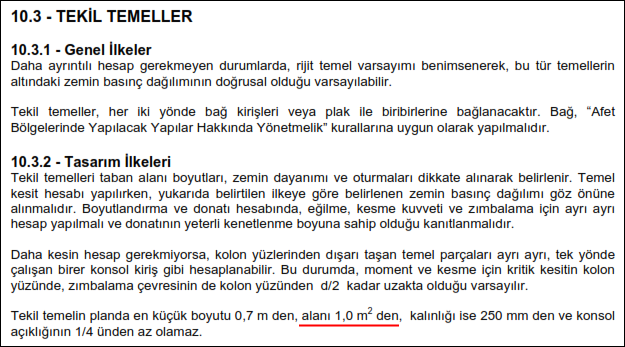

Single foundation area cannot be less than 1m². (TS500 10.3.2)

Solution:

The product of the dimensions of solid and named single footings should provide at least 1m ² .

1. Select single footing, single footings.

2. Enter the properties.

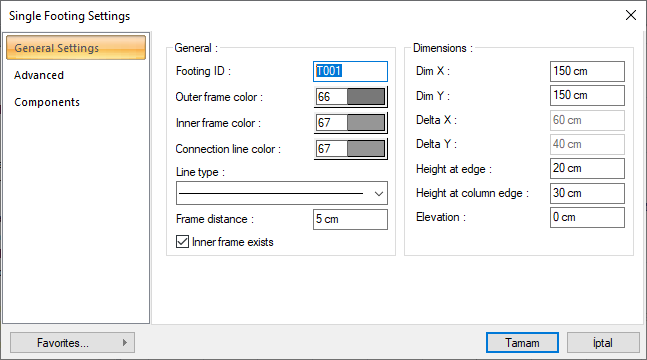

3. In the General Settings tab, enter enough value to provide 1m2 area in the Dimension X and Dimension Y lines.
