Rebar Selection Section
With the Rebar Selection settings, the steel bar diameters to be used in the concrete design are selected. Reinforcement diameters selected from the Rebar Selection dialog are used in the design of concrete elements (column, beam, shearwall, slab, foundation, pile, retaining wall, etc.) .

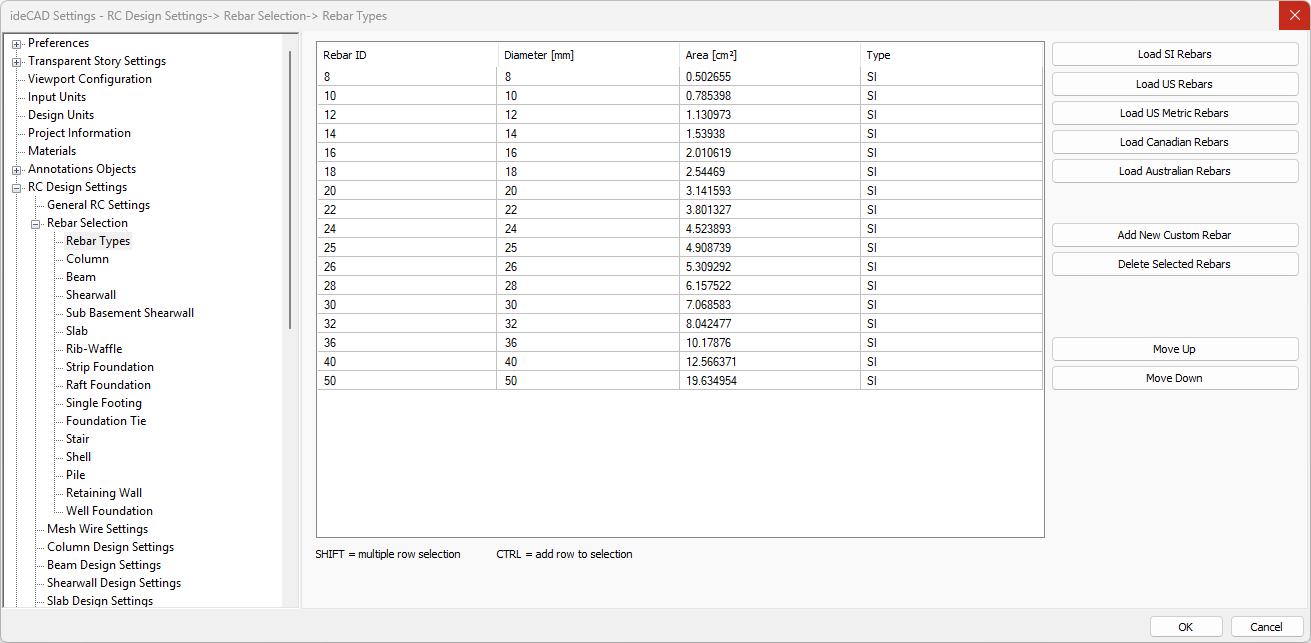

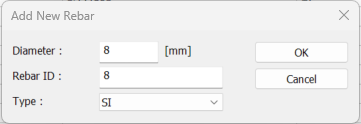

Rebar Types
![](../__attachments/2377450409/image-20231107-093937.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|

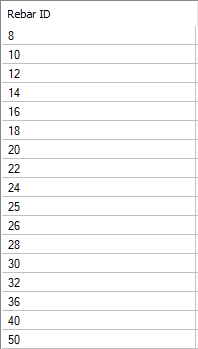

Rebar ID ![]() Rebar types are listed. |

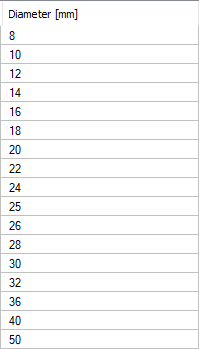

Diameter ![]() The diameter values of the rebar types are listed. |

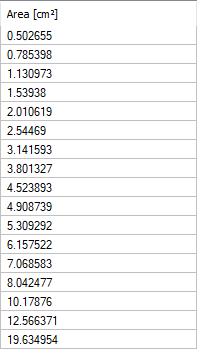

Area ![]() The area value of the rebar types are listed. |

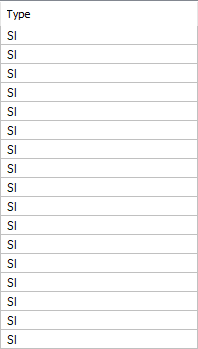

Type ![]() The types used in rebars are listed. |
Load SI rebars ![]() Rebars of SI rebar type are loaded. |
Load US rebars ![]() Rebars of US rebar type are loaded. |
Load US metric rebars ![]() Rebars of US metric rebar type are loaded. |
Load Canadian rebars ![]() Rebars of Canadian rebar type are loaded. |
Load Australian rebars ![]() Rebars of Australian rebar type are loaded. |
Delete selected rebars ![]() Deletes the selected rebar from the list. |
Move up ![]() Move up the selected rebar in the list. |
Move down ![]() Move down the selected rebar in the list. |
Column

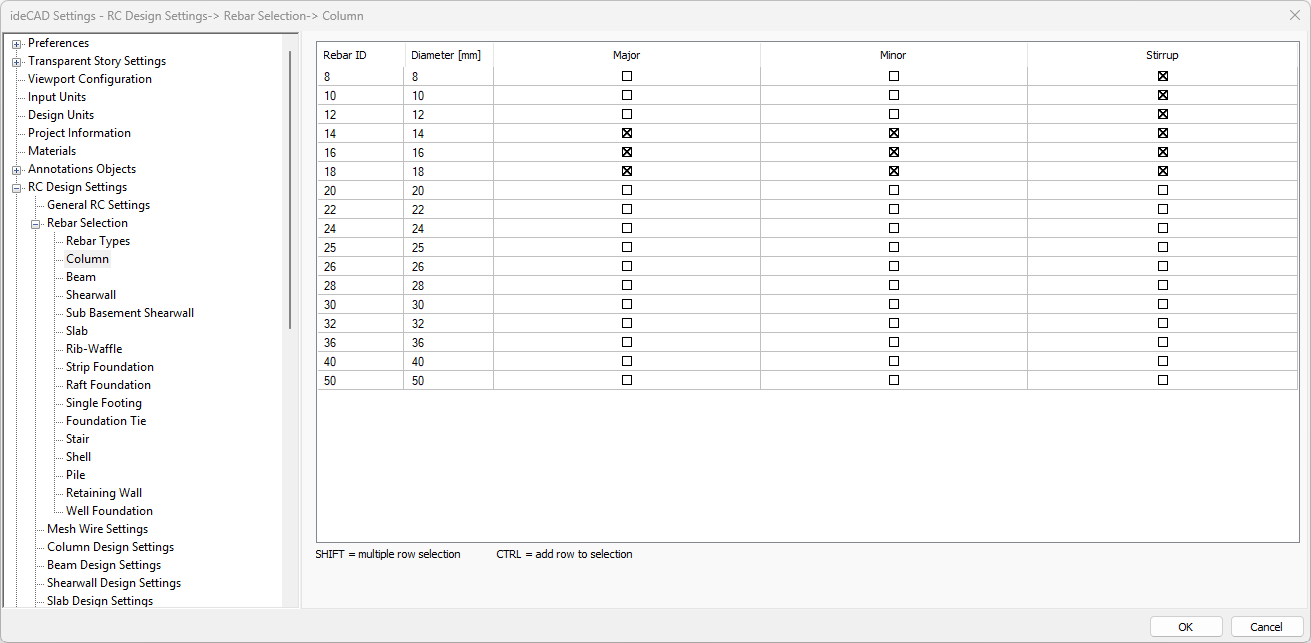

![](../__attachments/2377450409/image-20231107-093957.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |

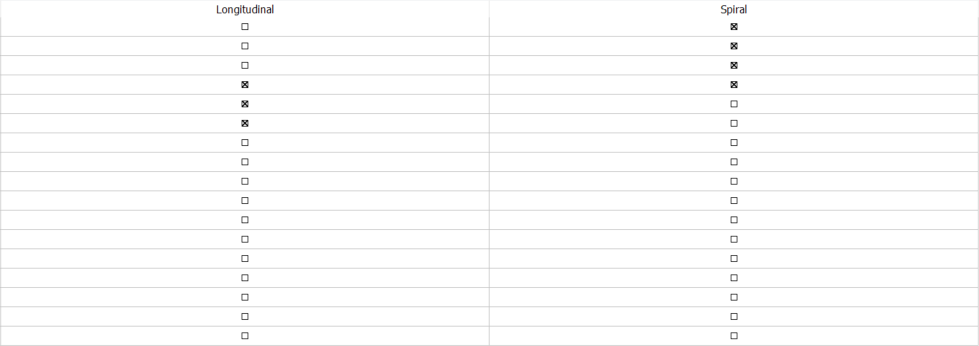

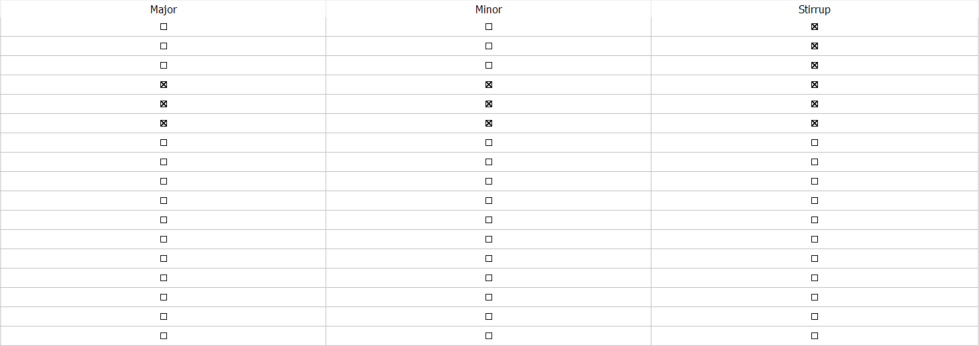

Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

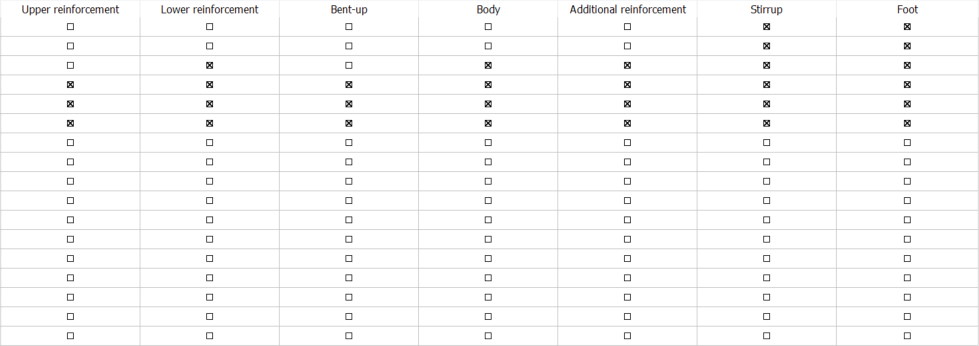

Beam

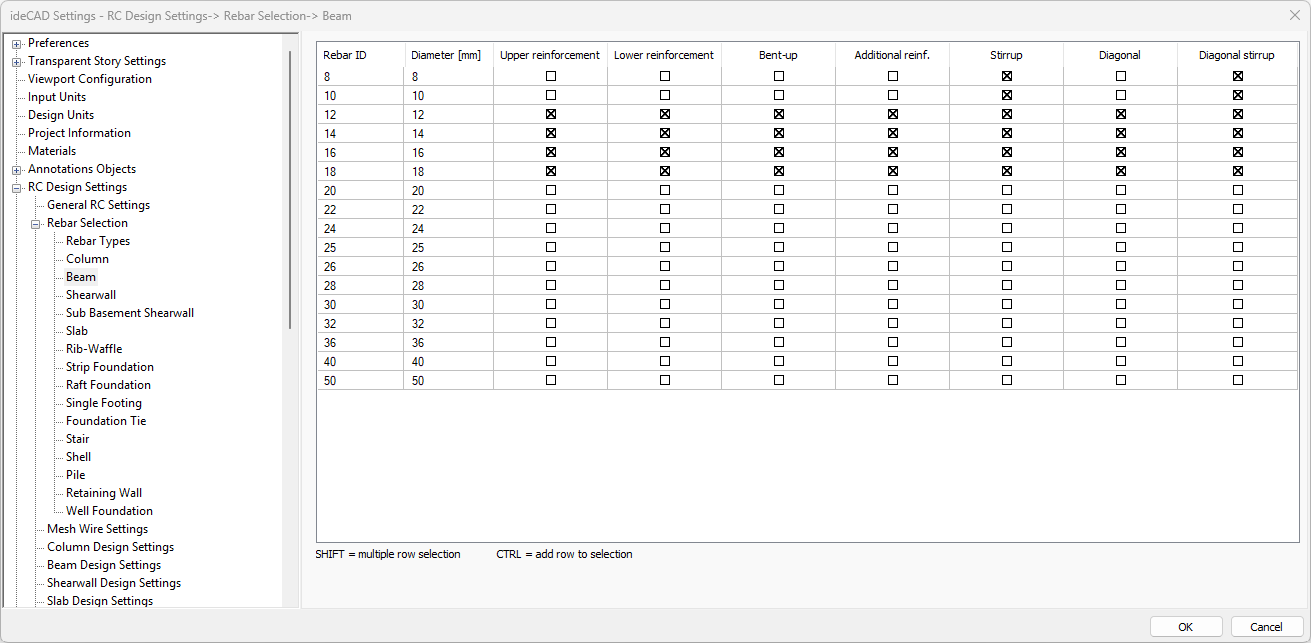

![](../__attachments/2377450409/image-20231107-094012.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |

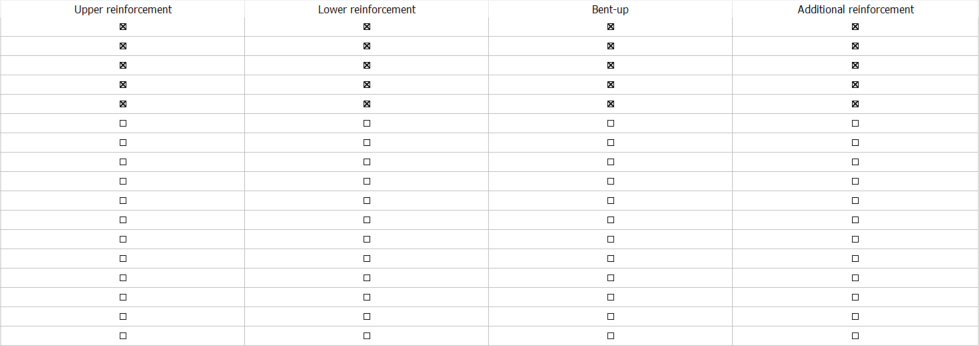

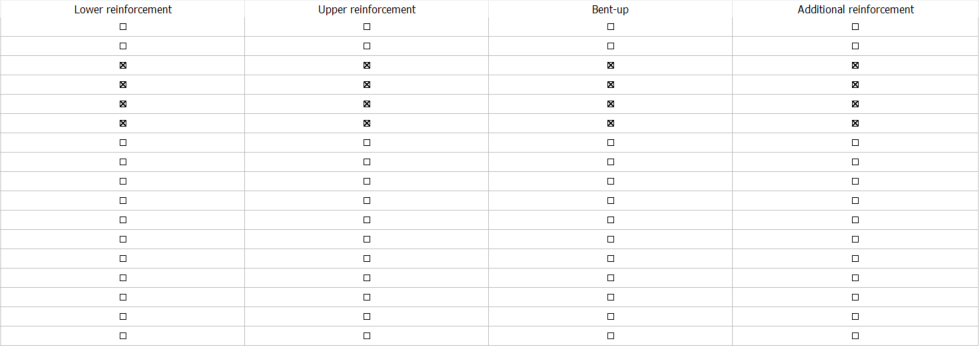

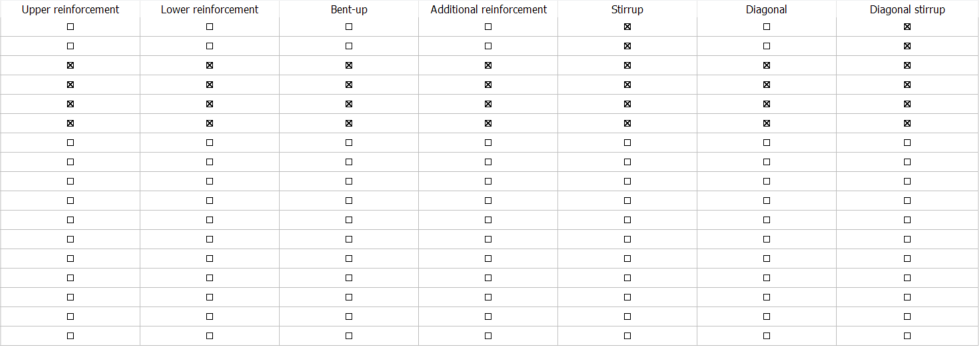

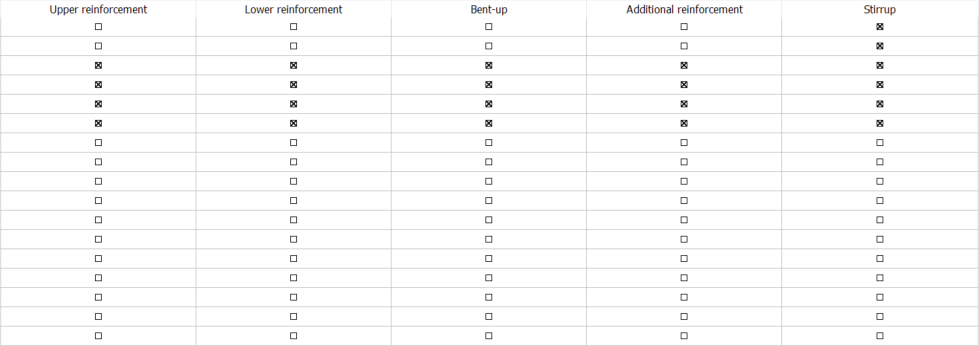

Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

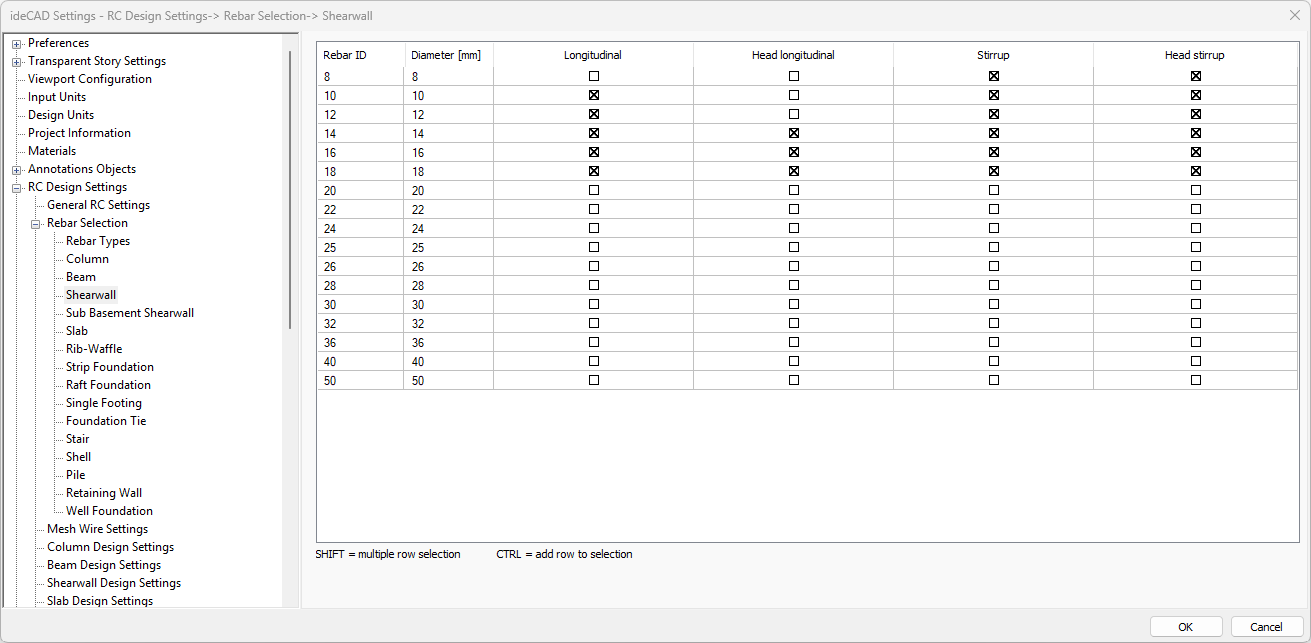

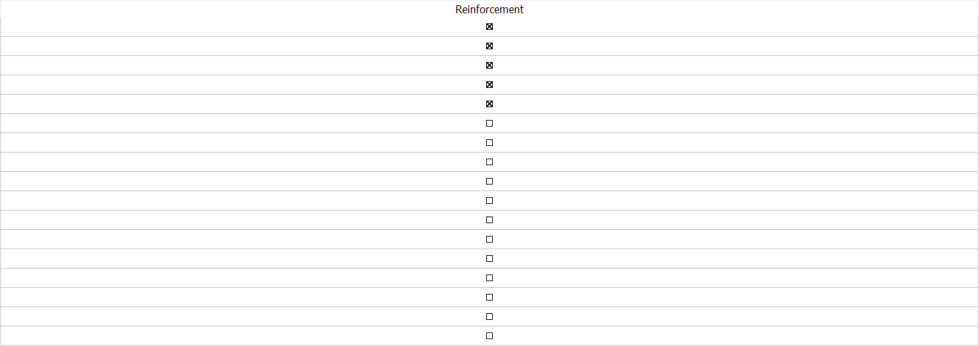

Shearwall
![](../__attachments/2377450409/image-20231107-094026.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

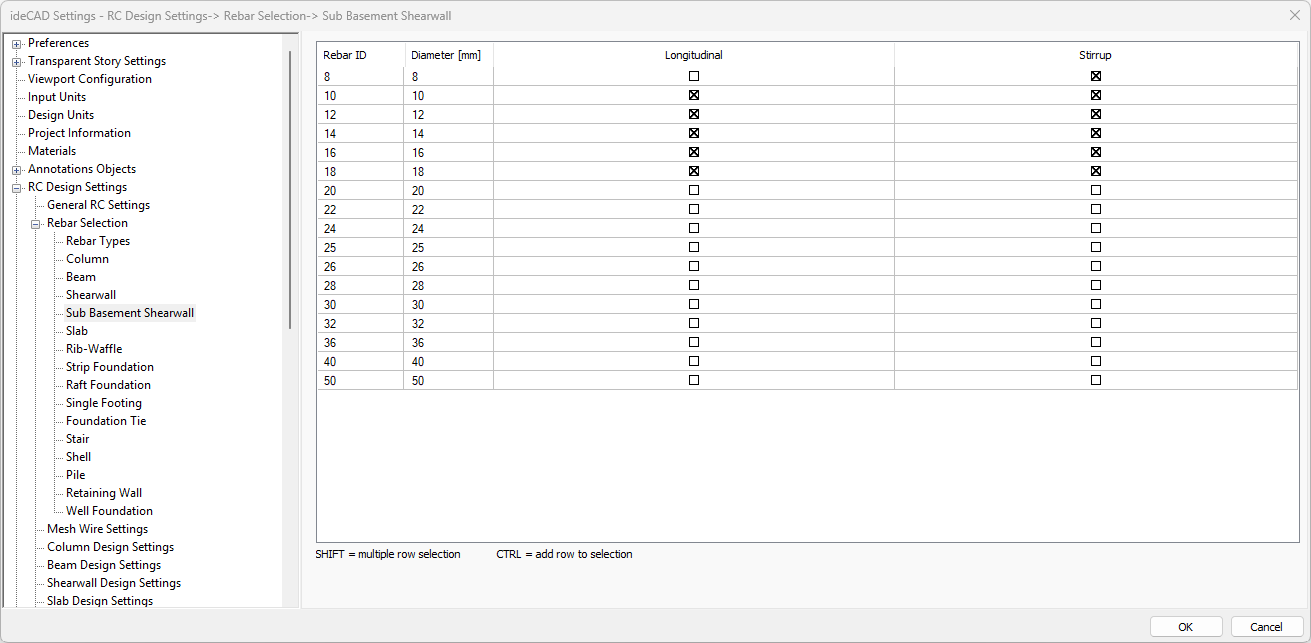

Sub Basement Shearwall
![](../__attachments/2377450409/image-20231107-094045.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

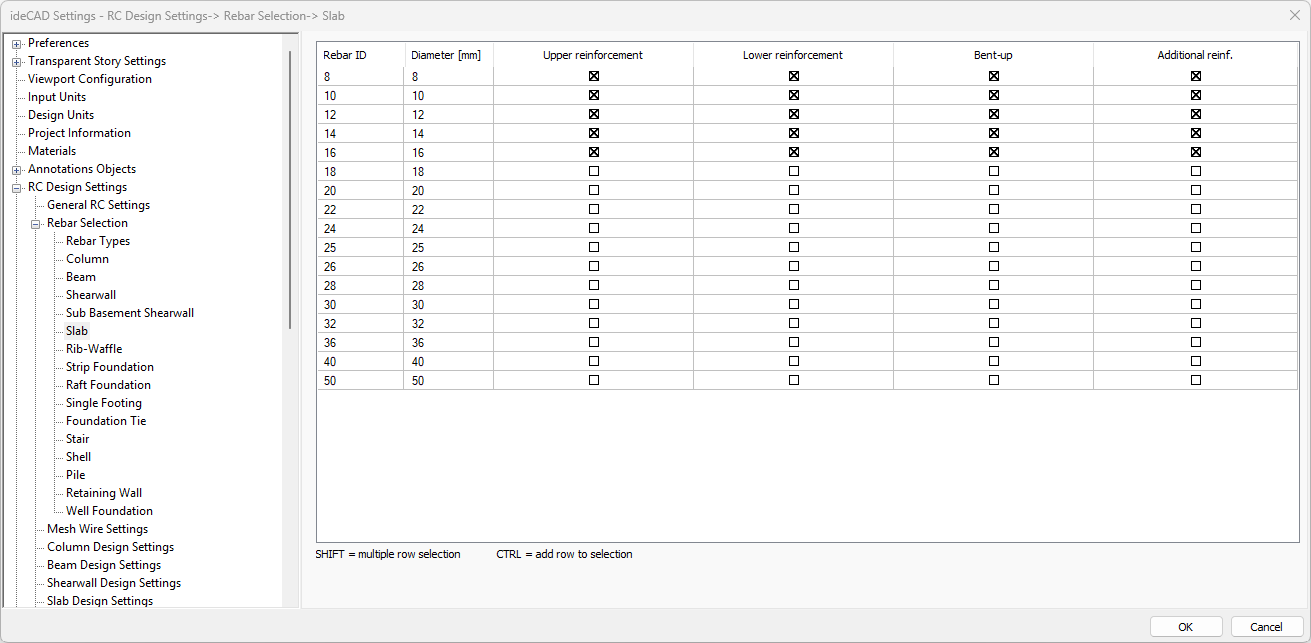

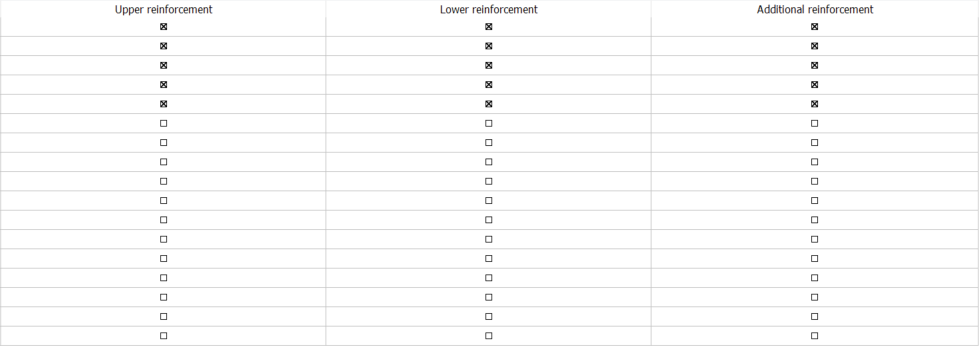

Slab
![](../__attachments/2377450409/image-20231107-094139.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

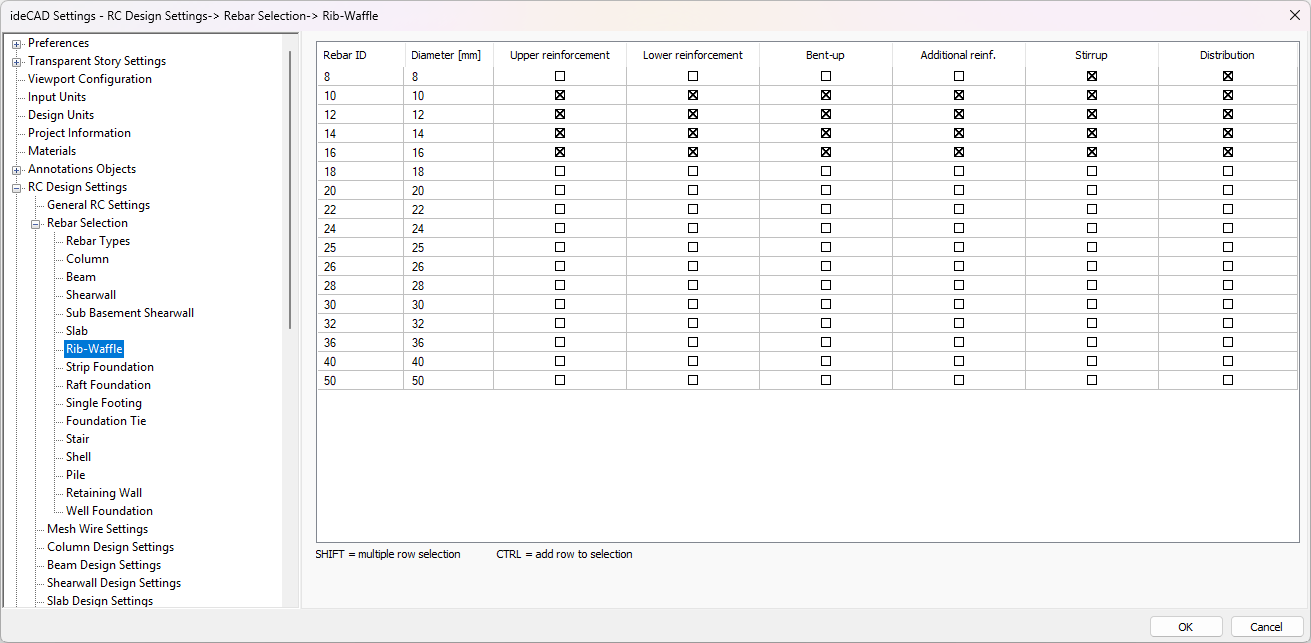

Rib-Waffle
![](../__attachments/2377450409/image-20231107-094151.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |

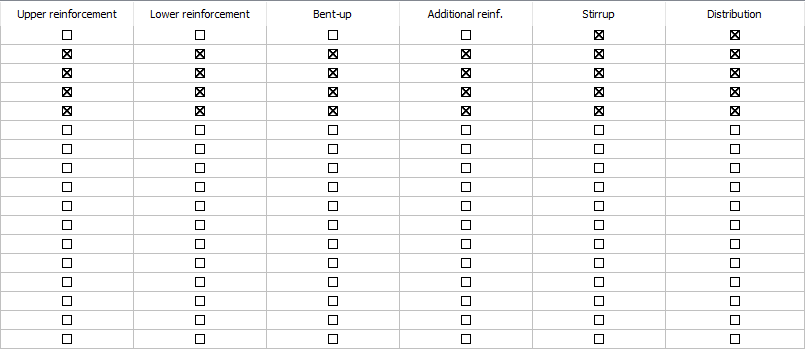

Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

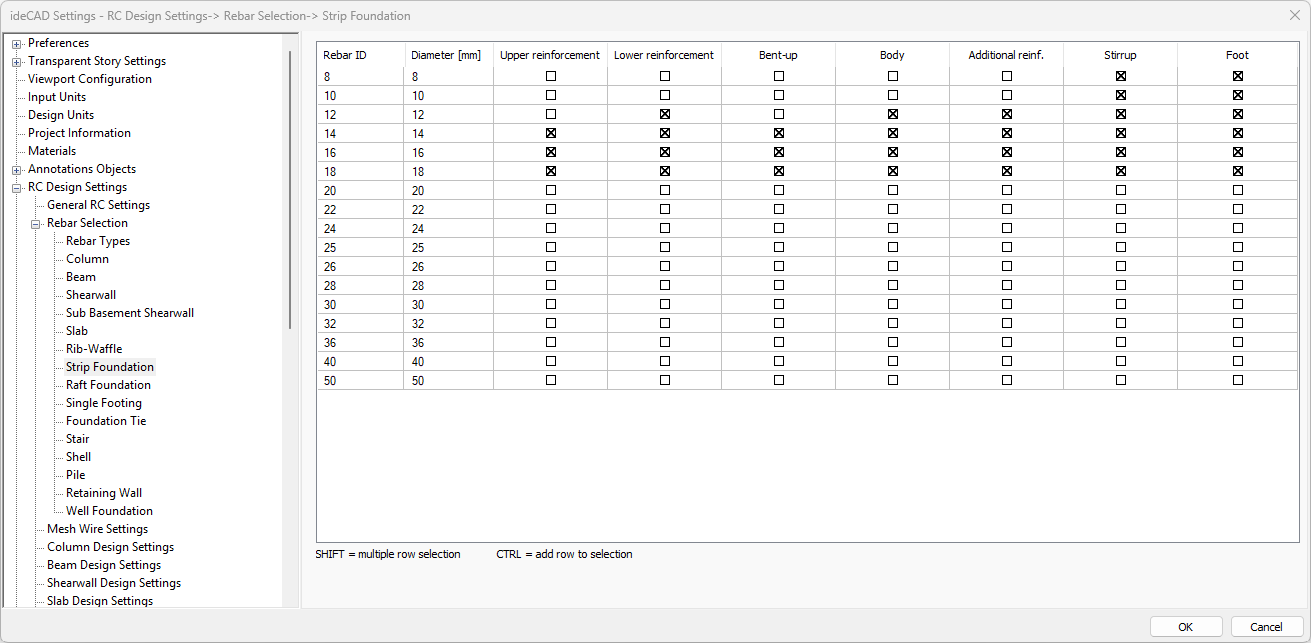

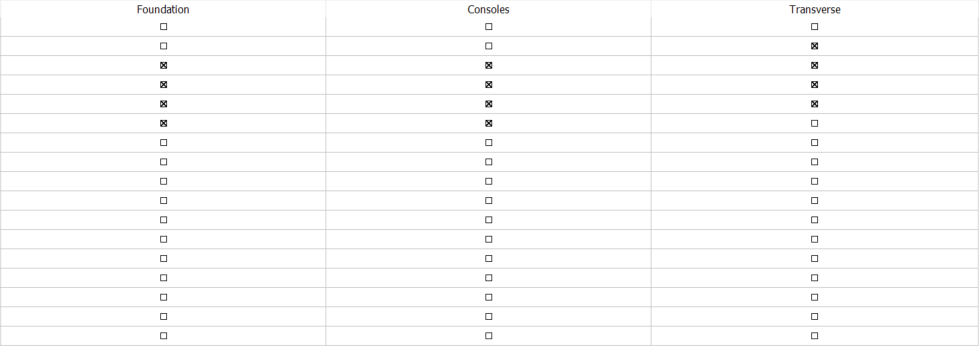

Strip Foundation
![](../__attachments/2377450409/image-20231107-094215.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

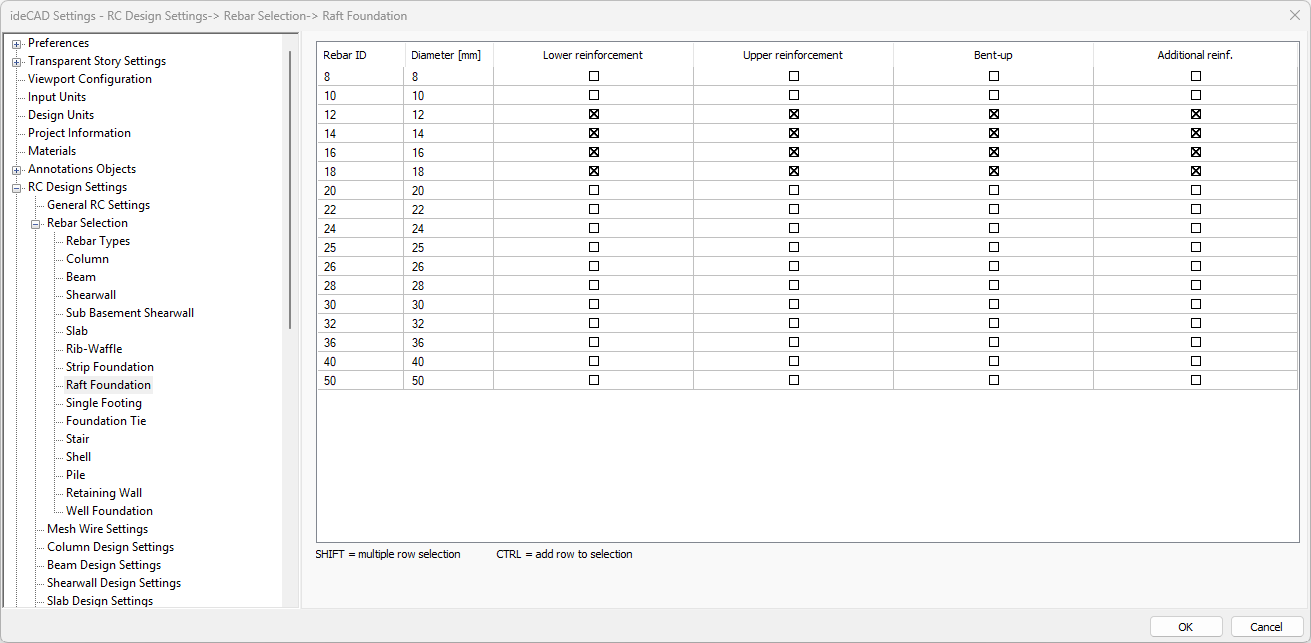

Raft Foundation
![](../__attachments/2377450409/image-20231107-094232.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

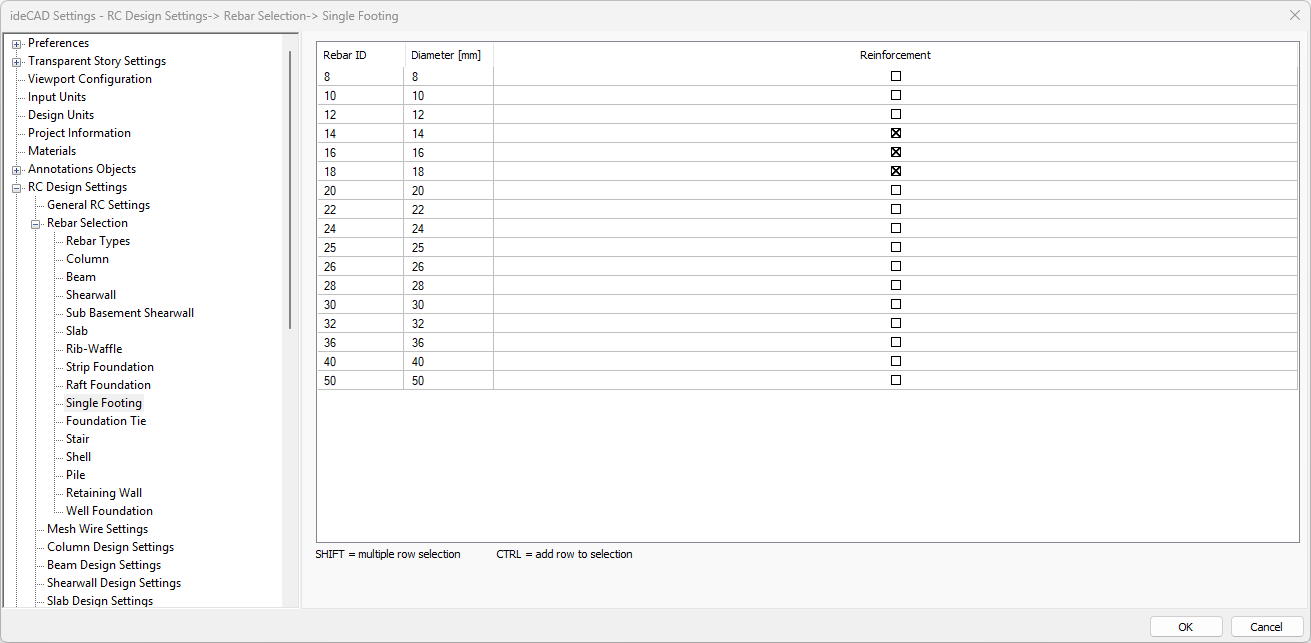

Single Footing
![](../__attachments/2377450409/image-20231107-094247.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

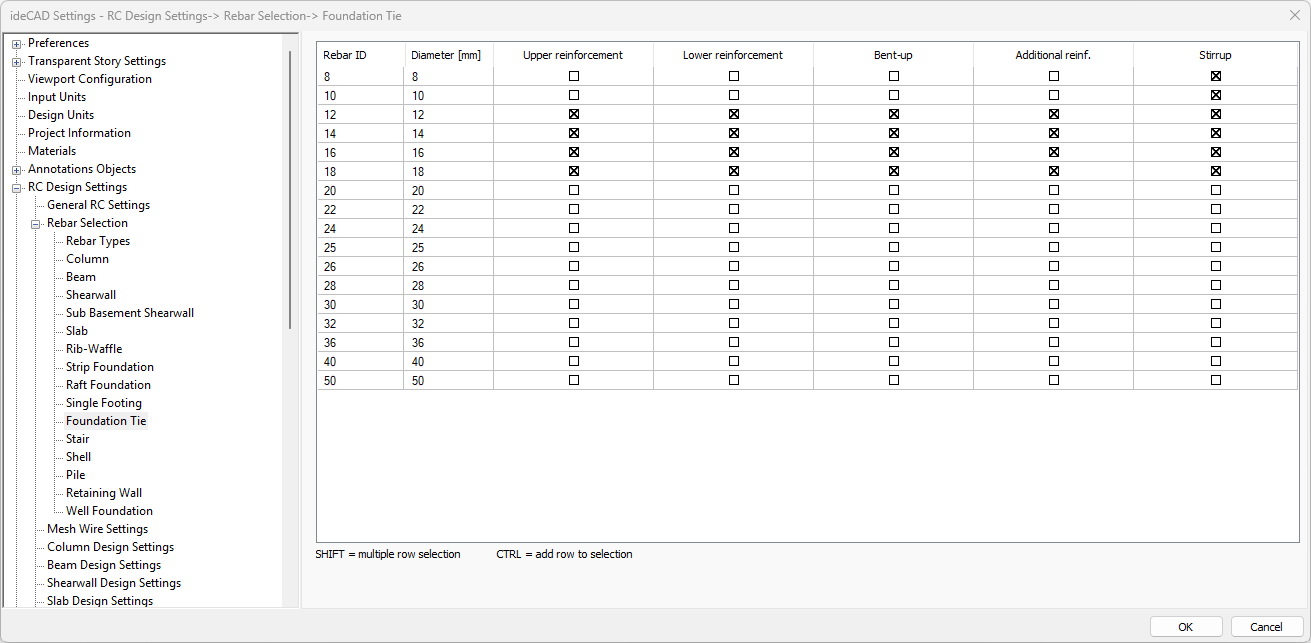

Connection Beam
![](../__attachments/2377450409/image-20231107-094302.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

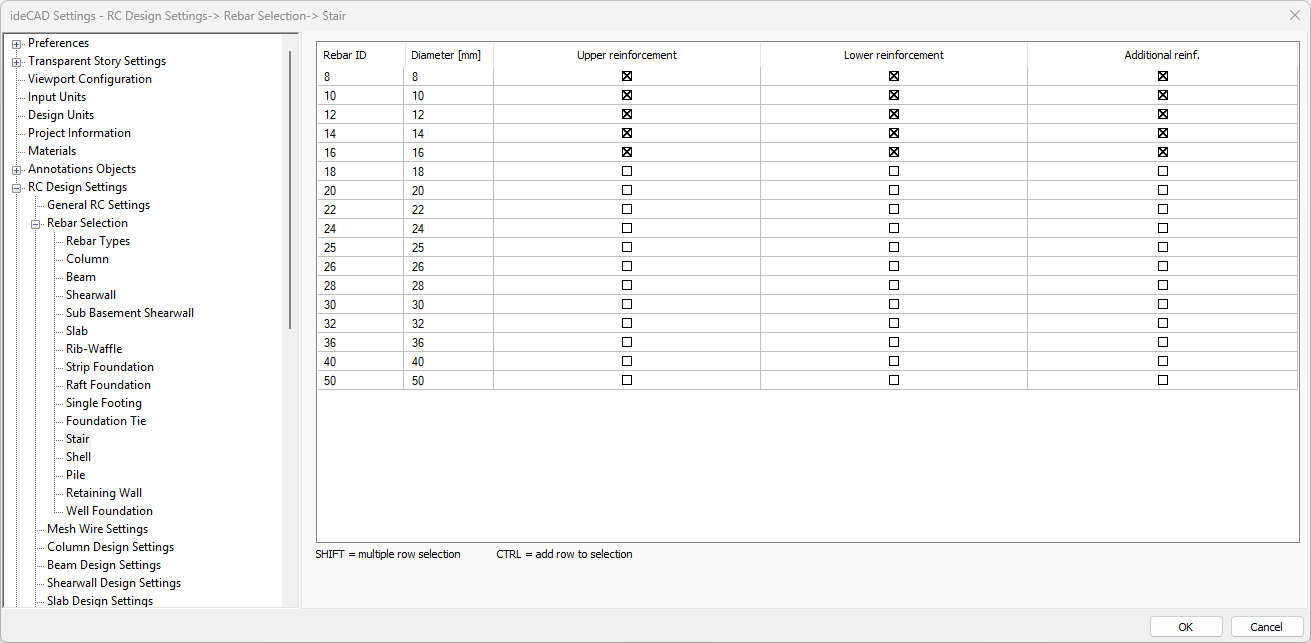

Stair
![](../__attachments/2377450409/image-20231107-094316.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

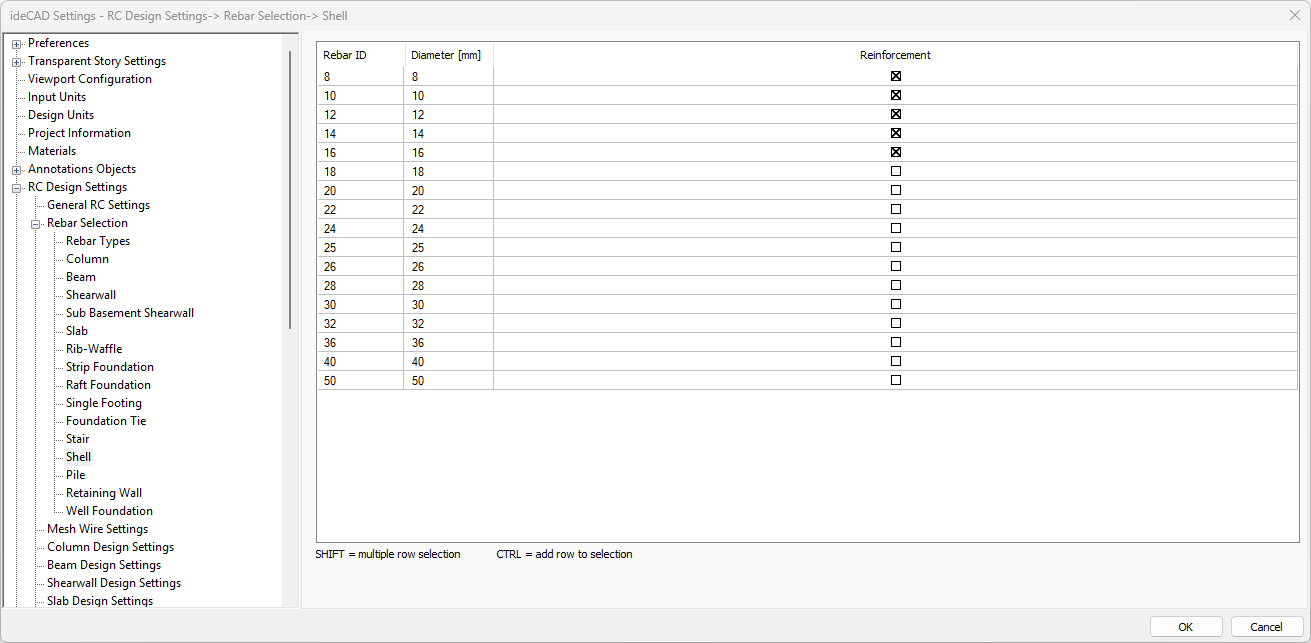

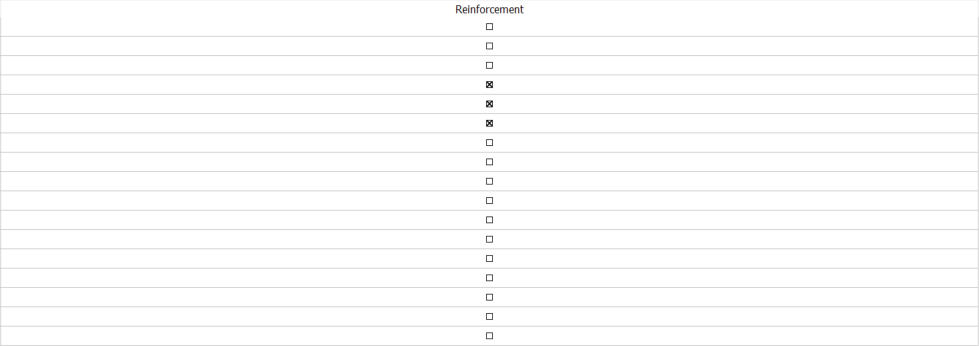

Shell
![](../__attachments/2377450409/image-20231107-094334.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

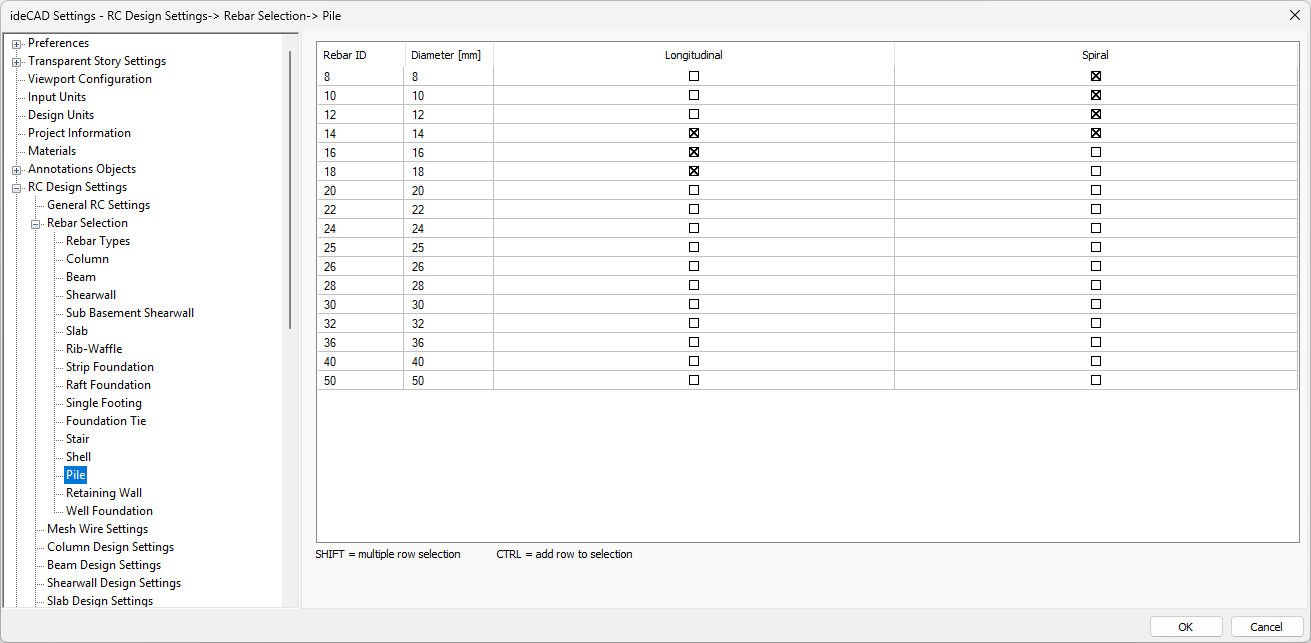

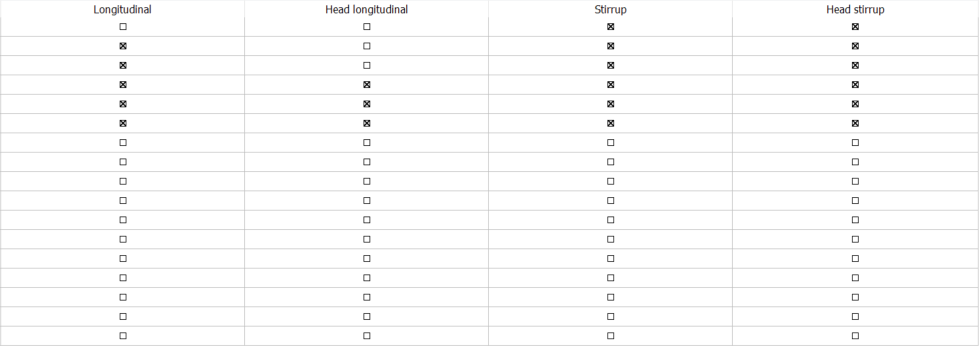

Pile
![](../__attachments/2377450409/image-20231107-094352.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |

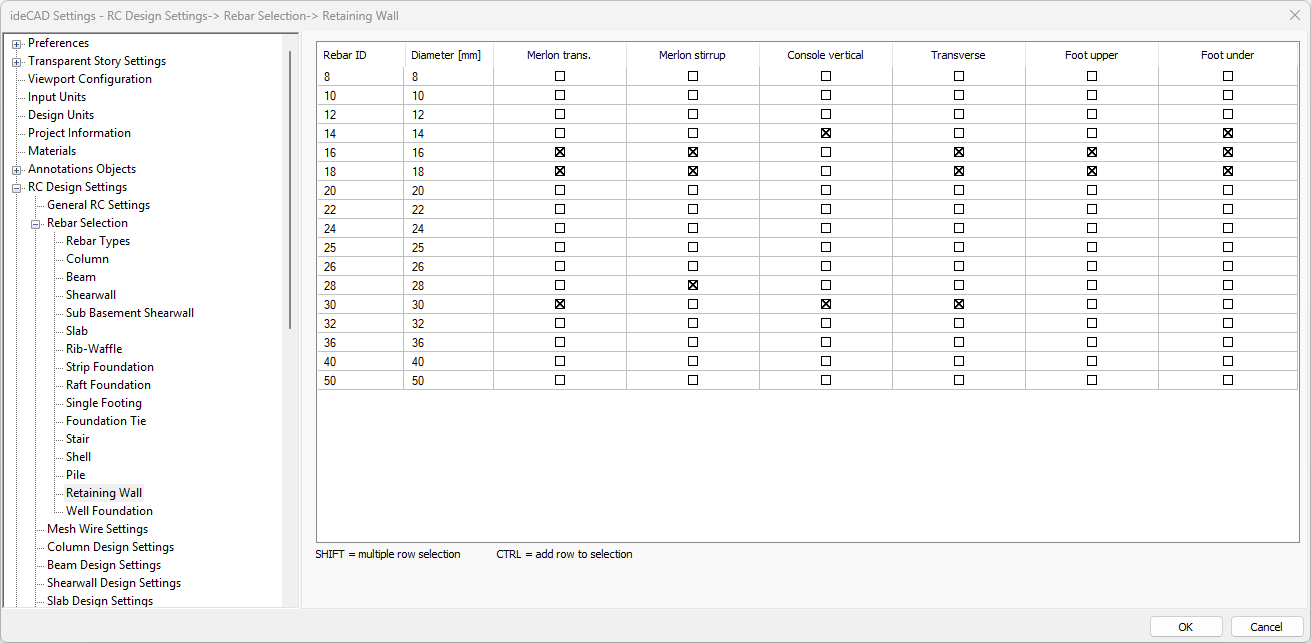

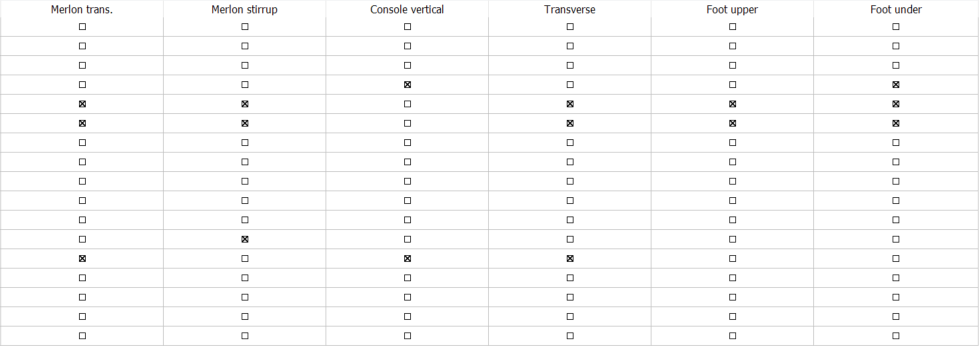

Retaining Wall
![](../__attachments/2377450409/image-20231107-094407.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |
Well Foundation

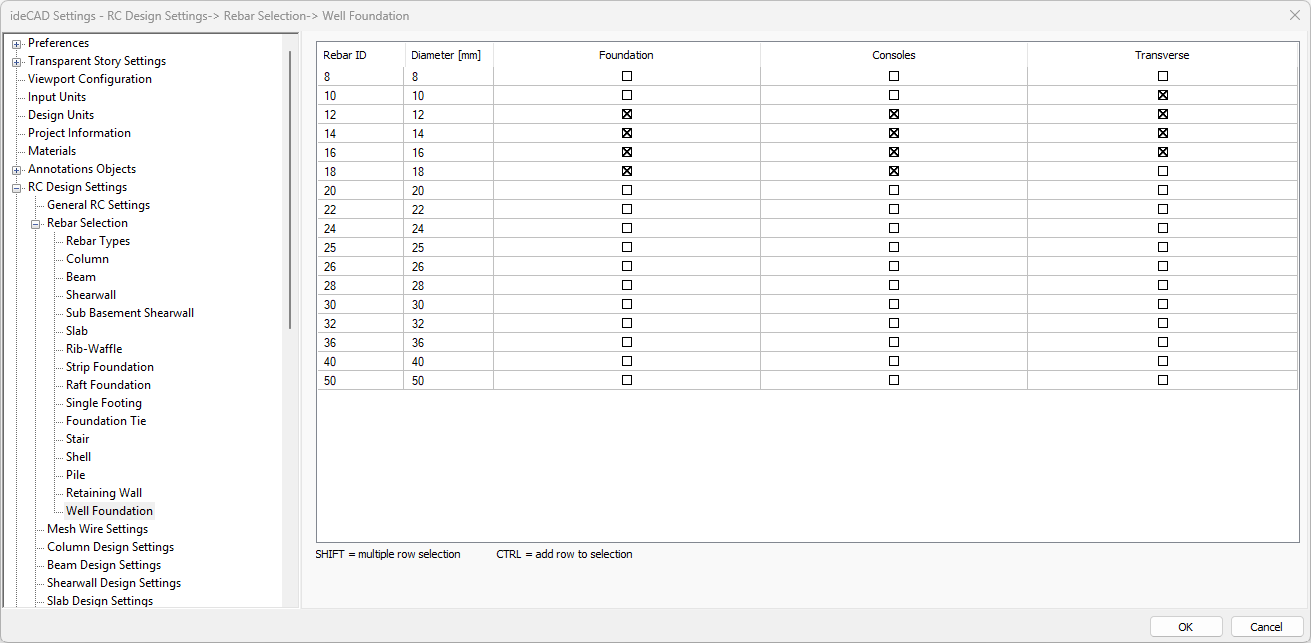

![](../__attachments/2377450409/image-20231107-094423.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Rebar ID ![]() Rebar types are listed. |
Diameter ![]() The diameter values of the rebar types are listed. |
Location of rebar and selection boxes ![]() The location and dimensions of the listed rebars are selected by checking the boxes. |
