Structure Mass for Flexible Diaphragm Modelling
When calculating the Structure Mass; structural geometry, element section sizes and external loads present in the structure are taken into consideration.
In the example below, the Structure Mass Calculation will be made in a project where a flexible diaphragm is accepted.
tructure weight calculation-semi rigid.cde

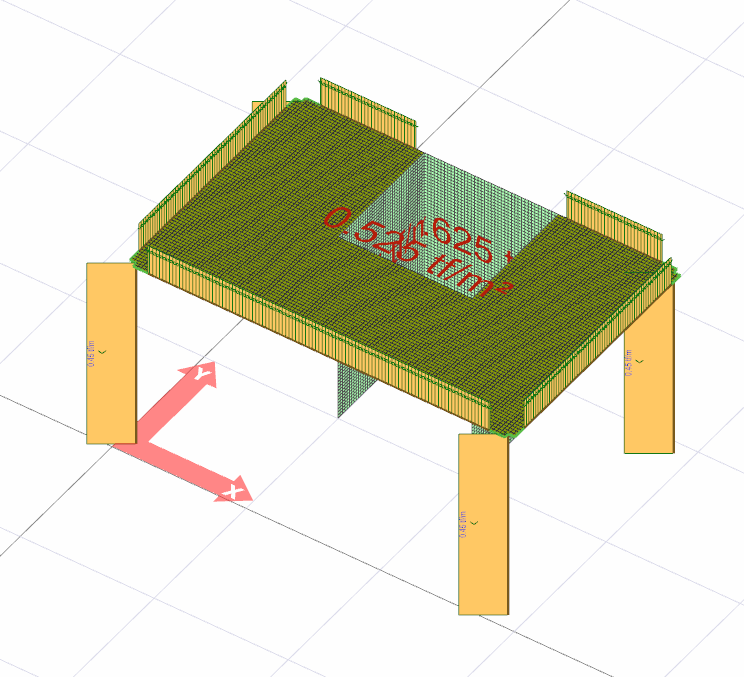

Self weight of floor column beams and curtains
![](../__attachments/1082753423/Doseme%20kolon%20kiris%20perde%20zati%20agirlik.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

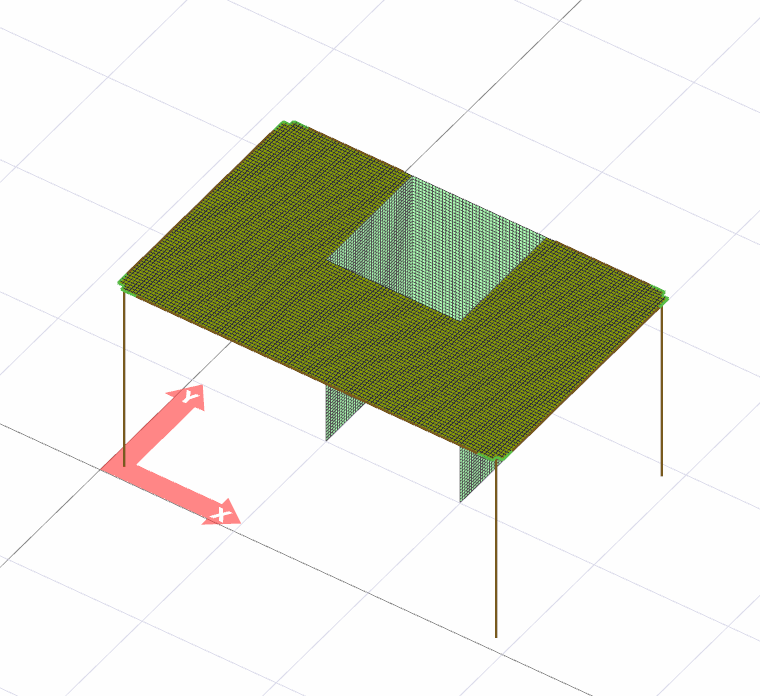

No Fixed (G) and Live (Q) Loads transferred from the floor to beams and curtains
![](../__attachments/1082753423/Yari%20rijid%20elemanlara%20etkiyen%20d%C3%B6%C5%9Feme%20y%C3%BCkleri%20yok.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

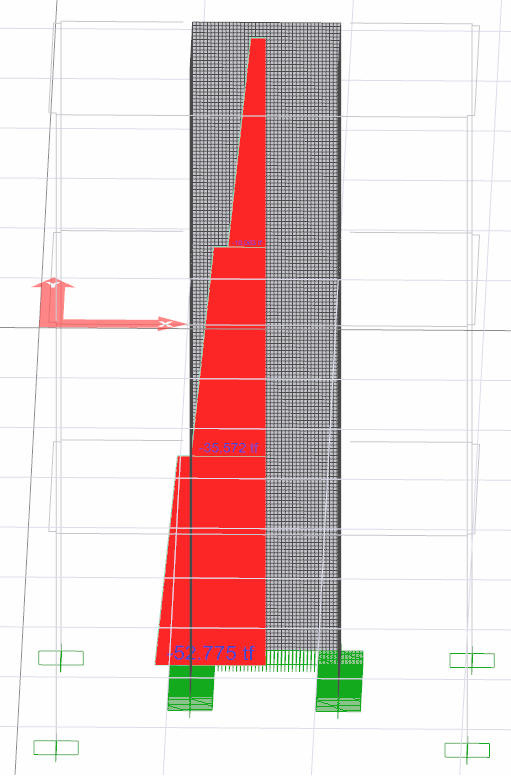

Lift curtain G loading Axial forces
![](../__attachments/1082753423/Yari%20rijid%20asansor%20perdesi%20%20G%20normal%20kuvveti.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

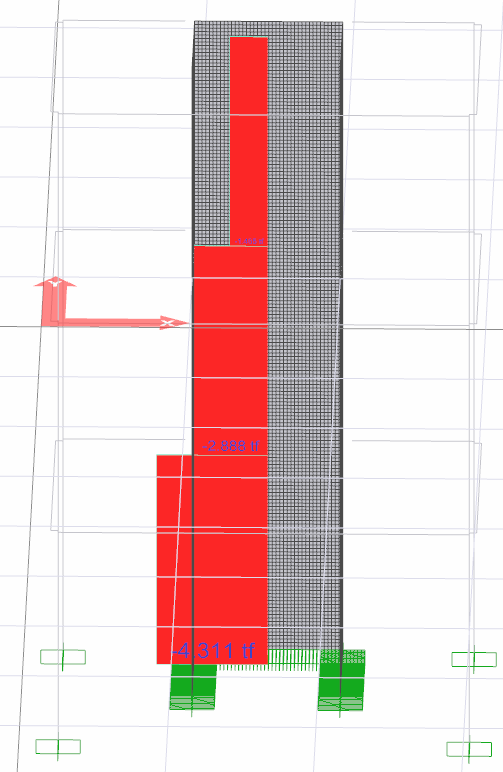

Lift curtain Q Loading Axial Forces
![](../__attachments/1082753423/Yari%20rijid%20asansor%20perdesi%20%20Q%20normal%20kuvveti.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

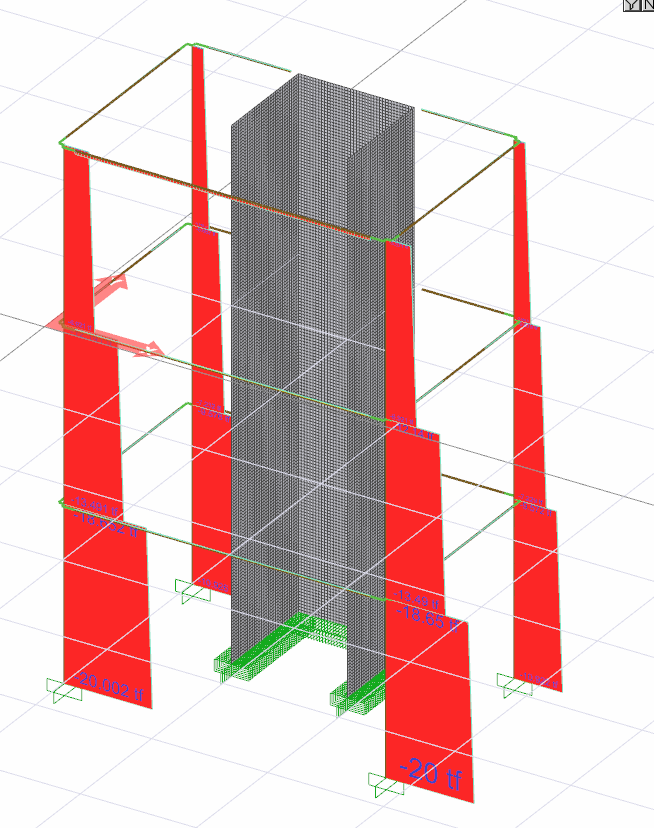

Axial forces of columns loading G
![](../__attachments/1082753423/Yari%20rijid%20%20kolon%20G%20normal%20kuvvetleri.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

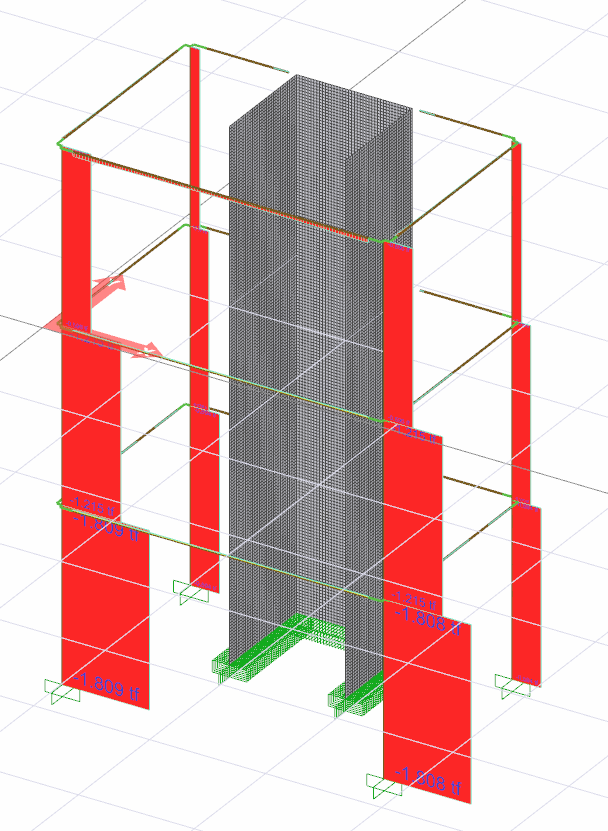

Axial forces of columns loading Q
![](../__attachments/1082753423/Yari%20rijid%20kolon%20Q%20normal%20kuvvetleri.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

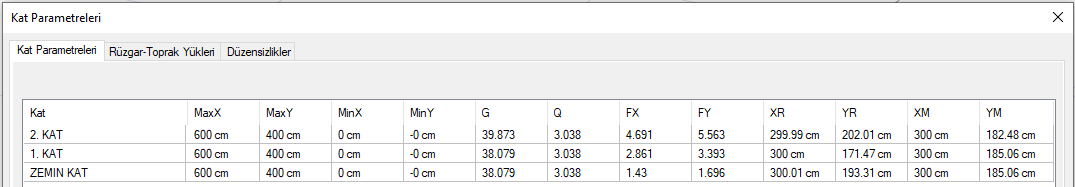

Floor G and Q loads shown in floor parameters
![](../__attachments/1082753423/Kat%20A%C4%9F%C4%B1rl%C4%B1klar%C4%B1%20G%20ve%20Q-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

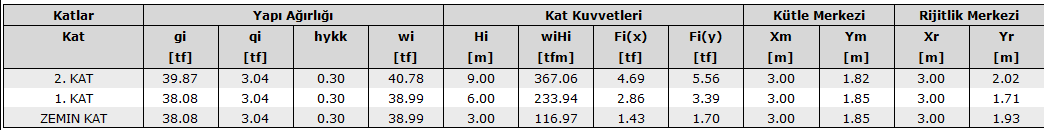

Floor weights printed on the Floor General Information report
![](../__attachments/1082753423/Raporda%20Kat%20A%C4%9F%C4%B1rl%C4%B1klar%C4%B1%20G%20ve%20Q-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

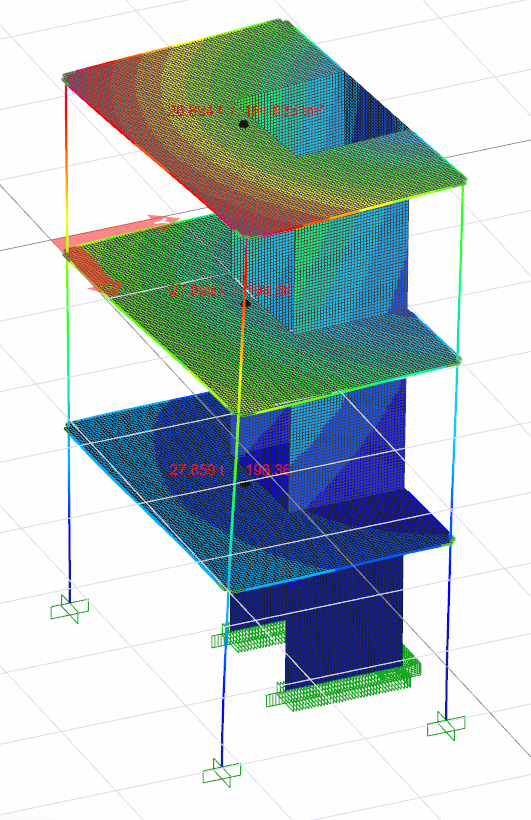

Storey masses used in dynamic analysis
![](../__attachments/1082753423/Yari%20rijid%203B%20Kat%20kutleleri.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

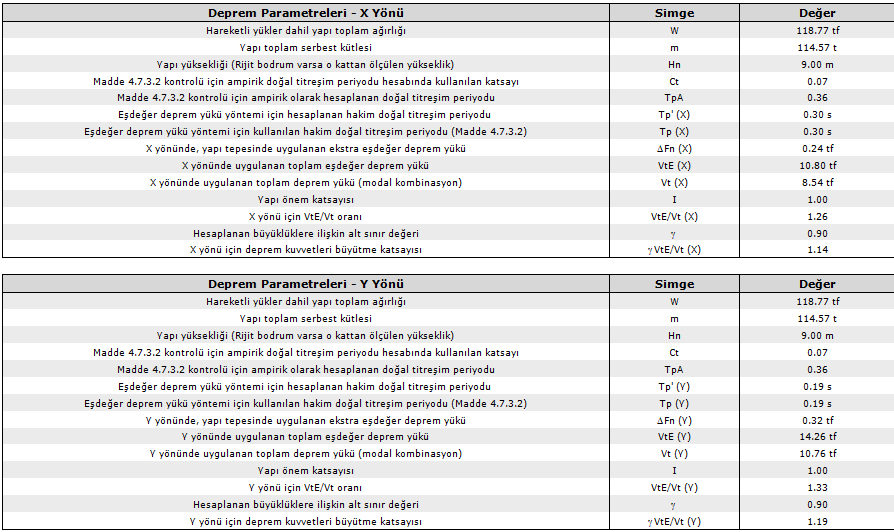

Building weight and free mass of the building printed in earthquake parameters in reports
![](../__attachments/1082753423/Yari%20rijid%20Dinamik%20Analiz%20Yap%C4%B1%20Kat%20kutleleri.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

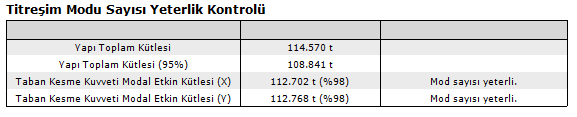

Build total mass printed in the Vibration Mode qualification check
![](../__attachments/1082753423/yari%20rijid%20Detayl%C4%B1%20Dinamik%20Analiz%20Yap%C4%B1%20Kat%20kutlesi.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
