Trim

The remaining parts of the 2D object (such as circle, intersecting lines, arc) selected in the drawing area with the trim command are deleted from the specified reference boundary. The object to be deleted can be inside or outside reference boundary, but it must also intersect with it.

Location of the Trim Command

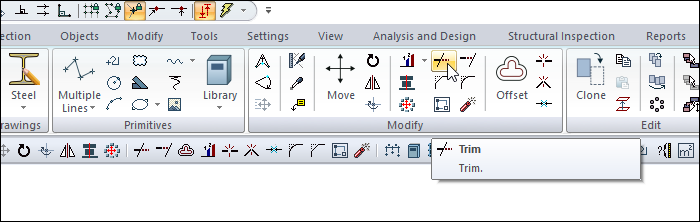

You can access the trim command under the ribbon menu Drawings tab , under the Modify heading.

Usage Steps

  • Click the Trim icon in the ribbon menu .

  • Select the line that will be your reference border and click the right mouse button.

  • Identify the side of your other line to be cut.

  • Your line will be trimmed.

Usage Step

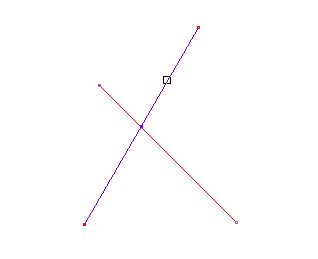

Determining the reference limit

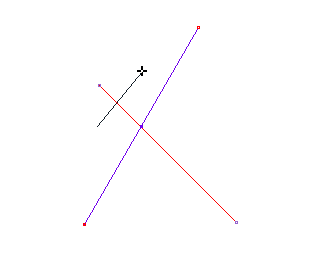

Determining the side to be cut

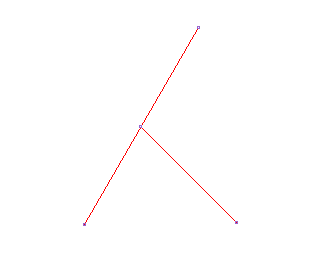

After trim
