The rib height does not meet the requirement in gear upholstery.

The Complete Message:

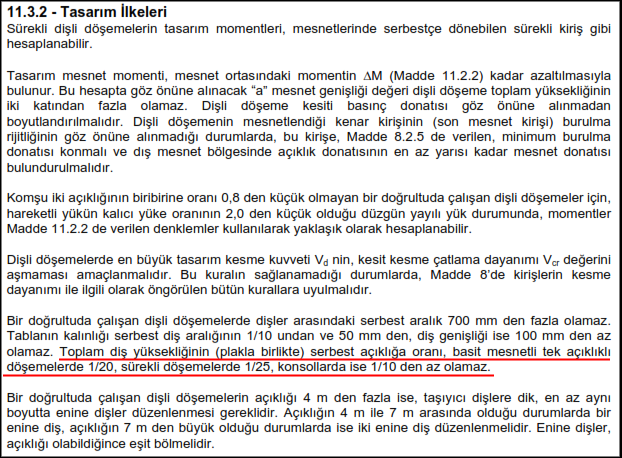

The tooth height does not meet the requirement in gear upholstery. (TS500 11.3.2)

Increase the tooth height of the solid and so-called ribbed (ribbed/waffle) flooring until the condition is met.

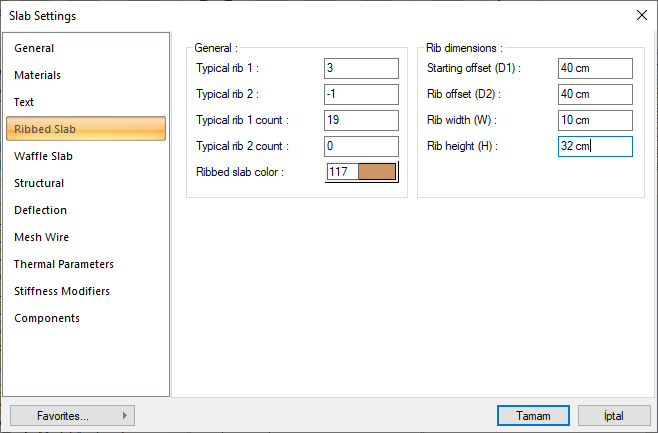

1. Select the ribbed/waffle laying.

2. Enter the properties.

3. In the Ribbed/Waffle tab, enter the value that satisfies the condition in the Thread Height (H) line and click the OK button.
