Determination of Unit Dimensions of Terra Cotta Siding

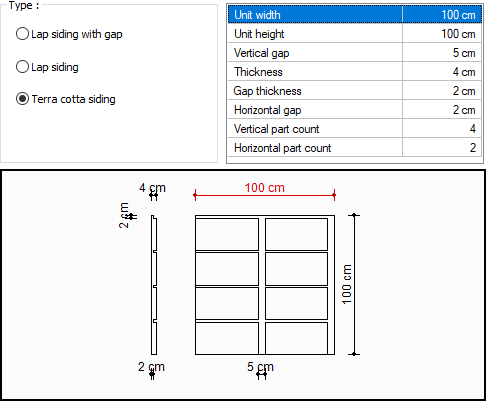

Different views are obtained by arranging the unit dimensions of the terra cotta siding. The dimensions of the unit element appear in the table in the siding settings dialog. While giving the dimensions, the change of the shape according to the entered dimensions is followed from the front view below. Clicked size line is displayed in red in the preview.
Location of the Terra Cotta Siding Unit Dimensions
You can access the unit dimensions by entering the settings of the exterior veneer command.
Specifications |
|---|
Unit width The width of the unit piece is entered. Each unit forms the entire exterior veneer by overlapping and side by side. |
Unit height The height of the unit part is entered. Each unit forms the entire exterior veneer by overlapping and side by side. |
Vertical gap Vertical gap distance is entered. |
Thickness Exterior veneer thickness is entered. |
Gap thickness Gap thickness is entered. |
Horizontal gap Horizontal gap distance is entered. |
Vertical part count It determines how many pieces will be in the unit vertically. |
Horizontal part count Determines how many pieces will be in the unit horizontally. |
