Shearwall & Column Vertical Detail

The color, size and type, layout, table and heading settings of the text of the shearwall - column vertical drawings are arranged.

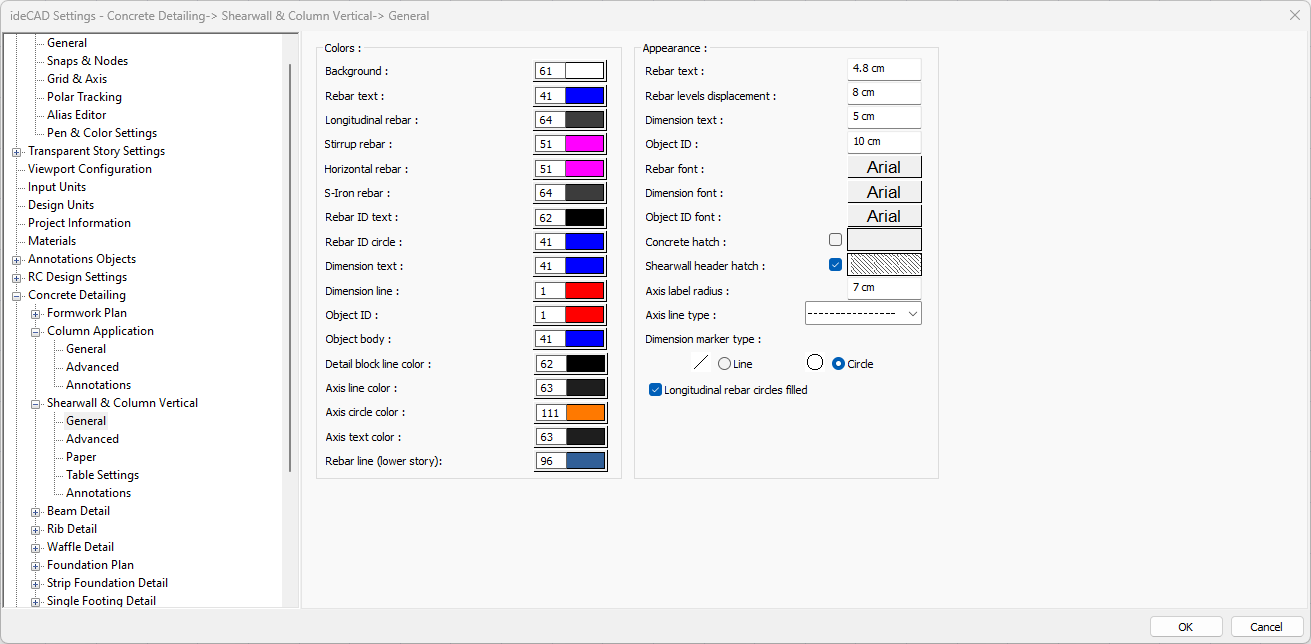

General

Specifications - Colors

Background color

Sets the background color. When the color box is clicked, the appropriate color is selected from the window that opens.

Rebar text

Sets the color of the rebar text. When the color box is clicked, the appropriate color is selected from the window that opens.

Longitudinal rebar

Sets the longitudinal rebar color. When the color box is clicked, the appropriate color is selected from the window that opens.

Stirrup rebar

Sets the stirrup rebar color. When the color box is clicked, the appropriate color is selected from the window that opens.

Horizontal rebar

Sets the horizontal rebar color. When the color box is clicked, the appropriate color is selected from the window that opens.

S-Iron rebar

Sets the s-iron rebar color. When the color box is clicked, the appropriate color is selected from the window that opens.

Rebar ID text

Adjusts the color of the rebar ID text. When the color box is clicked, the appropriate color is selected from the window that opens.

Rebar ID circle

Adjusts the color of the rebar ID circle. When the color box is clicked, the appropriate color is selected from the window that opens.

Dimension text

Sets the dimension text color. When the color box is clicked, the appropriate color is selected from the window that opens.

Dimension line

Sets the dimension line color. When the color box is clicked, the appropriate color is selected from the window that opens.

Object ID

Sets the color of the object ID. When the color box is clicked, the appropriate color is selected from the window that opens.

Object body

Sets the color of the object body. When the color box is clicked, the appropriate color is selected from the window that opens.

Detail block line color

Sets the line color of the detail block. When the color box is clicked, the appropriate color is selected from the window that opens.

Axis line color

Sets the color of the axis line. When the color box is clicked, the appropriate color is selected from the window that opens.

Axis circle color

Sets the color of the axis circle. When the color box is clicked, the appropriate color is selected from the window that opens.

Axis text color

Adjusts the text color of the axis. When the color box is clicked, the appropriate color is selected from the window that opens.

Rebar line (lower story)

Sets the color of the lines showing the rebar on the lower story. When the color box is clicked, the appropriate color is selected from the window that opens.

Specifications - Appearance

Rebar text

The height of the rebar text is entered.

Rebar levels displacement

The distance between the two rebar texts is entered.

Dimension text

The height of the dimension text is entered.

Object ID

The height of the object ID is entered.

Rebar font

The rebar font is selected.

Dimension font

Dimension font is selected.

Object ID font

Object ID font is selected.

Concrete hatch

It is the hatch type that is valid for concrete. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the look-up table in this dialog.

Shearwall header hatch

It is the hatch type valid for shearwall heading. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the look-up table in this dialog.

Axis label radius

The radius of the axis label is entered.

Axis line type

Axis line type is selected. Clicking the down arrow buttons to the right of the boxes opens the list of line types. From this list, the desired line type is selected by clicking with the left mouse button.

Dimension marker type

The dimension marker type is selected.

Longitudinal rebar circles filled

When the option is selected, the inside of the longitudinal rebar circles are filled.

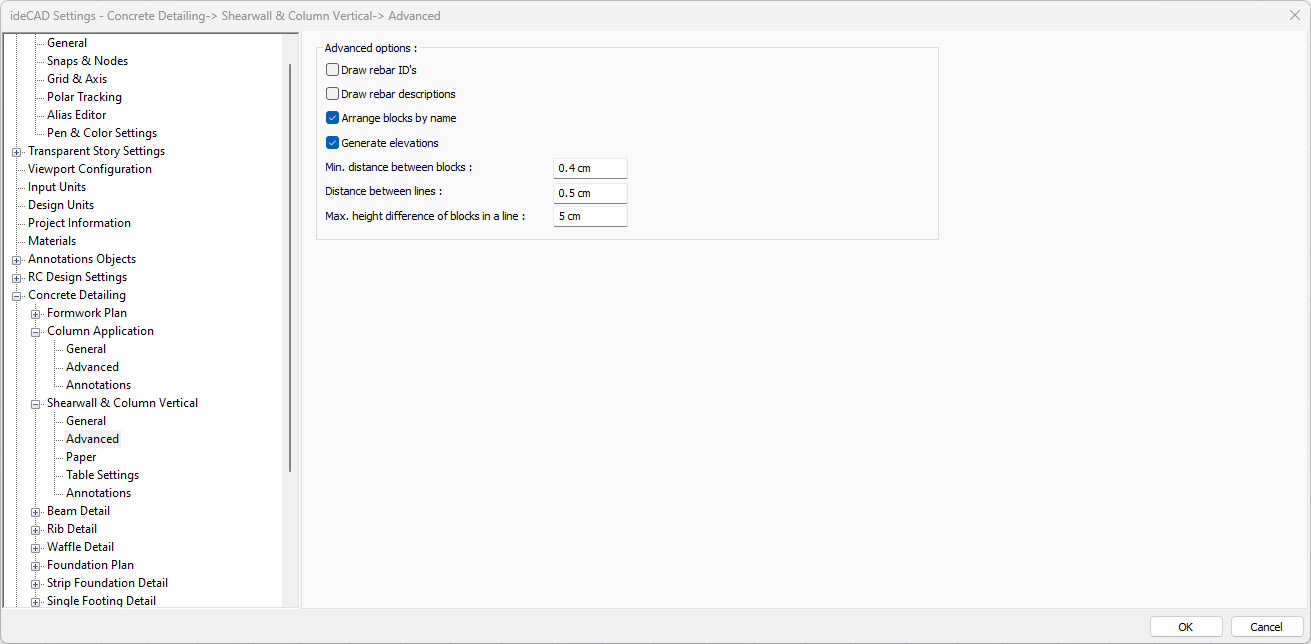

Advanced

Spacifications

Draw rebar ID’s

If checked, rebar ID’s are shown in the drawings. If not checked, it will not be displayed.

Draw rebar descriptions

If checked, the rebar descriptions are shown in the drawings. If not checked, it will not be displayed.

Arrange blocks by name

In the expansions, the objects are marked if they want to be placed according to the element names while placing the layout on the layout. If not marked, the expansions are placed according to the principle of the most economical use of the layout. The name is ignored. Names can be mixed. Object names; For example, if beam is mentioned, they are names such as K101, K104 etc. The expansion is beam opening, foundation opening, rib opening, etc.

Generate elevations

If checked, elevations are shown in the drawings. If not checked, it will not be displayed.

Min. distance between blocks

Minimum horizontal distance between blocks is entered. The block is each opening itself, with its rebars, sections and dimensioning.

Distance between lines

Minimum vertical distance between blocks is entered. The block is each opening itself, with its rebars, sections and dimensioning.

Max. height difference of blocks in a line

The maximum height difference of each block in the row (vertical direction) is entered. If the difference between the height of the block to be placed and the height of the previously placed block is smaller than the value entered on this line, the layout is made. If it is large, no settlement is made. It is left to the next row. The block is each opening itself, with its rebars, sections and dimensioning.

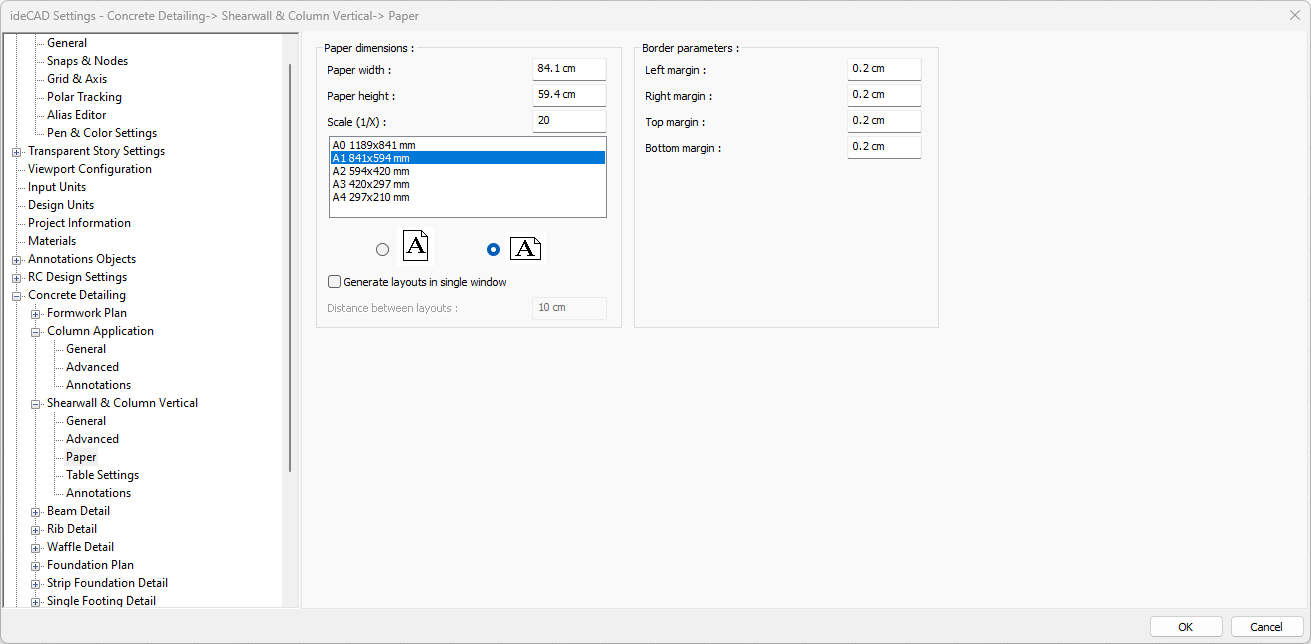

Paper

Specifications

Paper width

As well as selecting the standard paper sizes, any paper width value can also be entered.

Paper height

Standard paper sizes can also be selected, and any paper size value can be entered.

Scale (1/X)

In what scale the expansions will be drawn, that value is entered.

Standard paper sizes

Standard paper sizes are listed. The layout size can be selected from the list, as well as the layout dimensions can be determined by entering the width and height values.

Vertical/Horizontal use

It is determined whether the layout will be used horizontally or vertically.

Generate layouts in single window

By selecting the option, layouts are created in a single window.

Distance between layouts

The distance between the layouts to be created side by side is entered.

Left margin

The distance of the layout border from the axis border to the left side is entered.

Right margin

The distance from the axis border to the right side of the layout border is entered.

Top margin

Enter the distance from the axis border to the top side of the layout border.

Bottom margin

The distance from the axis border to the bottom side of the paper border is entered.

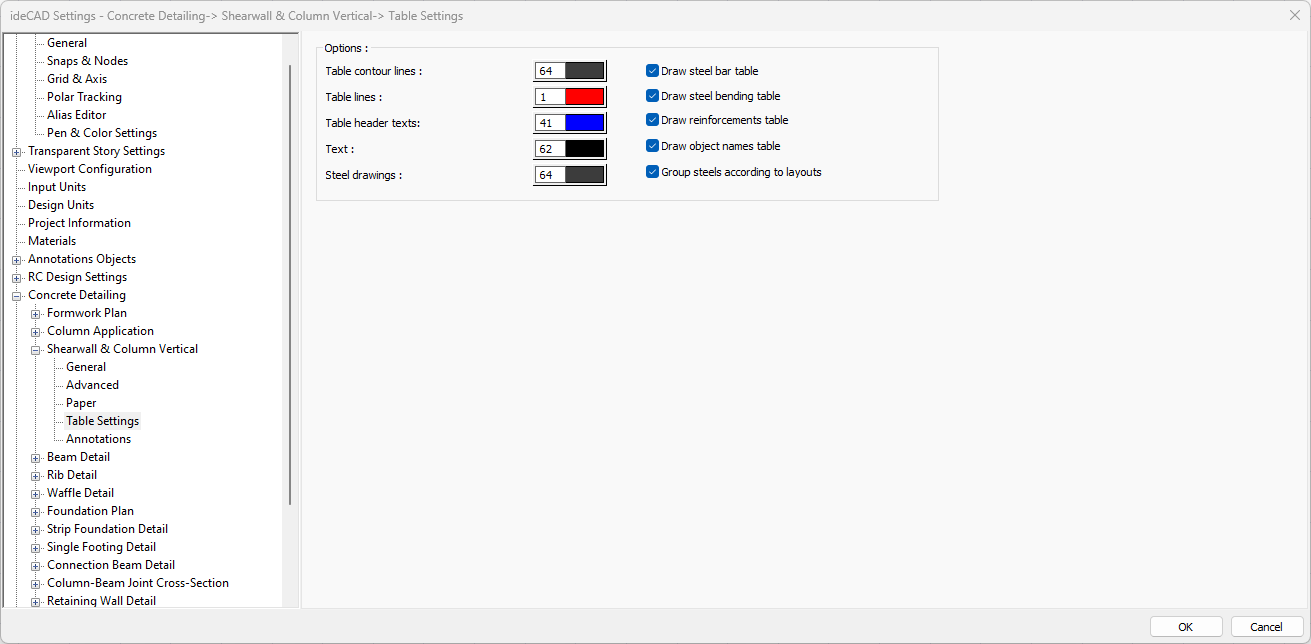

Table Settings

Specifications

Table contour lines

Sets the color of the table contour lines. When the color box is clicked, the appropriate color is selected from the window that opens.

Table lines

Sets the color of the table lines. When the color box is clicked, the appropriate color is selected from the window that opens.

Table header texts

Sets the color of the table header texts. When the color box is clicked, the appropriate color is selected from the window that opens.

Text

Sets the color of table text. When the color box is clicked, the appropriate color is selected from the window that opens.

Steel drawing

Sets the color of the steel drawing. When the color box is clicked, the appropriate color is selected from the window that opens.

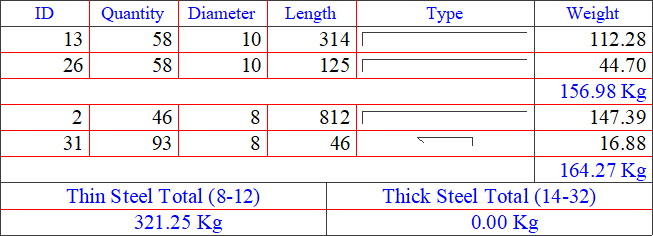

Draw steel bar table

If marked, the rebars are divided into types and a table is created indicating the number, diameter, length, type and weight, and the rebar quantity is shown in the drawing.

Draw steel bending table

If checked, the rebars are divided into bending types and a table is created indicating the number, diameter, length and type, and the bend is shown in the drawing.

Draw reinforcement table

If checked, the reinforcement table is created and shown in the drawing.

Draw object names table

If checked, the object names table is created and shown in the drawing.

Group steels according to layouts

If checked, the steels are grouped according to the layout and shown in the drawing.

Annotations

Specifications

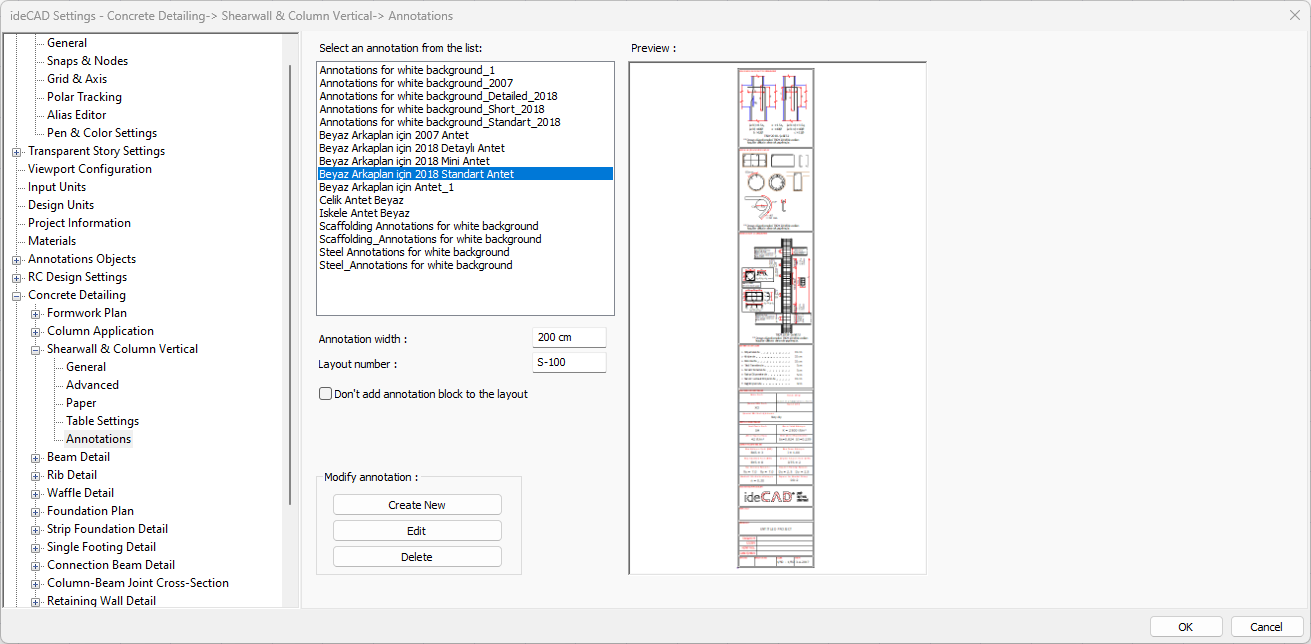

Select an annotation from the list

Defined annotations are listed.

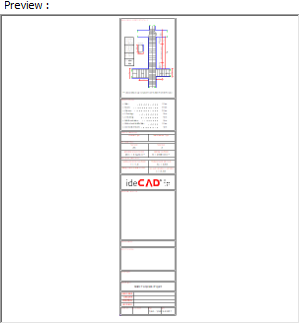

Preview

There is a preview of the annotation selected from the list.

Annotation width

Annotation width is determined.

Layout number

The layout number is determined.

Don’t add annotation block to the layout

If it is checked, annotation will not be added to the layouts.

Create New

The new annotation is created.

Edit

The annotation is edited.

Delete

The annotation is deleted.
