The border on wall command creates an object at the zone by default, with a selected profile.

Location of Border on Wall

Click the Border on Wall icon from the Sweep toolbar.

Icons
Sweep Draws a continuous form object according to the selected section.
Ceiling cornice Draws a ceiling cornice object.
Baseboard Draws a baseboard object.
Border on wall Draws a border on the wall object.
Cordon Draws a cordon object.
Roof gutter Draws a gutter around the roof object.
Dome gutter Draws a gutter around the dome object.
Free drawn Draws the sweep freely by giving a point without being attached to any object.
Path based Draws a sweep based on the path object.
Parent based Draws asweep while adhering to the contour of an object like zone etc.
Wall based Draws the sweep attached to the wall.
Story top aligned It automatically adjusts the level of the sweep to be the same as the story ceiling level and draws the object at that level.
Story bottom aligned It automatically adjusts the level of the sweep to be the same as the story floor level and draws the object at that level.
Story alignment free It takes the elevation of the sweep as much as the given level and draws the object at that level.
Sweep operations Opens an auxiliary toolbar with commands for changing sweep.
Section list It is the list that allows the section of the sweep to be determined. A profile is selected from the list while drawing the object.
Profiles Displays the folder of profiles saved in the project or to disk and allows sweep.
Settings Displays the settings of the sweep.

Icons

Sweep

Draws a continuous form object according to the selected section.

Ceiling cornice

Draws a ceiling cornice object.

Baseboard

Draws a baseboard object.

Border on wall

Draws a border on the wall object.

Cordon

Draws a cordon object.

Roof gutter

Draws a gutter around the roof object.

Dome gutter

Draws a gutter around the dome object.

Free drawn

Draws the sweep freely by giving a point without being attached to any object.

Path based

Draws a sweep based on the path object.

Parent based

Draws asweep while adhering to the contour of an object like zone etc.

Wall based

Draws the sweep attached to the wall.

Story top aligned

It automatically adjusts the level of the sweep to be the same as the story ceiling level and draws the object at that level.

Story bottom aligned

It automatically adjusts the level of the sweep to be the same as the story floor level and draws the object at that level.

Story alignment free

It takes the elevation of the sweep as much as the given level and draws the object at that level.

Sweep operations

Opens an auxiliary toolbar with commands for changing sweep.

Section list

It is the list that allows the section of the sweep to be determined. A profile is selected from the list while drawing the object.

Profiles

Displays the folder of profiles saved in the project or to disk and allows sweep.

Settings

Displays the settings of the sweep.

Usage Steps

Click the Border on Wall icon from the Sweep toolbar .
Parent Based and Story Alignment Free in the toolbar are automatically active.
If desired, one of the free drawned, path based and wall based drawing modes can be selected.
Since the story alignment free mode is selected, the elevation value in the Sweep Settings dialog determines the height of the border from the base.
In the Section box in the Sweep toolbar, the profiles to be used in the border object are listed.
If wanted, a different profile can be selected from the Section box.
Move the mouse over the zone and click the left button.

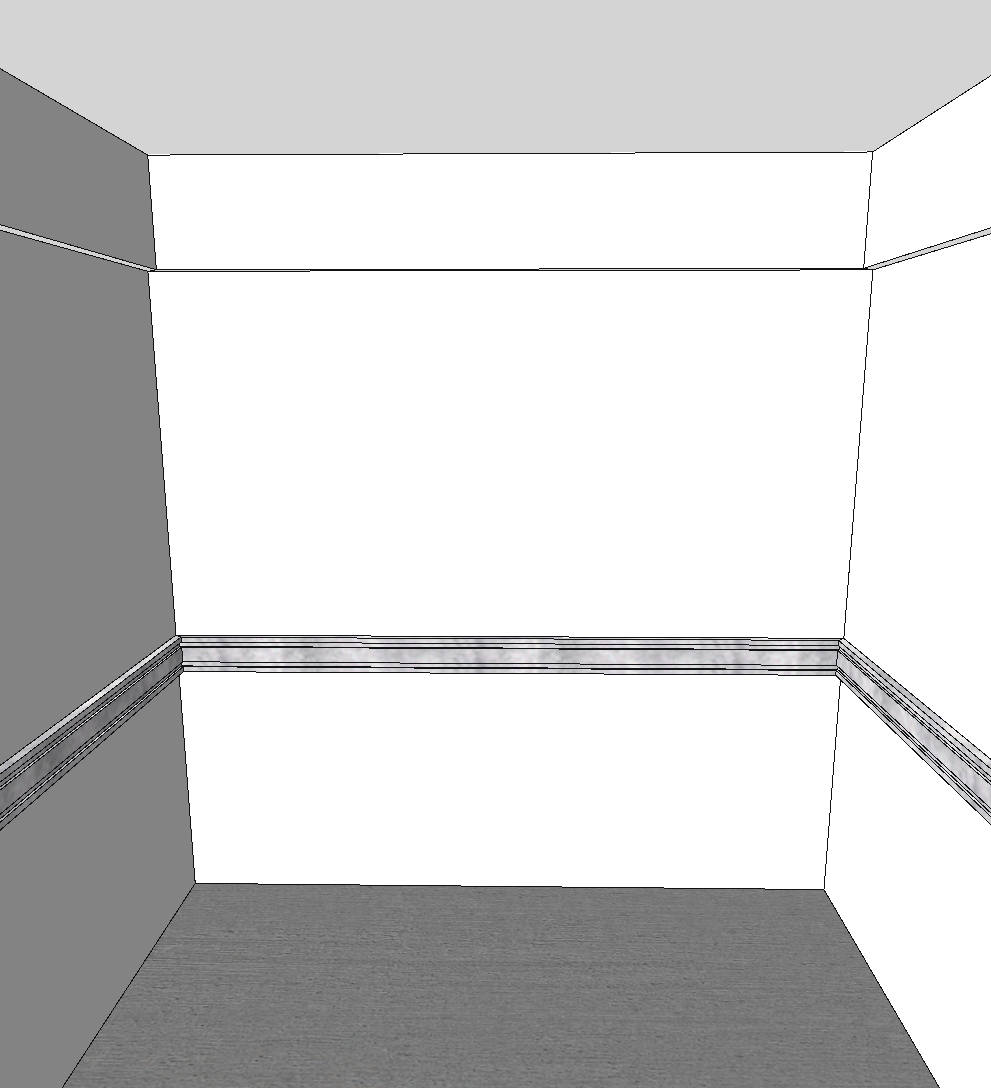

The border will be formed on the wall at the specified elevation.

Usage step

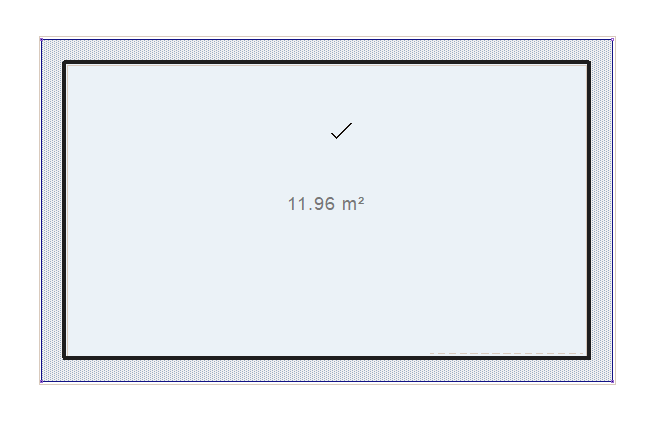

Bringing the mouse over the site

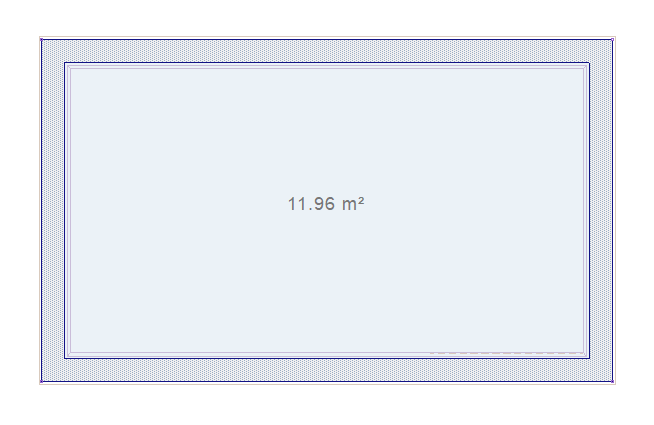

Creating a border on wall by clicking the left mouse button
