Horizontal and Vertical Elastic Design Response Spectrum ASCE 7-16

How does ideCAD define horizontal and vertical elastic design spectrums according to ASCE 7-16?

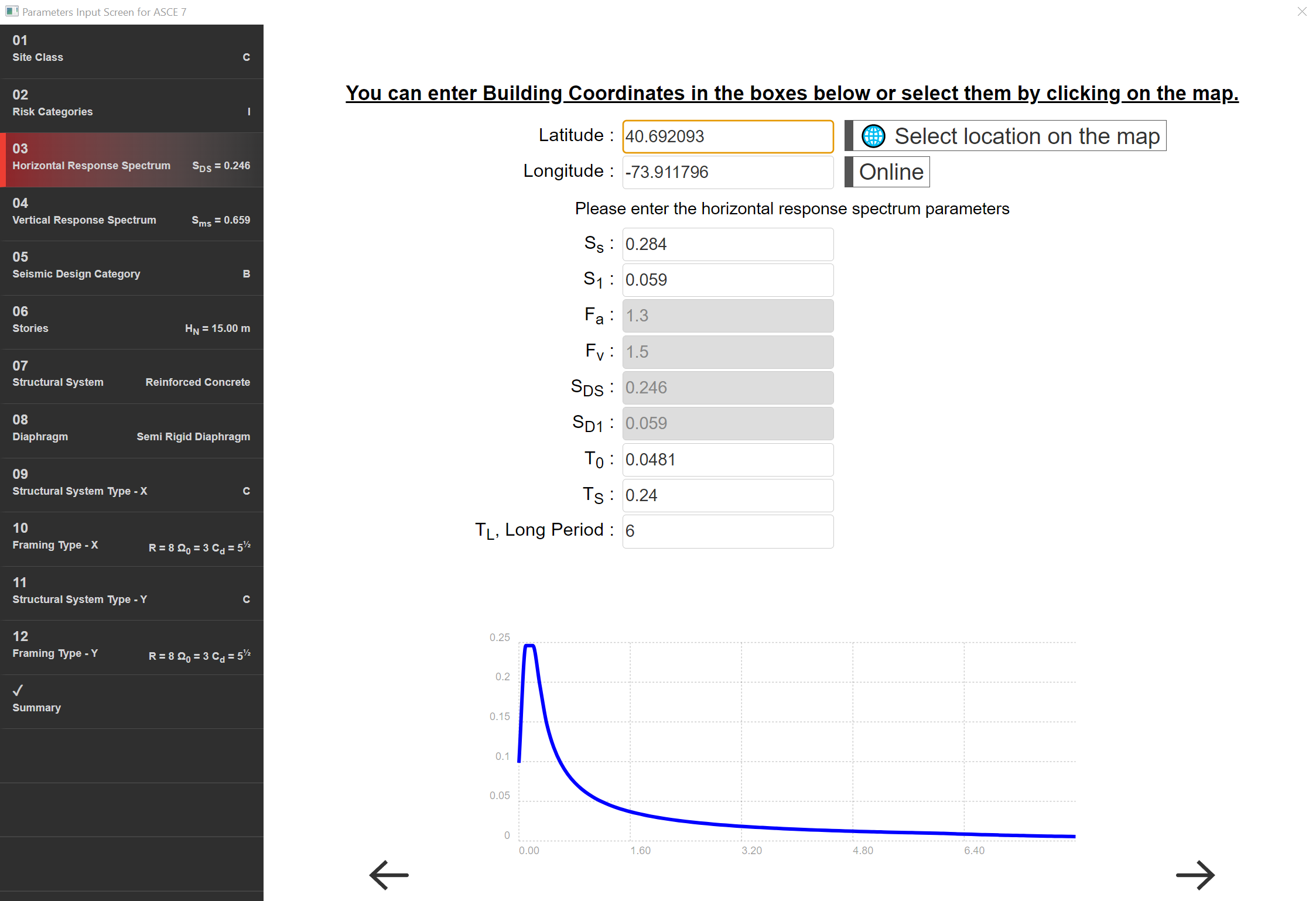

Coordinate information and spectrum information of the structure are given in this step. Design spectra parameters should be given by users. ideCAD software automatically creates the horizontal design spectrum using the information in the below-mentioned dialog.

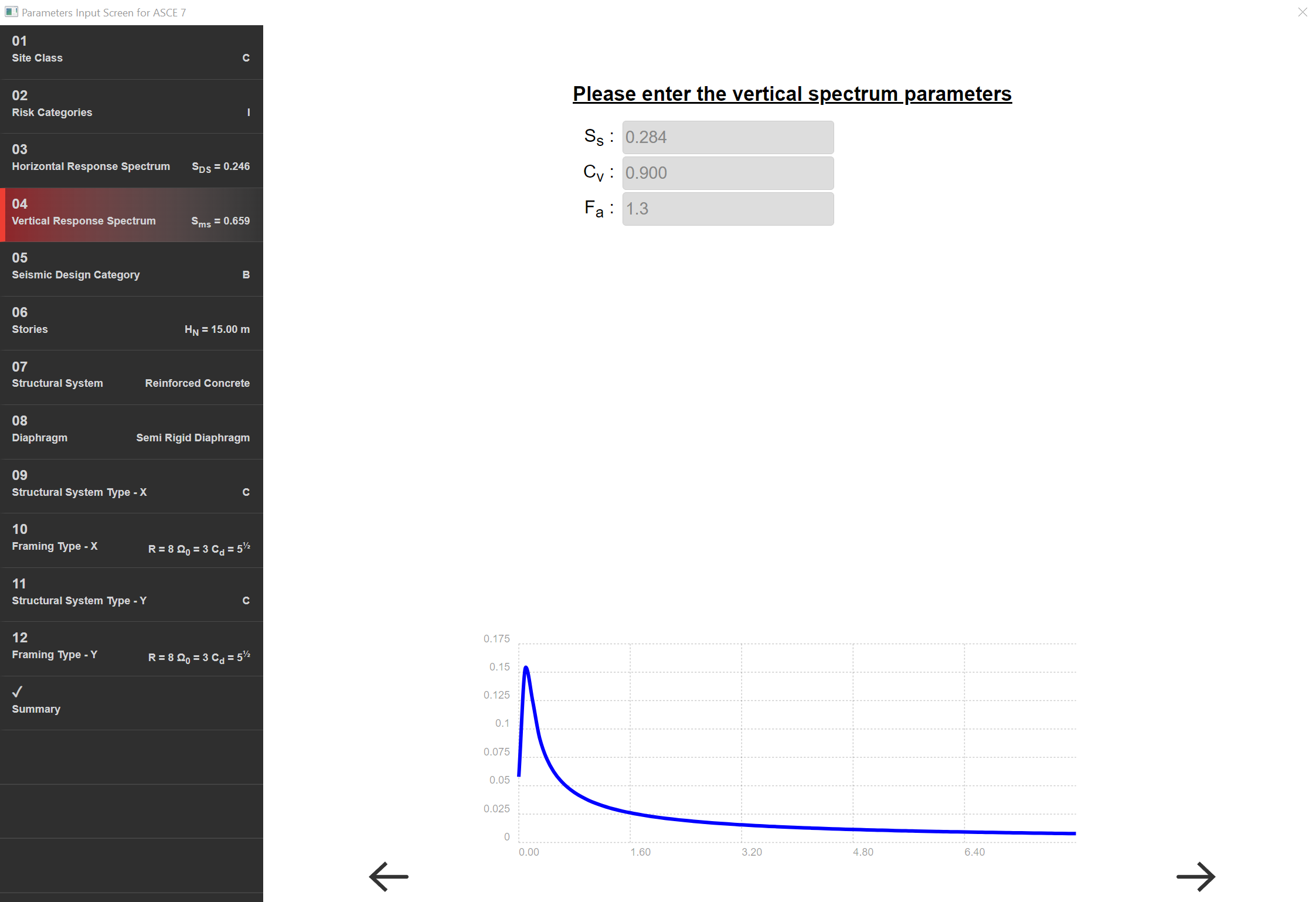

ideCAD software automatically creates the vertical design spectrum using the information in the upper-mentioned dialog.
