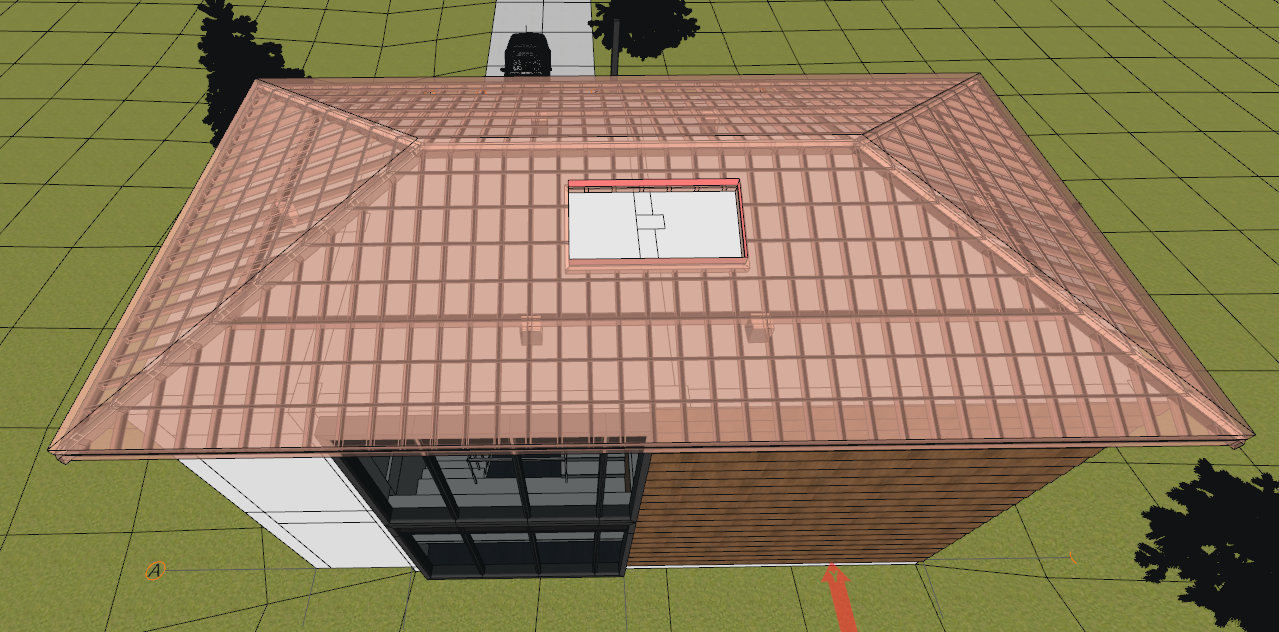

Trimmers are the elements drawn on the roof opening edges. The trimmer roof detail is created with the Trimmer command.

Location of Trimmer Command

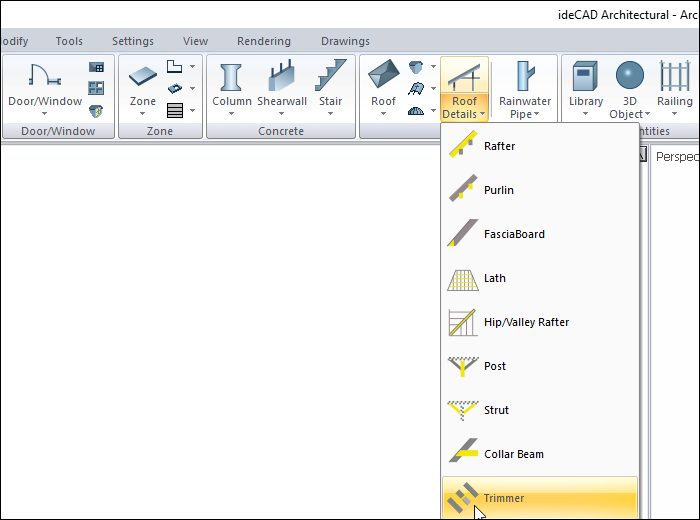

In the Architectural Program

You can access it under the ribbon menu Home tab Roof title.

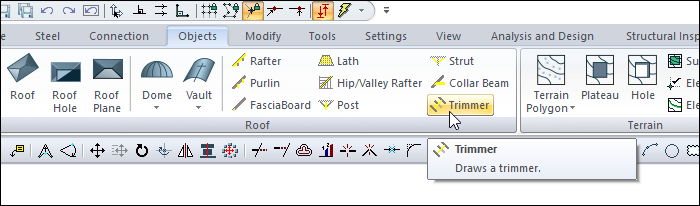

In Structural Program

You can access it under the ribbon menu Objects tab Roof title.

Trimmer Settings Dialog



The width of the trimmer section is entered.


The height of the trimmer section is entered.

Usage Steps

To draw a trimmer:

  • Click the Trimmer icon in the ribbon menu .

  • Click one of the roof opening edges with the left mouse button.

  • If you want the sheave beam to be the length of your chosen side, click on the inside of the roof opening. Enter the width and height of the trimmer section from the trimmer dialog that opens and click the OK button. A trimmer will be drawn on the edge of the relevant roof opening.

  • Build the other trimmer in the above process order.

Usage step

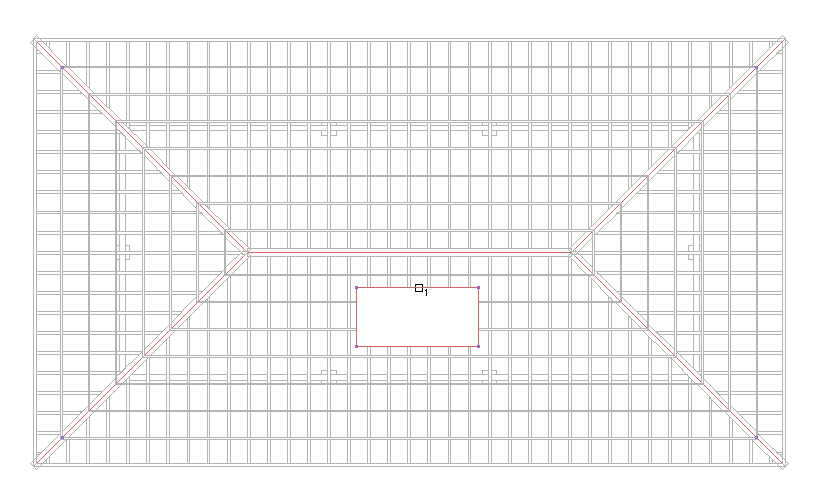

Choosing one of the roof hole edges

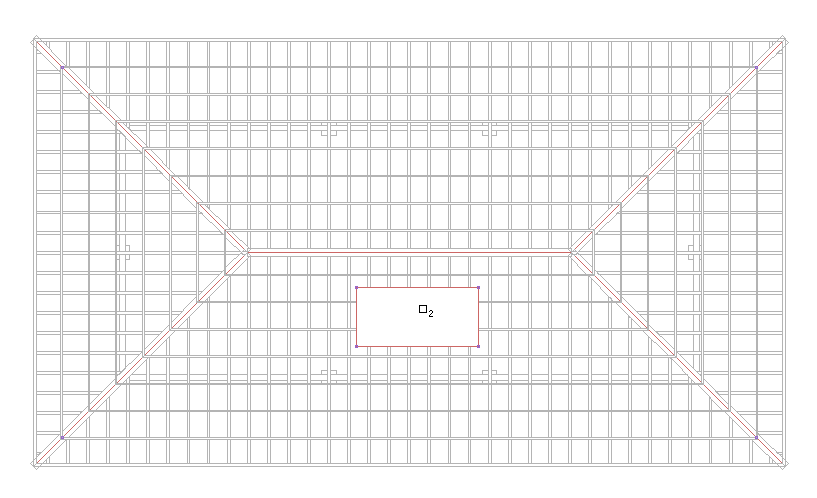

Clicking inside the roof hole to have the trimmer at the selected edge length

Making the trimmer settings

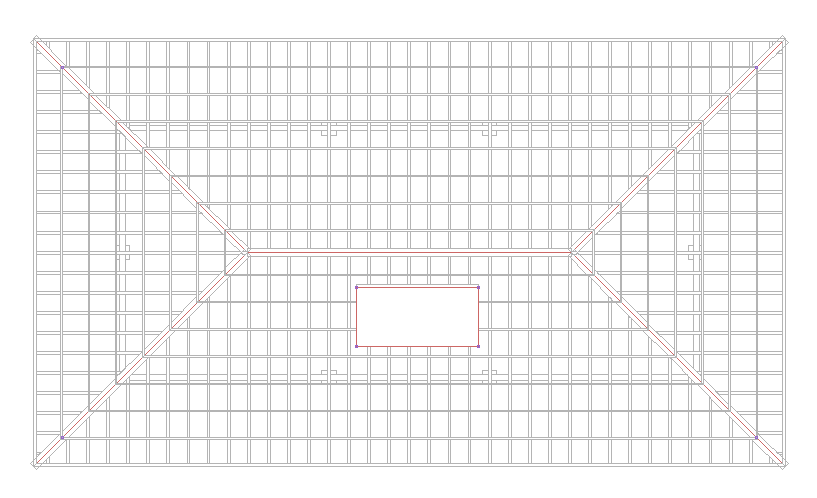

Formation of trimmer

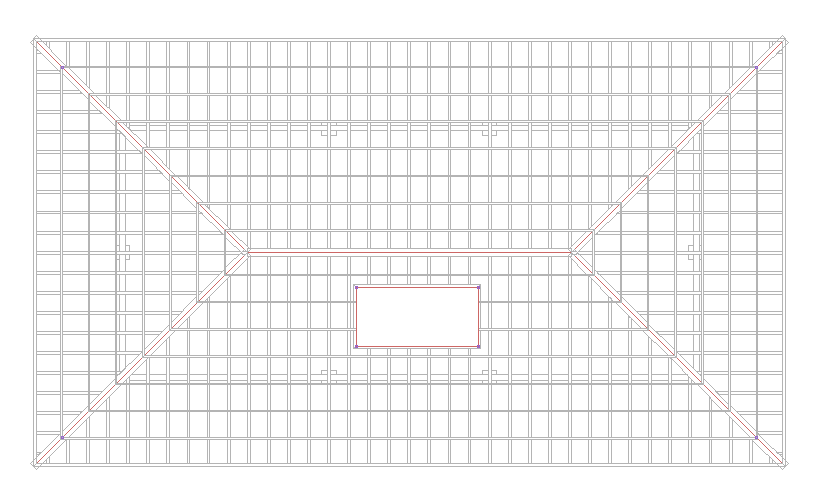

Formation of all trimmer for roof hole
