Create the Raft Foundation
Create the raft foundation in this section.
The previous steps have been applied in the project file named Create the Rraft Foundation. You can download the file and follow the steps given in this title on the project.
|
Click on the raft edge command.

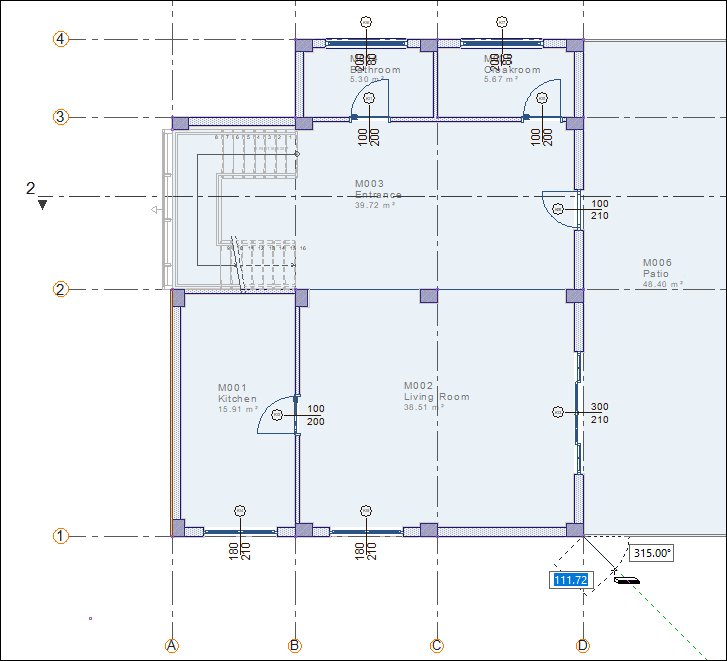

Click on the A-1 axis intersection then click on the D-1 axis intersection.

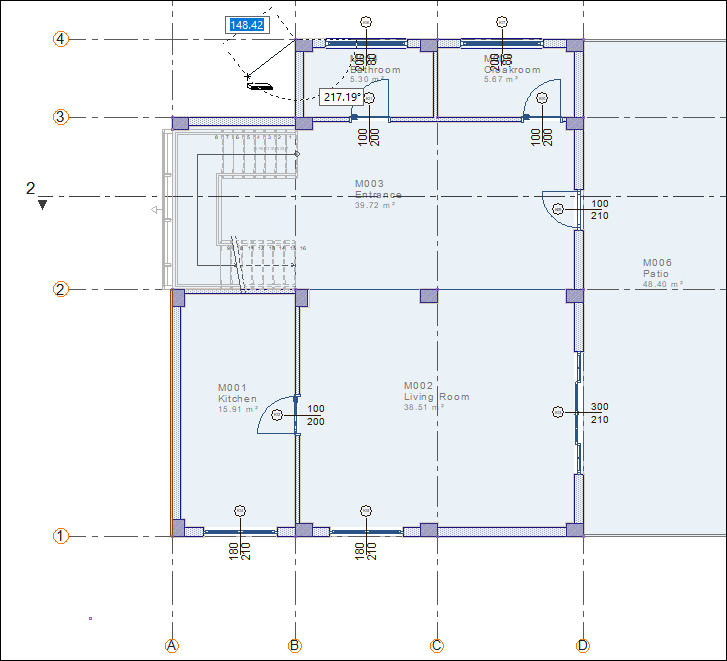

Click on the D-4 axis intersection then the click on the B-4 axis intersection.

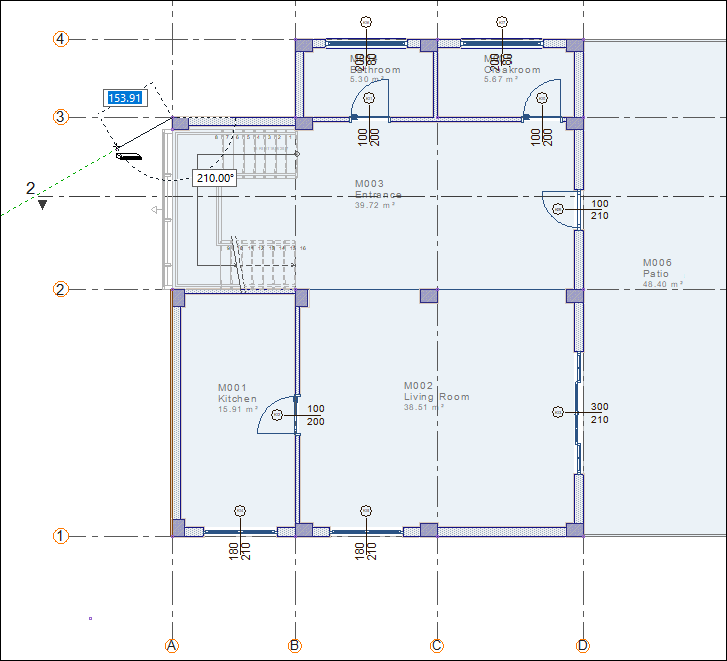

Click on the B-3 axis intersection then click on the A-3 axis intersection.
Click on the A-1 axis intersection. Press the Esc key on the keyboard to exit the command.
Click the raft foundation command. Move your mouse over the area delimited by axes 1-4 and A-D.

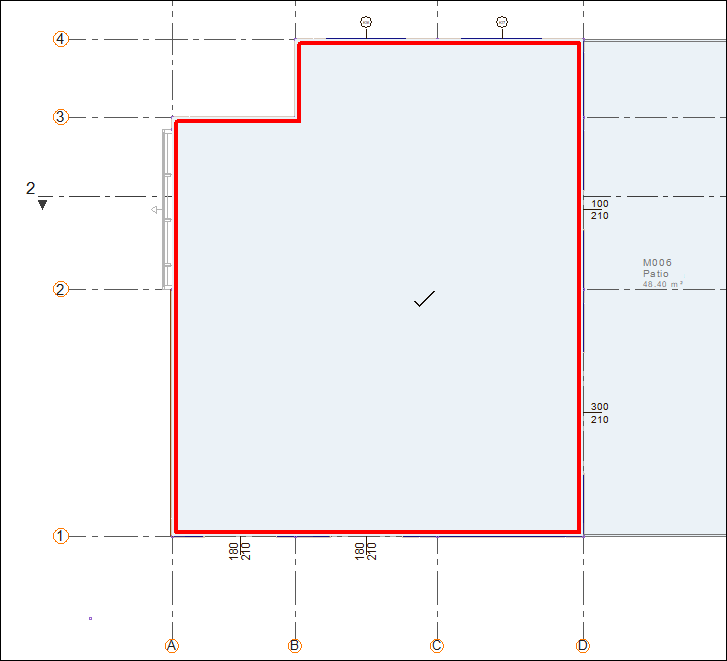

Click the left button. Raft foundation will be formed. Press the Esc key on the keyboard and exit the command.
