Well Foundation Reinforcements

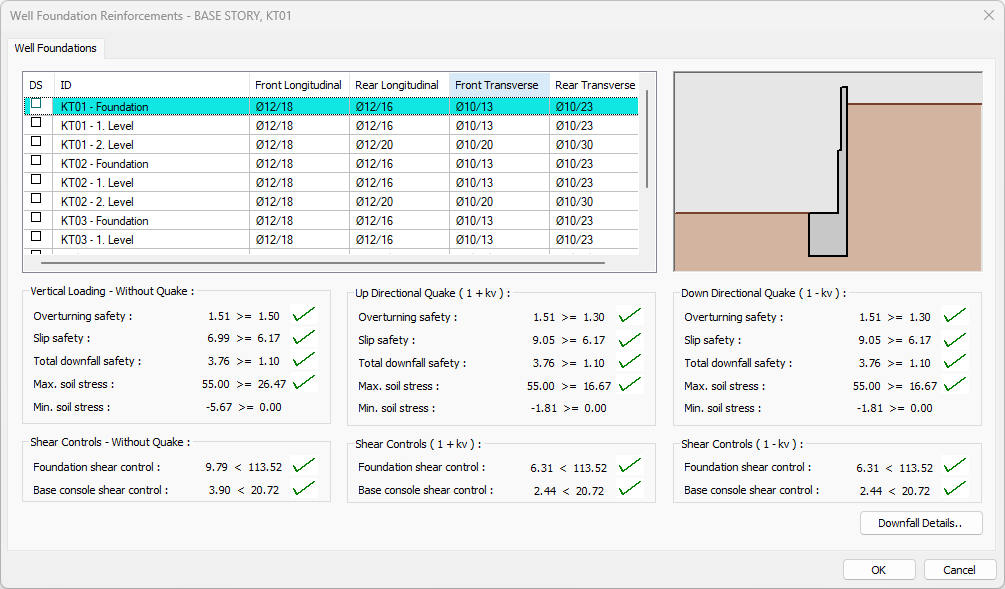

Well foundation reinforcement design results and inadequacy of individual foundations are displayed in the Well Foundation Reinforcement dialog. In the Well Foundation Reinforcement dialog, foundation reinforcements, static and dynamic control results are given.
Location of Well Foundation Reinforcement Dialog

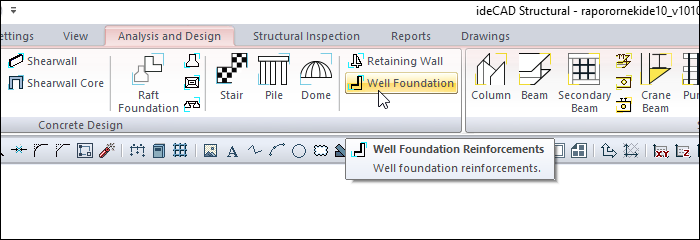

After the Well Foundation Analysis is done, you can access it by clicking on the Well Foundation command under the Concrete Design title of the ribbon menu Analysis and Design tab.
Well Foundation Reinforcements
Specifications |
|---|

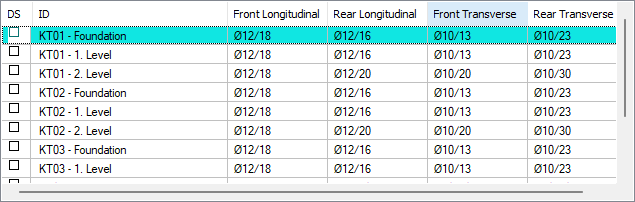

Well foundation and rebar list  As a result of the calculation, the list of all rebars selected on the well foundation is shown as a table. Rebars were selected automatically by the program. Double click on the cell to change the related rebar. |

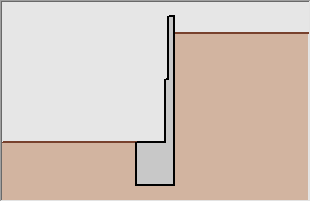

Preview  There is a preview of the well foundation selected from the list. |

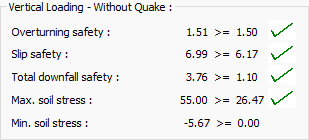

Vertical loading - without quake  Information on external stability controls obtained as a result of without earthquake loading is printed under this section. |
Shear controls - without quake  Information on internal stability controls obtained as a result of without earthquake loading is printed under this section. |

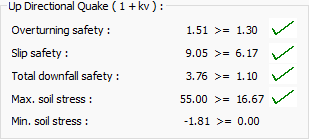

Up directional quake (1 + kv)  Information on external stability checks obtained as a result of loads in up direction quake conditions are printed under this section. |
Shear controls (1 + kv)  Information on internal stability controls obtained as a result of loads in up direction quake condition is printed under this section. |

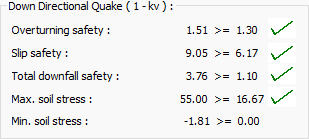

Down directional quake (1-kv)  Information regarding the external stability controls obtained as a result of the loads made in the event of a down direction quake is printed under this section. |
Shear controls (1-kv)  Information regarding the internal stability controls obtained as a result of the loads made in down direction quake conditions are printed under this section. |
Downfall details  A dialogue will open with details of the downfall accounts. |

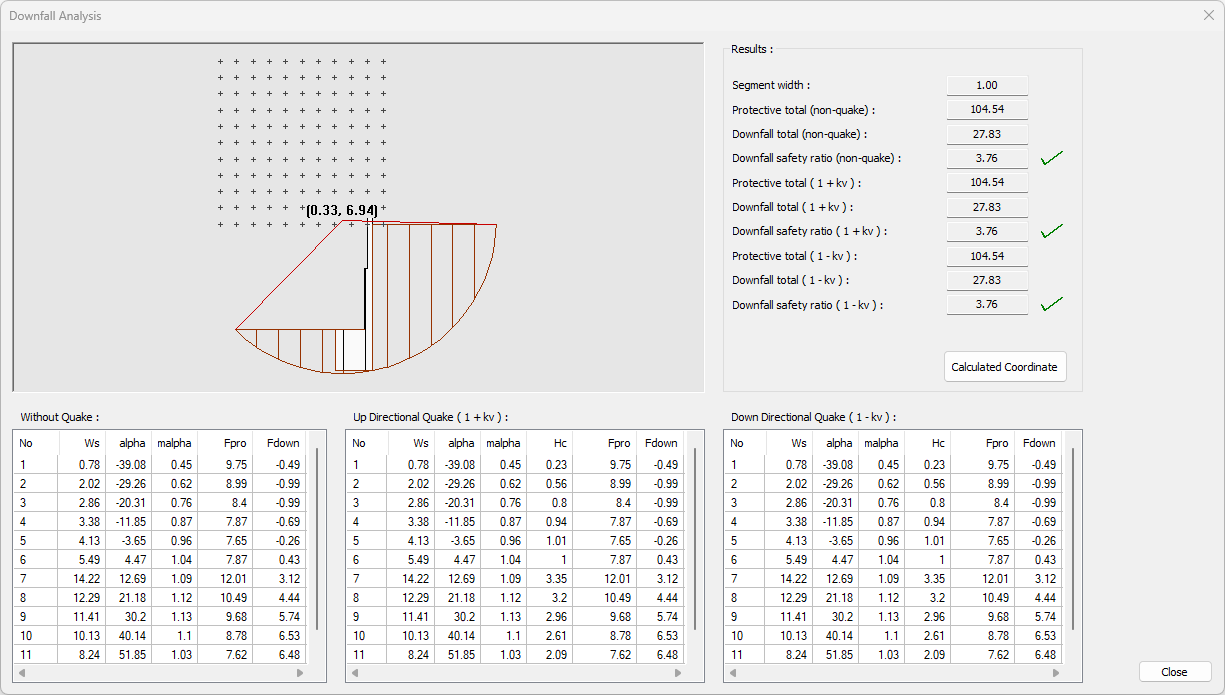

Downfall Analysis
Specifications |
|---|

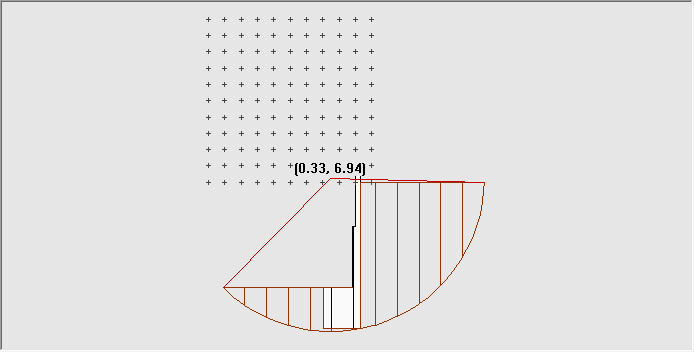

Schematic drawing and coordinate selection area  Schematic drawing of the well foundation. The program makes iterations using the slice method. By clicking on the figure on the screen, the account values for different downfall circle can be displayed. |

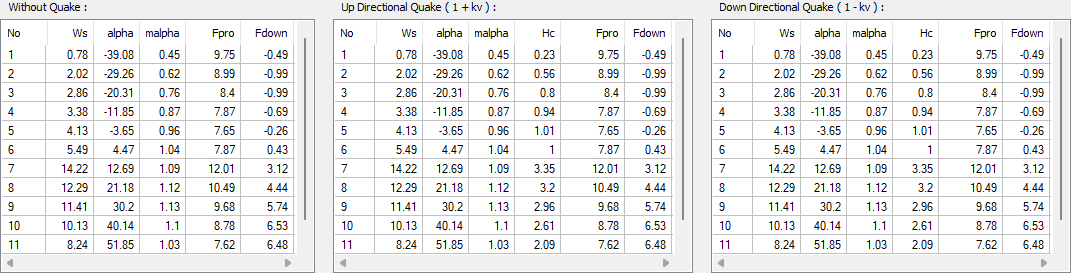

 Information on the downfall circle is listed. |

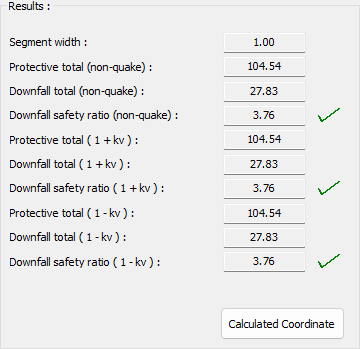

Results  The results of the selected coordinate are listed. |
Calculated coordinate  By clicking the button, dawnfall calculation is made according to the coordinates calculated by the program. |
