Axis Information Text

By activating "Information Text" from the axis settings menu, the distance of the axes to the origin is displayed.

To see the axis distances;

  • Choose all of your axes and enter their properties.

  • In the axis settings dialog, enter the information text tab. Check the information text option and edit your settings.

  • In the layer settings dialog drawing details tab, check the  Axis Distance  line.

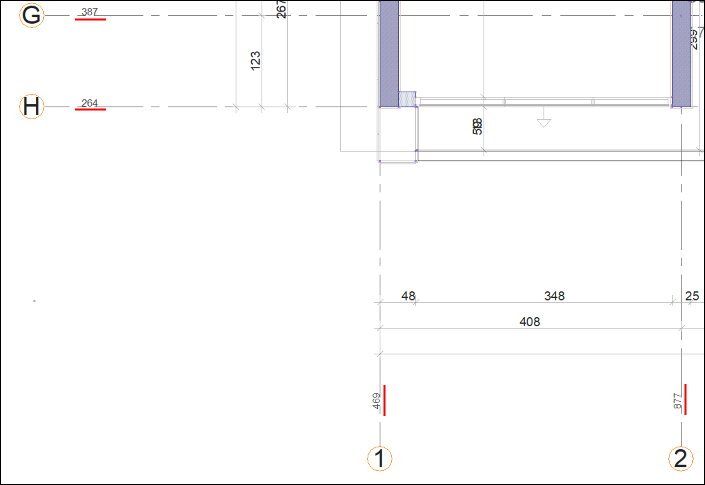

  • Information about the distance of your axes to the origin will appear on your axis lines.
