Filtering Design Input Information as a Color Palette

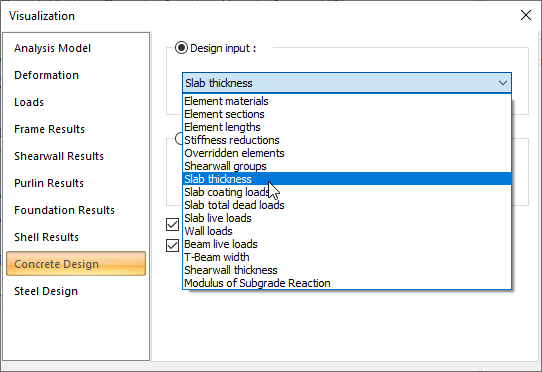

In the "Structural visualization options/Visualization/Concrete Design/Design input" tab in the right click menu on the 3D Screen, the information about design input is filtered as a color palette. Element materials used in concrete analysis+design, element sections, element lengths, slab thicknesses, cladding loads, live loads, wall loads, etc. The data entry information is controlled by the Structural visualization options/Visualization/Concrete Design/Design input view.

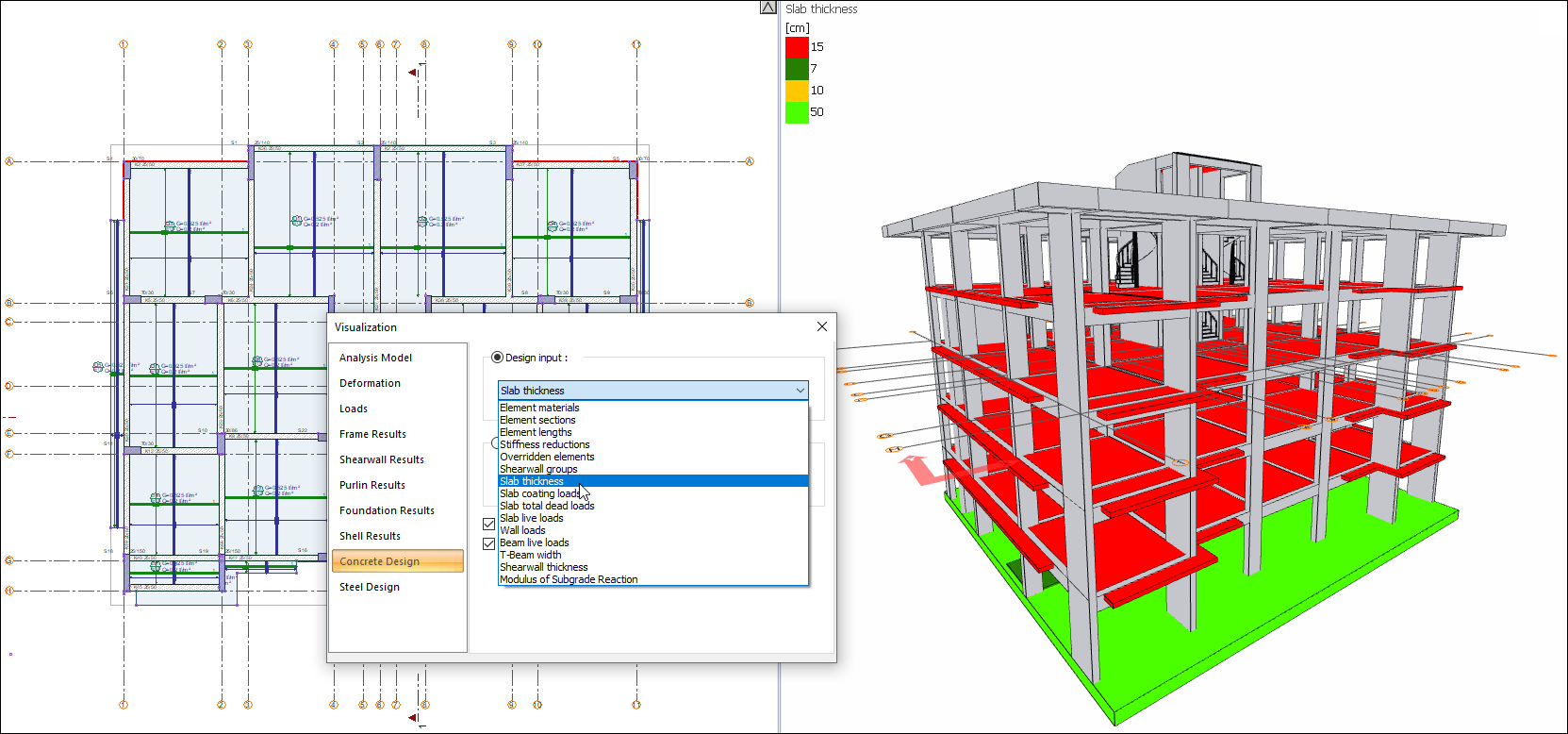

Sample screenshot according to slab thickness:
