Welded Flange Plate Connection Design Report

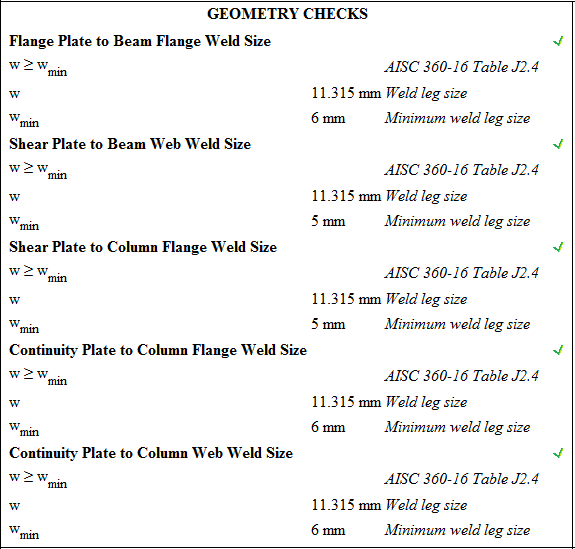

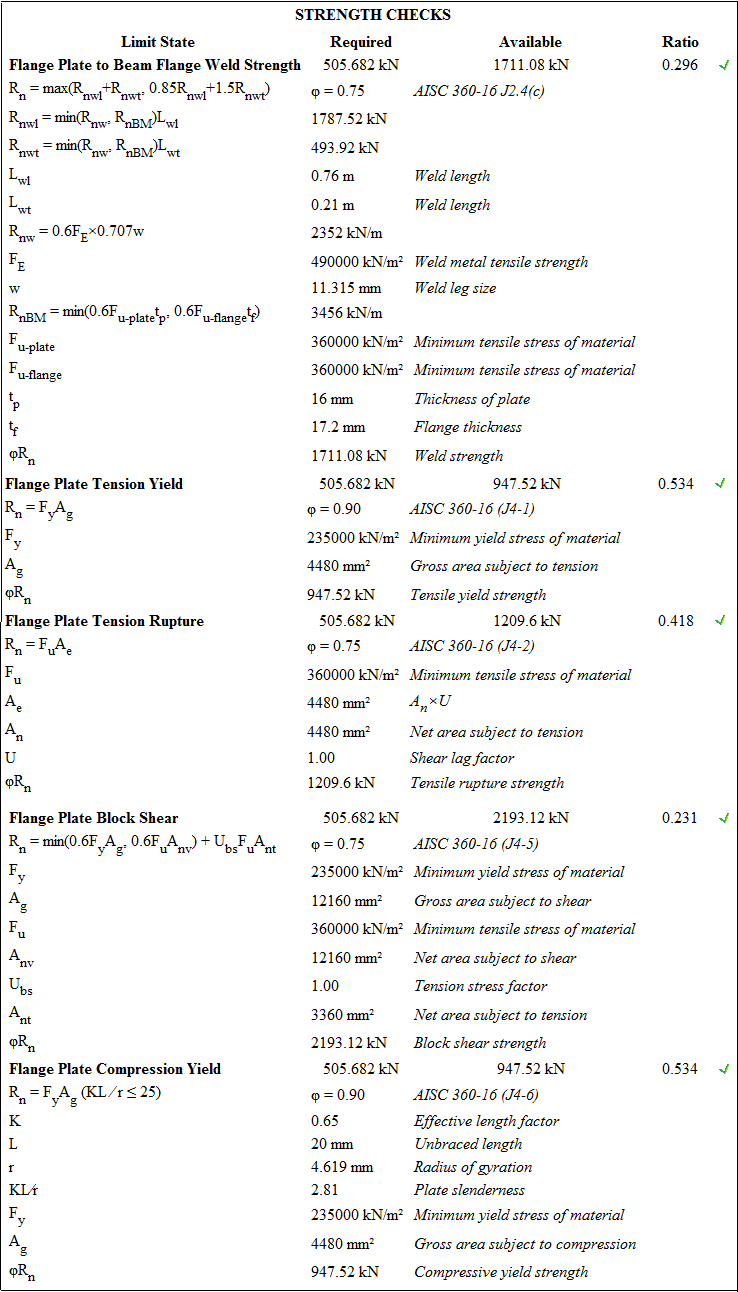

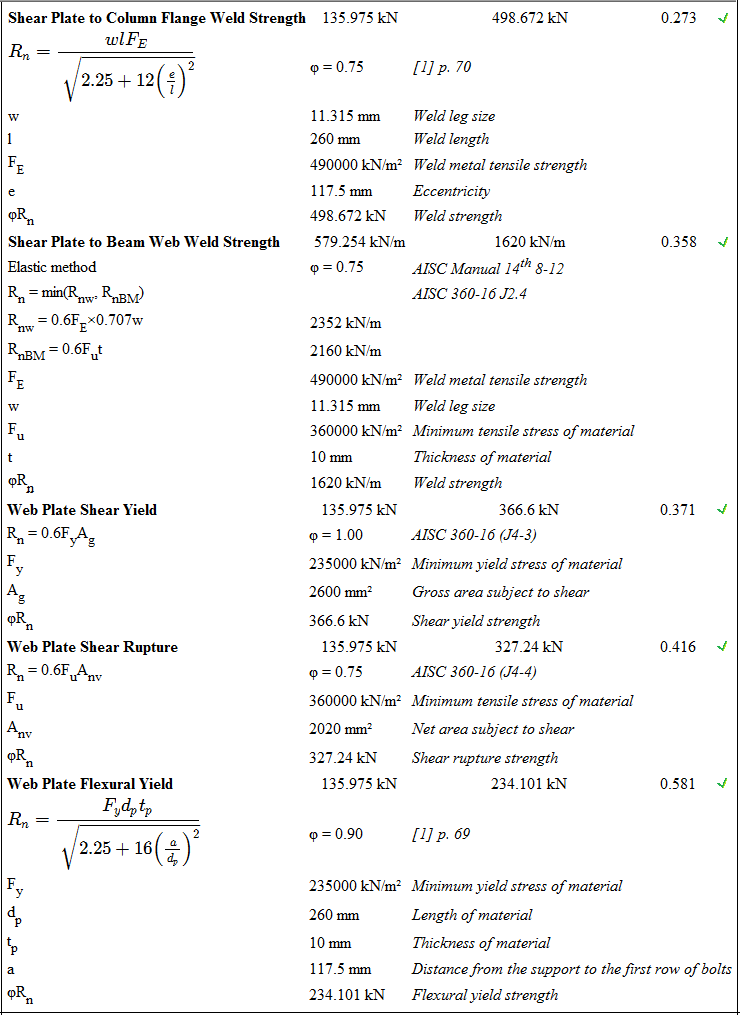

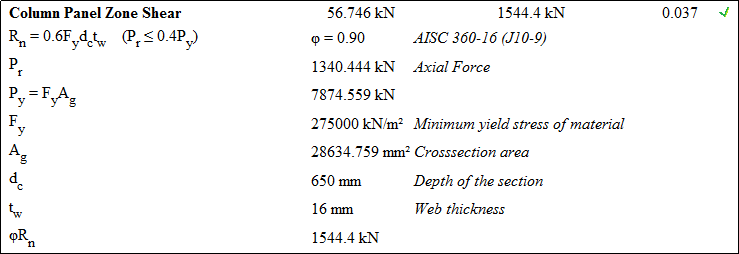

A sample of the welded flange plate connection design report according to AISC 360-16 is given below.

Design limit states of welded flange plate connections are calculated automatically according to AISC 360-16.
