Transforming Closed Polygon to Polygon Column

With the Closed Polygon to Polygon Column command, the polygon column contour created by the line is converted to a polygon column.

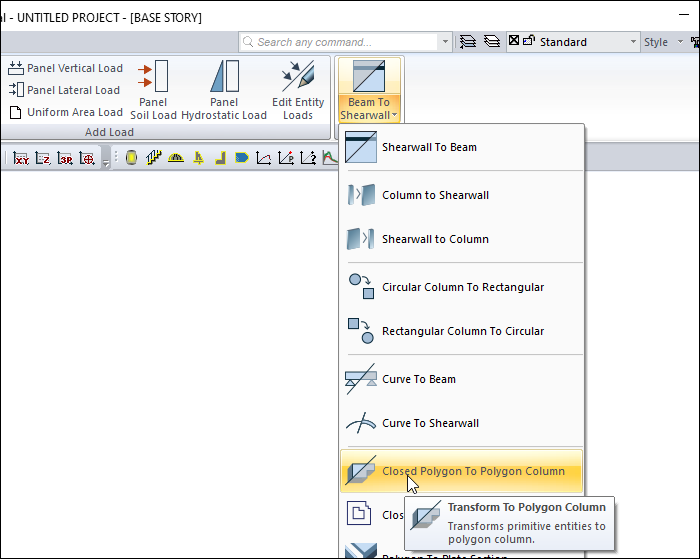

Location of Closed Polygon to Polygon Column Command

You can access it from the ribbon menu Modify tab under the Transform heading.

Usage Steps

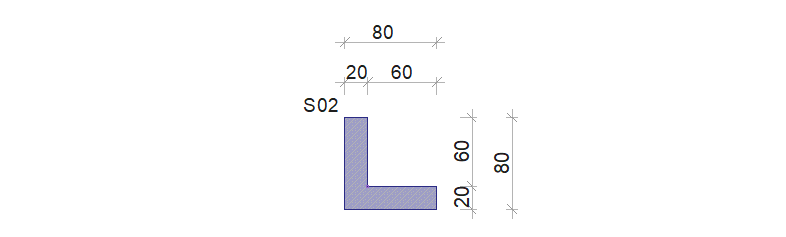

To create the polygon column in the image above;

  • Click the Multiple line icon from the ribbon menu .

  • First create the contour of the polygon column with the line.

  • Left-click anywhere in the drawing area. The first point of the line will be determined.

  • Press the L key. Type 80 and press enter. The L line will be painted red and the cursor will be locked at 80 cm.

  • Hold down the Shift key and move the cursor up and click the left mouse button. The second point of the line will be determined.

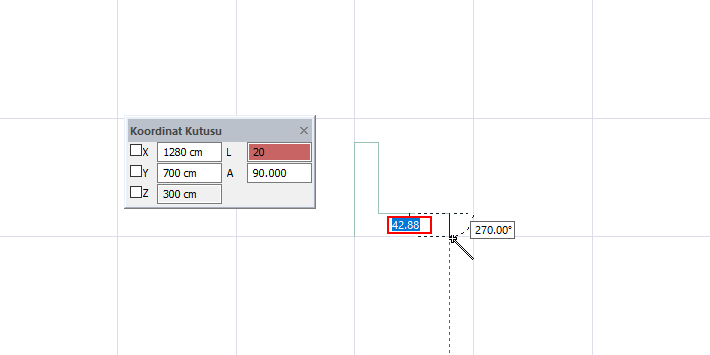

  • Press L and type 20 and hit enter. Hold down the Shift key and move the cursor to the right. Click the left mouse button.

  • Press L and type 60 and hit enter. Hold down the Shift key and move the cursor down. Click the left mouse button.

  • Press L and type 60 and hit enter. Hold down the Shift key and move the cursor to the right. Click the left mouse button.

  • Press L and type 20 and hit enter. Hold down the Shift key and move the cursor down. Click the left mouse button.

  • Move the cursor to the point where you first started and when the cursor changes shape, click with the left button. Press the Esc key on the keyboard to exit the command.

  • Hold down the Shift key and move the cursor to the right. Click the left mouse button.

  • Your polygon column contour is complete.

  • Click the closed polygon to polygon column command.

  • Select the contour lines you created and click the right mouse button.

  • Your polygon column will be created.

Usage step

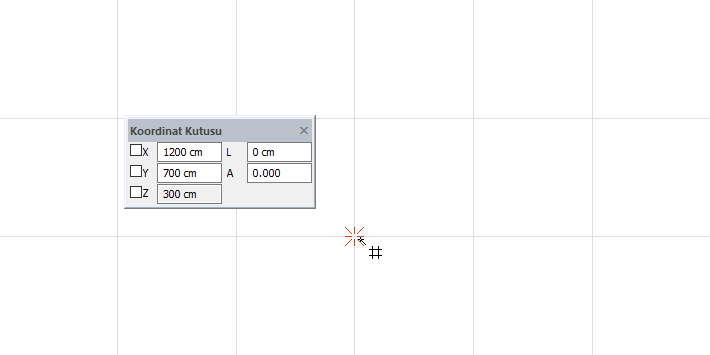

Determining the first point of the polygon column contour by clicking the left mouse button

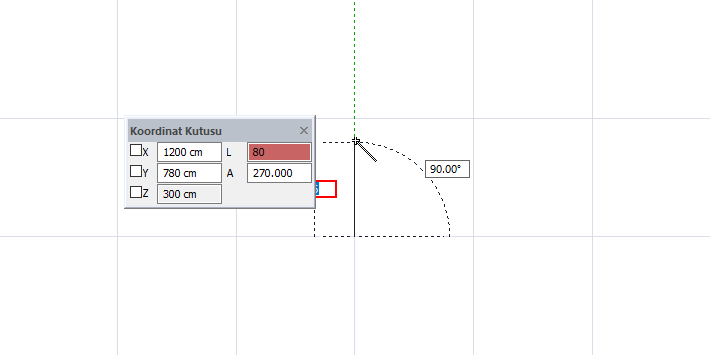

Determination of the second point

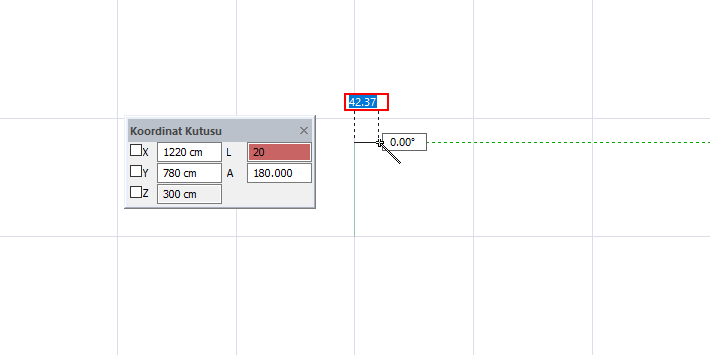

Determining the third point

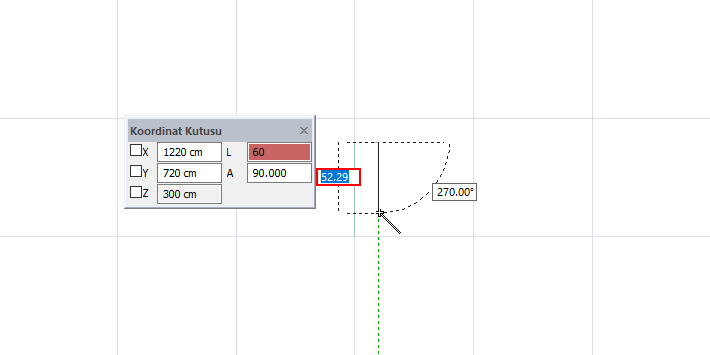

Determination of the fourth point

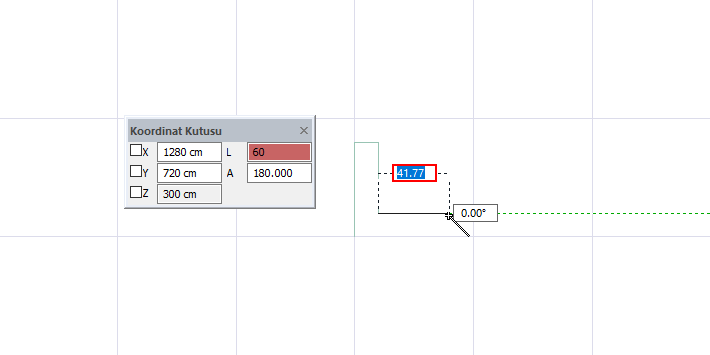

Determination of the fifth point

Determination of the sixth point

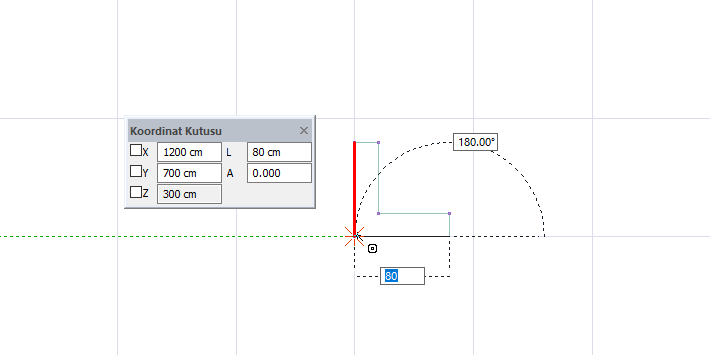

Closing the contour by clicking the starting point again

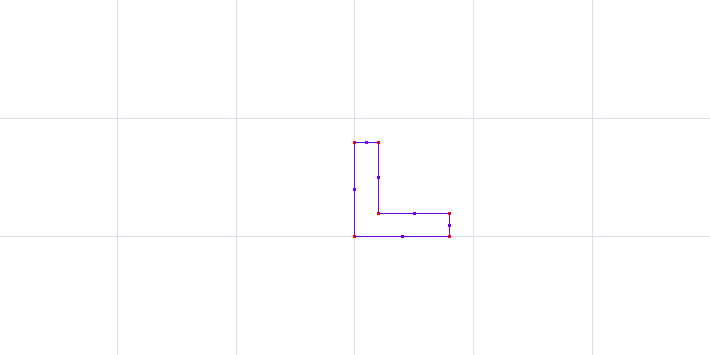

Selecting the contour to transform to a polygon column

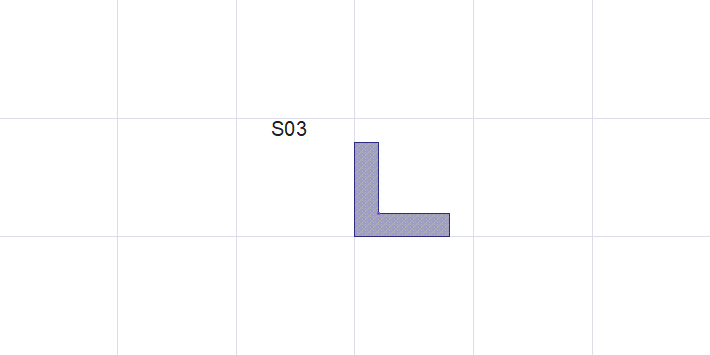

Formation of a polygon column
