Double Angle Connection Design Report

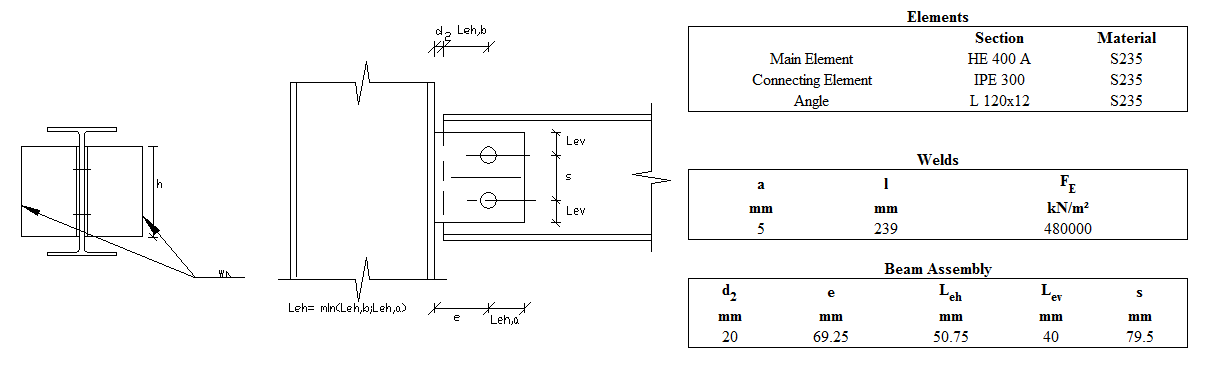

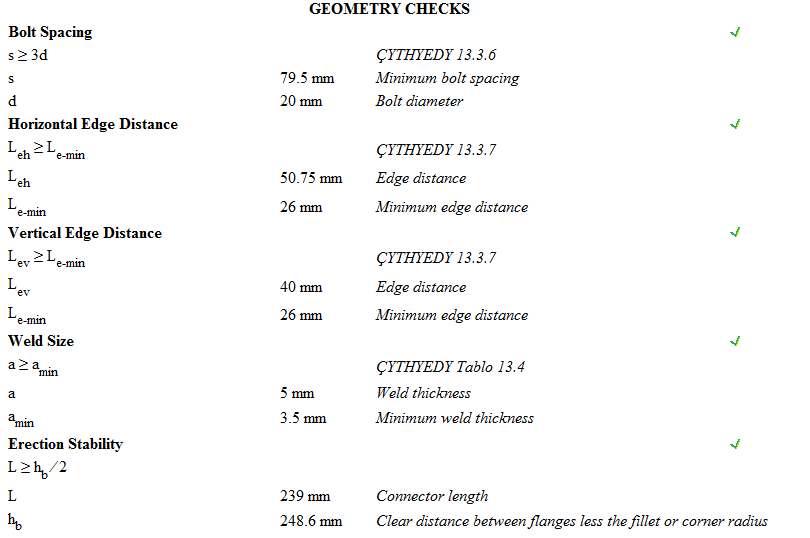

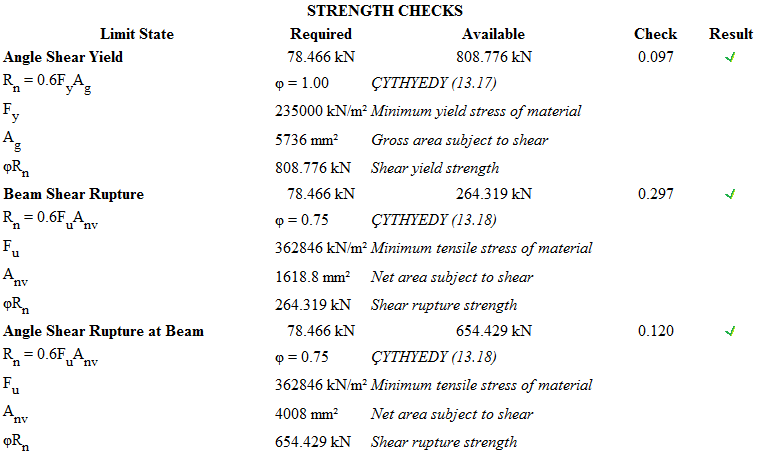

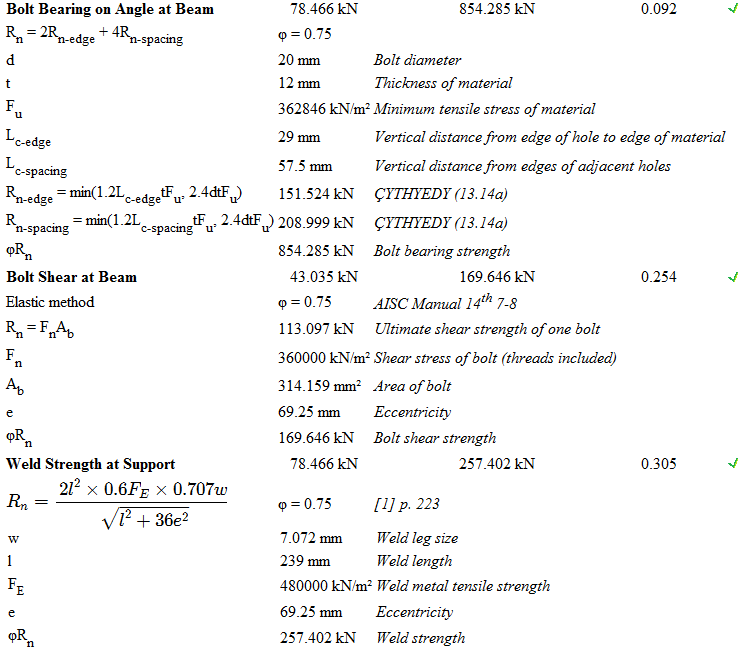

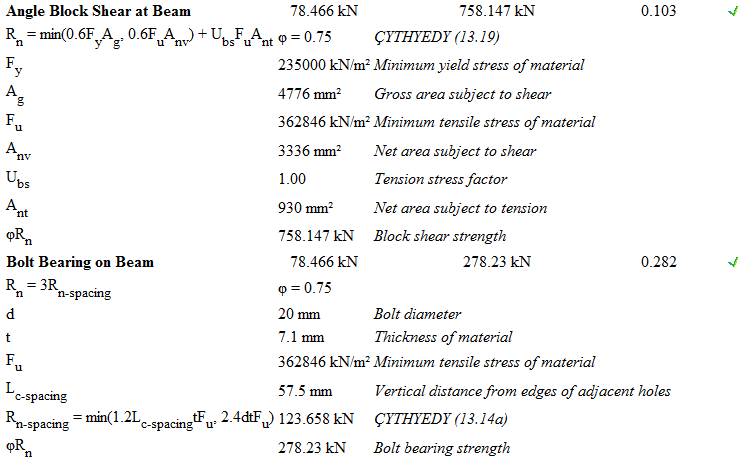

In the double angle connection report , the controls of the connection designed according to the Design, Calculation and Construction Principles of Steel Structures (ÇYTHYEDY) (GKT and YDKT) or AISC 360-16 (ASD and LRFD) regulations are given.
