Building Structure Tree

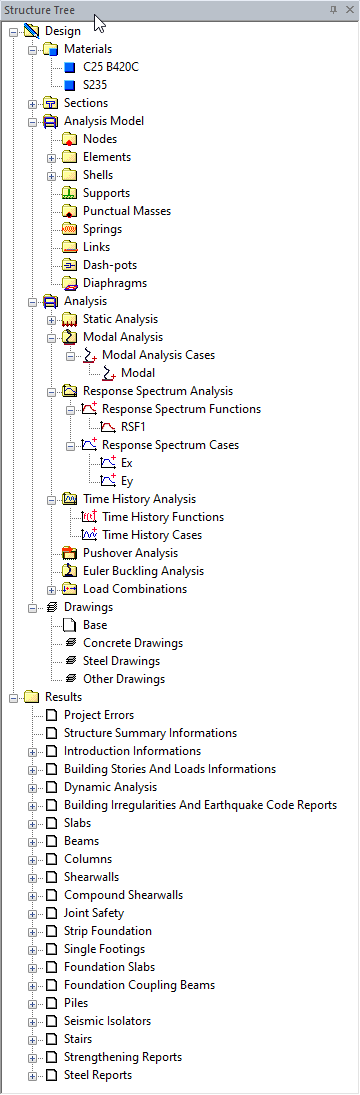

All structural elements of the structure are listed with tree structure logic. You can access all structural components such as structural materials, element sections, nodes using this tree. In addition, analysis settings, loading cases and combinations, element drawings, etc. elements are listed in the structural tree.

If it is not open, you can open the structure tree by clicking the right mouse button on any toolbar and selecting the Stucture Tree line from the menu that is explained .

You can also open your building structure tree using the Show Structure Tree command.

Location of Show Structure Tree Command

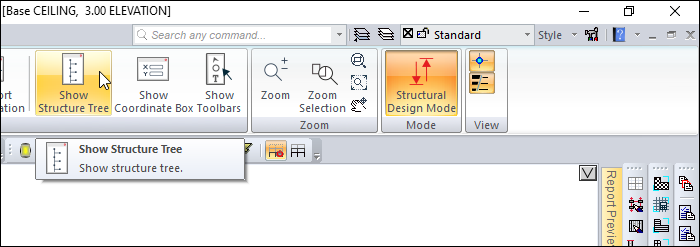

You can access the show structure tree command from the View tab Window title.

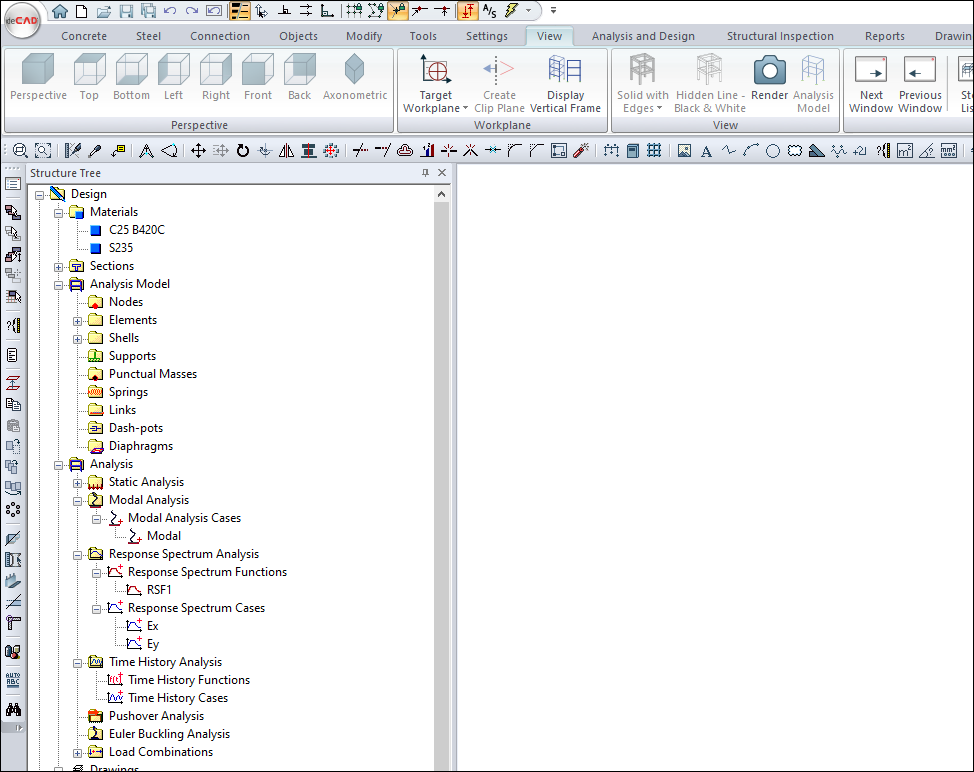

With the structure tree open in the program:

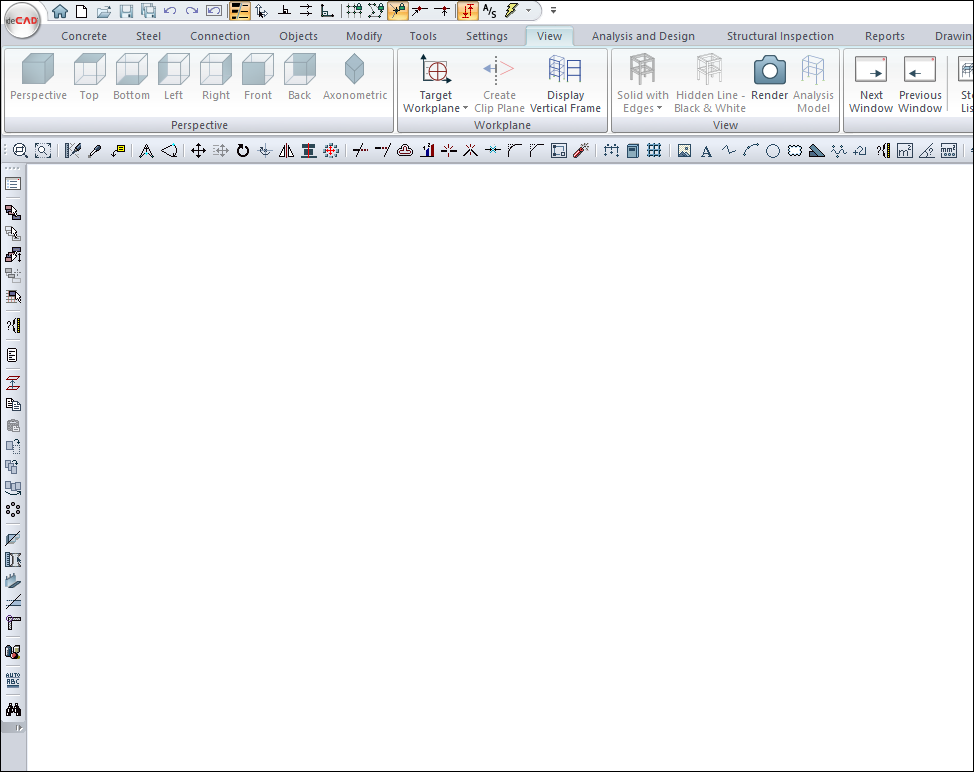

With the structure tree closed in the program:

Expand All/Collapse All

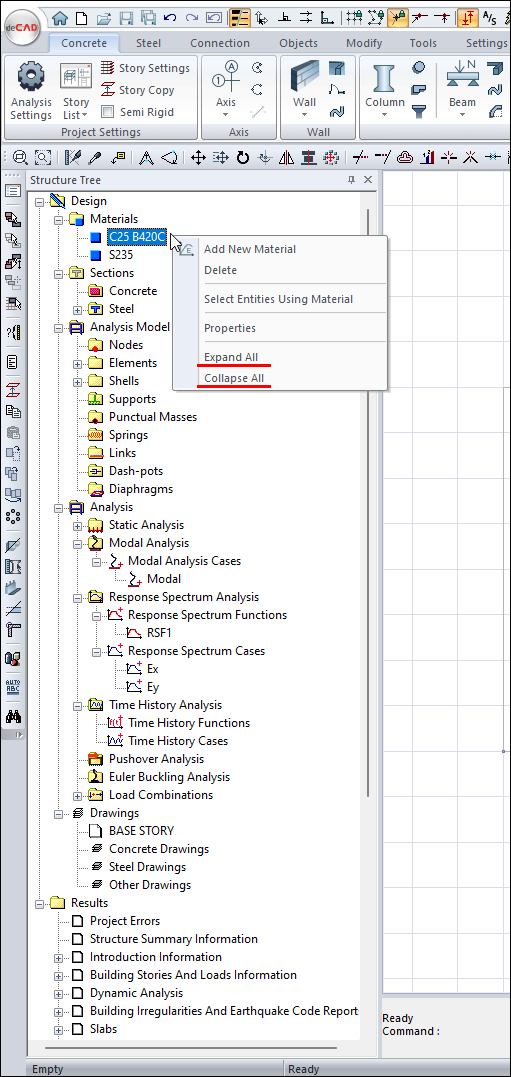

The Structure tree list subheadings are opened and closed with the Expand All and Collapse All commands in the right-click menu that opens in the Structure tree.

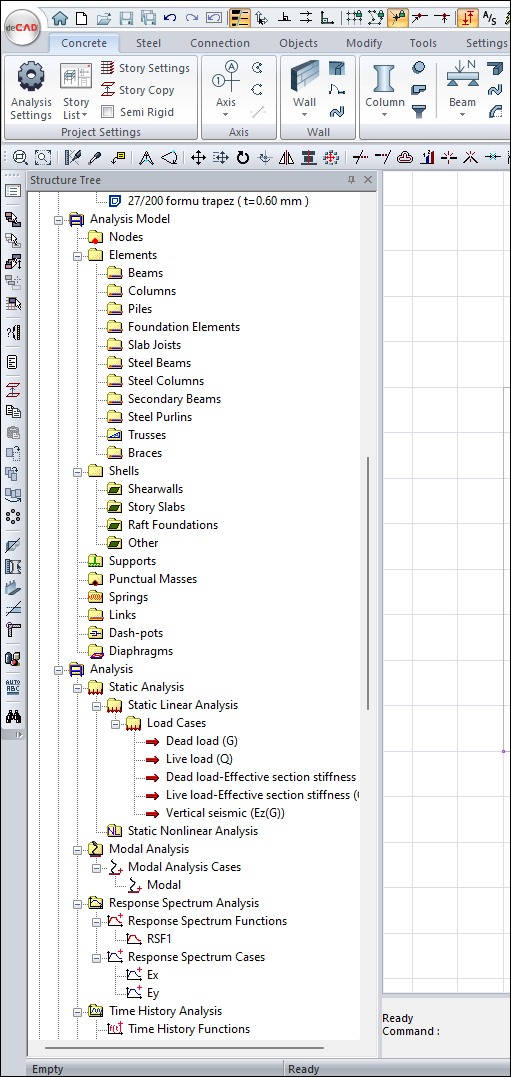

After clicking Expand All:

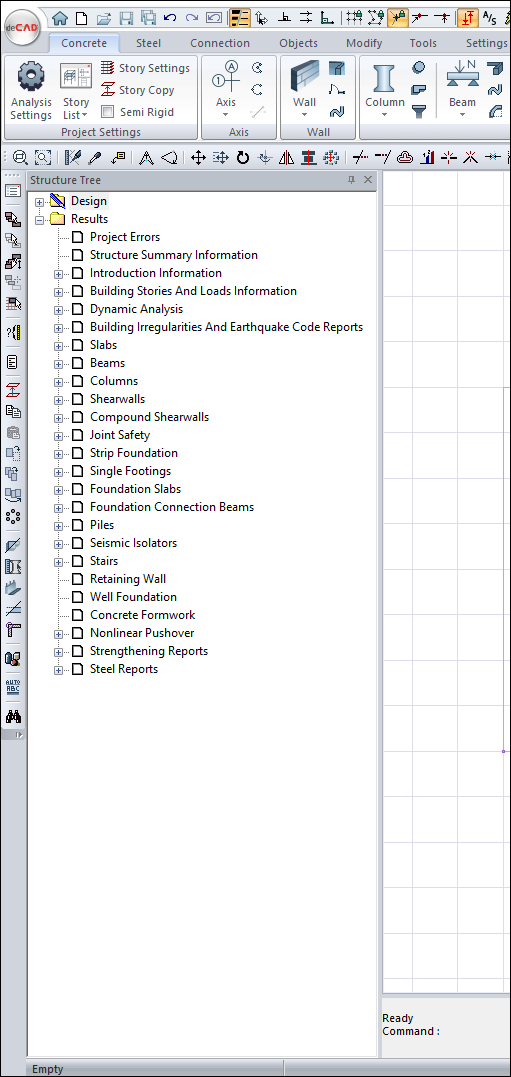

After clicking Collapse All:
