Beam Detail
Colour, size and type, layout, table and heading settings, and similar story settings for the text of the detail of the beams are arranged.

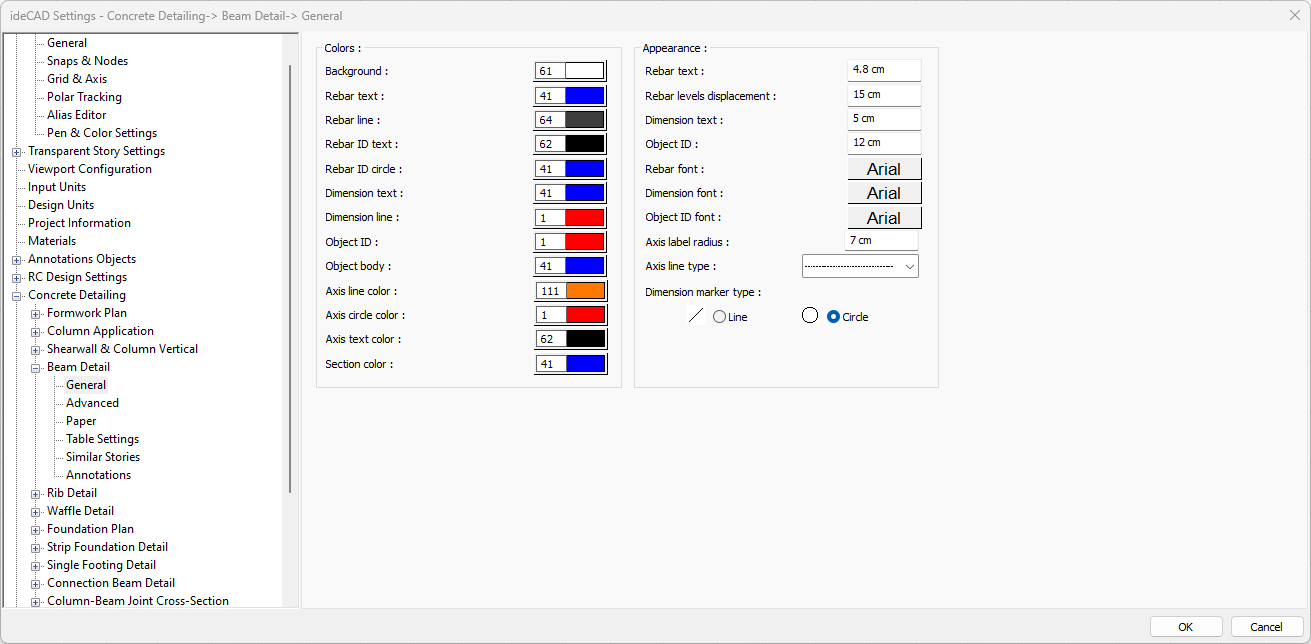

General
![](../__attachments/2378269389/image-20231108-083840.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications - Colors |
Background color ![]() Sets the background color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar text ![]() Sets the color of the rebar text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar line ![]() Sets the color of the rebar line. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar ID text ![]() Adjusts the color of the rebar ID text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar ID circle ![]() Adjusts the color of the rebar ID circle. When the color box is clicked, the appropriate color is selected from the window that opens. |
Dimension text ![]() Sets the dimension text color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Dimension line ![]() Sets the dimension line color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Object ID ![]() Sets the color of the object ID. When the color box is clicked, the appropriate color is selected from the window that opens. |
Object body ![]() Sets the color of the object body. When the color box is clicked, the appropriate color is selected from the window that opens. |
Axis line color ![]() Sets the color of the axis line. When the color box is clicked, the appropriate color is selected from the window that opens. |
Axis circle color ![]() Sets the color of the axis circle. When the color box is clicked, the appropriate color is selected from the window that opens. |
Axis text color ![]() Adjusts the text color of the axis. When the color box is clicked, the appropriate color is selected from the window that opens. |
Section color ![]() Sets the section color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Specifications - Appearance |
Rebar text ![]() The height of the rebar text is entered. |
Rebar levels displacement ![]() The distance between the two rebar texts is entered. |
Dimension text ![]() The height of the dimension text is entered. |
Object ID ![]() The height of the object ID is entered. |
Rebar font ![]() The rebar font is selected. |
Dimension font ![]() Dimension font is selected. |
Object ID font ![]() Object ID font is selected. |
Axis label radius ![]() The radius of the axis label is entered. |
Axis line type ![]() Axis line type is selected. Clicking the down arrow buttons to the right of the boxes opens the list of line types. From this list, the desired line type is selected by clicking with the left mouse button. |
Dimension marker type ![]() The dimension marker type is selected. |

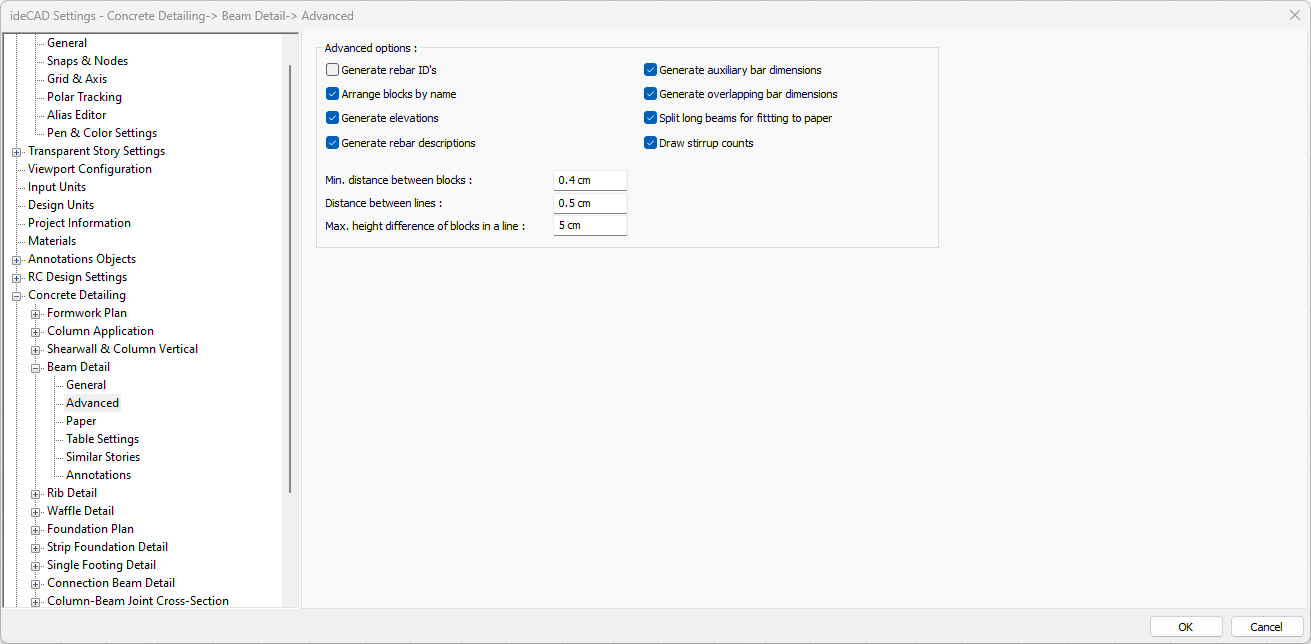

Advanced
![](../__attachments/2378269389/image-20231108-084317.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Generate rebar ID’s ![]() If checked, rebar ID’s are shown in the drawings. If not checked, it will not be displayed. |
Arrange blocks by name ![]() In the expansions, the objects are marked if they want to be placed according to the element names while placing the layout on the layout. If not marked, the expansions are placed according to the principle of the most economical use of the layout. The name is ignored. Names can be mixed. Object names; For example, if beam is mentioned, they are names such as K101, K104 etc. The expansion is beam opening, foundation opening, rib opening, etc. |
Generate elevations ![]() If checked, elevations are shown in the drawings. If not checked, it will not be displayed. |
Generate rebar descriptions ![]() If checked, the rebar definitions are shown in the drawings. If not checked, it will not be displayed. |
Generate auxillary bar dimensions ![]() If marked, the lengths of auxillary bars are measured in the drawings. |
Generate overlapping bar dimensions ![]() If it is marked, the lengths of the overlapping bars in the drawings are measured. |
Split long beams for fitting to paper ![]() If marked, long beams that exceed the layout size in the drawings are divided. |
Draw stirrup counts ![]() If checked, stirrup counts are written in the drawings. |
Min. distance between blocks ![]() Minimum horizontal distance between blocks is entered. The block is each opening itself, with its rebars, sections and dimensioning. |
Distance between lines ![]() Minimum vertical distance between blocks is entered. The block is each opening itself, with its rebars, sections and dimensioning. |
Max. height difference of blocks in a line ![]() The maximum height difference of each block in the row (vertical direction) is entered. If the difference between the height of the block to be placed and the height of the previously placed block is smaller than the value entered on this line, the layout is made. If it is large, no settlement is made. It is left to the next row. The block is each opening itself, with its rebars, sections and dimensioning. |

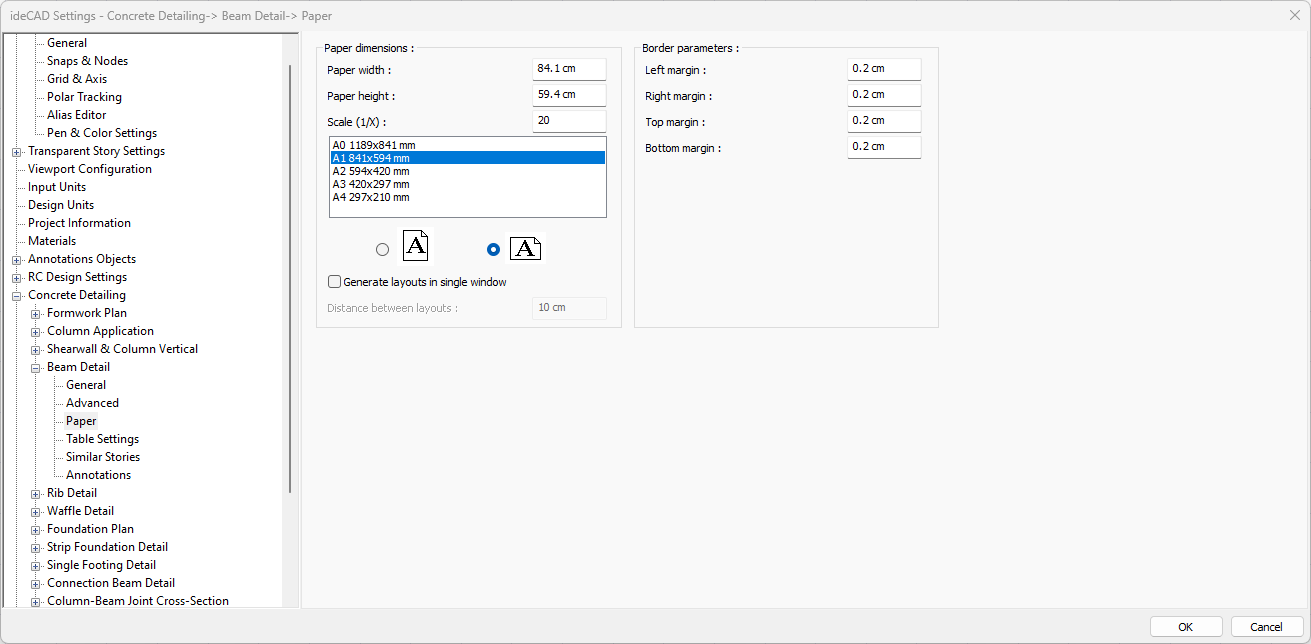

Paper
![](../__attachments/2378269389/image-20231108-084640.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Paper width ![]() As well as selecting the standard paper sizes, any paper width value can also be entered. |
Paper height ![]() Standard paper sizes can also be selected, and any paper size value can be entered. |
Scale (1/X) ![]() In what scale the expansions will be drawn, that value is entered. |
Standard paper sizes ![]() Standard paper sizes are listed. The layout size can be selected from the list, as well as the layout dimensions can be determined by entering the width and height values. |
Vertical/Horizontal use ![]() It is determined whether the layout will be used horizontally or vertically. |
Generate layouts in single window ![]() By selecting the option, layouts are created in a single window. |
Distance between layouts ![]() The distance between the layouts to be created side by side is entered. |
Left margin ![]() The distance of the layout border from the axis border to the left side is entered. |
Right margin ![]() The distance from the axis border to the right side of the layout border is entered. |
Top margin ![]() Enter the distance from the axis border to the top side of the layout border. |
Bottom margin ![]() The distance from the axis border to the bottom side of the paper border is entered. |

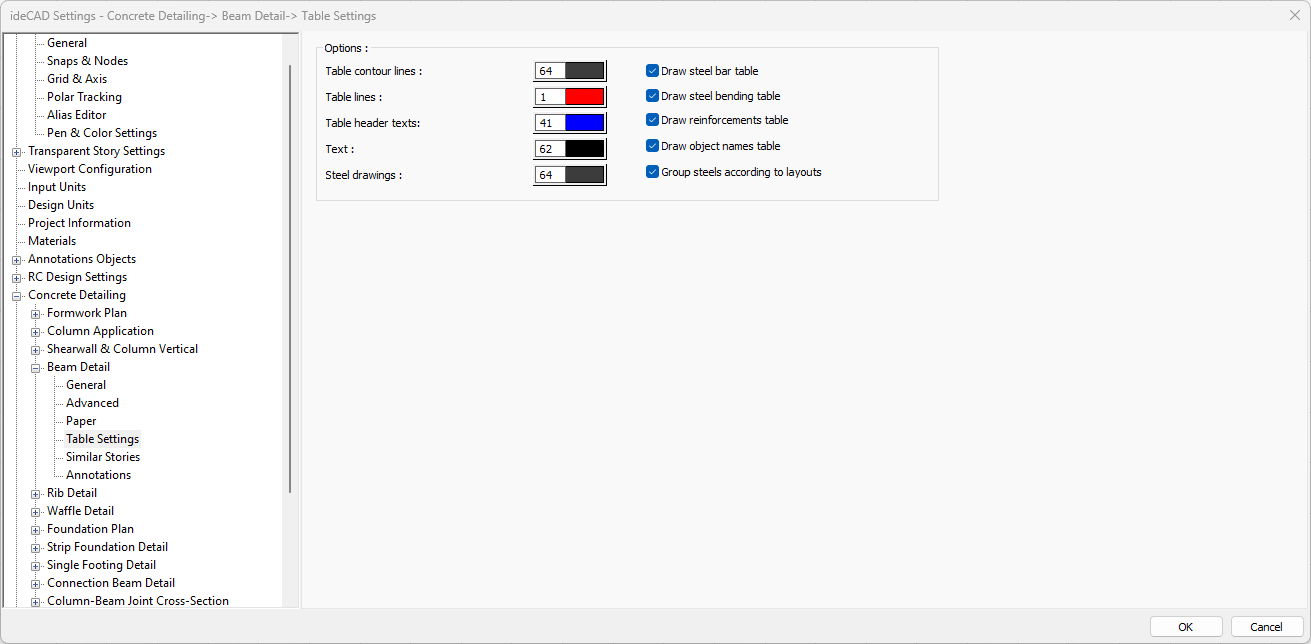

Table Settings
![](../__attachments/2378269389/image-20231108-084737.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Table contour lines ![]() Sets the color of the table contour lines. When the color box is clicked, the appropriate color is selected from the window that opens. |
Table lines ![]() Sets the color of the table lines. When the color box is clicked, the appropriate color is selected from the window that opens. |
Table header texts ![]() Sets the color of the table header texts. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text ![]() Sets the color of table text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Steel drawing ![]() Sets the color of the steel drawing. When the color box is clicked, the appropriate color is selected from the window that opens. |
Draw steel bar table ![]() If marked, the rebars are divided into types and a table is created indicating the number, diameter, length, type and weight, and the rebar quantity is shown in the drawing. |
Draw steel bending table ![]() If checked, the rebars are divided into bending types and a table is created indicating the number, diameter, length and type, and the bend is shown in the drawing. |
Draw reinforcement table ![]() If checked, the reinforcement table is created and shown in the drawing. |
Draw object names table ![]() If checked, the object names table is created and shown in the drawing. |
Group steels according to layouts ![]() If checked, the steels are grouped according to the layout and shown in the drawing. |

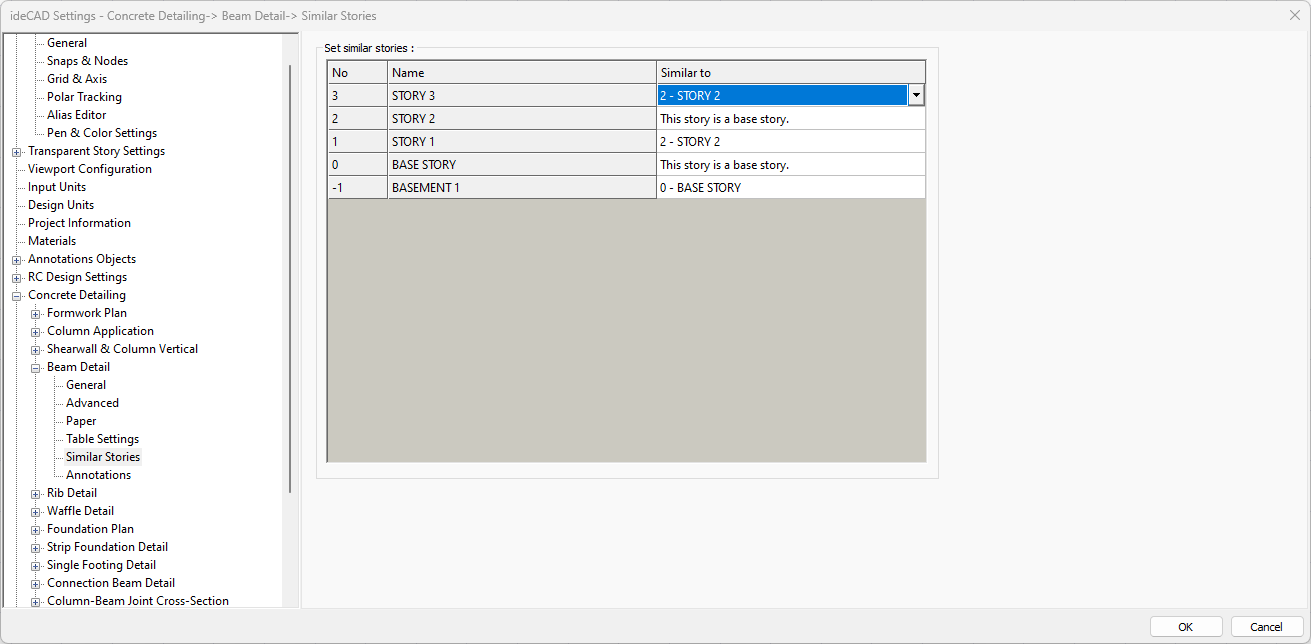

Similar Stories
![](../__attachments/2378269389/image-20231108-085246.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
No and Name ![]() Story numbers and names are listed |
Similar with ![]() Identified as similar and base story from the list. |
When arranging similar story beam details, the most unsuitable main story should be chosen. Otherwise, the equipment that is not on the main story but on the upper stories will not be visible in the drawings. The main story should be determined by checking the beam reinforcements from the concrete dialogs or reports.

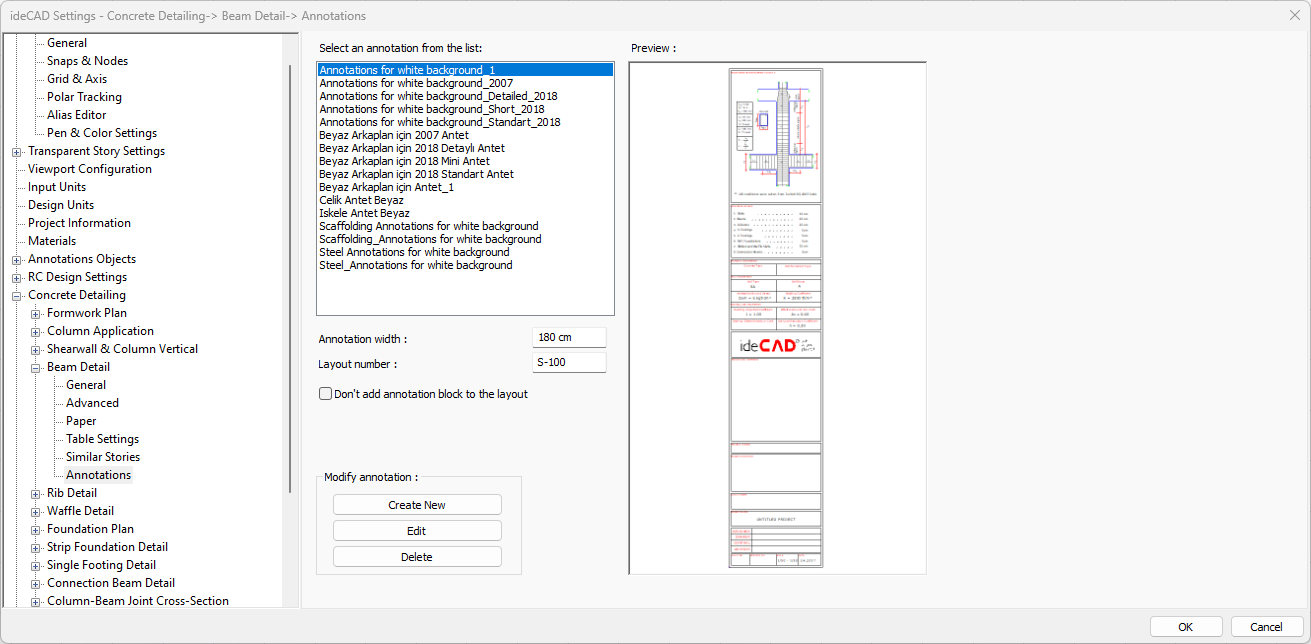

Annotations
![](../__attachments/2378269389/image-20231108-085530.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Select an annotation from the list ![]() Defined annotations are listed. |

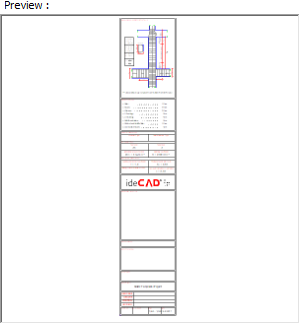

Preview ![]() There is a preview of the annotation selected from the list. |
Annotation width ![]() Annotation width is determined. |
Layout number ![]() The layout number is determined. |
Don’t add annotation block to the layout ![]() If it is checked, annotation will not be added to the layouts. |
Create New ![]() The new annotation is created. |
Edit ![]() The annotation is edited. |
Delete ![]() The annotation is deleted. |
