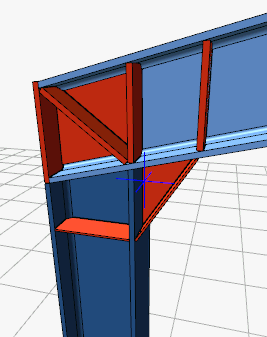

This connection is a column-beam connection.

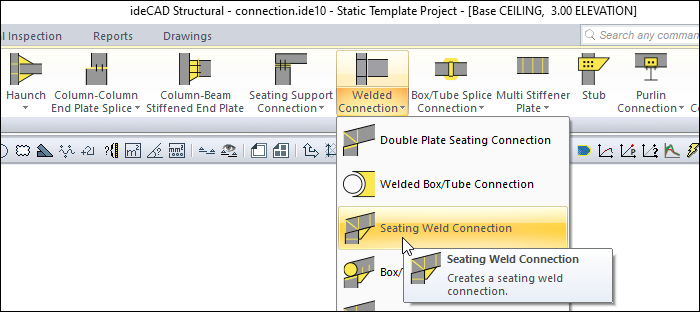

Location of the Seating Weld Connection Command

You can access it under the Ribbon menu, Connection tab, Experimentals title.

Usage Steps

If Draw in Fast Mode is Active

  • From the Connection menu, click on Seating Weld Connection icon.

  • In 3D perspective view, move the mouse pointer closer to the element, close to the support

  • After this process, the virtual image of the connection will appear.

  • If the connection is suitable, create the combination by clicking the left mouse button.

  • The connection will occur with default settings.

If Draw in Fast Mode is Inactive

  • From the Connection menu, click on Seating Weld Connection icon.

  • Click the column then the beam before the 3D perspective view.

  • The seating weld connection settings dialog will open.

  • The connection will occur when the wanted settings are made and the OK button is clicked.

Location of the Seating Weld Connection Settings Dialog

If the draw in fast mode is active, the connection settings will be opened automatically.

If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.

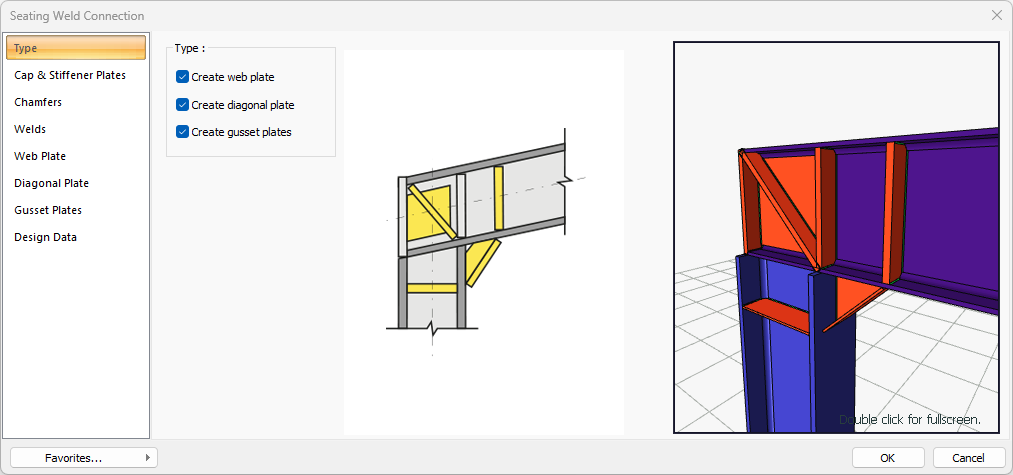

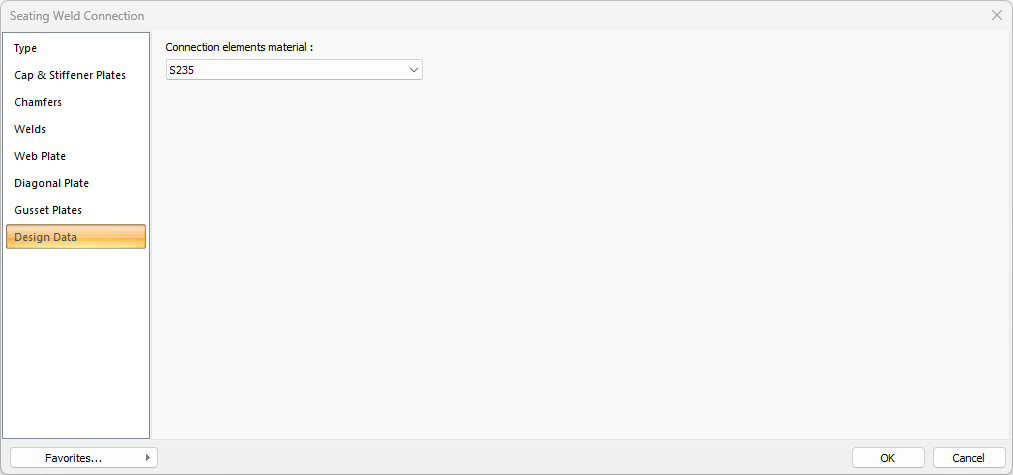

Seating Weld Connection Settings Dialog

Type Tab

Specifications

Type

For connection, web, diagonal and gusset plate selections are made.

Schematic drawing

Cınnectons ​​are shown on the schematic drawing.

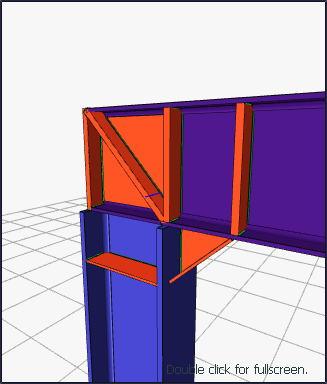

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

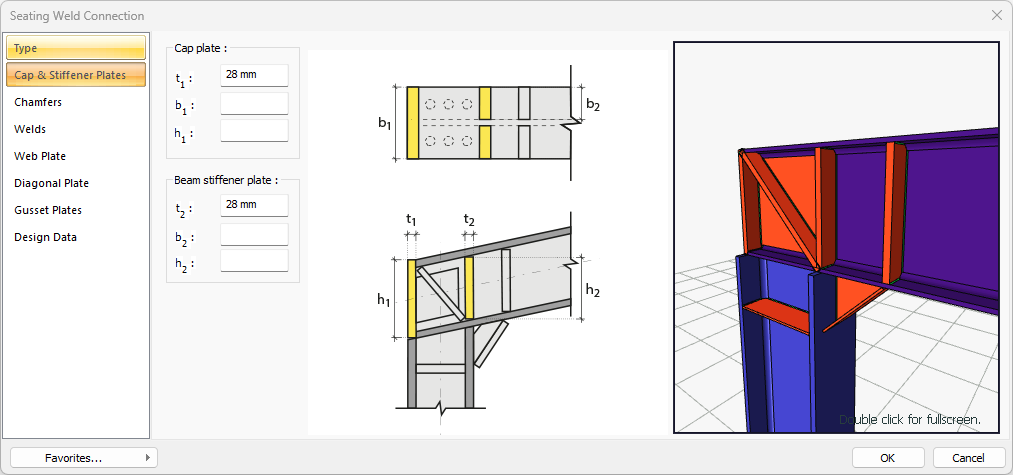

Cap and Stiffener Plates Tab

Specifications

Cap plate

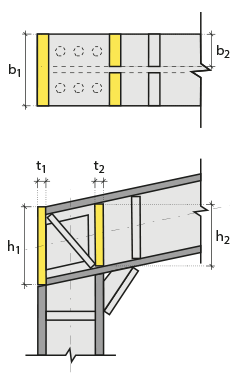

The cap plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

Beam stiffener plate

Beam stiffener plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

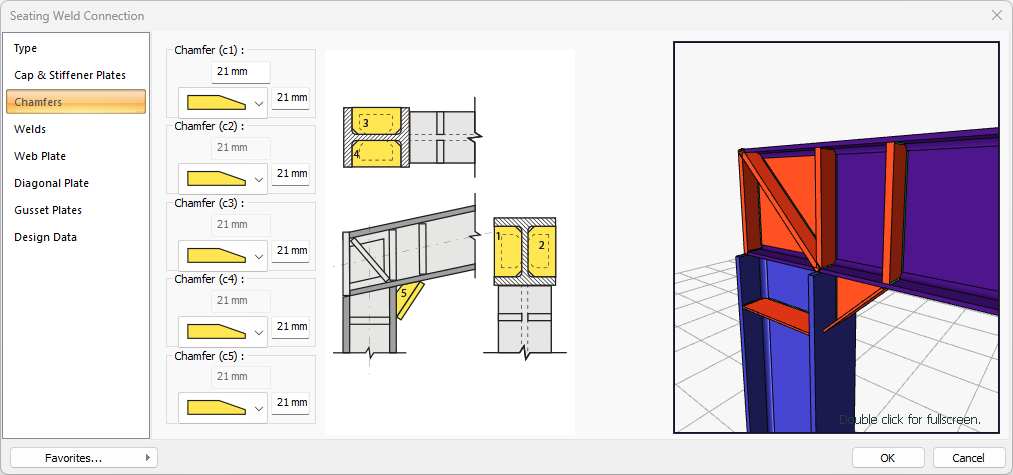

Chamfers Tab

Specifications

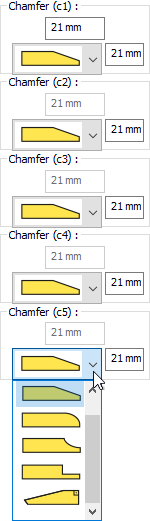

Chamfer (c1, c2, c3, c4, c5)

For easy assembly of the plates in the field, the use of slope, slope type and geometric properties are determined by entering the value.

Schematic drawing

Connection and chamfer values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

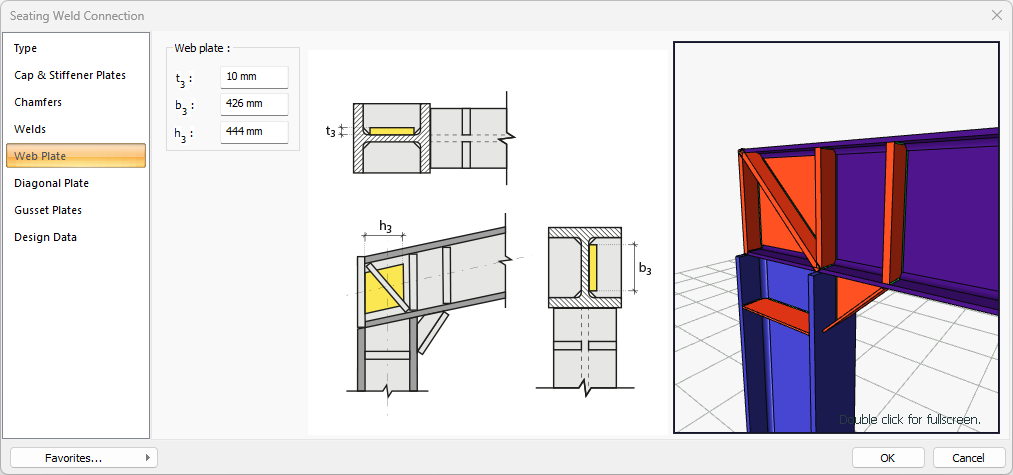

Web Plate Tab

Specifications

Web plate

The web plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

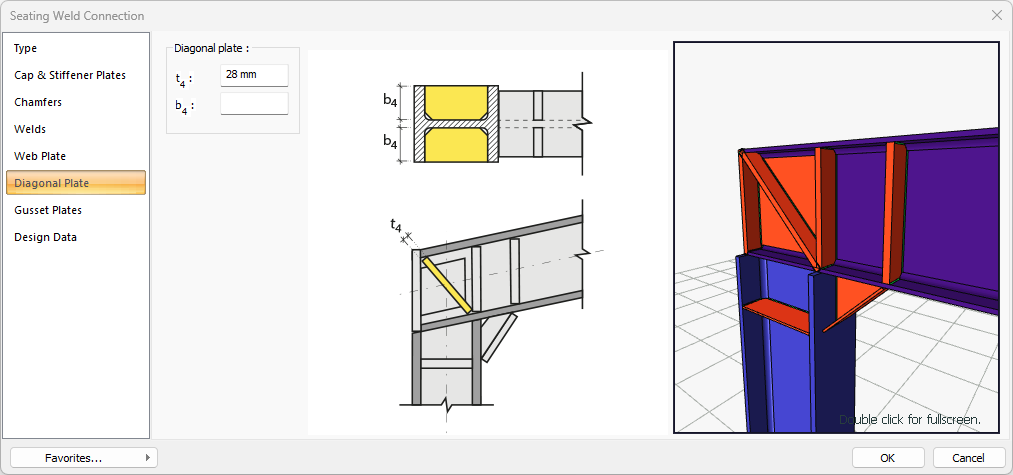

Dioganal Plate Tab

Specifications

Diagonal plate

The diagonal plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

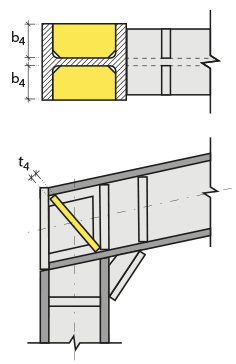

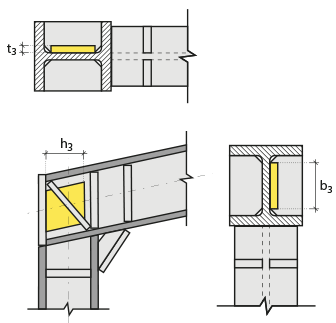

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

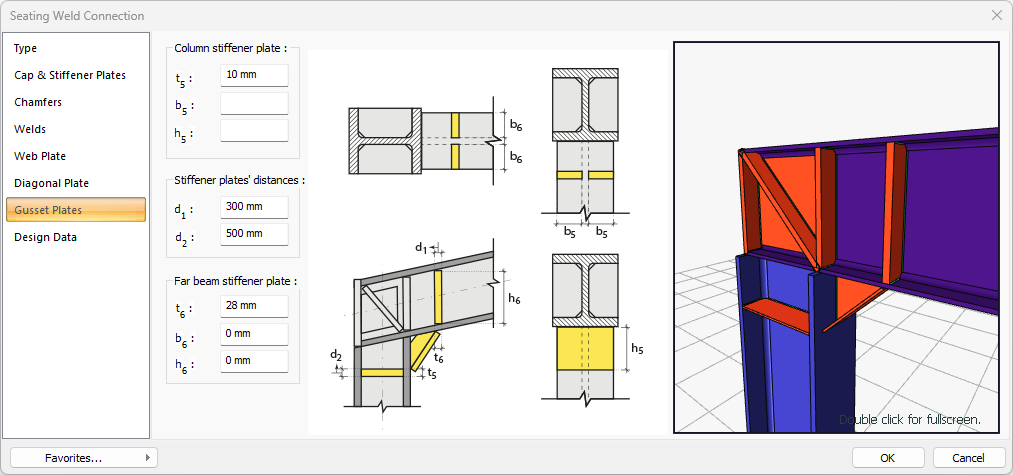

Gusset Plates Tab

Specifications

Column stiffener plate

The column stiffener plate is determined by entering the values. The values ​​to be entered are shown in the schematic drawing.

Stiffener plates' distances

It is determined by entering the values ​​of the stiffener plate. The values ​​to be entered are shown in the schematic drawing.

Far beam stiffener plate

The far beam stiffener plate is determined by entering values. The values ​​to be entered are shown in the schematic drawing.

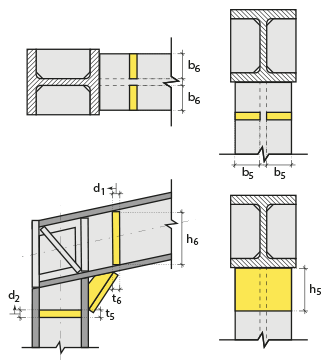

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

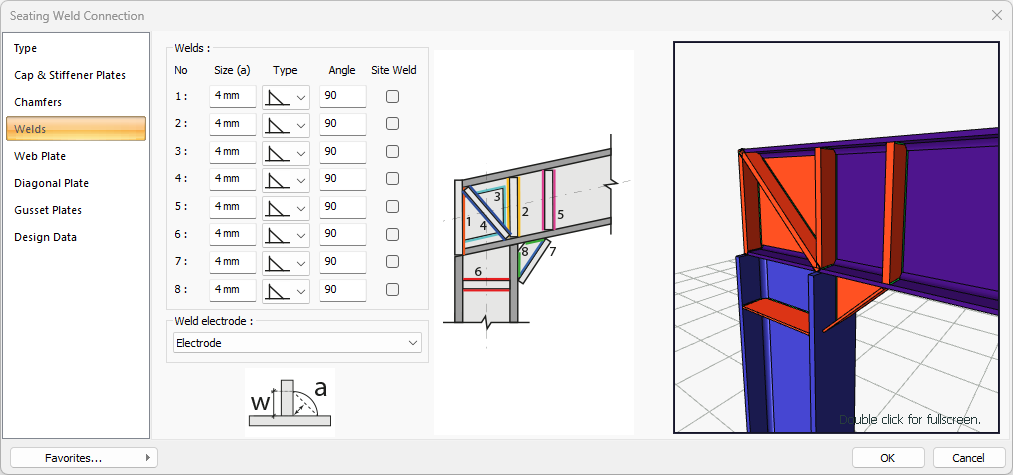

Welds Tab

Specifications

Welds

The thickness, type and angle values ​​of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered.

Weld electrode

The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength.

If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New".

Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC.

Schematic drawing

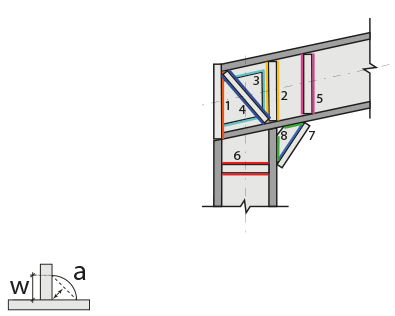

Connection and weld values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.
