Inclined Steel Column Definition
When you want to define an inclined steel column;
Can an inclined column be defined in the program? How can I define an inclined column?
There are 3 ways to define an inclined column:
You can click on the steel column command and use the "steel column point 2" command from the opened toolbar. After selecting the first and second points, the steel column is defined.
After clicking a steel column defined perpendicular to the XY plane and then clicking the column's top node, the node will be locked to the mouse. When you click on another node from the 3D perspective screen, an inclined steel column will be defined.

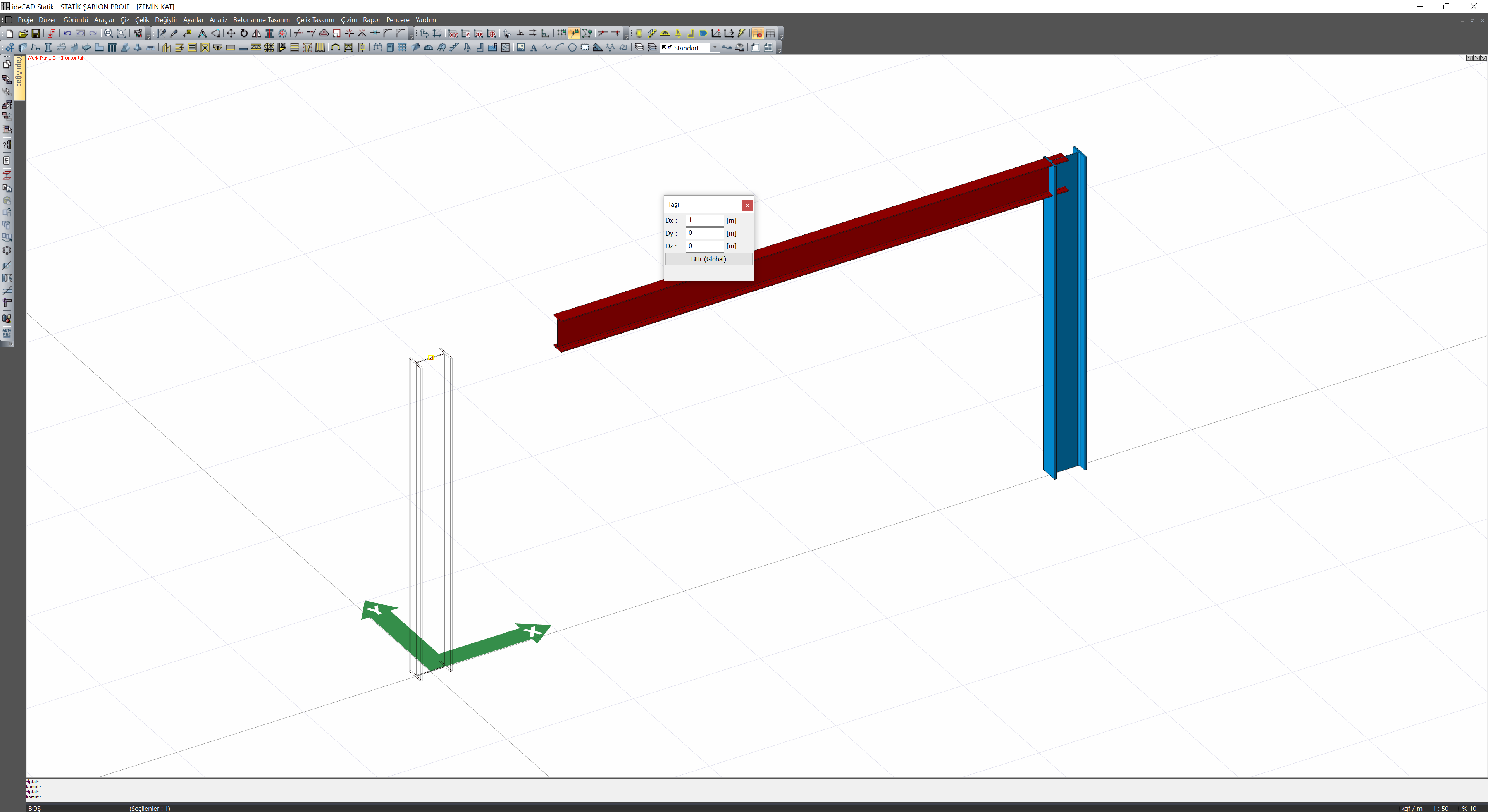

After clicking on a steel column defined perpendicular to the XY plane and then clicking the column's top node, a small window will open. In this window, the inclination can be given to the steel column when appropriate values are entered in Dx, Dy, Dz sections.
