Space Truss Design Results

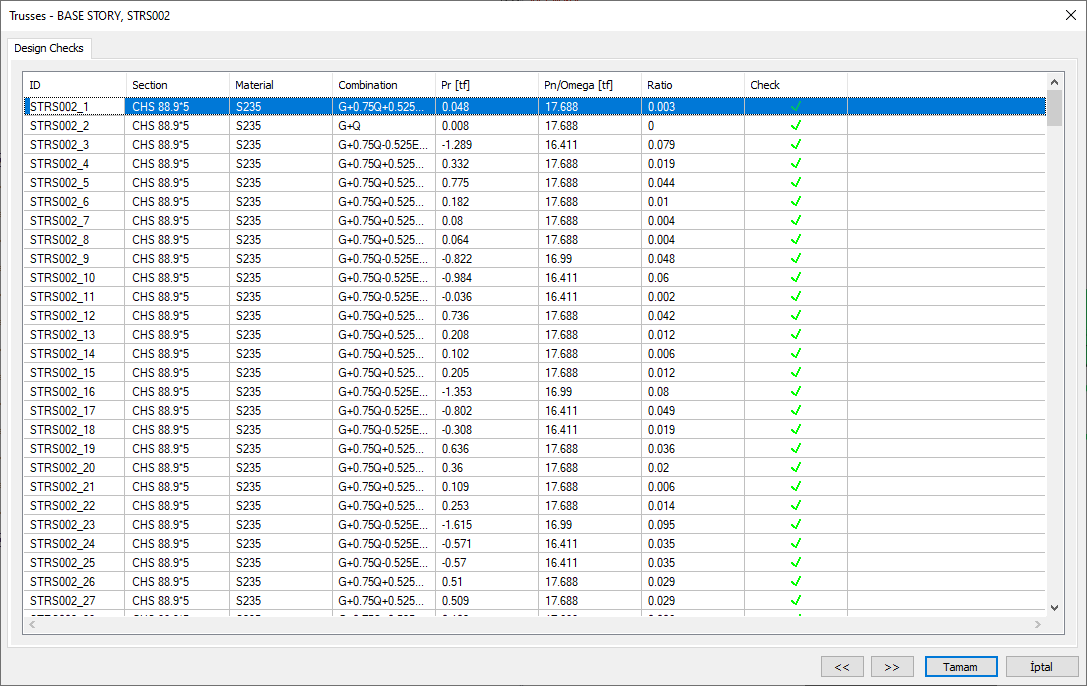

Space truss design results and space truss inadequacies are displayed in the Trusses dialog. The axial compressive strength ratio and design ratio of the space truss elements are displayed in the trusses dialog.

Location of Trusses Dialog for Space Truss

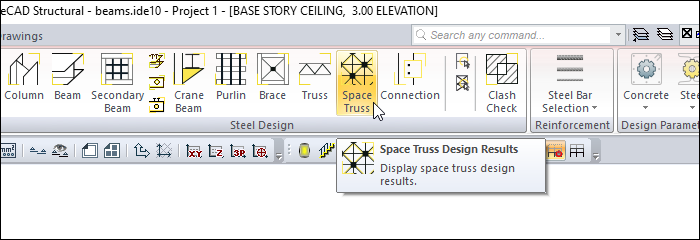

After the analysis is done, you can access the trusses for space truss dialog by clicking the Space Truss command under the Steel Design heading in the ribbon menu Analysis and Design tab .




It is the name of the space truss in plan.


It is the section used in the space truss.


It is the material used in the space truss.


It is the load combination that produces the most unfavorable axial capacity ratio.


It is the largest axial force calculated by using load coefficients among the elements forming the space truss.


The most negative of the elements forming the space truss is the safe axial strength.


It is the axial capacity ratio.


It is an information box whose sign changes depending on whether or not design limits are exceeded.


The cursor moves to the previous line.


The cursor goes to the next line.


It saves the changes made and closes the dialog.


Closes the dialog without saving the changes made.

Summary Information

The summary information about the line where the cursor is located is given in the name of the dialog in story, pose format.

For example, BASE STORY, STRS001

Using the Shift key

In this tab, you can select more than one row with the Shift key, enter a value by double-clicking any cell whose value is open to change, and make that value apply to all selected rows.

Using the Ctrl key

Ctrl key selects the lines in between one by one.
