DWG Export
Projects created in the ideCAD program can be saved in DWG format. DWG export command is used for this.
-
Switch to the floor or drawing window you want to save as DWG.
-

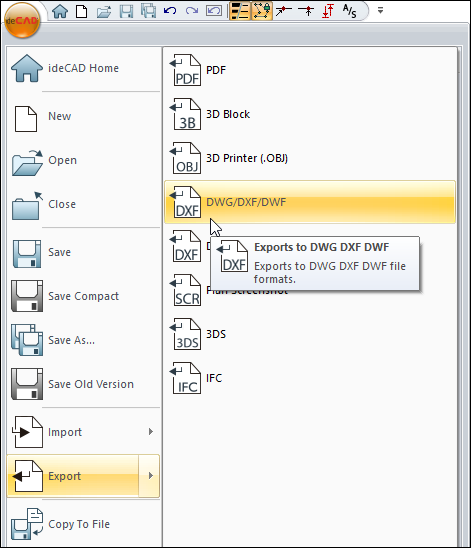

Click on the ideCAD logo/Export/DWG-DXF-DWF line.
-

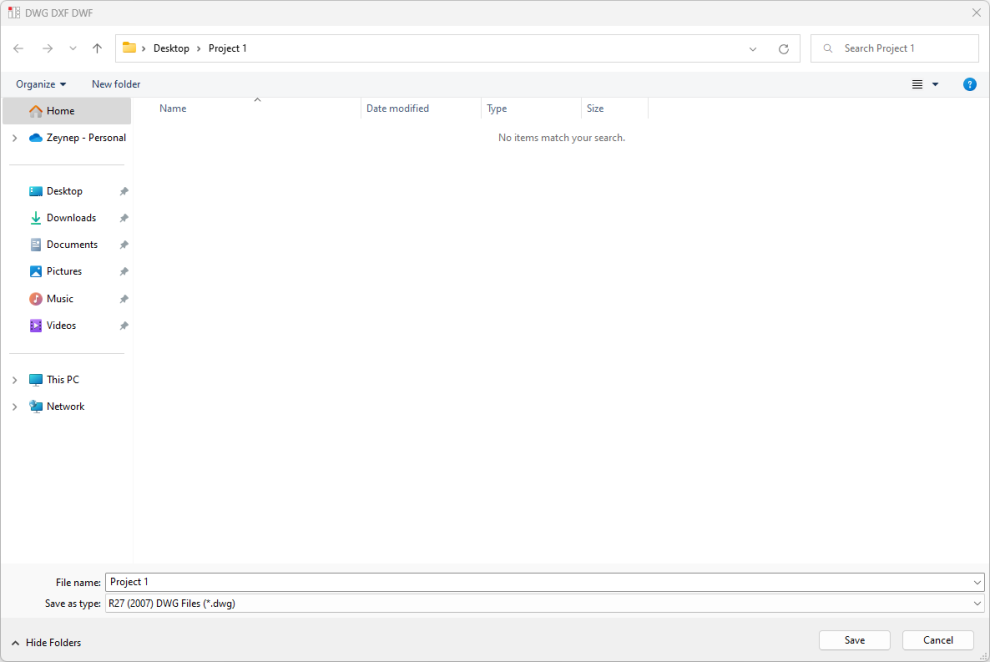

The DWG/DXF/DWF saving window will appear.
-
Type a name in the File Name line and click the Save button.
-

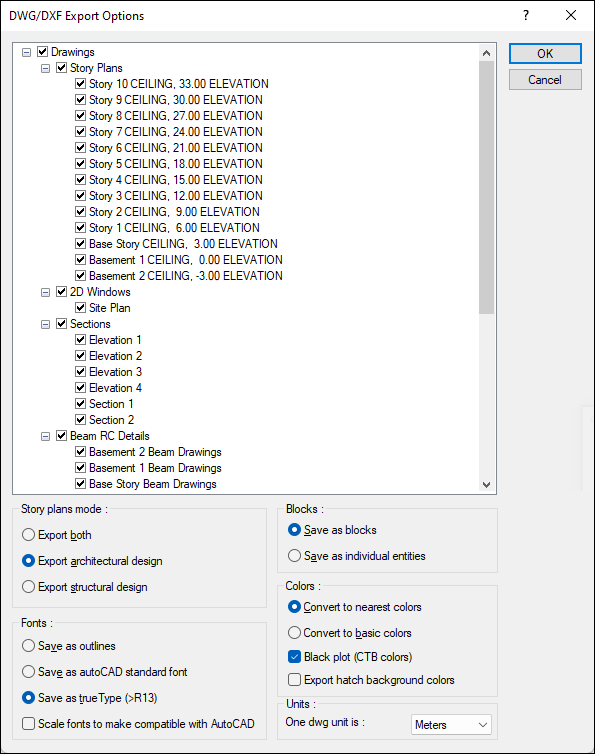

The DWG / DXF Export Options dialog will open. Set the required parameters in this dialog.
-
Click the OK button.
-

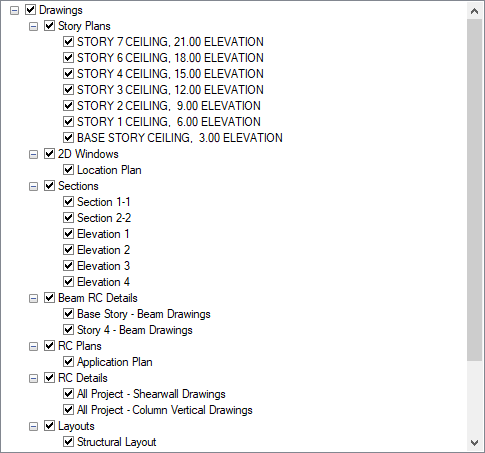

Mark the drawings you want to transfer. Each drawing will be saved as separate files on your disk.
|
Specifications |
|---|
|
Drawings
The drawings to be transferred are marked. Selected drawings are exported as separate files. |
|
Story plan mode
In the selected story plans, drawings in structural mode in architectural mode or in both modes can be exported. |
|
Save as block
Objects are transferred as a block (whole). Objects come as blocks in the CAD environment. |
|
Save as individual entities
Each line whose objects are created is transferred as a separate line object. |
|
Save as outlines
All text in the drawing is converted to outline. |
|
Save as autoCAD standard font
The texts used in the drawing are converted to AutoCAD's standard font (AutoCAD is a registered trademark of AutoDesk.) |
|
Save as true Type (>R13)
Text is transferred to AutoCAD R13 and higher versions as True Type |
|
Scale fonts to make compatible with AutoCAD
When marked, the size of the texts is reduced to fit the font sizes of the AutoCAD program. |
|
Convert to nearest colors
It converts the available colors to the closest colors. |
|
Convert to basic colors
Converts existing colors to base colors. |
|
Black plot (CTB colors)
Turns all lines to black. |
|
Export hatch background colors
Background colors of the hatches in the project are exported. |
|
One dwg unit is
Unit measurement value is selected in the exported drawing. |

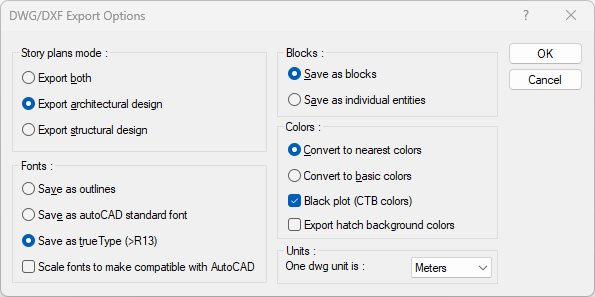

DWG/DXF/DWF Export Tek
Transfers active working window as DWG / DXF / DWF.
|
Specifications |
|---|
|
Story plans mode
In the selected story plans, drawings in structural mode in architectural mode or in both modes can be exported. |
|
Save as blocks
Objects are transferred as a block (whole). Objects come as blocks in the CAD environment. |
|
Save as individual entities
Each line whose objects are created is transferred as a separate line object. |
|
Save as outlines
All text in the drawing is converted to outline. |
|
Save as autoCAD standard font
The texts used in the drawing are converted to AutoCAD's standard font (AutoCAD is a registered trademark of AutoDesk.) |
|
Save as true Type (>13)
Text is transferred to AutoCAD R13 and higher versions as True Type |
|
Scale fonts to make compatible with AutoCAD
When marked, the size of the texts is reduced to fit the font sizes of the AutoCAD program. |
|
Convert to nearest colors
It converts the available colors to the closest colors. |
|
Convert to basic colors
Converts existing colors to base colors. |
|
Black plot (CTB colors)
Turns all lines to black. |
|
Export hatch background colors
Background colors of the hatches in the project are exported |
|
One dwg unit is
Unit measurement value is selected in the exported drawing. |
Pen and Color Settings in AutoCAD
The following method is followed for transferring the pen and color settings made in ideCAD to AutoCAD environment.
-

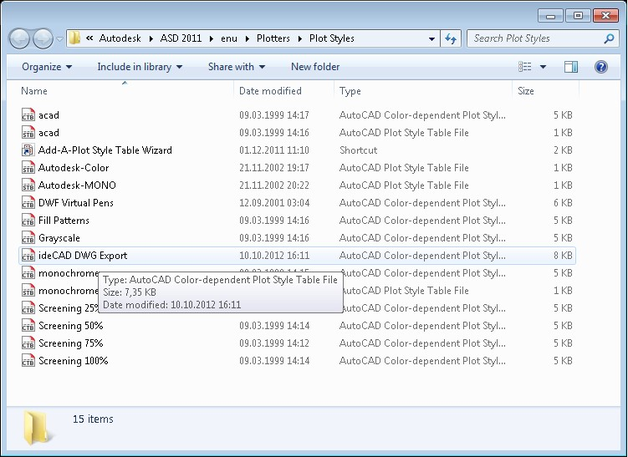

Open the folder you exported.
-
Select the file with CTB extension created when DWG Export is done and copy (CTRL + C).
-

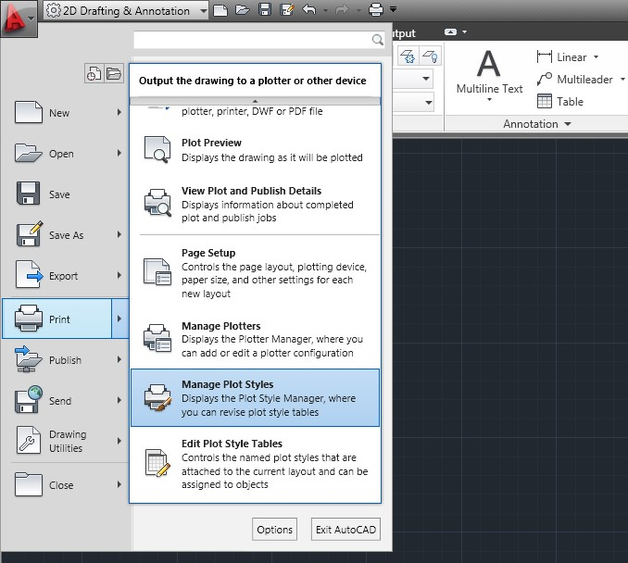

In AutoCAD, click the Manage Plot Styles line in the Print menu .
-
Paste the CTB file (CTRL + V) into the Plot Styles window that opens .
-

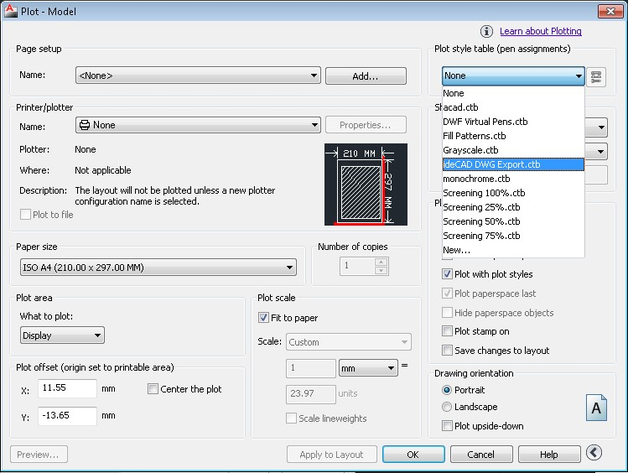

Click the Plot line in the print menu .
-
In the dialog that opens, select the project name (ideCAD DWG Export.CTB) for DWG export in the Plot Style Table (Pen Assignments) options.
-
After setting options such as paper size, scale, printing area, the placement of the layout to be printed on the paper can be checked on the preview screen with Preview , and it can be printed with the OK command.
