Assembly Drawings with Single Parts

The Assembly Drawings with Single Parts command is used to prepare assembly drawings with single parts of steel structures.

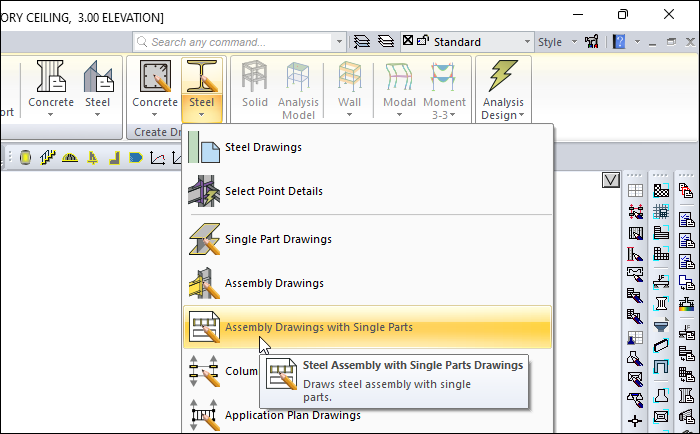

Location of the Assembly Drawings with Single Parts Command

You can access it under the Steel tab, Create Drawings heading.


Usage Steps

  • Click on the Assembly Drawings with Single Parts icon.

  • Assembly drawings will be created.

  • Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

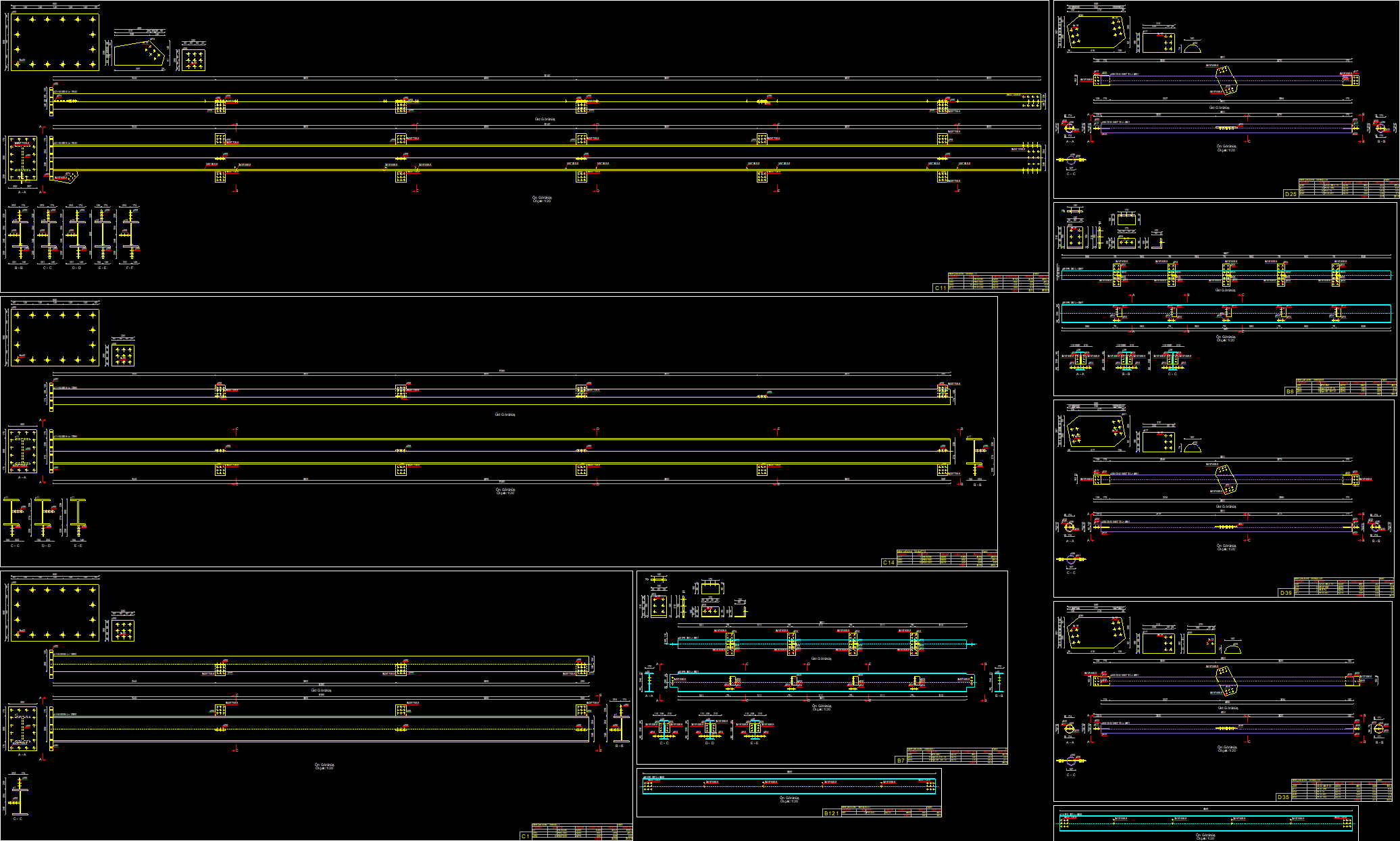

Sample assembly drawings with single parts
