Create a Continuous Zone Edge

With the Continuous Zone Edge command, the zone edge is defined in arc or circular form by using more than one point.

Location of Continuous Zone Edge Command

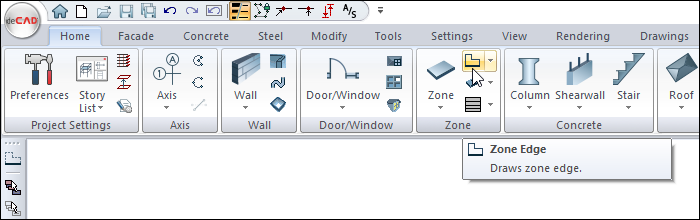

Ribbon menu Home tab Zone under the heading located, after entering the Zone Edge command opened Zone Edge can be accessed from the toolbar.

Usage Steps

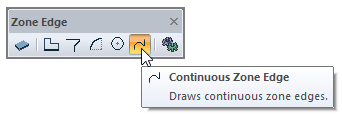

  • Click on the continuous zone edge icon.

  • Create the starting point of your continuous zone edge by clicking the left mouse button.

  • Drag the mouse. Click the waypoint to form an arc. You can click more than one waypoint according to your system.

  • Create the end point of your continuous zone edge by clicking the left mouse button and complete your form.

  • End the command by clicking the right mouse button.

  • You will have a continuous zone edge.

  • Exit the command by pressing the Esc key on the keyboard. You can now define the zone.

Usage step

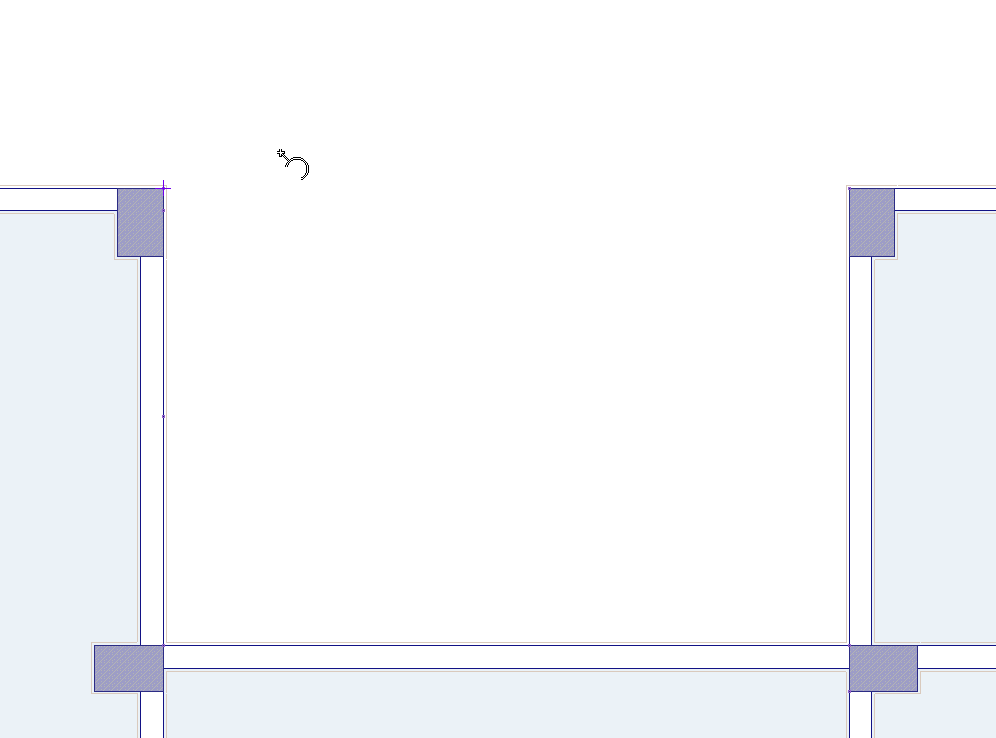

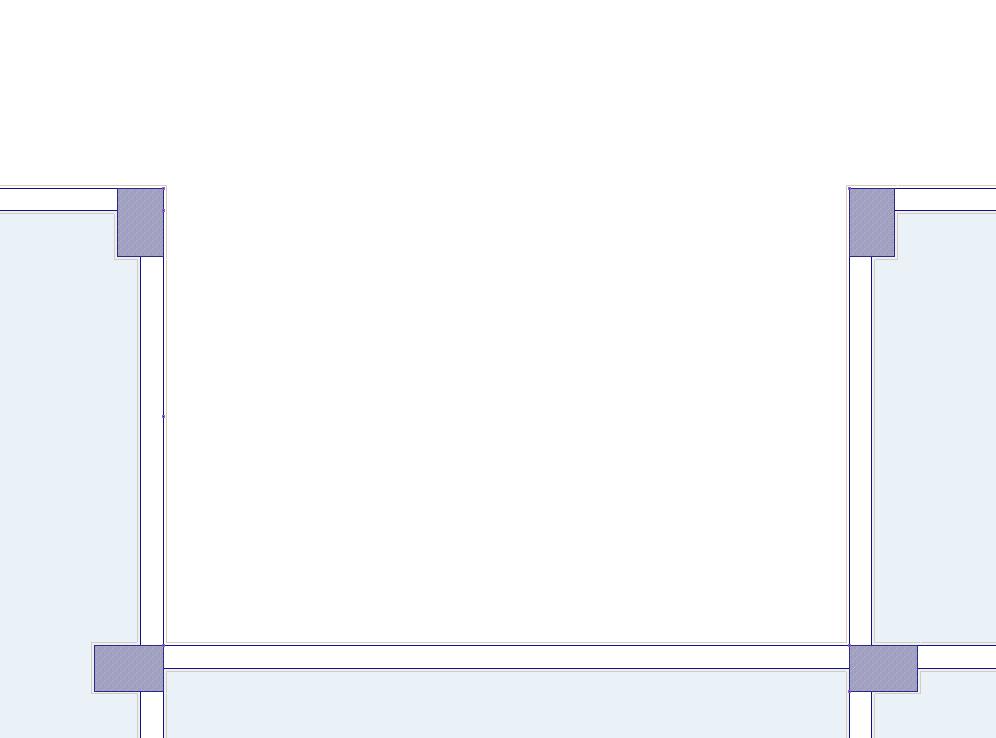

Area to be drawn continuous zone edge

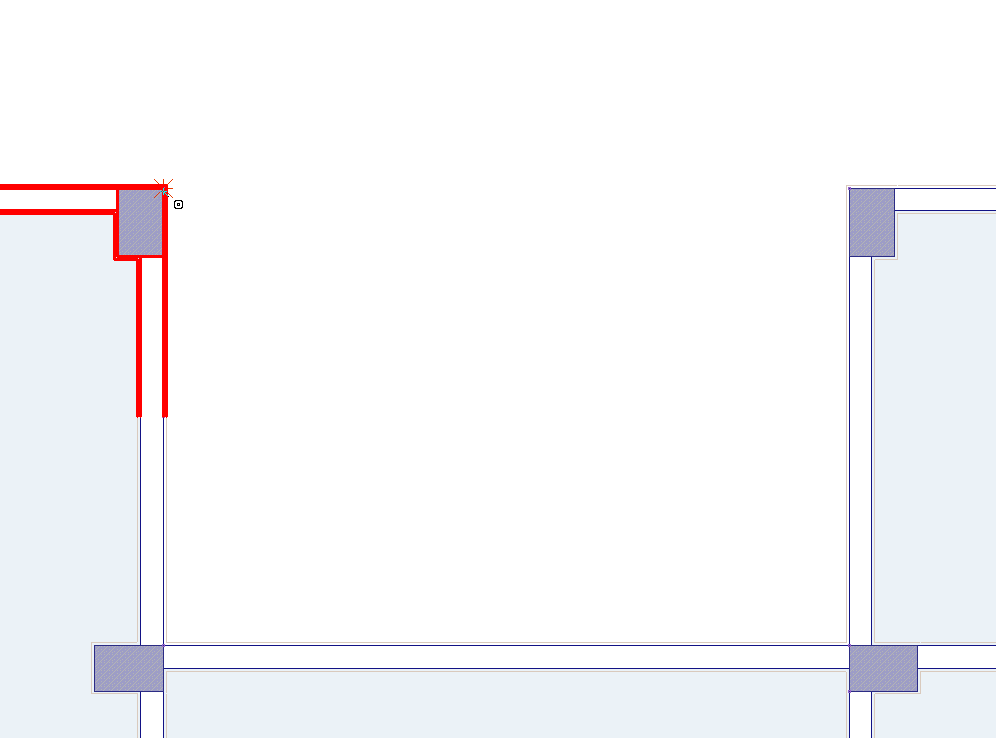

Determination of the starting point of the zone edge

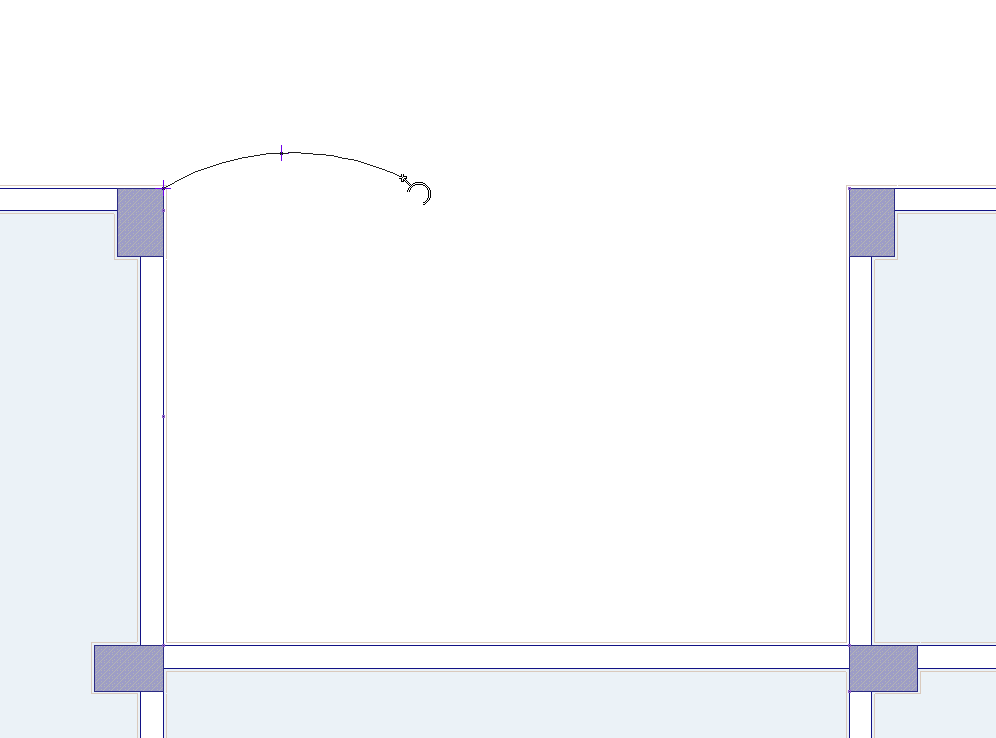

Determination of the second point

Determination of the third point

Determination of the fourth point

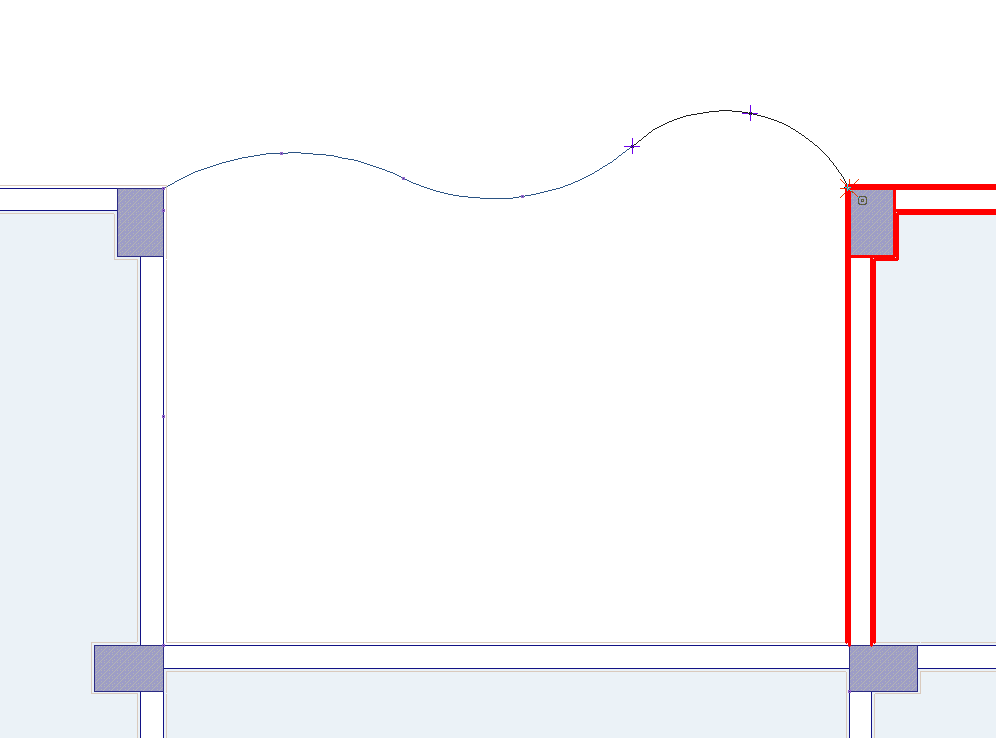

Determining the point where the continuous zone edge will end

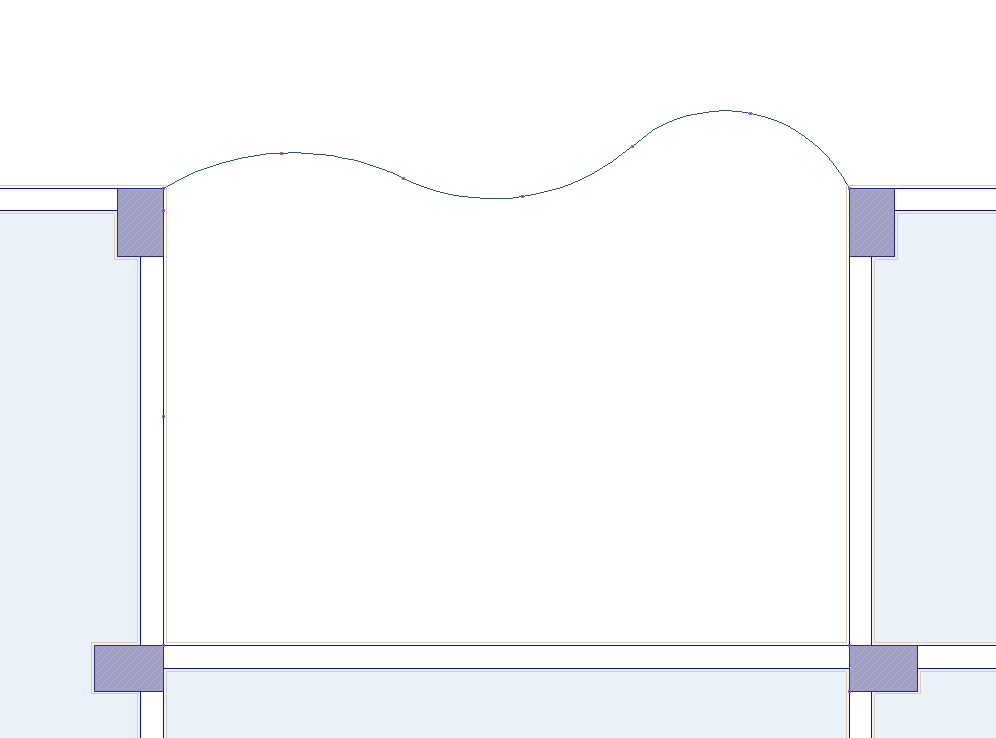

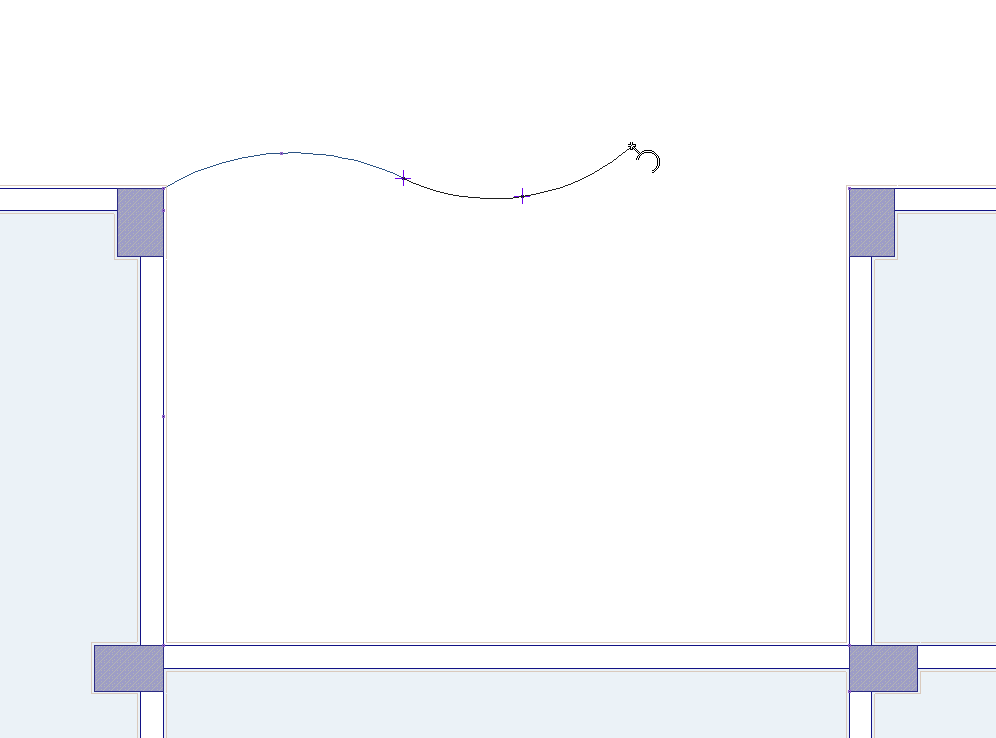

Formation of a continuous zone edge
