Defining a 4 Bolts Unstiffened End Plate Connection

With the 4 Bolts Unstiffened End Plate Connection command, column-beam connection is defined.

Location of the 4 Bolts Unstiffened End Plate Connection Command

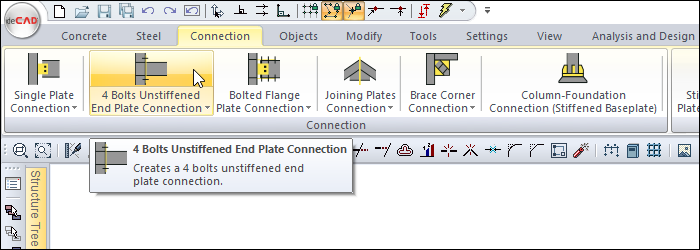

You can access it under the Ribbon menu, Connection tab, Connection title.

Usage Steps

If Draw in Fast Mode is Active

  • From the Connection menu, click the 4 Bolts Unstiffened End Plate Connection icon.

  • In 3D perspective view, move the mouse pointer closer to the element, close to the support

  • After this process, the virtual image of the connection will appear.

  • If the connection is suitable, create the connection by clicking the left mouse button.

  • The connection will occur with default settings.

If Draw in Fast Mode is Inactive

  • From the Connection menu, click the 4 Bolts Unstiffened End Plate Connection icon.

  • Click the column then the beam before the 3D perspective view.

  • The 4 bolts unstiffened end plate connection settings dialog will open.

  • The connection will occur when the wanted settings are made and the OK button is clicked.

Location of the 4 Bolts Unstiffened End Plate Connection Settings Dialog

If the draw in fast mode is active, the connection settings will be opened automatically.

If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.

4 Bolts Unstiffened End Plate Connection Settings Dialog

Type and End Plates Tab

Specifications

End plate

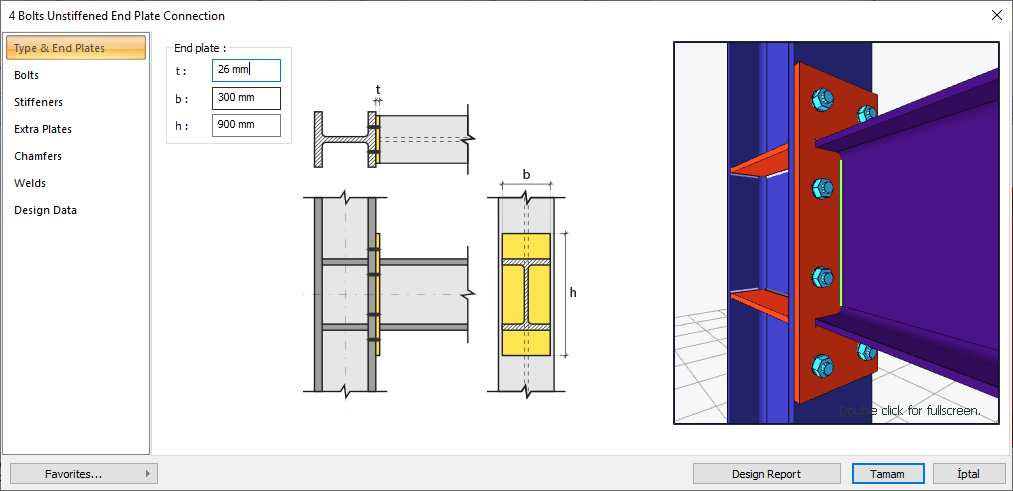

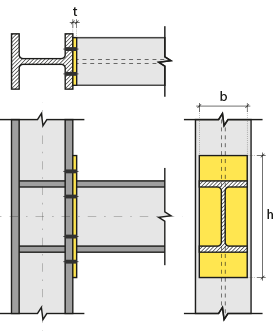

The end plate is determined by entering the values. The values ​​to be entered are shown in the schematic drawing.

Schematic drawing

Connectio and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Bolts Tab

Specifications

Horizontal arrangement

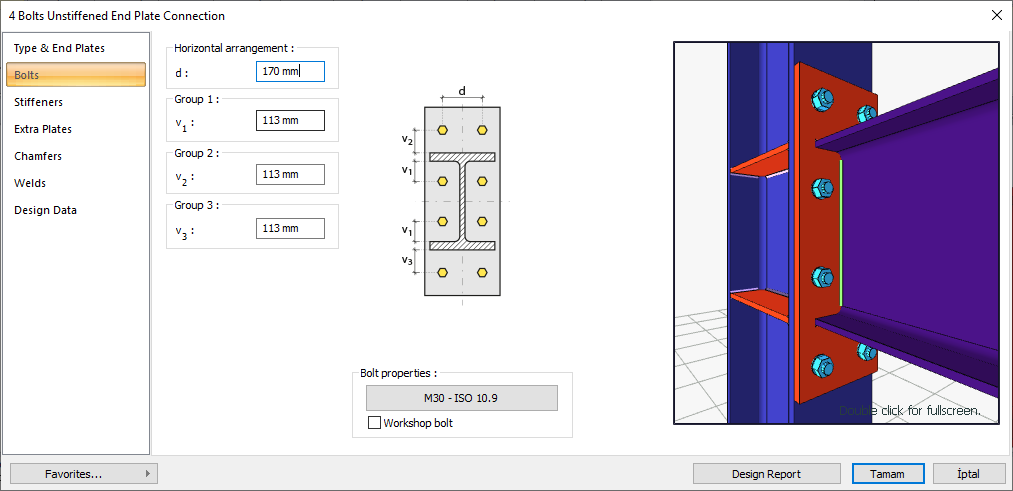

The horizontal arrangement distance value of bolts is entered. The values ​​to be entered are shown in the schematic drawing.

Group 1

The distance value of the bolts to the beam is entered. The values ​​to be entered are shown in the schematic drawing.

Group 2

The distance value of the bolts to the beam is entered. The values ​​to be entered are shown in the schematic drawing.

Group 3

The distance value of the bolts to the beam is entered. The values ​​to be entered are shown in the schematic drawing.

Bolt properties

The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog.

Schematic drawing

Connection and bolt placement values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Stiffeners Tab

Specifications

Continuity plate

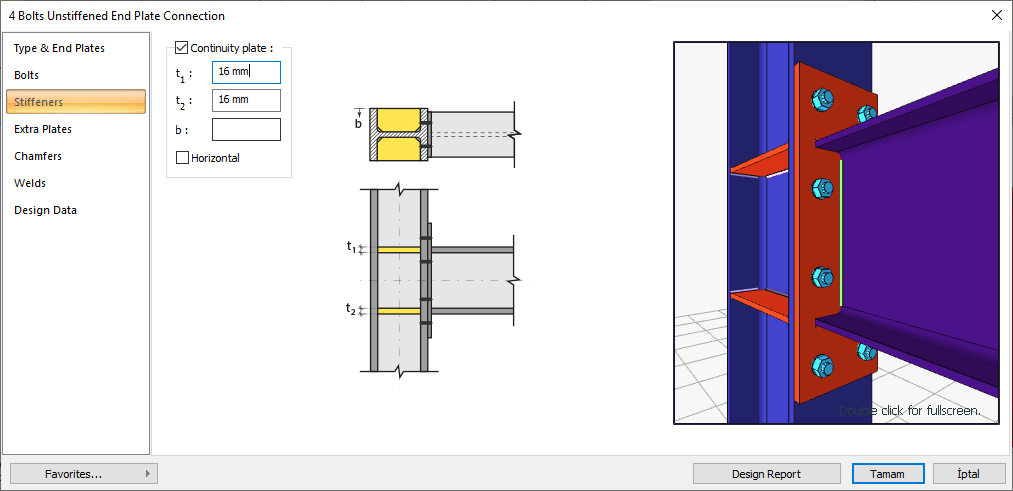

The purpose of the continuity plates is to support the column heads in the column-beam joints and to ensure the continuity of the beam head. Continuity plates are used for reinforcement in order to bend the column head and prevent column stem flow / wrinkle. If a continuity plate will be made, the option is marked. Continuity plate is determined by entering values. The values ​​to be entered are shown in the schematic drawing.

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Extra Plates Tab

Specifications

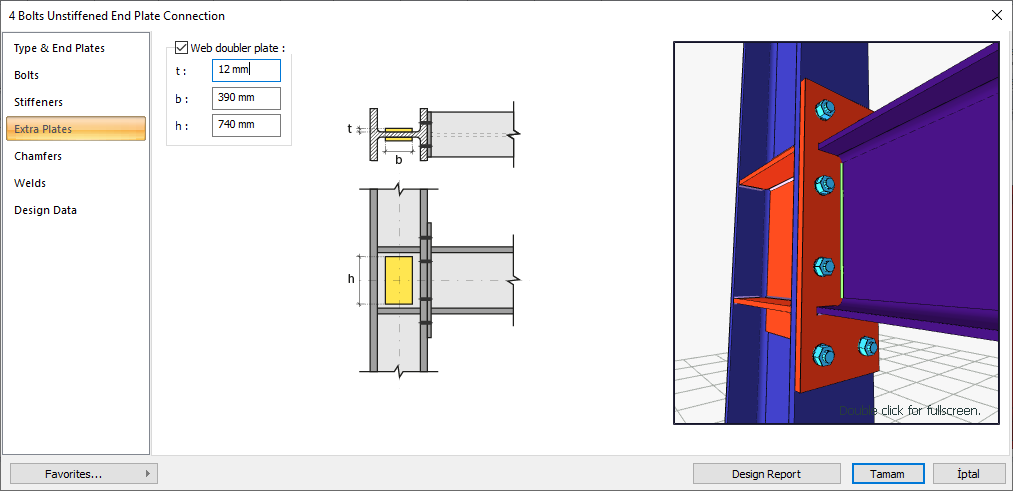

Web doubler plate

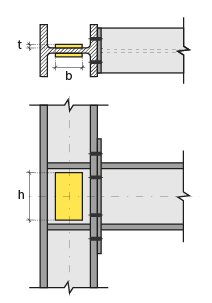

If the column body thickness is insufficient, web doubler plates are used to meet the shear effect of the panel area. If the web doubler plate will be made, the option is marked. Web doubler plate is determined by entering values. The values ​​to be entered are shown in the schematic drawing.

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Chamfers Tab

Specifications

Chamfers

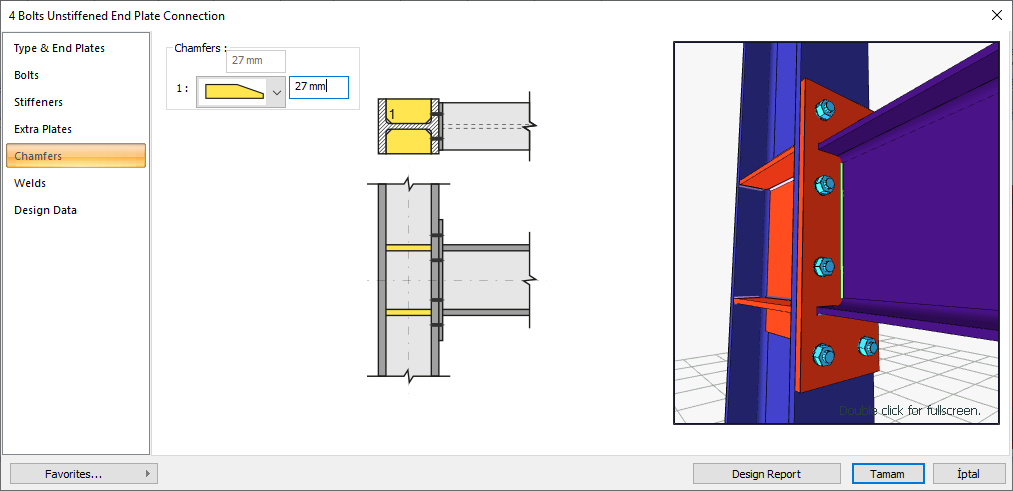

For easy assembly of the plates in the field, the use of slope, slope type and geometric properties are determined by entering the value.

Schematic drawing

Connection, notching and cutting values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Welds Tab

Specifications

Welds

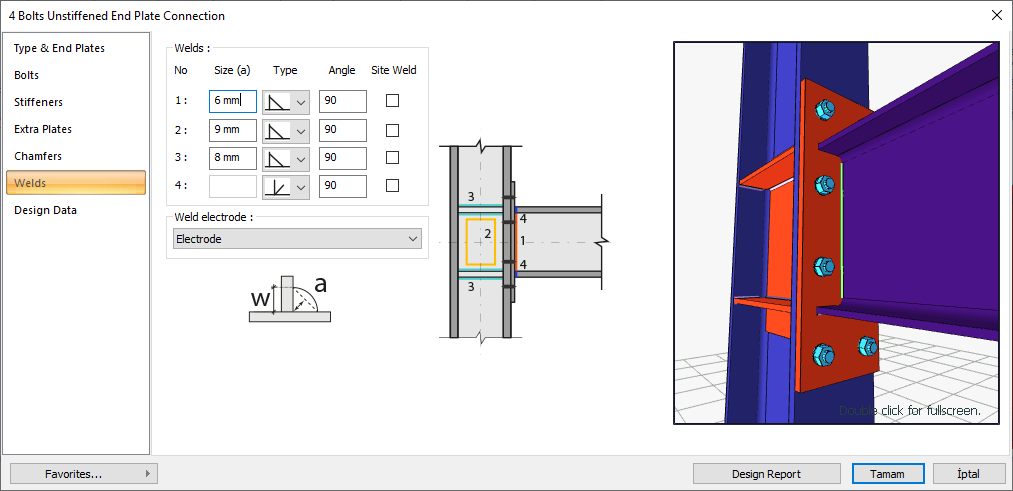

The thickness, type and angle values ​​of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered.

Weld electrode

The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength.

If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New".

Welding geometry is determined automatically by the program. These properties can be changed to easily determine the joint properties. Geometry features are in accordance with industry standards and in the form specified in AISC.

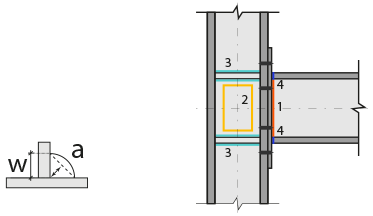

Schematic drawing

Connection and weld values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

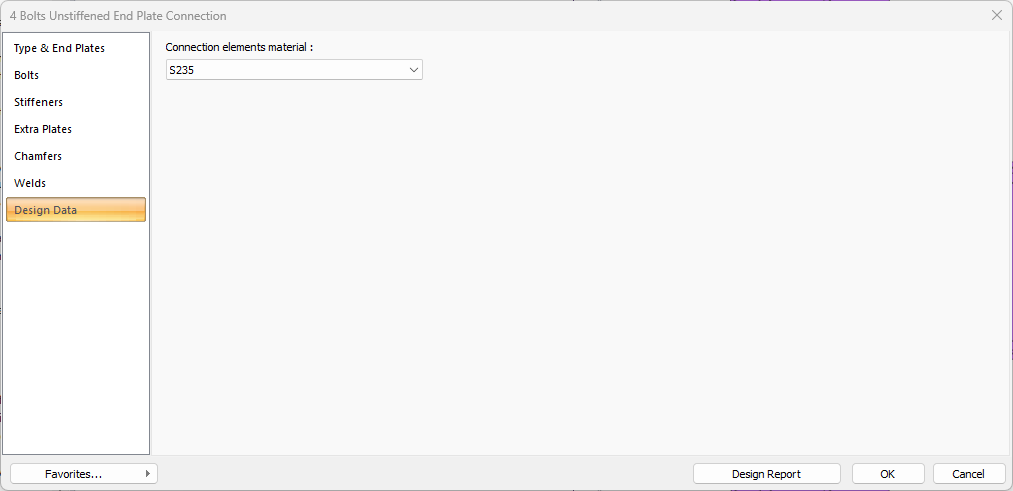

Design Data Tab


In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.


If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
