Column Application Detail
The dimensions and sizes of the text on the column application plan drawing, hatch settings, paper settings, header settings and annotation settings are arranged.
General

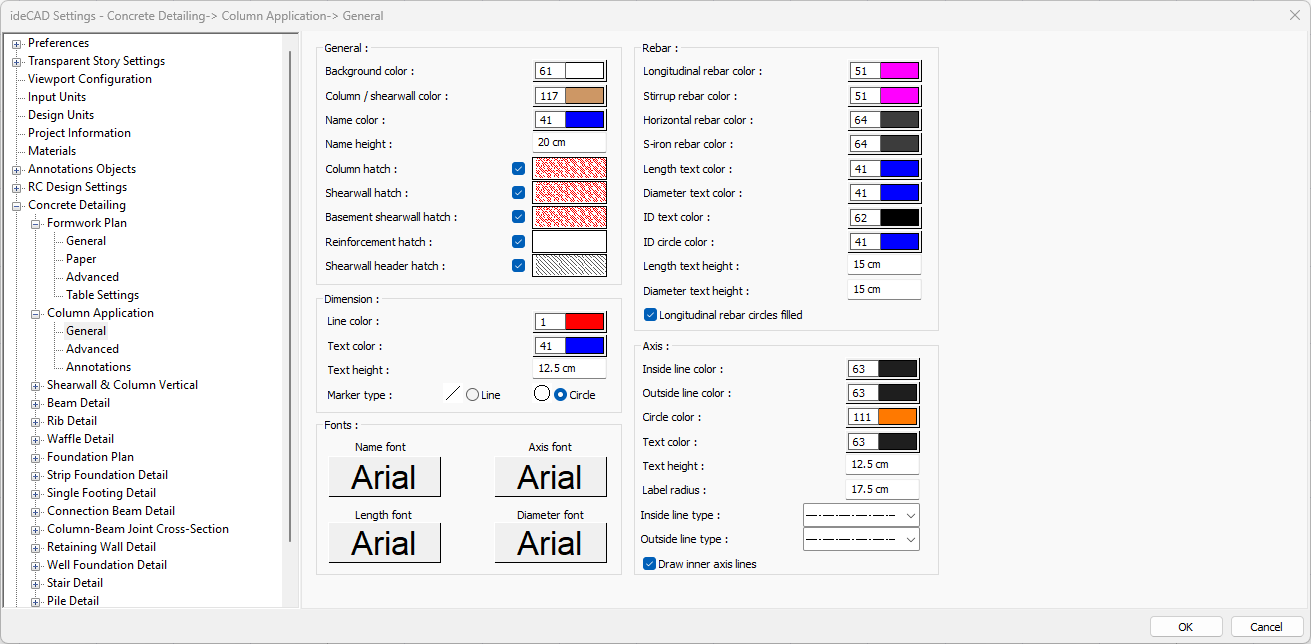

![](../__attachments/2378072785/image-20231107-141701.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications - General |
Background color ![]() Sets the background color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Column/shearwall color ![]() Sets the column/shearwall color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Name color ![]() Sets the name color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Name height ![]() Name height is entered. |
Column hatch ![]() It is the hatch type that is valid for column. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the hatch table in this dialog. |
Shearwall hatch ![]() It is the hatch type that is valid for shearwall. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the hatch table in this dialog. |
Basement shearwall hatch ![]() It is the hatch type that is valid for basement shearwall. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the hatch table in this dialog. |
Reinforcement hatch ![]() It is the hatch type valid for reinforcement. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the hatch table in this dialog. |
Shearwall header hatch ![]() It is the hatch type valid for shearwall header. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the hatch table in this dialog. |
Specifications - Dimensions |
Line color ![]() Sets the dimension line color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text color ![]() Adjusts the text color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text height ![]() Size text height is entered. |
Marker type ![]() The marker type is selected. |
Specifications - Fonts |
Name font ![]() Name font is selected. |
Axis font ![]() Axis font is selected. |
Length font ![]() The font of the length text is selected. |
Diameter font ![]() Diameter font is selected. |
Specifications - Rebar |
Longitudinal rebar color ![]() Sets the longitudinal rebar color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Stirrup rebar color ![]() Sets the stirrup rebar color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Horizontal rebar color ![]() Sets the horizontal rebar color. When the color box is clicked, the appropriate color is selected from the window that opens. |
S-iron rebar color ![]() Sets the s-iron rebar color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Length text color ![]() Sets the color of the length text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Diameter text color ![]() Sets the color of the diameter text. When the color box is clicked, the appropriate color is selected from the window that opens. |
ID text color ![]() Adjusts the color of the ID text. When the color box is clicked, the appropriate color is selected from the window that opens. |
ID circle color ![]() Sets the ID circle color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Length text height ![]() Text height is entered. |
Diameter text height ![]() Diameter text height is entered. |
Longitudinal rebar circles filled ![]() When the option is selected, the inside of the longitudinal rebar circle is filled. |
Specifications - Axis |
Inside line color ![]() Sets the axis inside line color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Outside line color ![]() Sets the axis outside line color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Circle color ![]() Sets the axis circle color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text color ![]() Adjusts the text color of the axis. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text height ![]() Text height of the axis is entered. |
Label radius ![]() The radius of the axis label is entered. |
Inside line type ![]() The line type of the axis inside line is selected. Clicking the down arrow buttons to the right of the boxes opens the list of line types. From this list, the desired line type is selected by clicking with the left mouse button. |
Outside line type ![]() The line type of the axis outside is selected. Clicking the down arrow buttons to the right of the boxes opens the list of line types. From this list, the desired line type is selected by clicking with the left mouse button. |
Draw inner axis lines ![]() When the option is selected, axis inner lines are drawn. |
Advanced

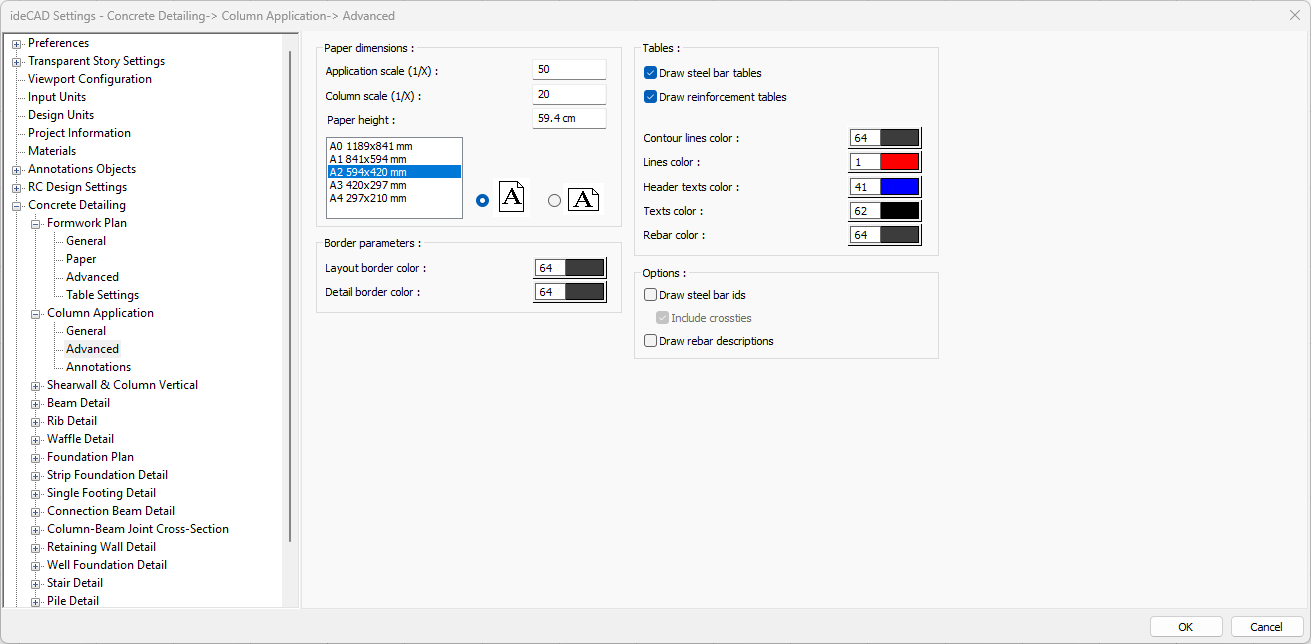

![](../__attachments/2378072785/image-20231107-141724.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Application scale (1/X) ![]() Application scale is entered. |
Column scale (1/X) ![]() The column scale is entered. |
Paper height ![]() Standard paper sizes can also be selected, and any paper size value can be entered. |
Standard paper sizes ![]() Standard paper sizes are listed. The layout size can be selected from the list, as well as the layout dimensions can be determined by entering the width and height values. |
Vertical/Horizontal use ![]() It is determined whether the layout will be used horizontally or vertically. |
Layout border color ![]() You can select the layout border color from the color palette that appears when you click it. If clicked together with the Shift key, the pen thickness of the relevant color can be adjusted. The pen thickness value entered here is only used in inkjet printers. |
Detail border color ![]() You can select the detail border color from the color palette that appears on the screen when you click it. If clicked together with the Shift key, the pen thickness of the relevant color can be adjusted. The pen thickness value entered here is only used in inkjet printers. |
Draw steel bar tables ![]() If checked, rebar tables are added to the drawing. |
Draw reinforcement tables ![]() If checked, the object reinforcement table is added to the drawing. |
Contour lines color ![]() Sets the color of the table contour lines. When the color box is clicked, the appropriate color is selected from the window that opens. |
Line color ![]() Sets the color of the table lines. When the color box is clicked, the appropriate color is selected from the window that opens. |
Header text color ![]() Sets the color of the table header texts. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text color ![]() Sets the color of table text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar color ![]() Sets the color of the rebar. When the color box is clicked, the appropriate color is selected from the window that opens. |
Draw steel bar ids ![]() If checked, theids of the rebars are shown in the drawings. If not checked, it will not be displayed. If desired, crossties are included. |
Draw rebar descriptions ![]() If checked, the rebar descriptions are shown in the drawings. |
Annotations

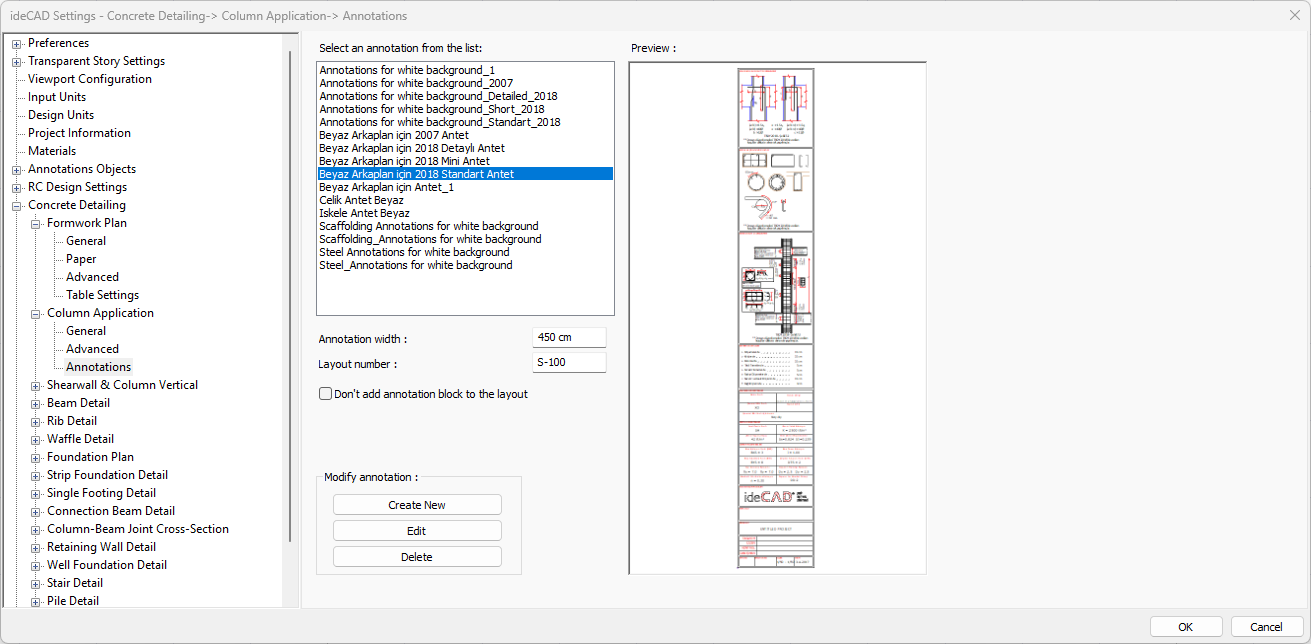

![](../__attachments/2378072785/image-20231107-141745.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Select an annotation from the list ![]() Defined annotations are listed. |

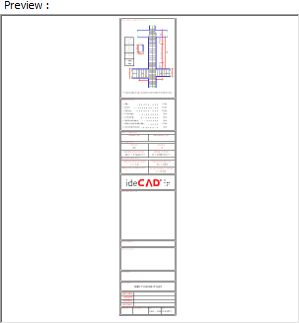

Preview ![]() There is a preview of the annotation selected from the list. |
Annotation width ![]() Annotation width is determined. |
Layout number ![]() The layout number is determined. |
Don’t add annotation block to the layout ![]() If it is checked, annotation will not be added to the layouts. |
Create New ![]() The new annotation is created. |
Edit ![]() The annotation is edited. |
Delete ![]() The annotation is deleted. |
