Unstiffened Seated Connection Design Report

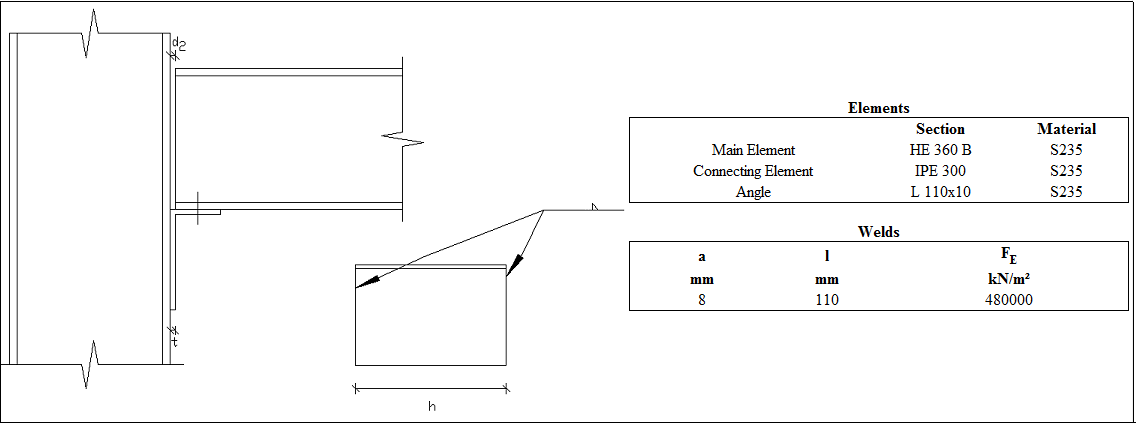

A sample of unstiffened seated connection design report is given below.

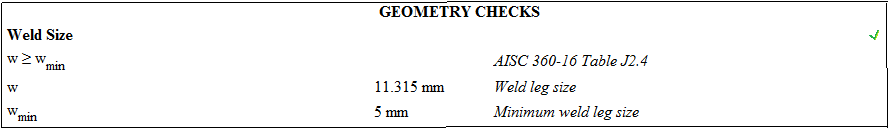

Unstiffened seated connection limit states and geometry checks are done automatically according to AISC 360-16.
The block shear limit state is checked automatically according to AISC 360-16.

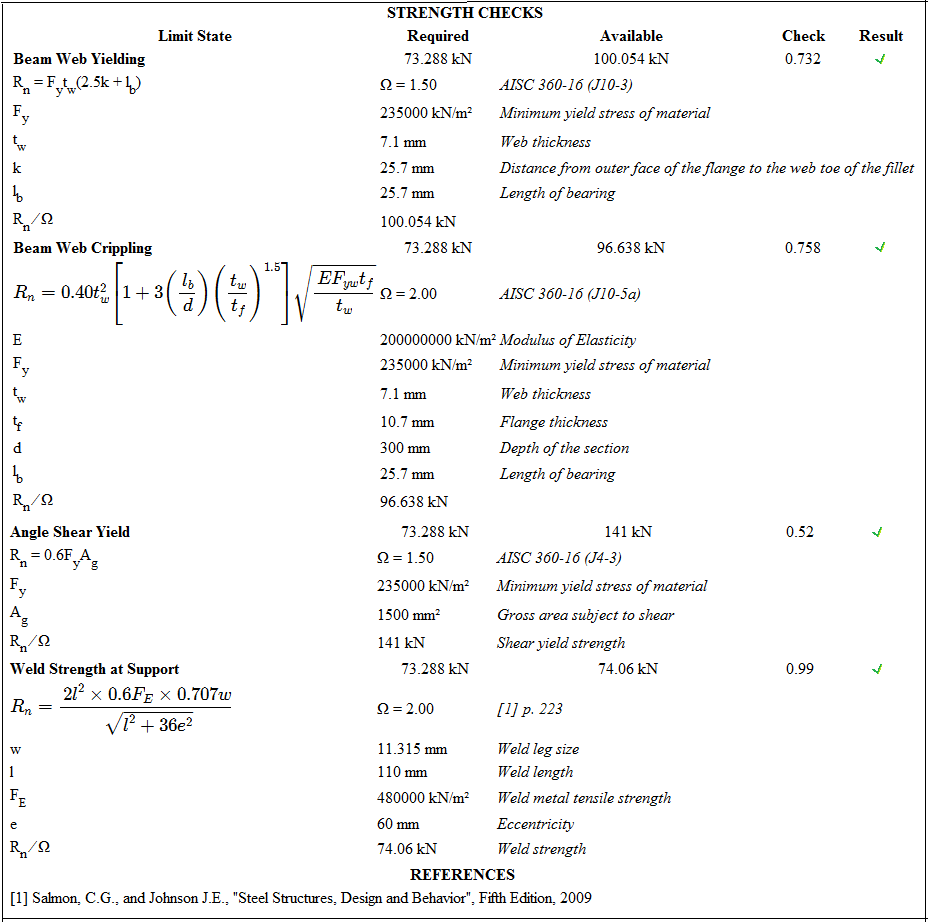

Limit states of single plate web yielding, web crippling and weld strength are checked automatically.
![](../__attachments/1128728035/3.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
![](../__attachments/1128728035/1.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
![](../__attachments/1128728035/2.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
