Straighten Oblique Axes Out of Contour Polygon

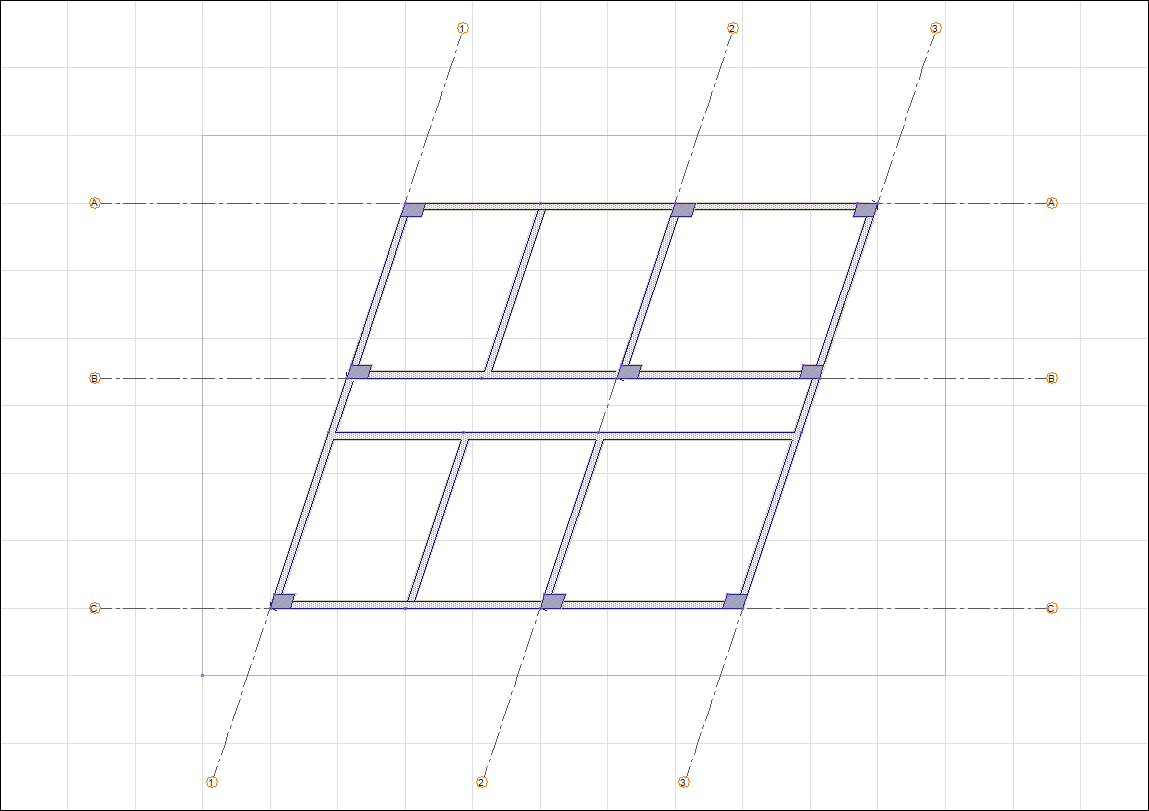

The parts of the oblique axes that are out of the contour are drawn straight with the "Draw line perpendicular outside contour polygon" option in the axis settings.

  • Select the axes you want to straighten outside the contour and enter Axis Settings .

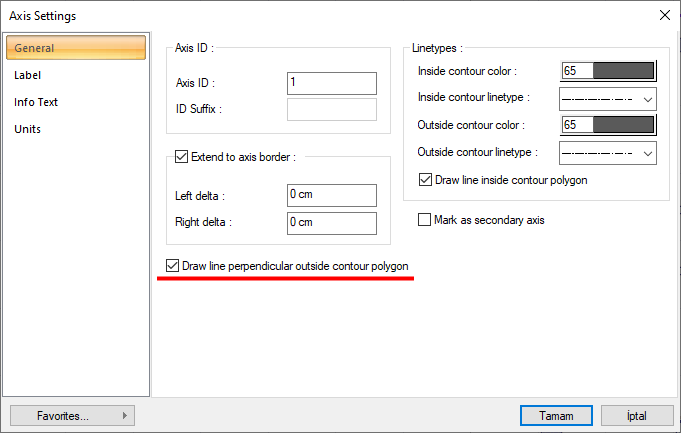

  • Check the  feature Draw line perpendicular outside contour polygon.

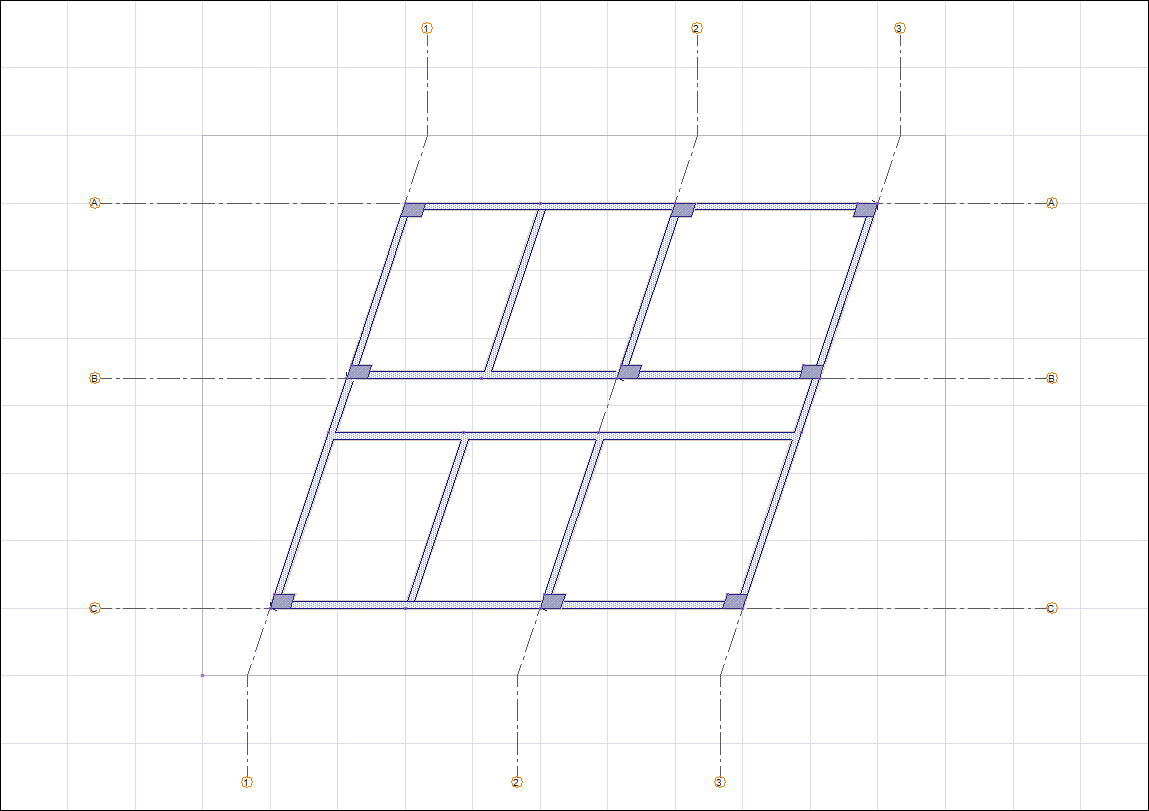

  • Your oblique axes will be drawn straight out of the contour.
