Steel Column Design Results

Steel column design results and failure conditions for steel columns are displayed in the Steel Columns dialog. The PMM ratios are shown in the Steel Columns dialog. In the Details tab, material and section properties, internal force values, axial compressive strength, bending moment strength in strong and weak axis, design variables and lateral stiffness coefficients (K coefficient, L factor, etc.) and PMM ratio are displayed.

Location of Steel Columns Dialog

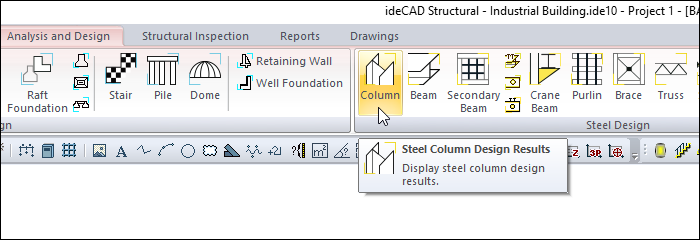

After the analysis is done, you can access it by clicking the Column command under the Steel Design heading in the ribbon menu Analysis and Design tab.

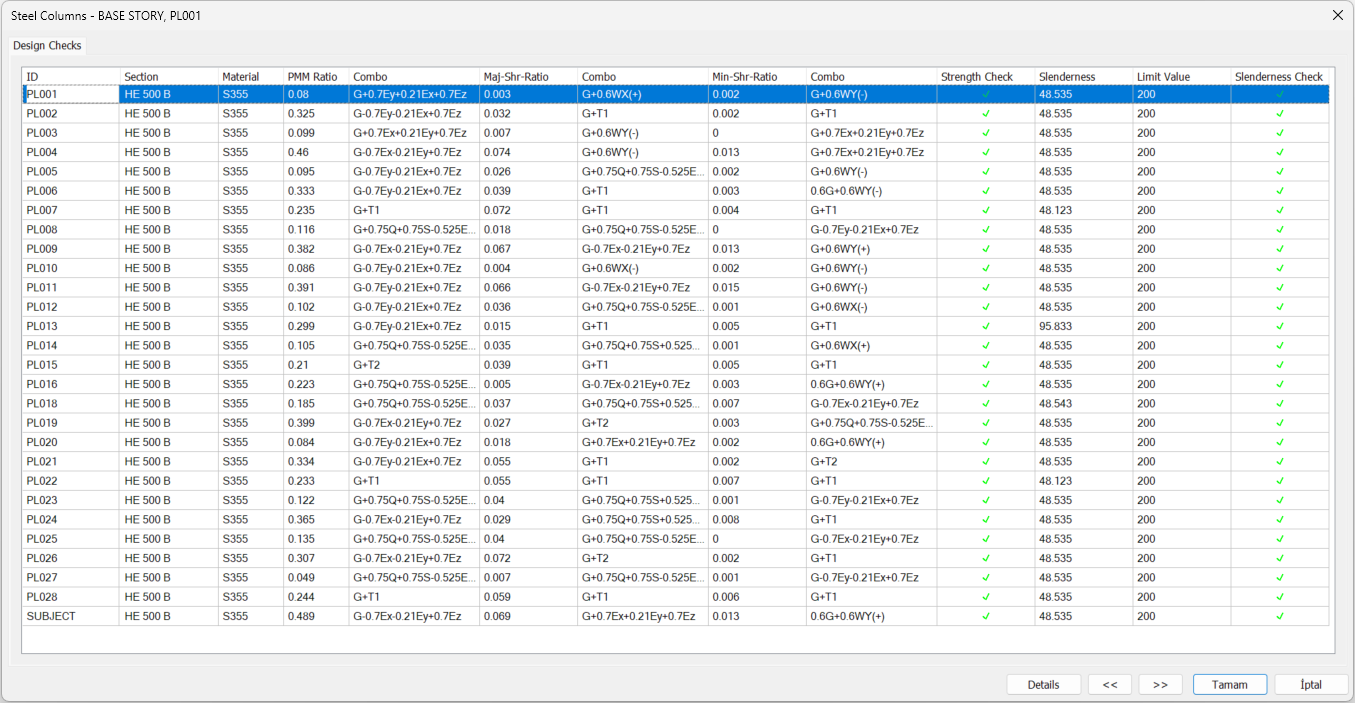

Steel Columns

Specifications

ID

It is the name of the steel column in the plan.

Section

It is the section used in a steel column.

Materiel

It is the material used in steel column.

PMM Ratio

It is the ratio of requirement to section capacity (PMM Ratio = Need/Capacity).

Combo.

It is the load combination that produces the most unfavorable PMM ratio.

Maj-Shr-Ratio

It is the ratio of the shear force in the major direction of the section to the capacity in the major direction.

Combo

It is the load combination that produces the most unfavorable stress ratio in the major direction.

Min-Shr-Ratio

It is the ratio of the shear force in the minor direction of the section to the capacity in the minor direction.

Combo

It is the load combination that produces the most negative stress ratio in the minor direction.

Check

It is an information box whose sign changes according to the presence or absence of negativity in the section.

Details

Design details are shown in detail.

Previous

The cursor moves to the previous line.

Next

The cursor goes to the next line.

OK

It saves the changes made and closes the dialog.

Cancel

Closes the dialog without saving the changes made.

Summary Information

The summary information about the line where the cursor is located is given in the name of the dialog in Layer, pose format.

For example BASE STORY, SC001

Using the Shift key

In this tab, you can select more than one row with the Shift key, enter a value by double-clicking any cell whose value is open to change, and make that value apply to all selected rows.

Using the Ctrl key

Ctrl key selects the lines in between one by one.

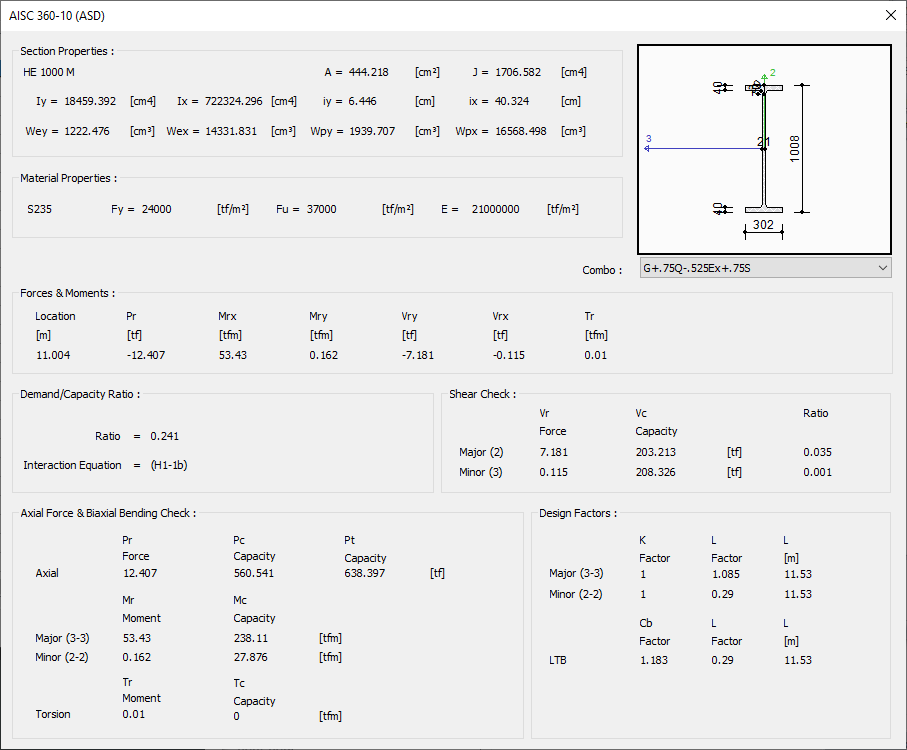

Design Details

Specifications

Schematic drawing

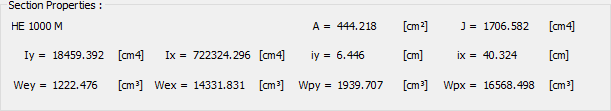

Section properties

It is the part where the name and geometric properties of the section take place.
A: Cross section area.
J: Torsional moment of inertia.
Iy: The cross section moment of inertia on the 2 axis.
Ix: The section moment of inertia on the 3 axis.
iy: The radius of inertia on the 2 axis.
ix: The radius of inertia on the 3 axis.
Wey: Section on the 2 axis is the moment of elastic strength.
Wex: Section on the 3 axis is the moment of elastic strength.
Wpy: Section in 2 axis is the plastic strength moment.
Wpx: Section in 3 axis is the plastic strength moment.

Material properties

The properties of the steel material used in the section are listed.
Fy: It is the yield strength.
E: It is the modulus of elasticity.
G: It is the shear modulus.
Fu: It is the tensile strength.

Forces and moments

Internal forces occurring in the element, belonging to the selected load combination, are shown in this section.
Pr: The axial load value.
Mrx: The bending moment of the element in 2 directions.
Mry: The bending moment of the element in 3 directions.
Vry: It is the cutting forces of the element in 2 directions.
Vrx: The shear forces of the element in 3 directions.
Tr: The torque of the element.

Combo

The load combination is selected.

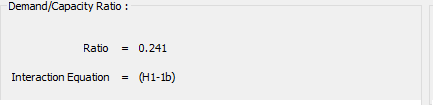

Demand/capacity ratio

The demand/capacity ratio in the section of the selected load combination is displayed.
Ratio: It is the ratio value in percentage.
Interaction equation: It is the interaction equation used in ratio calculation.

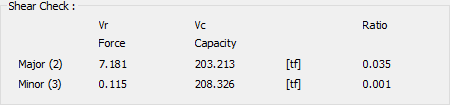

Shear check

The shear capacity ratio of the steel column is shown.
Vr: It is the column shear force in major and minor direction calculated according to the selected load combination.
Vr / Omega* Vc: It is the shear capacity of the steel column in the major and minor directions.
Ratio: It is the ratio value calculated based on the effect and capacity.

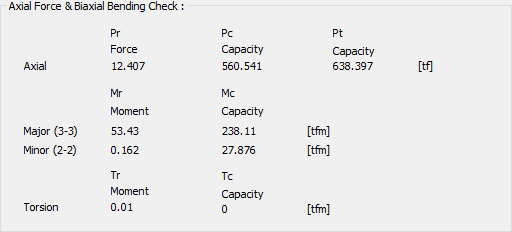

Axial force and biaxial bending check

The axial capacity and moment capacity ratios of the steel column are shown.
Pr: It is the column axial load calculated according to the selected load combination.
Pc/Omega capacity: It is the axial pressure load capacity of the steel column.
Pt/Omega capacity: It is the axial tensile load capacity of the steel column.
Mr: It is the moment value in major and minor direction calculated according to the selected load combination.
Mc/Omega capacity: It is the moment carrying capacity of the steel column.
Tr: It is the column torque value calculated according to the selected load combination.
Tc: Torsional moment of steel column is its carrying capacity.

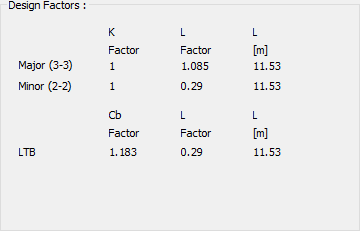

Design factors

K factor: It is the effective length factor used in calculations.
L factor: It is the supported length ratio used in the calculations.
LTB - L factor: It is the value used for lateral torsional buckling in the calculations.
Cb factor: It is the flexural coefficient used in the calculations.
