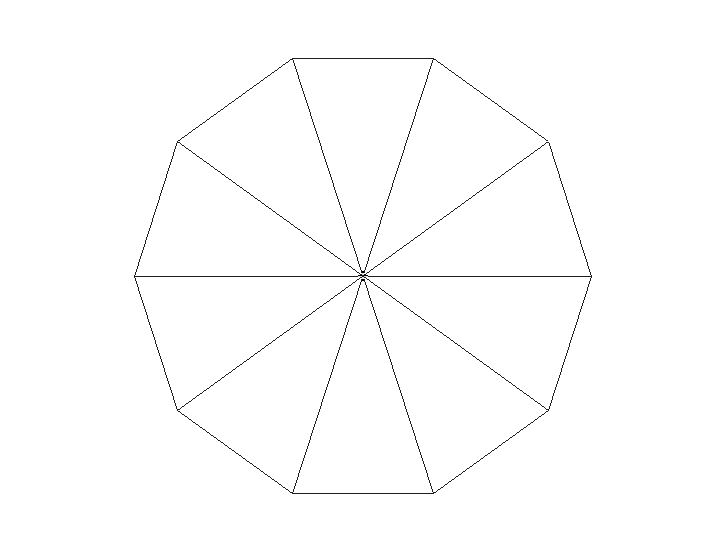

With the Cone - Pyramid command, a cone or pyramid is created from 3D geometric objects.
Cone - Location of Pyramid Command

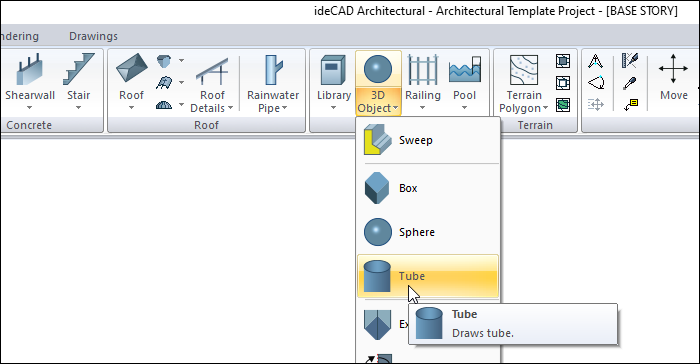

You can access the Cone - Pyramid command from the Tubes toolbar that opens after you enter the Tube command under the Objects title of the Ribbon menu Entry tab .
Usage Steps
-
Click the Cone - Pyramid icon.
-
If you want, you can change the object properties by clicking the settings icon from the tubes toolbar.
-
At this stage, enter the object height in the value box on the auxiliary toolbar.
-
Click a point in the drawing area. The object will be formed.
|
Usage step |
|---|
|

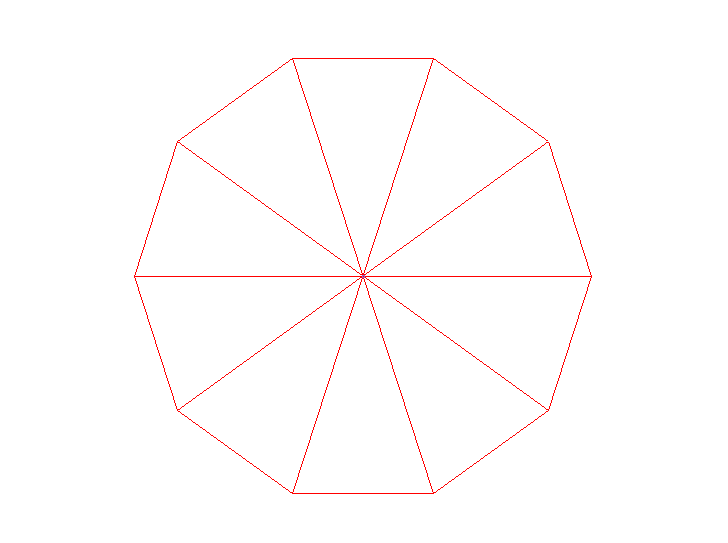

Previewing the object and determining its location
|
|
Entering the object height in the value box on the tubes auxiliary toolbar
|
|

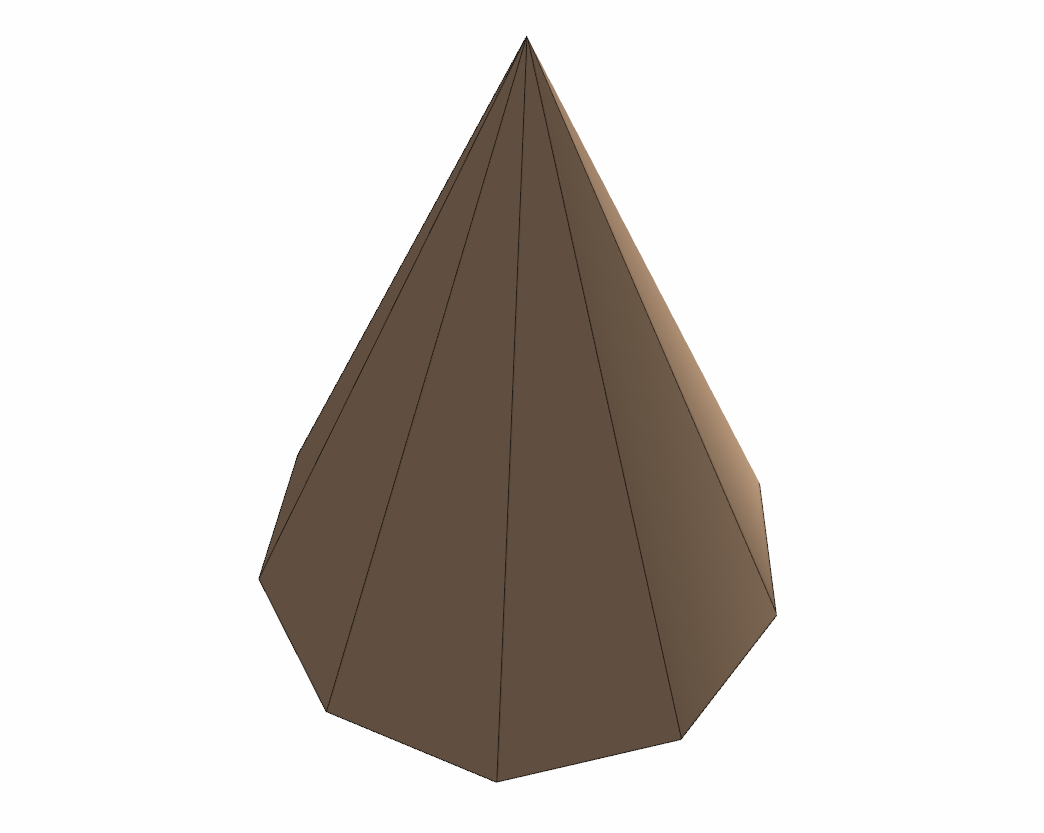

Creating the object by clicking the left mouse button
|
