Transforming a Shearwall to a Column
With the Shearwall to Column command, shearwalls are converted to columns. At any stage of architectural and structural projects, the need to transform shearwalls to columns may be felt. With the shearwall to column command, shearwall or shearwalls are converted to columns at once.
Location of Shearwall to Column Command

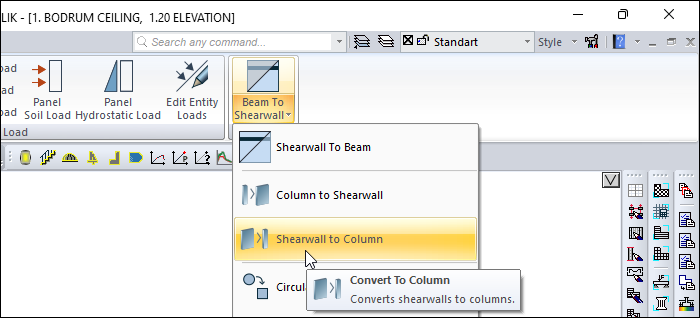

You can access it from the ribbon menu Modify tab under the Transform heading.
Usage Steps
Click the Shearwall to Column icon.
Select the shearwall or shearwalls to be transformed into columns.
Click the right mouse button.
The shearwall or shearwalls will be transformed to columns automatically without corrupting the existing data input.
Usage step |
|---|

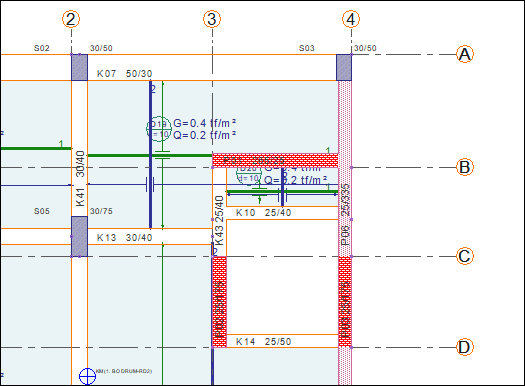

Shearwalls to be transformed into columns  |

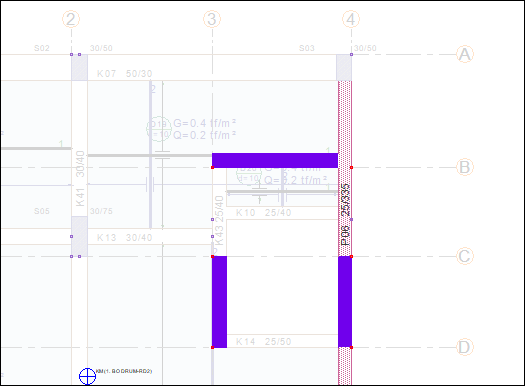

Choosing the shearwalls  |

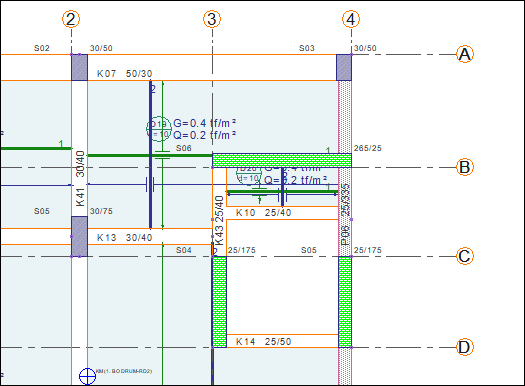

Transforming shearwalls into columns  |
