This command is used to cancel the changes made on the dimension object with move dimension text and show/hide dimension text and reset it to the state it was created in the first place.
Location of the Reset Dimension Texts Command

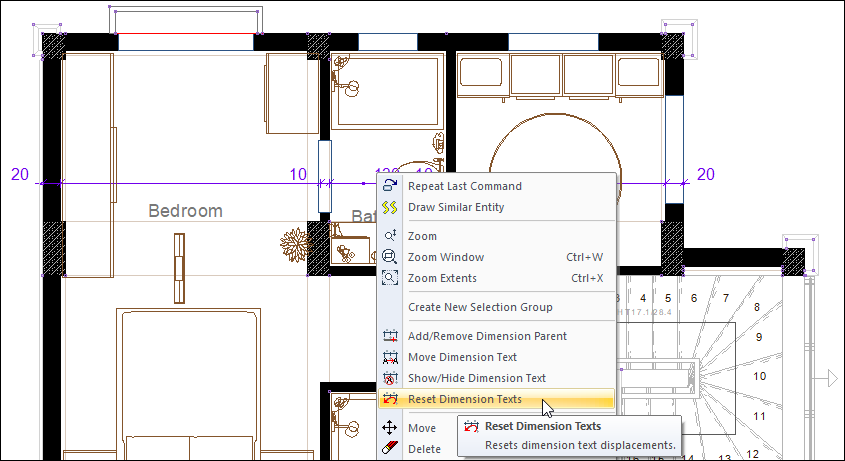

Select the dimension you want to return to its original state, click the right mouse button and click the Reset Dimension Texts line from the menu that opens.
In the Architectural Program

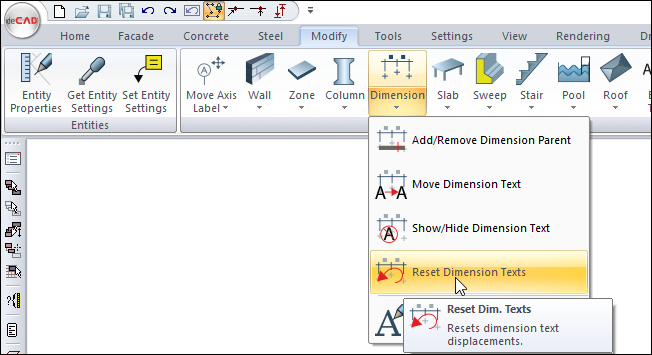

You can access it under the Ribbon menu Modify tab, Entity Edit title.
In the Structural Program

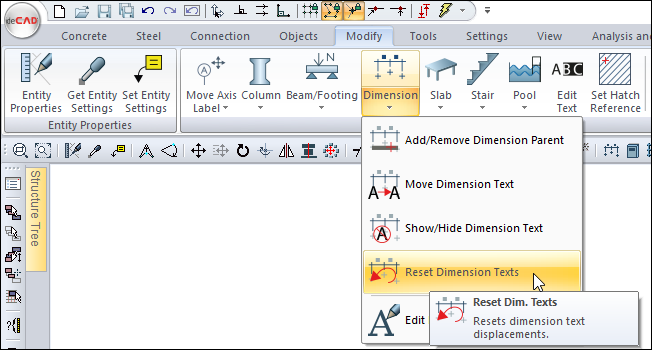

You can access it under the Ribbon menu Modify tab, Entity Edit title.
Usage Steps
Select the dimension you want to reset.
Click the Reset Dimension Texts icon in the ribbon menu or click the right button of the mouse and click the Reset Dimension Texts line from the drop-down list .
“Selected dimension texts displacements will be reset. Proceed?" Answer the warning by clicking the "Yes" button.
Your dimensioning will come first.
Usage step

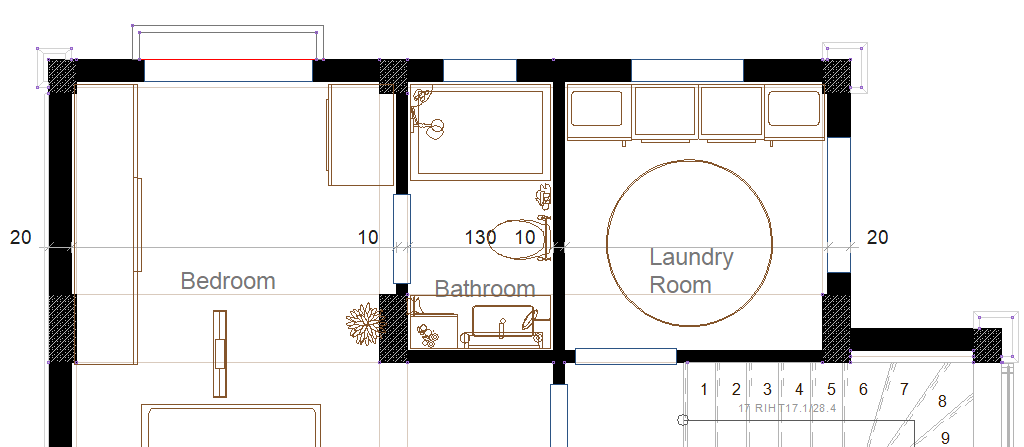

Before reset dimension texts

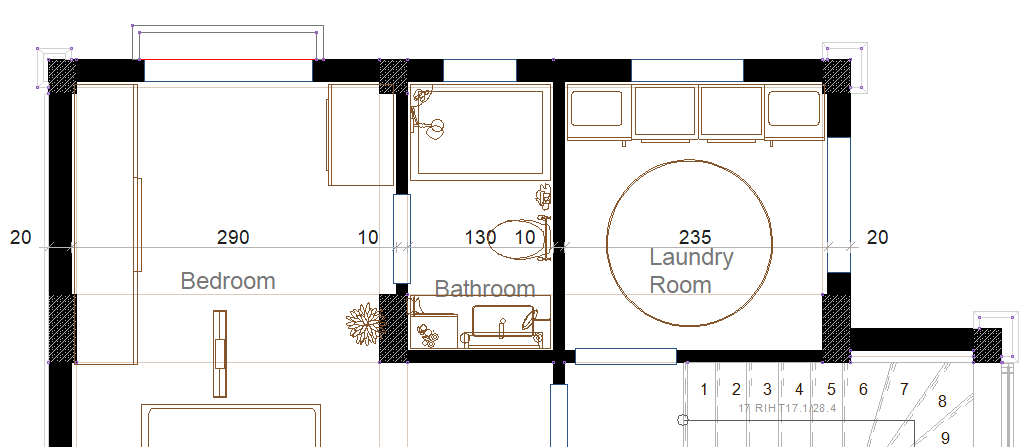

Selection of dimension

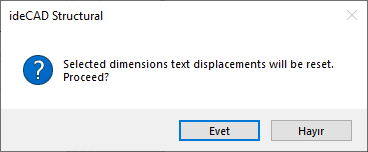

“Selected dimension texts displacements will be reset. Proceed?" Response to warning

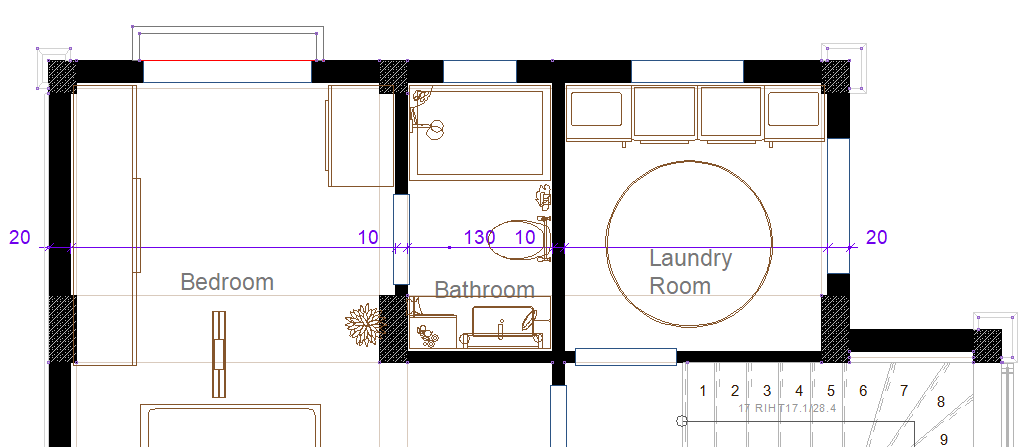

After reset dimension texts
