How do I transform a shearwall into a beam?

Shearwalls can be transformed into beams at any stage of the project. For this process, the command "Shearwall to beam" has been developed.

To transform the shearwall into a beam;

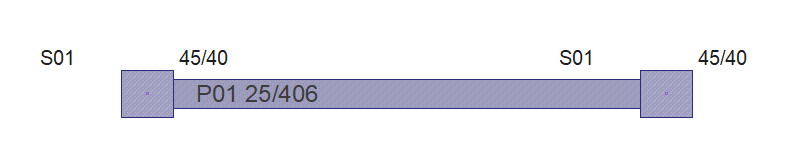

  • Choose the shearwall or shearwalls that will be transformed into beams.

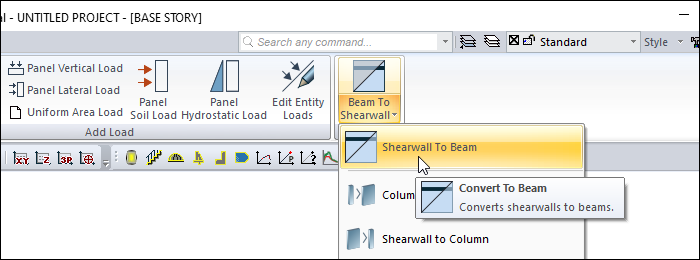

  • Click the Modify/Transform/Beam to Shearwall/Shearwall to Beam icon in the ribbon menu .

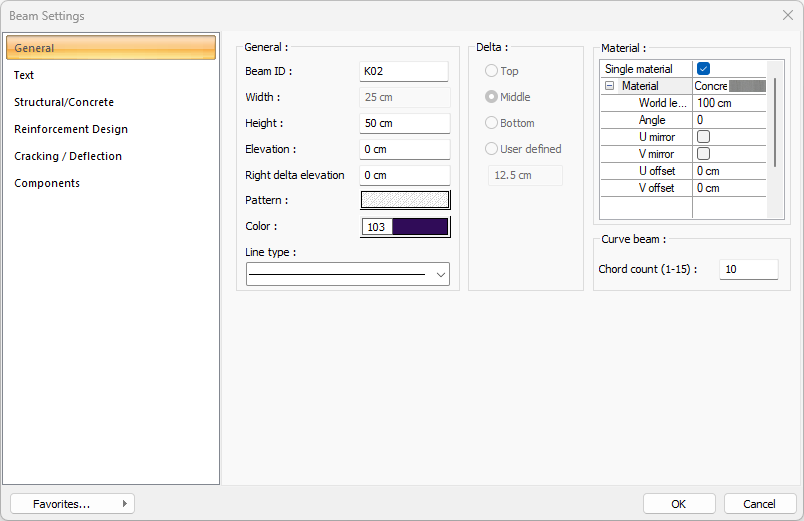

  • The Beam Settings dialog will open.

  • Change height or material properties as needed.

  • Click the OK button.

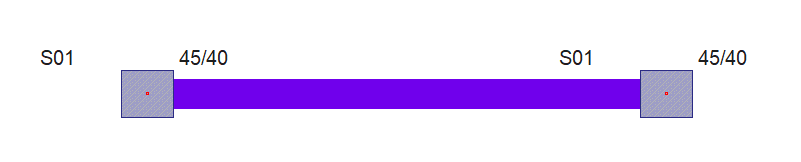

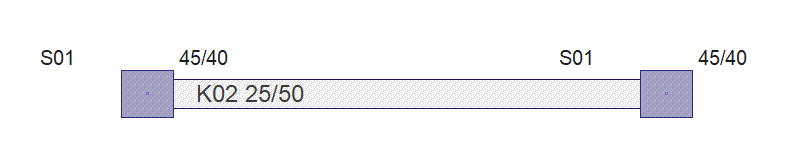

  • Existing shearwall will be converted into beams automatically.
