Edit Material

With the Edit Material command, the properties of the desired material can be changed on the 3D model.

Location of the Edit Material Command

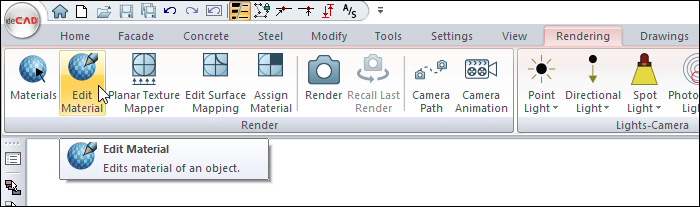

You can access it from the Rendering title of the Render tab in the ribbon menu .

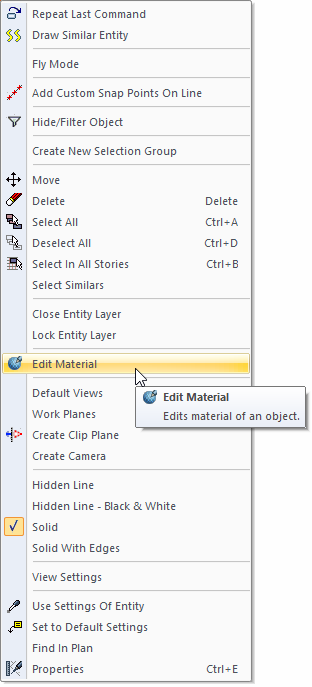

In addition, you can access the edit material you will change in the perspective window from the menu that opens by clicking the right mouse button.

Usage Steps

  • Click the Edit Material icon.

  • Click on the material whose properties you want to change in the perspective window.

  • The material editor dialog will open.

  • Make the changes you want and click the OK button to close the dialog.

  • The material you click will be updated according to the changes you make.

Usage step

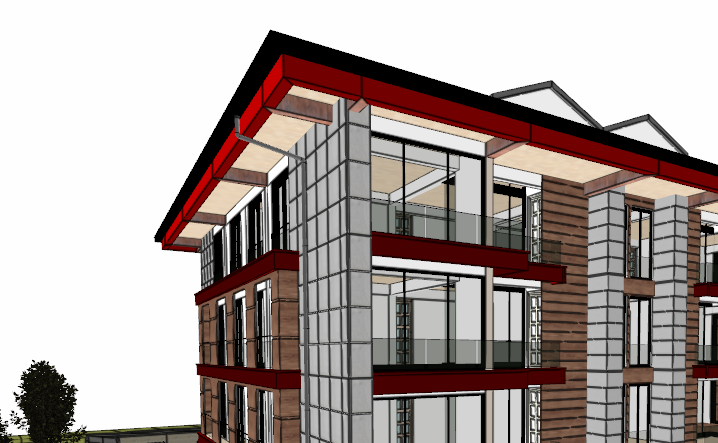

Selecting the black material whose properties are to be changed from the perspective window

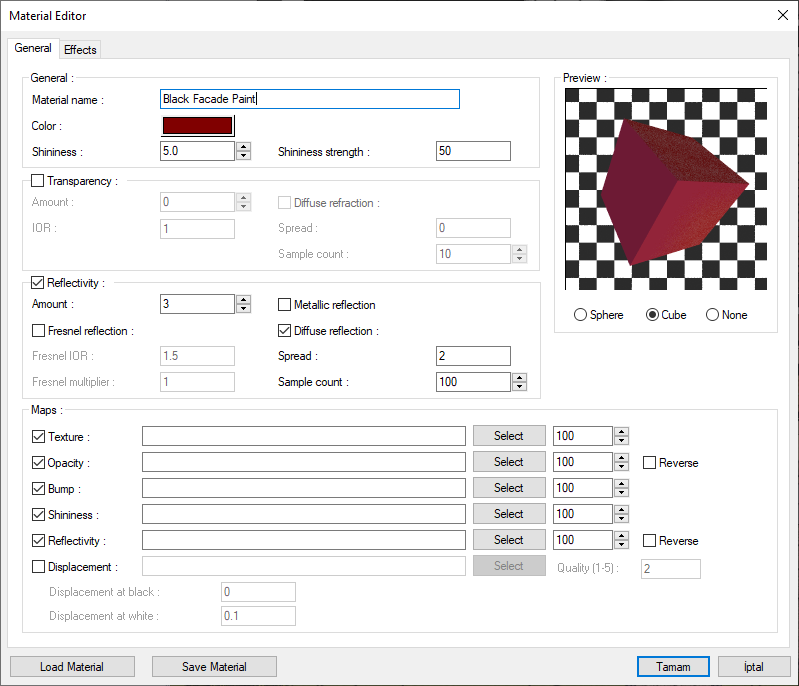

Changing the color of properties from the material editor

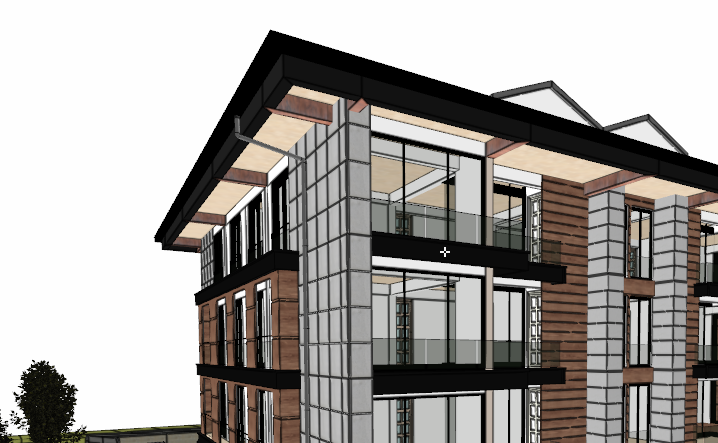

Updating material properties
