Area command calculates the area and perimeter of a closed polygon defined by points in m² and meters.

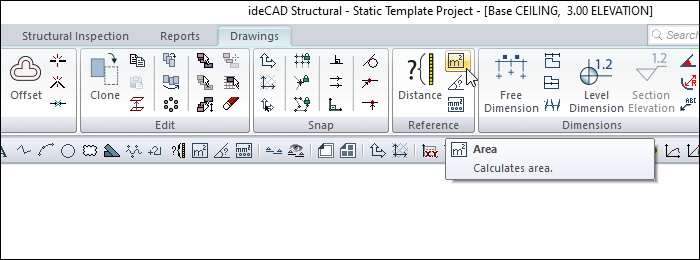

Location of the Area Command
You can access it under the Ribbon menu Drawings tab Reference title.
Usage Steps
ClickArea icon in the ribbon menu .
A floating toolbar called path segments will open. In this toolbar, there are buttons for creating paths in straight, arc and curved forms. Click the relevant button according to the shape you will draw.
Click the relevant button according to the shape you will draw.
Click the corner points of the enclosed polygon for which you want to measure the area or perimeter in sequence.
Complete the process by coming to the first point.
The program will calculate the perimeter and area of the polygon determined by the clicked points and it will appear on the screen with the Measures dialog.
Usage step

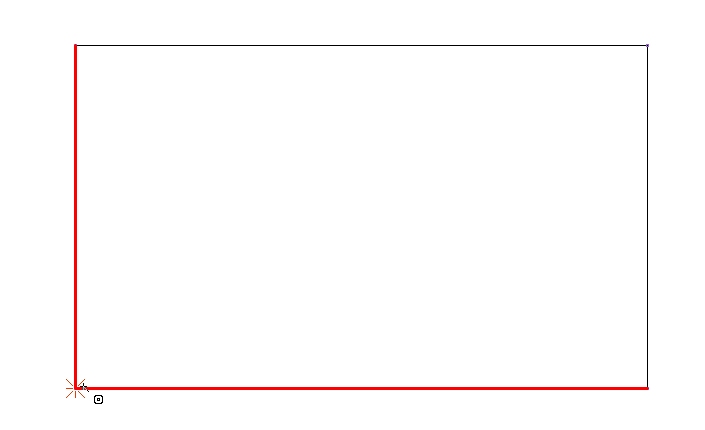

Selecting the first point of the closed polygon whose area and perimeter will be calculated while in the area command

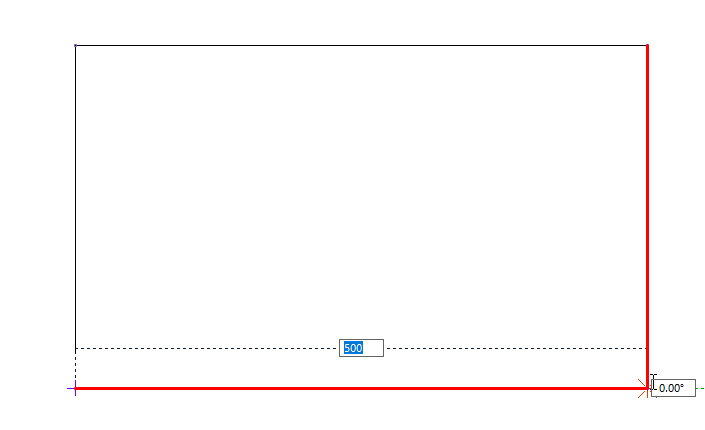

Selecting the second point of the closed polygon

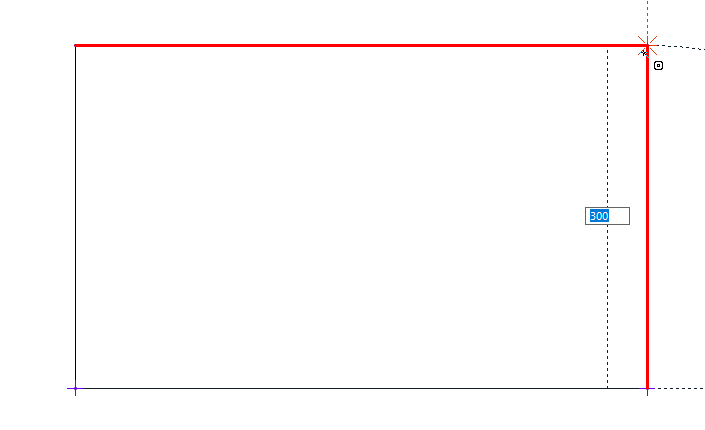

Selecting the third point of the closed polygon

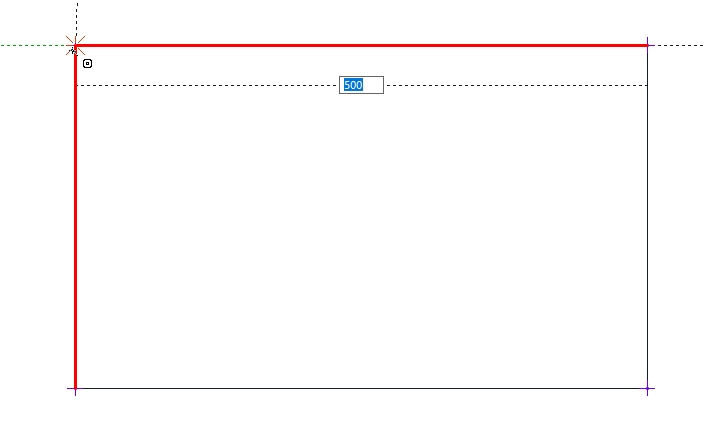

Selecting the fourth point of the closed polygon

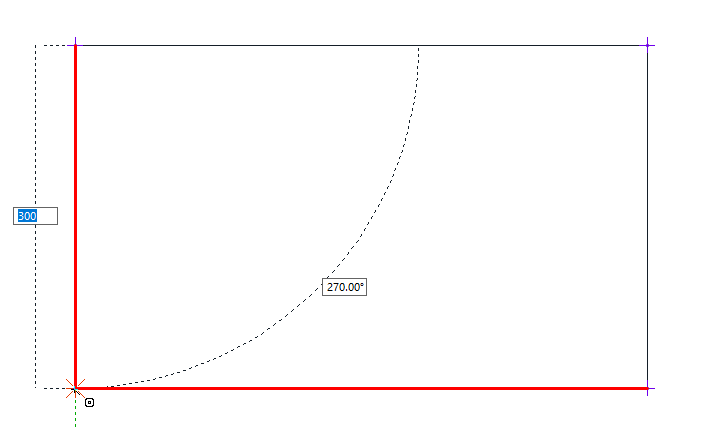

Selecting the first point of the closed polygon again

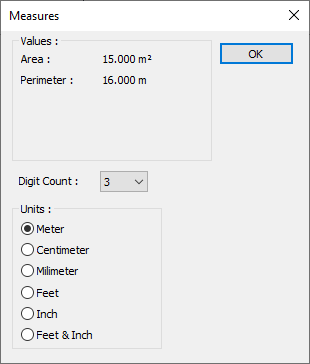

Area and perimeter

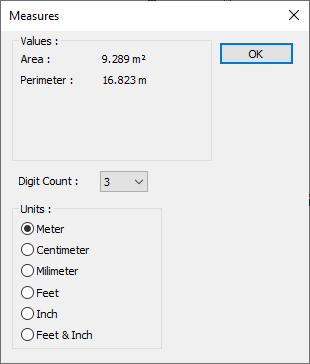

Measures Dialog
Specifications
Area
It is the area value.
Perimeter
It is the perimeter value.
Digit count
Arranges the number of digits after the comma of the given values.
Units
Sets the unit of measure for given values.
Meter : If checked, the unit of information text will be meters. Centimeter : If checked, the unit of the callout will be centimeter. Millimeter : If checked, the unit of callout will be millimeter. Feet : If checked, the unit of callout will be fit. Inch : If checked, the unit of callout will be inches. Feet and Inches : If checked, the unit of callout is feet and inches.
