Define Seismic Isolator | ideCAD Help Center

With the Define Seismic Isolator command, earthquake isolators are defined for vertical carrier elements such as columns and shearwalls.

Location of Define Seismic Isolator Command

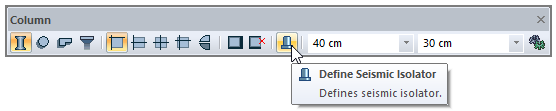

You can access the define seismic isolator command from the column or shearwall toolbars .

Usage Steps

Click the define seismic isolator icon.
Click on the column or shearwall where the isolator is to be defined.
The seismic isolators dialog will appear.
Select one of the isolator type you want to use from the list and define other information as required.
Click the OK button.

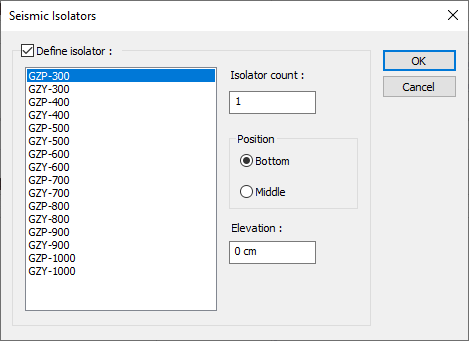

Seismic Isolators Dialogue

Specifications
Define isolator Check this option to activate the isolator definition in the element. Select the isolator from the list. If the option is removed, the definition will not be applied to the element.
Isolator count Give the number of isolator to be used in the element. For rod elements such as columns, 1 may be sufficient, but for long elements such as shearwalls, the number may be more than one. The number of isolator is automatically centered on the element according to the element length.
Position The position of the isolator within the element is given. With the bottom option, the isolator element is placed at its lower end, with defined, at a certain position towards the middle of the isolator element. With defined, the elevation value is given.
Elevation It offsets the isolator from the lower end of the column to the top by the value entered.

Specifications

Define isolator

Check this option to activate the isolator definition in the element. Select the isolator from the list. If the option is removed, the definition will not be applied to the element.

Isolator count

Give the number of isolator to be used in the element. For rod elements such as columns, 1 may be sufficient, but for long elements such as shearwalls, the number may be more than one. The number of isolator is automatically centered on the element according to the element length.

Position

The position of the isolator within the element is given. With the bottom option, the isolator element is placed at its lower end, with defined, at a certain position towards the middle of the isolator element. With defined, the elevation value is given.

Elevation

It offsets the isolator from the lower end of the column to the top by the value entered.

Location of Seismic Isolators Setting

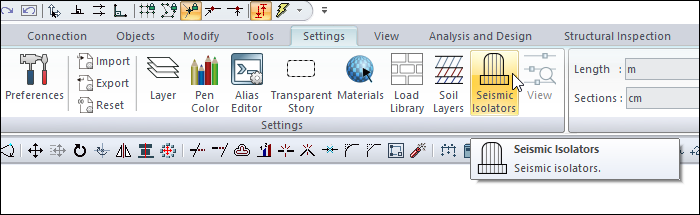

You can access it under the Ribbon menu Settings tab Settings title.

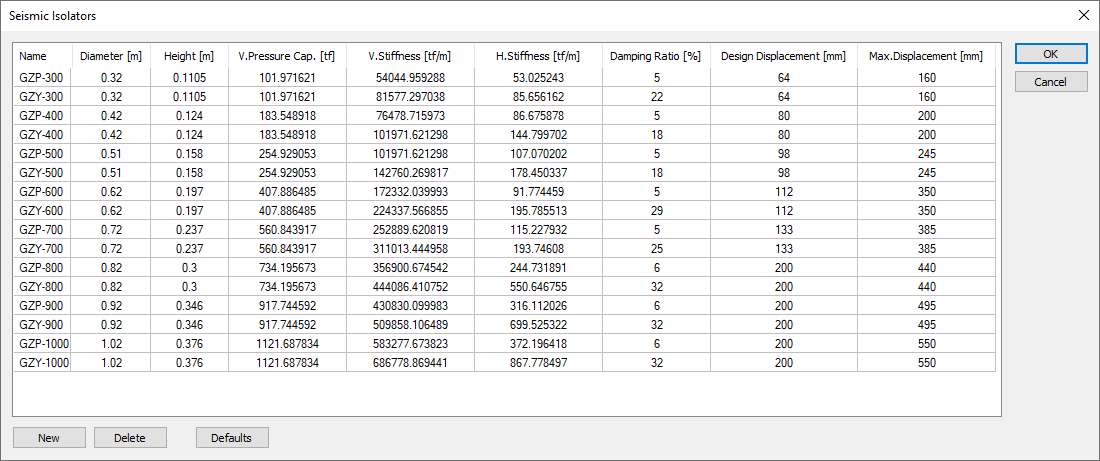

Seismic Isolators Settings

Specifications

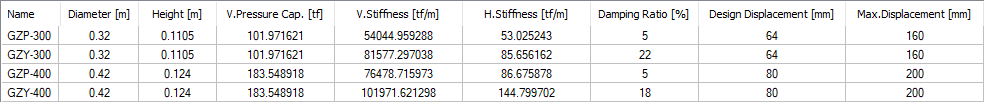

Isolator list Seismic isolator types are listed with their calculation values. Ready-made types are defined as manufacturing by default in the program. New definitions can be made for different isolator types or existing types can be changed.
New Defines a new seismic isolator type.
Delete Deletes the currently selected seismic isolator.
Default Reloads the seismic isolator types available in the program.

Specifications

Isolator list

Seismic isolator types are listed with their calculation values. Ready-made types are defined as manufacturing by default in the program. New definitions can be made for different isolator types or existing types can be changed.

New

Defines a new seismic isolator type.

Delete

Deletes the currently selected seismic isolator.

Default

Reloads the seismic isolator types available in the program.
